te connectivity / alcoswitch

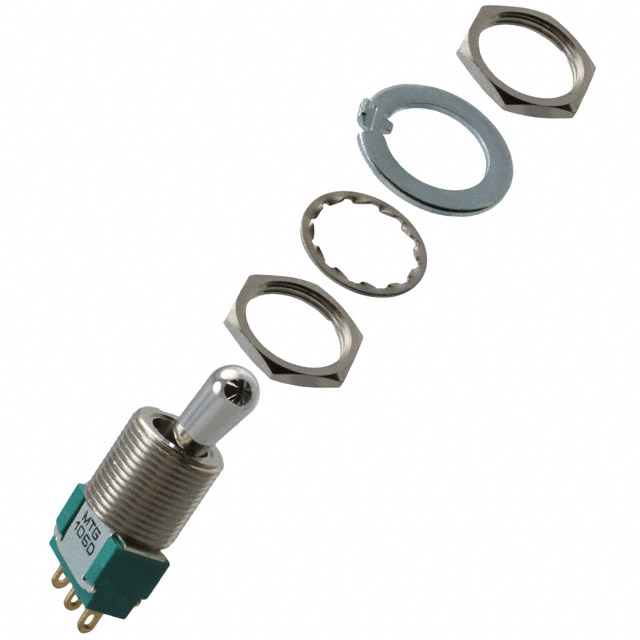

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Switch Configuration | ON None ON |
| Pole Throw Configuration | SPDT |
| Mounting | Panel Mount with Threads |
| Terminal Type | Wire Lug |
| Maximum Current Rating | 6@125VAC A |
| Maximum AC Voltage Rating | 250 V |
| Maximum DC Voltage Rating | 28 V |
| Contact Material | Gold Flash/Silver |
| Mechanical Life | 150000 Cycles |
| Operating Temperature | -20 to 80 °C |
| Standard Package | Bulk |
| Industry Aliases | 1-1437559-1, MTG106D |
| Subcategory | Switch Toggle |
| Lead Time | 101 Days |
| Circuit | SPDT |
| Illumination | Non-Illuminated |
| Switch Function | On-On |
| Current Rating | 6A (AC), 4A (DC) |
| Panel Cutout Dimensions | Circular - 11.94mm Dia |
| Mounting Type | Panel Mount |
| Voltage Rating - AC | 125V |
| Electrical Life | 80,000 Cycles |
| Termination Style | Solder Lug |
| Packaging | Bulk |
| Actuator Type | Standard Round |
| Voltage Rating - DC | 28V |
| Bushing Thread | 15/32-32 |
| Actuator Material | Copper Alloy, Chrome Plated |
| Actuator Length | 11.50mm |
| Features | Epoxy Sealed Terminals |
| rohs | Lead free / RoHS Compliant |
| Contact Configuration | SPDT |
| Contact Current Rating | 4 A, 6 A |
| Contact Resistance | 20mΩ |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -20°C |
| Panel Cut Out Diameter | 0.468in |
| Panel Cut Out Size | 0.468in |
| Switch Operation | (On)-(On) |
| Factory Pack Quantity | 25 |
| Voltage Rating AC | 125 V |
| Product Category | Toggle Switches |
| Terminal Seal | Sealed |
| Series | MTG |
| Contact Form | SPDT |
| Bushing Size | 15/32-32 |
| Mounting Style | Through Hole |
| Contact Plating | Gold Flash over Silver |
| Actuator | Bat |
| Part # Aliases | 1-1437559-1 |
| RoHS | RoHS Compliant |
| Contact Voltage AC Nom | :250V |
| Contact Voltage DC Nom | :28V |
| Contact Current Max | :6A |
| Actuator Style | :Bat |
| Switch Mounting | :Panel |
| Weight (kg) | 0 |
| Tariff No. | 85365080 |
| Application | Industrialmachineryandequipment,militaryandcommercialaviation,constructionequipment,testinstruments,agriculturalmachinery,processcontrol,medicalinstrumentation |
| ContactForm | SPDT |
| Current,Rating | 6Amps |
| DielectricStrength | 1000VAC |
| Material,Actuator | ChromePlatedCopperAlloy |
| Material,Body | Thermoset(94V-0) |
| Material,Contact | GoldFlashOverSilver |
| MountingHoleSize | 0.468In. |
| MountingType | Panel |
| NumberofPoles | 1 |
| NumberofPositions | 2 |
| Operation | On-On |
| Resistance,Contact | 20Milliohms(Max.) |
| Resistance,Insulation | 1000Megohms(Min.)@500VDC(Min.)for1Minute |
| SealType | Epoxy |
| Standards | ULListed |
| Temperature,Operating,Maximum | +80°C |
| Temperature,Operating,Minimum | -20°C |
| Termination | SolderLugs |
| Type | Toggle |
| Voltage,Rating | 125VAC |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | MTG Series Drawing |
| Datasheets | MT Series Toggle Switches |
| Datasheets | TOGGLE SWITCH, MTG SERIES VERTICAL MOUNT |
| Datasheets | 3D PDF |
| Datasheets | 2-1773458-6_GREEN_SERIES_SWITCHES |
