TE Connectivity / Alcoswitch

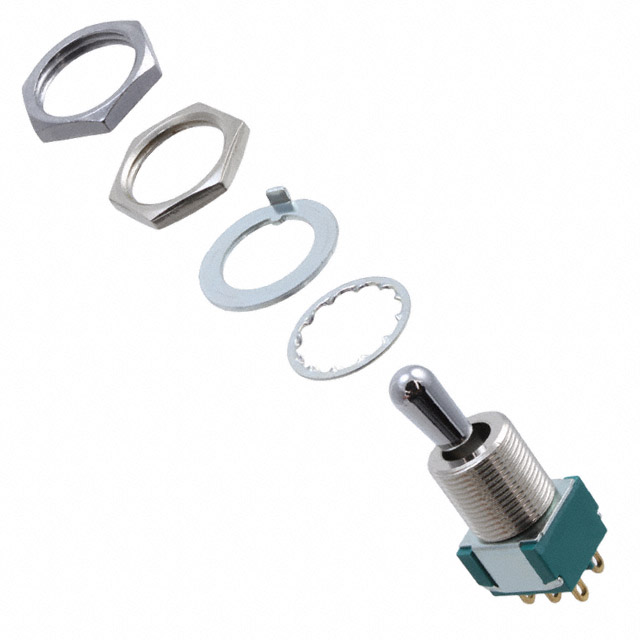

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Industry Aliases | 1-1437559-8, MTG206N |
| Subcategory | Switch Toggle |
| Lead Time | 101 Days |
| Circuit | DPDT |
| Illumination | Non-Illuminated |
| Switch Function | On-On |
| Current Rating | 6A (AC), 4A (DC) |
| Panel Cutout Dimensions | Circular - 11.94mm Dia |
| Mounting Type | Panel Mount |
| Voltage Rating - AC | 125V |
| Electrical Life | 80,000 Cycles |
| Termination Style | Solder Lug |
| Packaging | Bulk |
| Operating Temperature | -20°C ~ 80°C |
| Actuator Type | Standard Round |
| Standard Package | 25 |
| Voltage Rating - DC | 28V |
| Bushing Thread | 15/32-32 |
| Actuator Material | Copper Alloy, Chrome Plated |
| Actuator Length | 11.50mm |
| Features | Epoxy Sealed Terminals |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 25 |
| Voltage Rating AC | 125 V |
| Product Category | Toggle Switches |
| Terminal Seal | Sealed |
| Series | MTG |
| Contact Form | DPDT |
| Bushing Size | 15/32-32 |
| Mounting Style | Through Hole |
| Contact Plating | Gold Flash over Silver |
| Actuator | Bat |
| Part # Aliases | 1-1437559-8 |
| RoHS | RoHS Compliant |
| ActuatorType | Bat |
| ContactForm | DPDT |
| Current,Rating | 6Amps |
| DielectricStrength | 1000VAC |
| Material,Actuator | ChromePlatedCopperAlloy |
| Material,Body | Thermoset |
| Material,Contact | GoldFlashoverSilver |
| MountingHoleSize | 0.468In. |
| MountingType | Panel |
| NumberofPoles | 2 |
| NumberofPositions | 2 |
| Operation | OnOn |
| Resistance,Contact | 20Milliohms(Max.) |
| Resistance,Insulation | 1000Megohms(Min.)@500VDC |
| SealType | Epoxy |
| Temperature,Operating,Maximum | +80°C |
| Temperature,Operating,Minimum | -20°C |
| Termination | SolderLugs |
| Type | Toggle |
| Voltage,Rating | 250VAC |
| 系列 | MTG Green, Alcoswitch |
| 端接样式 | Solder Lug |
| 衬套螺纹 | 15/32-32 |
| 致动器长度 | 11.50mm |
| 开关功能 | On-On |
| 额定电压 - 交流 | 125V |
| 电路 | DPDT |
| 额定电流 | 6A (AC), 4A (DC) |
| 装配类型 | Panel Mount |
| 照明 | Non-Illuminated |
| 致动器类型 | Standard Round |
| 额定电压 - 直流 | 28V |
| 面板开口尺寸 | Circular - 11.94mm Dia |
| トグルのスタイル | 短棒 |
| プロセス密閉 | 否 |
| 绝缘电阻 (MΩ) | 1000 |
| 端子基材 | 铜合金 |
| 端子のめっき | 银打底镀金, 银打底镀金 |
| UL 易燃性等级 | UL 94V-0 |
| 颜色 | 绿色 |
| 絶縁耐力 (VAC) | 1500 |
| 接触抵抗 (mΩ) | 10 |
| 开关类型 | 切换 |
| 安装类型 | 面板 |
| UL/CSA 定格電流 (250V) (A) | 3 |
| 产品类型 | 开关 |
| ブッシングねじ山のサイズ | 15/32-32 |
| 端子电流额定值 (A) | 6 |
| UL/CSA 定格電流 (125V) (A) | 6 |
| 端接类型 | 垂直, 线耳 |
| 密封类型 | 端子密封件（嵌件模压） |
| トグル長 | 11.48 mm [ .452 in ] |
| 密封 | 是 |
| トグルの作動 | 垂直 |
| 動作機能 | 开无开 |
| 構成（Pole-Throw) | 双极 - 双掷 |
| 致动器表面涂层 | 铬 |
| 注释 | 订购时可选择美国安全检测实验室公司 - 咨询工厂。 |
| 额定电压 | 125 VAC |
| ブッシングのスタイル | 螺纹 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | MTG Series Drawing |
| Datasheets | MT Series Toggle Switches |
| Datasheets | TOGGLE SWITCH, MTG SERIES VERTICAL MOUNT |
| Datasheets | 3D PDF |
| Datasheets | 2-1773458-6_GREEN_SERIES_SWITCHES |
