Manufacturer Part Number:

ACM2012-201-2P-T002

OneIC Part Number:

367-ACM2012-201-2P-T002

Manufacturer:

tdk

Description:

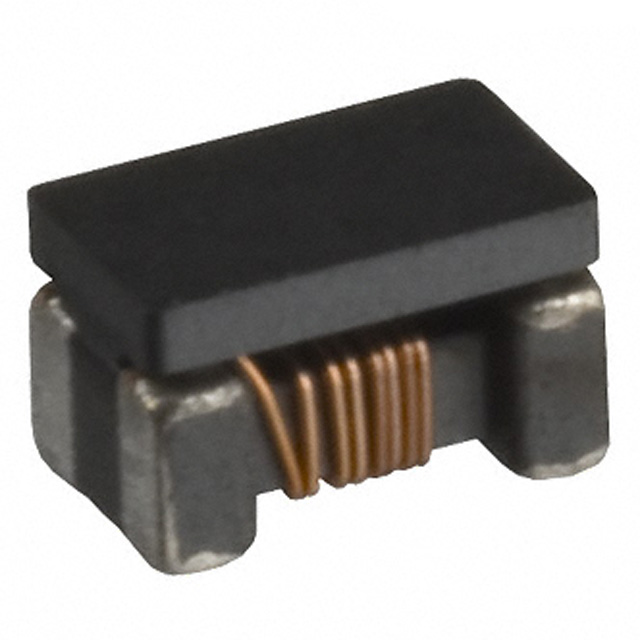

COMMON MODE FILTER FOR SIGNAL LINE

Customer Reference:

Datasheet:

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Maximum DC Resistance	250m
Product Length	2.2
EU RoHS	Compliant
Maximum Operating Temperature	85
Maximum DC Current	350m
Voltage Rating	50VDC
Product Depth	1.4
Mounting	Surface Mount
Number of Lines	2
Product Height	1.3
Packaging	Tape and Reel
Impedance	200
Test Frequency	100M
Minimum Operating Temperature	-40
Configuration	Dual
Type	Signal Line
Subcategory	Common Mode Chokes
Lead Time	70 Days
Current	350mA
Filter Type	Data, Signal Line
DC Resistance (DCR)	250 mOhm Max
Height (Max)	0.051" (1.30mm)
Standard Package	2,000
Size / Dimension	0.079" L x 0.047" W (2.00mm x 1.20mm)
Operating Temperature	-40°C ~ 85°C
Impedance	200 Ohm
Mounting Type	Surface Mount
Package/Case	Horizontal, 4 PC Pad
rohs	Lead free / RoHS Compliant
Other Names	445-2209-1
Maximum DC Resistance	250 mOhms
Product	Common Mode Filters
Dimensions	1.2 mm W x 2 mm L x 0.8 mm H
Operating Temperature Range	- 25 C to + 85 C
Maximum DC Current	350 mA
Series	ACM
Termination Style	SMD/SMT
Case Length	2 mm
Test Frequency	100 MHz
Case Height	0.8 mm
Case Width	1.2 mm
RoHS	RoHS Compliant
系列	ACM
线路数	2
直流电阻 (DCR)	250 mOhm Max
操作温度	-40°C ~ 85°C
高度（最大值）	0.051" (1.30mm)
阻抗	200 Ohm
大小/尺寸	0.079" L x 0.047" W (2.00mm x 1.20mm)
滤波器类型	Data, Signal Line
电流	350mA
Current I	350 mA
T(A)min	-40 °C
DCR	0.25 Ohm
Width	1.2 mm
Design size	0805 Inch
T(A)max	85 °C
Length	2 mm
Automotive	NO
Enclosure type	OPEN
Height	1.3 mm
Technology	WIREWOUND
Leadfree Defin	RoHS-conform

Documents & Media

RESOURCE TYPE	LINK
Datasheets	ACM(2012,2520) Series, General Signal Line
