Manufacturer Part Number:

MLK1005S6N8D

OneIC Part Number:

367-MLK1005S6N8D

Manufacturer:

tdk

Description:

Ind High Frequency Multi-Layer 6.8nH 0.5nH 100MHz 7Q-Factor 400mA 0402

Customer Reference:

Datasheet:

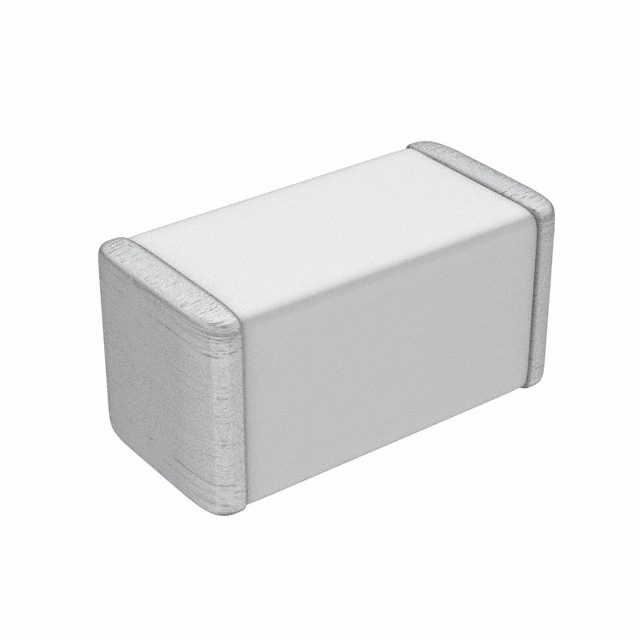

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Package/Case	0402
Type	High Frequency
Inductance	6.8 nH
Maximum DC Current	400 mA
Tolerance	0.5 nH
Maximum DC Resistance	350 mOhm
Minimum Quality Factor	7@100MHz
Product Height	0.6 mm
Standard Package	Tape & Reel
Subcategory	Inductor Surface Mount
Lead Time	112 Days
Packaging	Tape & Reel (TR)
Current Rating	400mA
DC Resistance (DCR)	350 mOhm Max
Height - Seated (Max)	0.024" (0.60mm)
Material - Core	Ceramic
Frequency - Self Resonant	5.5GHz
Shielding	Unshielded
Supplier Device Package	0402 (1005 Metric)
Size / Dimension	0.039" L x 0.020" W (1.00mm x 0.50mm)
Operating Temperature	-55°C ~ 125°C
Mounting Type	Surface Mount
Q @ Freq	7 @ 100MHz
Frequency - Test	100MHz
Other Names	445-1465-2
rohs	Lead free / RoHS Compliant
Factory Pack Quantity	10000
Dimensions	0.5 mm W x 1 mm L x 0.5 mm H
Termination Style	SMD/SMT
Package / Case	0402 (1005 metric)
Product	High Frequency Inductors
Product Category	Fixed Inductors
Unit Weight	0.000035 oz
Self Resonant Frequency	6.3 GHz
Case Length	1 mm
Operating Temperature Range	- 55 C to + 125 C
Q Minimum	24
Case Height	0.5 mm
RoHS	RoHS Compliant
Series	MLK
Test Frequency	100 MHz
Case Width	0.5 mm
Product Range	:TDK - MLK Series
Inductance Tolerance	:± 5%
Inductor Case Style	:0402 [1005 Metric]
Self Resonant Frequency Min	:5.5GHz
DC Resistance Max	:0.35ohm
DC Current Rating	:400mA
Inductor Construction	:Multilayer
SVHC	:No SVHC (20-Jun-2013)
Weight (kg)	0.000001
Tariff No.	85045020
