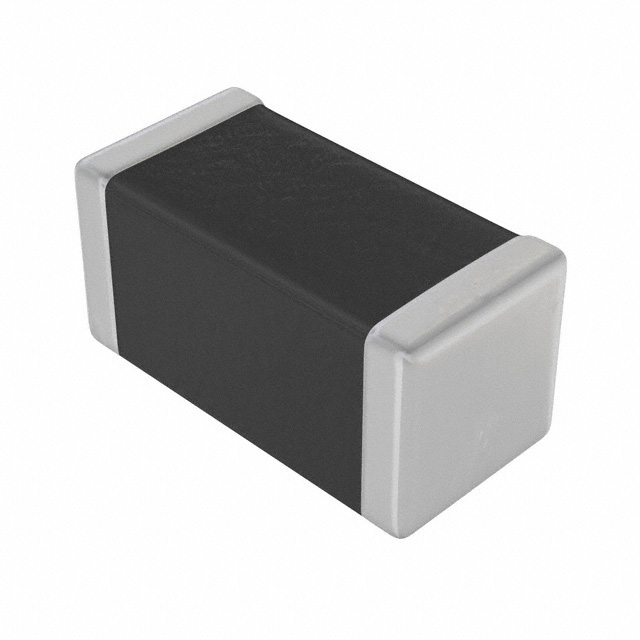

Thumbnail (MMZ,MPZ)1005 Series Footprint

Manufacturer Part Number:

MMZ1005S601C

OneIC Part Number:

367-MMZ1005S601C

Manufacturer:

tdk

Description:

FERRITE CHIP BEADS

Customer Reference:

Datasheet:

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Maximum DC Resistance	600m
Product Length	1.05
EU RoHS	Compliant
Maximum Operating Temperature	125
Maximum DC Current	300m
Product Depth	0.55
Type	Multi-Layer Chip Bead
Product Height	0.55
Impedance	600
Case Size	0402
Test Frequency	100M
Minimum Operating Temperature	-55
Tolerance	25%
Unit Pack	10000
MOQ	10000
Subcategory	Ferrite Beads
Lead Time	70 Days
Packaging	Tape & Reel (TR)
Filter Type	Differential Mode - Single
Current Rating	300mA
DC Resistance (DCR)	600 mOhm Max
Height (Max)	0.022" (0.55mm)
Size / Dimension	0.039" L x 0.020" W (1.00mm x 0.50mm)
Standard Package	10,000
Mounting Type	Surface Mount
Impedance @ Frequency	600 Ohm @ 100MHz
Package/Case	0402 (1005 Metric)
rohs	Lead free / RoHS Compliant
Other Names	445-2162-1
Factory Pack Quantity	10000
Product	Ferrite Chip Beads
Product Category	EMI Filter Beads, Chips & Arrays
Dimensions	0.5 mm W x 1 mm L x 0.5 mm H
Operating Temperature Range	- 55 C to + 125 C
Maximum DC Resistance	600 mOhms
Series	MMZ
Termination Style	SMD/SMT
Maximum DC Current	300 mA
Case Length	1 mm
Test Frequency	100 MHz
Case Height	0.5 mm
Package / Case	0402 (1005 metric)
Impedance	600 Ohms
Case Width	0.5 mm
RoHS	RoHS Compliant
Operating Temp Range	-55C to 125C
Rad Hardened	No
Failure Rate	Not Required
Case Size (Inches)	0402
Tolerance (+ or -)	25%
Inductance	Not Required uH
Core Material	Ferrite
Military Standard	Not Required
Product Length (mm)	1 mm
Product Depth (mm)	0.55 mm
Product Height (mm)	0.55 mm
DC Current	300 mA
DC Resistance	0.6 ohm
Product Diameter (mm)	Not Required mm
Ferrite Case Style	:0402 ^1005 Metric]
Ferrite Mounting	:SMD
Impedance Tolerance	:± 25%
DC Current Rating	:300mA
DC Resistance Max	:0.52ohm
Weight (kg)	0
Tariff No.	85049011
Impedance @ 100MHz	:600ohm
SVHC	:No SVHC (20-Jun-2013)
Resistance	:0.6ohm
