Manufacturer Part Number:

ZCAT2017-0930-BK

OneIC Part Number:

367-ZCAT2017-0930-BK

Manufacturer:

tdk

Description:

Ferrite Core Clamp Core 21mm 20mm General Application

Customer Reference:

Datasheet:

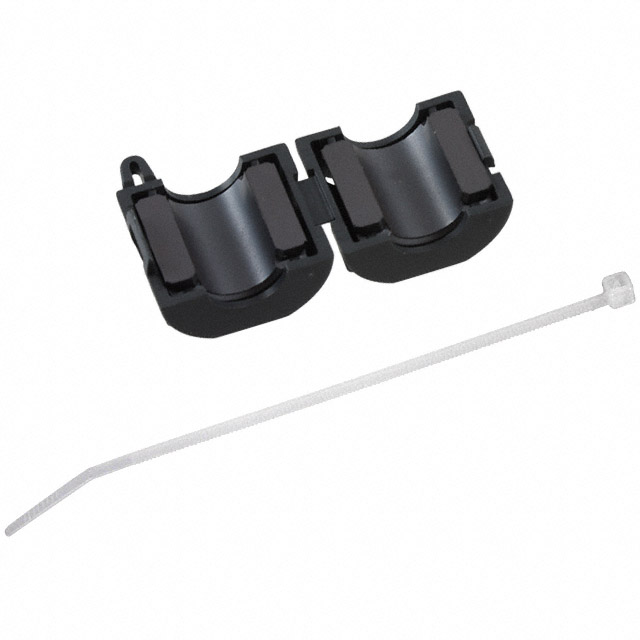

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Type	Clamp Core
Product Diameter	20 mm
Product Length	21 mm
Applications	General Application
Family	ZCAT
Standard Package	Tape & Reel
Unit Pack	640
MOQ	640
Subcategory	Ferrite Core
Lead Time	84 Days
Mounting Type	Chassis
Outer Dimension	0.787" Dia (20.00mm)
Inner Dimension	0.354" Dia (9.00mm)
Test Frequency	50MHz
Length	0.826" L (21.00mm)
Design	Hinged (Snap On)
Impedance	20 Ohm
rohs	Lead free / RoHS Compliant
Factory Pack Quantity	640
Product Category	Ferrite Clamp On Cores
Operating Temperature Range	- 40 C to + 85 C
Inside Diameter	9.1 mm
Packaging	Tray
Outside Length	17 mm
Shape	Round
Outside Diameter	20 mm
Product Type	Cable Single
RoHS	RoHS Compliant
Frequency Min	:50MHz
Frequency Max	:500MHz
Cable Diameter Max	:9mm
Ferrite Mounting	:Split Core
Series	:ZCAT
Weight (kg)	0
Tariff No.	85415000
SVHC	:No SVHC (20-Jun-2013)

Documents & Media

RESOURCE TYPE	LINK
Datasheets	ZCAT Series
