Manufacturer Part Number:

BTA25-800BW

OneIC Part Number:

390-BTA25-800BW

Manufacturer:

stmicroelectronics

Description:

Thyristor TRIAC 800V 260A 3-Pin RD-91

Customer Reference:

Datasheet:

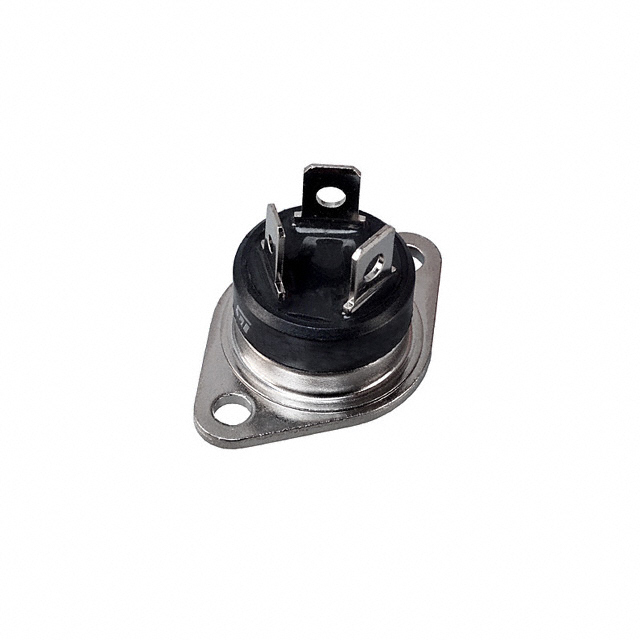

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Package	3RD-91
Type	TRIAC
Repetitive Peak Reverse Voltage	800 V
Maximum Holding Current	75 mA
Surge Current Rating	260 A
Peak On-State Voltage	1.55@35A V
Repetitive Peak Off-State Current	0.005 mA
Maximum Gate Trigger Voltage	1.3 V
Maximum Gate Trigger Current	50 mA
Operating Temperature	-40 to 125 °C
Mounting	Through Hole
Standard Package	Bag
Supplier Package	RD-91
Standard Package Name	RD-91
Repetitive Peak Reverse Voltage	800
Maximum Operating Temperature	125
Maximum Holding Current	75
Repetitive Peak Off-State Current	0.005
Surge Current Rating	260
Maximum Gate Trigger Voltage	1.3
Repetitive Peak Forward Blocking Voltage	800
Package Height	14(Max)
EU RoHS	Compliant
Package Width	27(Max)
Peak On-State Voltage	1.55@35A
PCB	3
Package Length	40(Max)
Minimum Operating Temperature	-40
Operating Junction Temperature	-40 to 125
Pin Count	3
Maximum Gate Trigger Current	50
Matchcode	BTA25-800BW
Unit Pack	25
Standard Leadtime	14 weeks
MOQ	25
I(GT) max	50mA
Tab voltage	INSULATED
I (TRMS) eff	25A
U(RRM)	800V
Automotive	NO
Leadfree Defin.	RoHS-conform
rohs	Lead free / RoHS Compliant
Factory Pack Quantity	25
Product Category	Triacs
Rated Repetitive Off-State Voltage VDRM	600 V
Off-State Leakage Current @ VDRM IDRM	5 uA
Series	BTA25
Packaging	Bulk
Mounting Style	Through Hole
Non Repetitive On-State Current	260 A
Gate Trigger Current	50 mA
Package / Case	RD-91
On-State Voltage	1.55 V
RoHS	RoHS Compliant
Gate Trigger Voltage	1.3 V
Operating Temp Range	-40C to 125C
Package Type	RD-91
Peak Surge on-state current (Max)	260 A
Peak Repeat Off Current	0.005
Repetitive Peak off-state volt	800 V
Off-State Voltage	800 V
Operating Temperature Classification	Automotive
On State Voltage(max)	1.55@35A V
Hold Current	75 mA
Rad Hardened	No
Case	RD91
Gate current	50mA
Gross weight	0.02 kg
Load current max	25A
Type of semiconductor component	triac
Multiplicity	1
Slew rate	1kV/μs
Off state voltage max	800V
Collective package [pcs]	25
spg	25
