stmicroelectronics

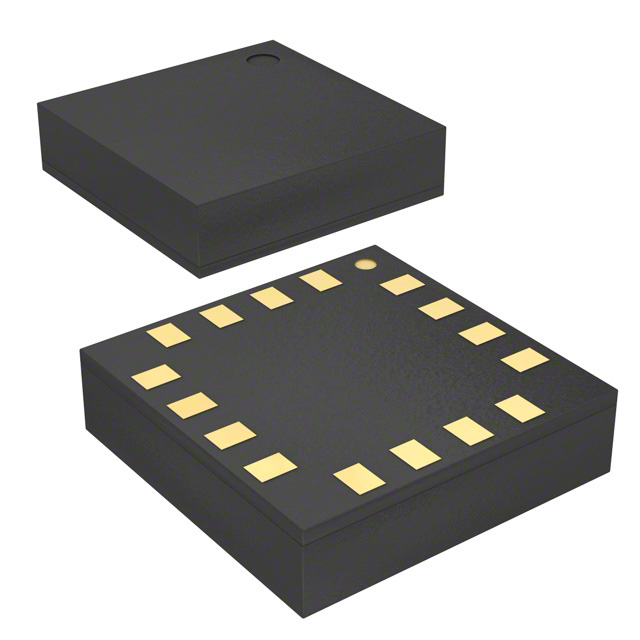

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Package | 16LGA |
| Family | L3GD20 |
| Standard Package | Tape & Reel |
| Supplier Package | LGA |
| Standard Package Name | LGA |
| Typical Angular Rate Noise Density | 0.03 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 85 |
| Minimum Operating Temperature | -40 |
| Maximum Operating Supply Current | No |
| Mounting | Surface Mount |
| Typical Angular Velocity | ±2000 |
| Packaging | 3 |
| Package Height | 1(Max) |
| Technology | MEMS |
| Package Width | 4 |
| PCB | 16 |
| Package Length | 4 |
| Maximum Operating Supply Voltage | 3.6 |
| Axis Type | Triple |
| Pin Count | 16 |
| Sensitivity | 8.75 mdps/digit, 17.5 mdps/digit, 70 mdps/digit |
| Range °/s | ±250°/s, ±500°/s, ±2000°/s |
| Supplier Device Package | 16-LGA (4x4) |
| Output Type | Digital - SPI, I²C |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 6.1mA |
| Voltage - Supply | 2.4 V ~ 3.6 V |
| Package / Case | 16-VFLGA |
| Other Names | 497-12081-2 |
| rohs | Lead free / RoHS Compliant |
| DELETED | Compliant |
| 范围 °/s | ±250°/s, ±500°/s, ±2000°/s |
| 供应商器件封装 | 16-LGA (4x4) |
| 操作温度 | -40°C ~ 85°C |
| 电压 - 电源 | 2.4 V ~ 3.6 V |
| 封装/外壳 | 16-VFLGA |
| 输出类型 | Digital - SPI, I²C |
| 电流 - 电源 | 6.1mA |
| 灵敏度 | 8.75 mdps/digit, 17.5 mdps/digit, 70 mdps/digit |
| Noise | 0.03dps/√Hz |
| 工作电源电压范围 | 2.4 → 3.6 V |
| 最高工作温度 | +85 °C |
| 轴数目 | 3 |
| 引脚数目 | 16 |
| 安装类型 | 表面贴装 |
| 技术 | 数字 |
| 最低工作温度 | -40 °C |
| 高度 | 0.79mm |
| 工作温度范围 | -40 → +85 °C |
| 接口类型 | I2C, SPI |
| 宽度 | 4.15mm |
| 封装类型 | LGA |
| 最大工作电源电压 | 3.6 V |
| 长度 | 4.15mm |
| 最小工作电源电压 | 2.4 V |
| 尺寸 | 4.15 x 4.15 x 0.79mm |
| FS | MEMS |
| Vcc(min) | 2.4 V |
| Top(max) | 85 °C |
| Noise density | 17.5 mg/LSB |
| Icc(min) | 1.71 µA |
| Vcc(max) | 3.6 V |
| Interface | 16 bits |
| Top(min) | -40 °C |
| Footprint | 16 mm² |
| Automotive | NO |
| Zero rate offse | 0.03 µg/rtHz |
| Leadfree Defin | RoHS-conform |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | L3GD20 |
