stmicroelectronics

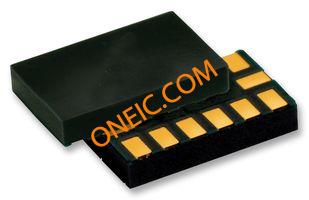

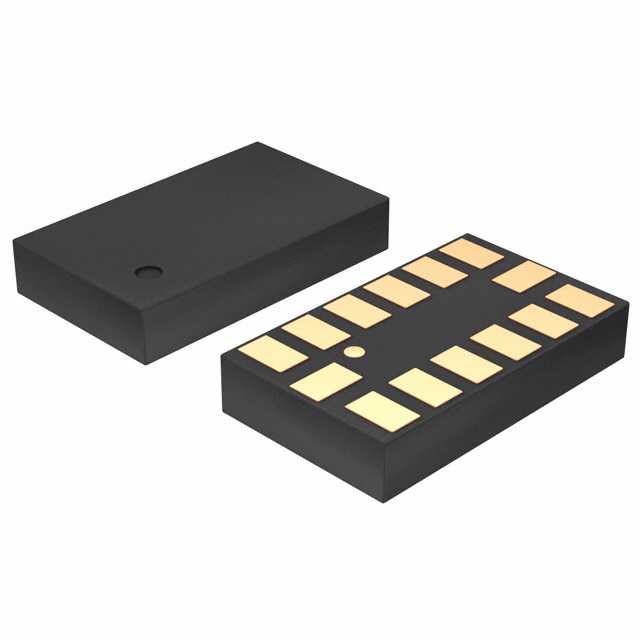

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Package | 14LGA |
| Acceleration | ±2/±4/±8/±12 g |
| Axis Type | Triple |
| Operating Supply Voltage | 2.16 to 3.6 V |
| Mounting | Surface Mount |
| Operating Temperature | -40 to 85 °C |
| Standard Package | Trays |
| Typical Operating Supply Voltage | 2.5|3.3 |
| Standard Package Name | LGA |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 85 |
| Minimum Operating Temperature | -40 |
| Package Height | 1(Max) |
| Packaging | Tray |
| PCB | 14 |
| Acceleration | ±2/±4/±8/±12 |
| Minimum Operating Supply Voltage | 2.16 |
| Package Width | 3 |
| Screening Level | Extended |
| Supplier Package | LGA |
| Package Length | 5 |
| Maximum Operating Supply Voltage | 3.6 |
| Pin Count | 14 |
| Lead Shape | No Lead |
| Sensor Type | Accelerometer and Magnetometer |
| Output Type | Digital |
| rohs | Lead free / RoHS Compliant |
| Package Type | LGA |
| Operating Temperature (Max) | 85C |
| Operating Temperature (Min) | -40C |
| Operating Temperature Classification | Industrial |
| Rad Hardened | No |
| Operating Supply Voltage (Typ) | 2.5/3.3 V |
| Operating Supply Voltage (Min) | 2.16 V |
| Operating Supply Voltage (Max) | 3.6 V |
| Product Length (mm) | 5 mm |
| Product Depth (mm) | 3 mm |
| Product Height (mm) | 1 mm |
| Supply Voltage Min | :2.16V |
| Supply Voltage Max | :3.6V |
| Sensor Case Style | :LGA |
| No. of Pins | :14 |
| Acceleration Range | :± 2g, ± 4g, ± 8g, ± 16g |
| MSL | :MSL 3 - 168 hours |
| SVHC | :No SVHC (20-Jun-2013) |
| Operating Temperature Max | :85°C |
| Operating Temperature Min | :-40°C |
| Operating Temperature Range | :-40°C to +85°C |
| Supply Voltage Range | :2.16V to 3.6V |
| Weight (kg) | 0.0011 |
| Tariff No. | 85423990 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | LSM303DLHC Preliminary |
