stmicroelectronics

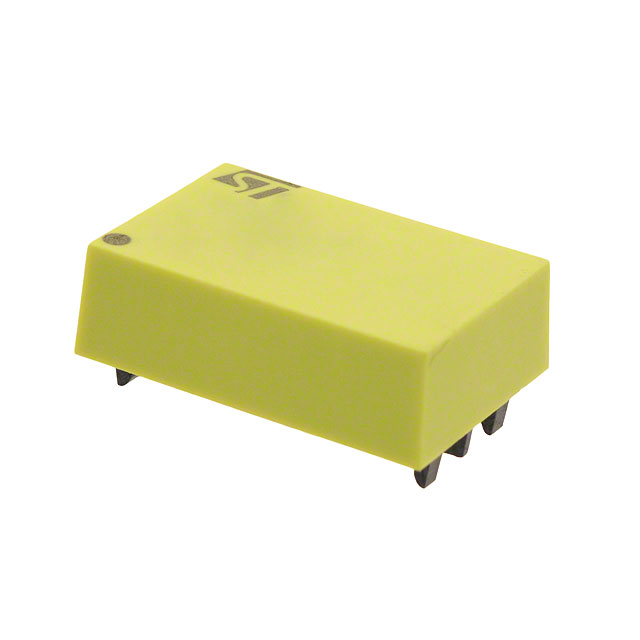

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Package | 4SNAPHAT |
| Operating Temperature | 0 to 70 °C |
| Standard Package | Rail / Tube |
| Supplier Package | SNAPHAT |
| Standard Package Name | SNAPHAT |
| EU RoHS | Compliant |
| Package Height | 6.99(Max) |
| Mounting | Through Hole |
| Package Width | 14.99(Max) |
| PCB | 4 |
| Package Length | 21.84(Max) |
| Pin Count | 4 |
| Matchcode | M4T28-BR12SH1 |
| Unit Pack | 23 |
| Standard Leadtime | 15 weeks |
| MOQ | 1 |
| Permis.T(A) min | 0°C |
| Number of cells | 1 |
| Packaging | TUBE |
| Leadfree Defin. | RoHS-conform |
| Permis.T(A) max | 70°C |
| Automotive | NO |
| Type | BATTERY |
| U(cc) | 3.0V |
| rohs | Lead free / RoHS Compliant |
| Battery Type | Lithium |
| Dimensions | 21.84 x 14.99 x 6.48mm |
| Height | 6.48mm |
| Length | 21.84mm |
| Maximum Operating Temperature | +70 °C |
| Minimum Operating Temperature | 0 °C |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Typical Operating Supply Voltage | 2.8 V |
| Width | 14.99mm |
| Operating Supply Voltage | 0 V to 2.8 V |
| Product Category | Battery Management |
| Factory Pack Quantity | 23 |
| Mounting Style | SMD/SMT |
| Package / Case | SOIC-28 |
| RoHS | Not Applicable |
| Operating Temperature (Max) | 70C |
| Operating Temperature (Min) | 0C |
| Screening Level | Commercial |
| Rad Hardened | No |
| Battery Capacity | :48mAh |
| Oscillator Frequency | :32.768kHz |
| Digital IC Case Style | :SNAPHAT |
| No. of Pins | :4 |
| Load Capacitance | :12.5pF |
| Operating Temperature Min | :0°C |
| Operating Temperature Max | :70°C |
| MSL | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :4 |
| Brief Features | :Provides Battery Backup Power for Non Volatile Timekeepers and Controllers |
| IC Function | :Timekeeper (Battery & Crystal) |
| No. of Channels | :1 |
| Operating Temperature Range | :0°C to +70°C |
| Supply Voltage Max | :2.8V |
| Supply Voltage Range | :2.8V |
| Termination Type | :SMD |
| Weight (kg) | 0.11 |
| Tariff No. | 85411000 |
| Capacity | 48mAh |
| Multiplicity | 1 |
| Gross weight | 4.93 g |
| Application | for M48 memories |
| Rated voltage | 2.8V |
| Battery type | lithium |
| Collective package [pcs] | 23 |
| spg | 23 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | M4T(28,32)-BR12SH |
