stmicroelectronics

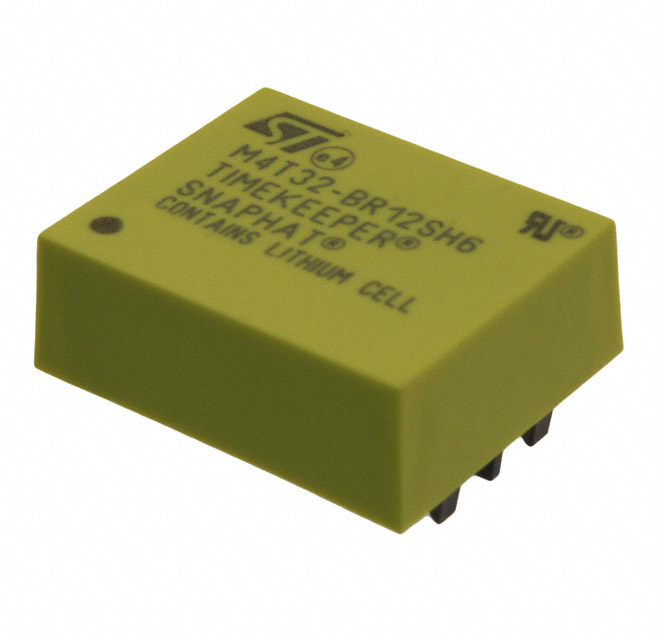

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Package | 4SNAPHAT |
| Operating Temperature | -40 to 85 °C |
| Standard Package | Rail / Tube |
| Supplier Package | SNAPHAT |
| Standard Package Name | SNAPHAT |
| EU RoHS | Compliant |
| Package Height | 6.99(Max) |
| Mounting | Through Hole |
| Package Width | 14.99(Max) |
| PCB | 4 |
| Package Length | 21.84(Max) |
| Pin Count | 4 |
| Matchcode | M4T32-BR12SH6 |
| Unit Pack | 23 |
| Standard Leadtime | 15 weeks |
| MOQ | 23 |
| Permis.T(A) min | -40°C |
| Number of cells | 1 |
| Packaging | TUBE |
| Leadfree Defin. | RoHS-conform |
| Permis.T(A) max | 85°C |
| Automotive | NO |
| Type | BATTERY |
| U(cc) | 3.0V |
| rohs | Lead free / RoHS Compliant |
| Battery Type | Lithium-CF |
| Dimensions | 21.84 x 18.03 x 8.51mm |
| Height | 8.51mm |
| Length | 21.84mm |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Through Hole |
| Package Type | SNAPHAT |
| Typical Operating Supply Voltage | 3 V |
| Width | 18.03mm |
| Operating Supply Voltage | 0 V to 2.8 V |
| Product Category | Battery Management |
| Factory Pack Quantity | 23 |
| Mounting Style | SMD/SMT |
| Package / Case | SOIC-28 |
| RoHS | RoHS Compliant |
| Operating Temperature (Max) | 85C |
| Operating Temperature (Min) | -40C |
| Screening Level | Industrial |
| Rad Hardened | No |
| Battery Size Code | :- |
| Battery Capacity | :120mAh |
| Battery Voltage | :2.8V |
| Battery Technology | :Lithium Polymer |
| Battery Terminals | :Pressure Contact |
| External Height | :10.54mm |
| External Width | :18.03mm |
| External Depth | :21.84mm |
| Weight | :1.8g |
| Battery IEC Code | :- |
| Battery NEDA Code | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :4 |
| Depth | :21.84mm |
| External Length / Height | :10.54mm |
| Lead Diameter | :0.56mm |
| Lead Length | :2.29mm |
| No. of Pins | :4 |
| Operating Temperature Max | :85°C |
| Operating Temperature Min | :-40°C |
| Output Voltage | :2.8V |
| Terminal Type | :SNAPHAT |
| Termination Type | :SMD |
| UN Hazard Code | 3091 |
| Weight (kg) | 0.002 |
| Tariff No. | 85423190 |
| Capacity | 120mAh |
| ChemicalSystem | LithiumPoly-Carbonmonoflouride |
| PrimaryType | Pack |
| Size | Cylindrical |
| Standards | ULRecognized |
| Temperature,Operating | -40to+85°C |
| Temperature,Operating,Maximum | 85°C |
| Temperature,Operating,Minimum | -40°C |
| Termination | Snap-On |
| Voltage,Battery | 3V |
| Voltage,Rating | 3V |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | M4T(28,32)-BR12SH |
