Manufacturer Part Number:

SPMD150STP

OneIC Part Number:

390-SPMD150STP

Manufacturer:

STMicroelectronics

Description:

Stepper Motor Driver 19-Pin

Customer Reference:

Datasheet:

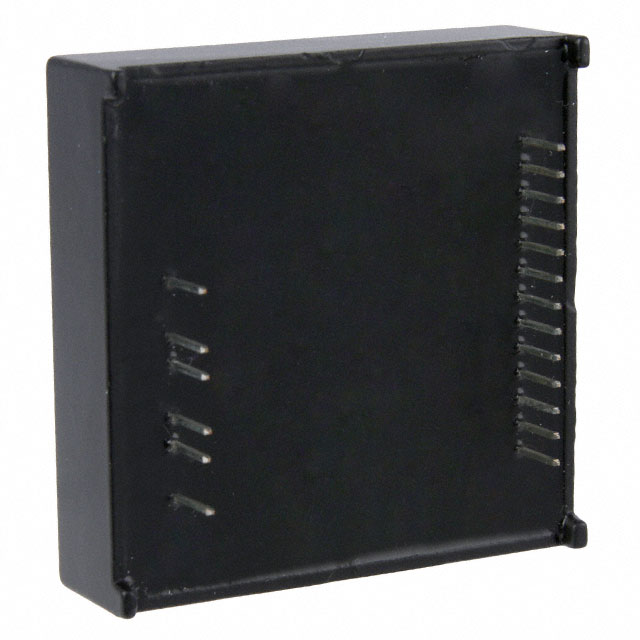

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
EU RoHS	Compliant
Maximum Operating Temperature	85
Package Height	14.7
Type	Stepper Motor Driver
Maximum Operating Supply Voltage	42
Package Width	50.8
PCB	19
Package Length	50.8
Minimum Operating Temperature	-40
Minimum Operating Supply Voltage	10
Pin Count	19
Voltage - Load	10 V ~ 42 V
Termination Style	PC Pin
Size / Dimension	2.00" L x 2.00" W (50.8mm x 50.8mm)
Current - Output	1.5A
Voltage - Supply	3 V ~ 5.25 V
Standard Package	1
Interface	Logic
Number of Motors	1
Other Names	497-10065
rohs	Lead free / RoHS Compliant
Operating Supply Voltage	50 V
Mounting Style	SMD/SMT
Product	Stepper Motor Controllers / Drivers
Product Category	Motor / Motion / Ignition Controllers & Drivers
Output Current	1.5 A
Packaging	Bulk
Supply Current	1.5 A
RoHS	No
电压 - 负载	10 V ~ 42 V
系列	EASY POWER™
电流 - 输出	1.5A
电压 - 电源	3 V ~ 5.25 V
大小/尺寸	2.00" L x 2.00" W (50.8mm x 50.8mm)
类型	Stepper, Bipolar
电机数	1

Documents & Media

RESOURCE TYPE	LINK
Datasheets	SPMD150STP
