STMicroelectronics

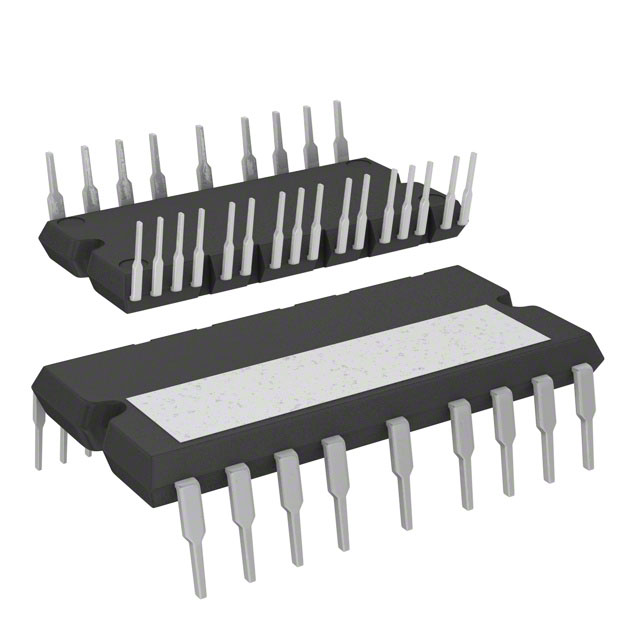

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Standard Package Name | PDIP |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 150 |
| Package Height | 5.8(Max) |
| Mounting | Through Hole |
| Packaging | Tube |
| PCB | 25 |
| Package Width | 22.4(Max) |
| Supplier Package | SDIP |
| Package Length | 44.8(Max) |
| Minimum Operating Temperature | -40 |
| Pin Count | 25 |
| Unit Pack | 11 |
| MOQ | 132 |
| Voltage - Isolation | 2500Vrms |
| Package / Case | 25-DIP Module |
| Current | 10A |
| Voltage | 600V |
| Standard Package | 11 |
| Configuration | 3 Phase Inverter |
| Type | IGBT |
| Other Names | 497-12250 |
| rohs | Lead free / RoHS Compliant |
| Mounting Style | Through Hole |
| Product | Driver ICs - Various |
| Product Category | Gate Drivers |
| Output Current | 10 A |
| Maximum Power Dissipation | 33 W |
| Supply Voltage - Max | 18 V |
| Minimum Operating Temperature | - 40 C |
| Supply Current | 3.5 mA |
| Supply Voltage - Min | 13.5 V |
| Maximum Operating Temperature | + 150 C |
| RoHS | RoHS Compliant |
| Operating Temperature (Max) | 150C |
| Operating Temperature (Min) | -40C |
| Screening Level | Automotive |
| Rad Hardened | No |
| Package Type | SDIP |
| 电压 - 隔离 | 2500Vrms |
| 系列 | SLLIMM™ |
| 配置 | 3 Phase Inverter |
| 封装/外壳 | 25-DIP Module |
| 电压 | 600V |
| 类型 | IGBT |
| 电流 | 10A |
| 长度 | 44.9mm |
| 最高工作温度 | +150 °C |
| 高度 | 7.5mm |
| 通道类型 | N |
| 安装类型 | 通孔 |
| 最低工作温度 | -40 °C |
| 最大功率耗散 | 33 W |
| 宽度 | 22.5mm |
| 封装类型 | SDIP |
| 最大集电极-发射极电压 | 600 V |
| 引脚数目 | 25 |
| 尺寸 | 44.9 x 22.5 x 7.5mm |
| 最大连续集电极电流 | 10 A |
| Series | SLLIMM |
| Brand | STMicroelectronics |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | STGIPS10K60T |
