stmicroelectronics

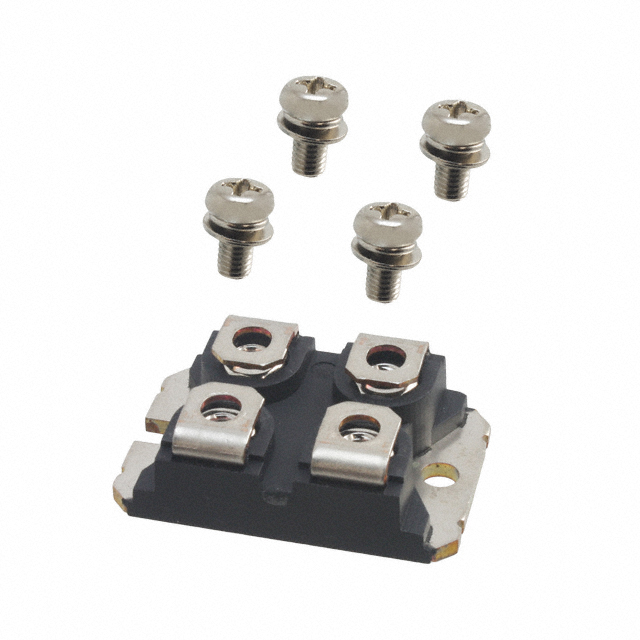

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Package | 4ISOTOP |
| Type | Switching Diode |
| Configuration | Dual Anti Parallel |
| Peak Reverse Repetitive Voltage | 200 V |
| Peak Average Forward Current | 50 A |
| Peak Reverse Recovery Time | 65 ns |
| Peak Reverse Current | 50 uA |
| Peak Forward Voltage | 1.15@100A V |
| Peak Non-Repetitive Surge Current | 750 A |
| Operating Temperature | -55 to 150 °C |
| Mounting | Screw |
| Standard Package | Rail / Tube |
| Supplier Package | ISOTOP |
| Standard Package Name | ISOTOP |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 150 |
| Maximum Continuous Forward Current | 50 |
| Operating Junction Temperature | 150 |
| Peak Reverse Recovery Time | 65 |
| Peak Reverse Repetitive Voltage | 200 |
| Packaging | Tube |
| Peak Reverse Current | 50 |
| Peak Non-Repetitive Surge Current | 750 |
| Peak Forward Voltage | 1.15@100A |
| Minimum Operating Temperature | -55 |
| Pin Count | 4 |
| Current - Average Rectified (Io) (per Diode) | 50A |
| Mounting Type | Chassis Mount |
| Voltage - Forward (Vf) (Max) @ If | 1V @ 50A |
| Supplier Device Package | ISOTOP® |
| Reverse Recovery Time (trr) | 65ns |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 200V |
| Current - Reverse Leakage @ Vr | 50µA @ 200V |
| Diode Configuration | 2 Independent |
| Other Names | 497-5273-5 |
| Speed | Fast Recovery = 200mA (Io) |
| Package/Case | ISOTOP |
| rohs | Lead free / RoHS Compliant |
| Dimensions | 9.1 x 38.2 x 25.5mm |
| Height | 9.1mm |
| Length | 38.2mm |
| Maximum Continuous Forward Current | 50A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Package Type | ISOTOP |
| Peak Non-Repetitive Forward Surge Current | 0.75kA |
| Rectifier Type | Switching |
| Width | 25.5mm |
| Factory Pack Quantity | 10 |
| Product | Ultra Fast Recovery Rectifiers |
| Product Category | Rectifiers |
| Forward Continuous Current | 50 A |
| Forward Voltage Drop | 1.15 V at 100 A |
| Mounting Style | Through Hole |
| Reverse Voltage | 200 V |
| Reverse Current IR | 50 uA |
| Recovery Time | 65 ns |
| RoHS | RoHS Compliant |
| Package / Case | ISOTOP |
| Max Surge Current | 750 A |
| Operating Temp Range | -55C to 150C |
| Operating Temperature Classification | Military |
| Rad Hardened | No |
| Peak Non-Repetitive Surge Current (Max) | 750 |
| Peak Rep Rev Volt | 200 |
| Rev Curr | 50 |
| Rev Recov Time | 65 |
| Forward Voltage | 1.15 |
| Avg. Forward Curr (Max) | 50 |
| DELETED | Compliant |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | STTH10002 |
