Manufacturer Part Number:

TMMDB3

OneIC Part Number:

390-TMMDB3

Manufacturer:

STMicroelectronics

Description:

Diacs 32 Volt Trigger

Customer Reference:

Datasheet:

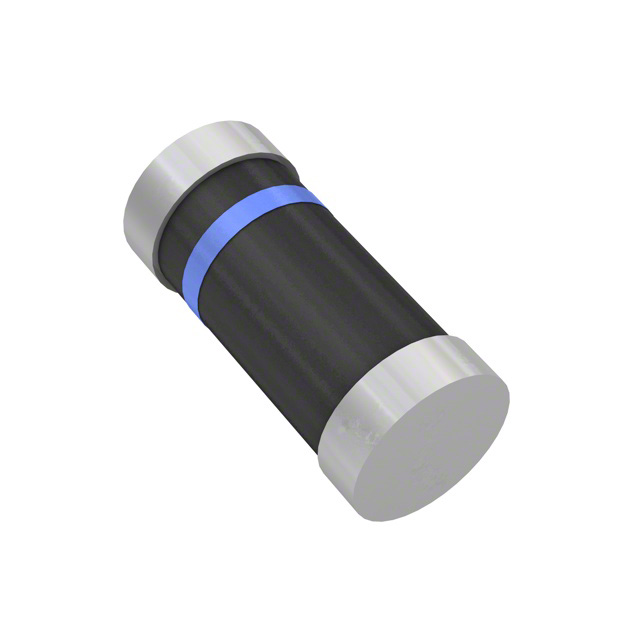

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Supplier Package	Mini-MELF
Standard Package Name	SOD-80
EU RoHS	Compliant
Maximum Operating Temperature	125
Mounting	Surface Mount
Package Diameter	1.62(Max)
Repetitive Peak Off-State Current	0.01
Packaging	Tape and Reel
PCB	2
Package Length	3.4
Minimum Operating Temperature	-40
Operating Junction Temperature	-40 to 125
Type	DIAC
Pin Count	2
Lead Shape	No Lead
Matchcode	TMMDB3
Breakover-I(BO)	50yA
Package	MiniMelf
Unit Pack	2500
Standard Leadtime	18 weeks
MOQ	2500
Breakover-V(BO)	32V
Leadfree Defin.	RoHS-conform
Tolerance -/+	4V
Current - Breakover	50µA
Voltage - Breakover	28 ~ 36V
Supplier Device Package	Mini MELF
Current - Peak Output	2A
Standard Package	2,500
Other Names	497-3275-2
Package/Case	DO-213AA
rohs	Lead free / RoHS Compliant
Dimensions	3.4 x 1.62 x 1.62mm
Height	1.62mm
Length	3.4mm
Maximum Breakover Current	0.05mA
Maximum Breakover Voltage	36V
Maximum Operating Temperature	+125 °C
Minimum Operating Temperature	-40 °C
Mounting Type	Surface Mount
Package Type	MiniMELF
Repetitive Peak Off-State Current	0.01mA
Width	1.62mm
Factory Pack Quantity	2500
Product Category	Diacs
Off-State Leakage Current @ VDRM IDRM	0.01 mA
Series	TMMDB3
Mounting Style	SMD/SMT
Breakover Current IBO Min	50 uA
Breakover Voltage VBO	36 V
Package / Case	Mini MELF
RoHS	RoHS Compliant
Operating Temp Range	-40C to 125C
Peak Repeat Off Current	0.01
Operating Temperature Classification	Automotive
Rad Hardened	No
Breakover Voltage Vbo Min	:28V
Breakover Voltage Vbo Max	:36V
Breakover Current Max.	:100µA
Thyristor Case	:MiniMELF
No. of Pins	:2
SVHC	:No SVHC (20-Jun-2013)
Device Marking	:TMMDB3
Diode Type	:Diac
External Diameter	:1.62mm
External Length / Height	:3.6mm
Power Dissipation Ptot Max	:150mW
Repetitive Peak Forward Current Itrm	:2A
Thyristor Type	:Diac
Voltage Vbo Max	:36V
Voltage Vbo Min	:28V
Voltage Vbo Typ	:32V
Voltage Vo	:5V
Weight (kg)	0.00005
Tariff No.	85413000
