Manufacturer Part Number:

TFBS4711-TR1

OneIC Part Number:

5-TFBS4711-TR1

Manufacturer:

vishay / semiconductor

Description:

IRDA TX/RX 0.1152Mbps 2.5V/3.3V/5V 6-Pin SMD T/R

Customer Reference:

Datasheet:

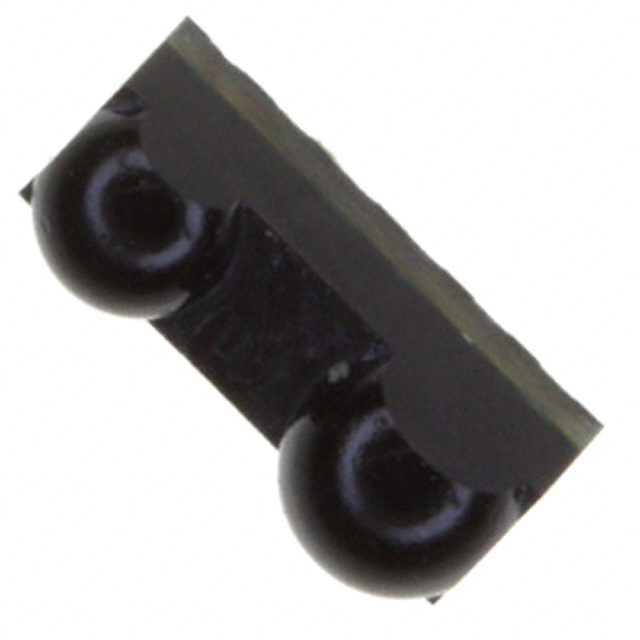

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Package	6SMD
Maximum Communication Distance	100(Typ) cm
Half Intensity Angle Degrees	48 °
Maximum Data Rate	0.1152 Mbps
Peak Wavelength	900(Max) nm
Pulse Width	2 us
Radiant Intensity	60 mW/sr
Type	TX/RX
Operating Supply Voltage	2.4 to 5.5 V
Standard Package	Tape & Reel
Product Category	Infrared Transceivers
RoHS	RoHS Compliant
Wavelength	900 nm
Continual Data Transmission	115.2 Kbit/s
Transmission Distance	1 m
Maximum Rise Time	100 ns
Maximum Fall Time	100 ns
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 25 C
Dimensions	6 mm x 3.1 mm x 1.9 mm
Packaging	Reel
Factory Pack Quantity	1000
Pulse Width	2
Mounting	Surface Mount
Dimensions	6x3x1.9
Package Width	1.9
PCB	6
Typical Operating Supply Voltage	2.5\|3.3\|5
EU RoHS	Compliant
Half Intensity Angle Degrees	48
Maximum Fall Time	300
Peak Wavelength	900(Max)
Minimum Operating Temperature	-25
Supplier Package	SMD
Standard Package Name	SMD
Maximum Operating Temperature	85
Maximum Data Rate	0.1152
Package Length	6
Minimum Operating Supply Voltage	2.4
Pin Count	6
Radiant Intensity	60
LED Supply Voltage	-0.5 to 6
Package Height	3
Maximum Communication Distance	100(Typ)
Maximum Operating Supply Voltage	5.5
Maximum Rise Time	300
Matchcode	TFBS4711-TR1
Transfer rate	115.2KBit/s
T(A) min	-30°C
Unit Pack	1000
Standard Leadtime	6 weeks
MOQ	1000
I(cc)	0.080mA
Case type	SIDE VIEW
Rise/Fall time	10ns
U(cc) max	5.5V
T(A) max	85°C
U(cc) min	2.4V
Automotive	NO
Horizontal ange	44Degree
Vertical angel	44Degree
Orientation	Side View
Data Rate	115.2kbs (SIR)
Idle Current, Typ @ 25° C	75µA
Operating Temperature	-30°C ~ 85°C
Supply Voltage	2.7 V ~ 5.5 V
Shutdown	*
Standards	IrPHY 1.2
Link Range, Low Power	1m
Size	6.0mm x 3.0mm x 1.9mm
rohs	Lead free / RoHS Compliant
Other Names	751-1066-1
Series	TFBS4711
Operating Temp Range	-25C to 85C
Package Type	SMD
Rise Time	300 ns
Communication Distance	100
Operating Temperature Classification	Commercial
LED Supply Voltage	-0.5 to 6 V
Angle of half Sensitivity	48 deg
Fall Time	300 ns
Rad Hardened	No
Operating Supply Voltage (Typ)	2.5/3.3/5 V
Operating Supply Voltage (Min)	2.4 V
Operating Supply Voltage (Max)	5.5 V
DELETED	Compliant
Data Rate Max	:115.2Kbps
Data Transmission Distance	:1m
Supply Current	:600µA
Supply Voltage Min	:2.4V
Supply Voltage Max	:5.5V
Operating Temperature Min	:-25°C
Operating Temperature Max	:85°C
Communication Cone	:15°
Current ILIREDA	:1µA
External Depth	:1.9mm
External Length / Height	:3mm
External Width	:6mm
Operating Temperature Range	:-25°C to +85°C
Shutdown Current	:10nA
Supply Voltage Range	:2.4V to 5.5V
Voltage Vcc Max	:5.5V
Voltage Vcc Min	:2.4V
Wavelength Typ	:900nm
Weight (kg)	0.000043
Tariff No.	85414090

Documents & Media

RESOURCE TYPE	LINK
Datasheets	TFBS4711
