3M Electronic Solutions Division

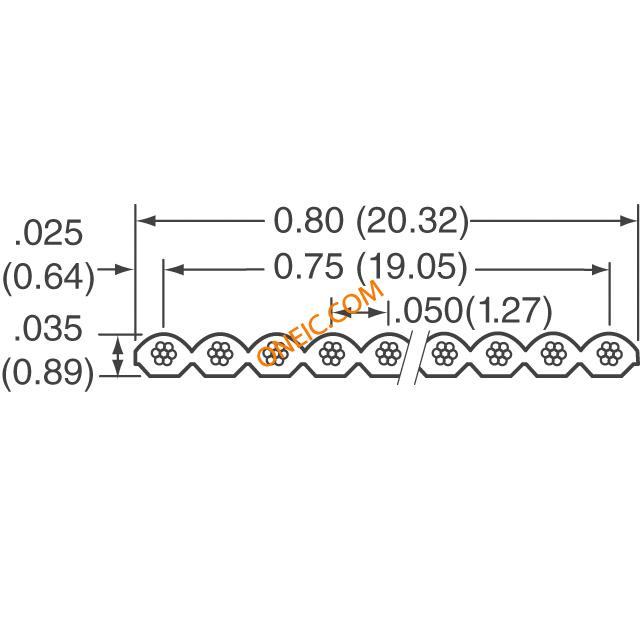

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Ribbon Width | 0.800" (20.32mm) |
| First Conductor Mark | Red |
| Shielding | Unshielded |
| Features | Zippable |
| Voltage Rating | 300V |
| Wire Gauge | 28 AWG |
| Approvals | UL Style 2651 |
| Cable Type | Flat Cable |
| Number of Conductors | 16 |
| Conductor Strand | 7 Strands / 36 AWG |
| Ribbon Thickness | 0.035" (0.89mm) |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Length | 300' (91.44m) |
| Insulation Resistance | 10 GOhm |
| Color | Gray |
| Pitch | 0.050" (1.27mm) |
| Standard Package | 1 |
| Conductor Material | Copper, Tinned |
| Operating Temperature | -20°C ~ 105°C |
| Other Names | MC16G-5 |
| rohs | Lead free / RoHS Compliant |
| Product | Round to Flat Cable |
| Product Category | Flat Cables |
| Wire Gauge - AWG | 28 |
| Stranding | 7 x 36 |
| Operating Temperature Range | - 20 C to + 105 C |
| Conductor Spacing | 1.27 mm |
| RoHS | RoHS Compliant |
| Number of Positions / Contacts | 26 |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Part # Aliases | 05400761139 80610201917 |
| Unit Weight | 7.500 lbs |
| Insulation Material | Polyvinyl Chloride (PVC) |
| Ratings | UL Style 2651 |
| Voltage | 300V |
| Jacket Color | Gray |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | Cable & Accessory Selection Guide |
| Datasheets | 3365 Series |
