3M Electronic Solutions Division

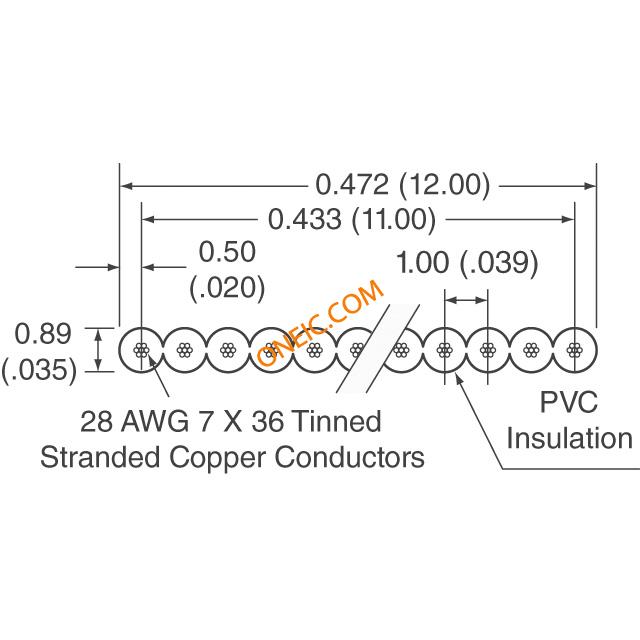

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Product Category | Flat Cables |
| RoHS | RoHS Compliant |
| Product | Round to Flat Cable |
| Number of Conductors | 12 |
| Conductor Spacing | 1 mm |
| Stranding | 7 x 36 |
| Wire Gauge - AWG | 28 |
| Voltage Rating | 300 V |
| Shielding | Unshielded |
| Conductor Material | Tinned Copper |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Color | Gray |
| Operating Temperature Range | - 20 C to + 105 C |
| Cable Type | Round Conductor Flat Cable |
| Insulation Material | Polyvinyl Chloride (PVC) |
| Length | 328 ft |
| Packaging | Roll |
| Part # Aliases | 05400754557 80610707343 |
| Ribbon Width | 0.472" (11.99mm) |
| First Conductor Mark | Red |
| Features | Zippable |
| Wire Gauge | 28 AWG |
| Approvals | UL Style 2651 |
| Conductor Strand | 7 Strands / 36 AWG |
| Ribbon Thickness | 0.035" (0.89mm) |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Insulation Resistance | 10 GOhm |
| Pitch | 0.039" (1.00mm) |
| Standard Package | 1 |
| Operating Temperature | -20°C ~ 105°C |
| rohs | Lead free / RoHS Compliant |
| Other Names | MC12L-5 |
| Ratings | UL Style 2651 |
| Voltage | 300V |
| Jacket Color | Gray |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | Cable & Accessory Selection Guide |
| Datasheets | Interconnect Solutions Mating Guide |
| Datasheets | 3625 Series |
| Datasheets | 3M Cable Properties-Internal Wiring |
