3M Electronic Solutions Division

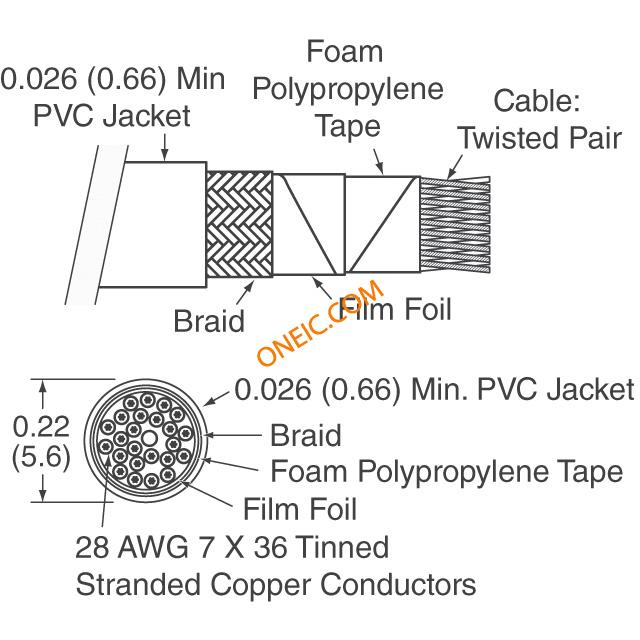

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Shield Coverage | 100%, 90% |
| Jacket (Insulation) Diameter | 0.220" (5.59mm) |
| Standard Package | 1 |
| Wire Gauge | 28 AWG |
| Shield Material | Aluminum; Copper, Tinned |
| Shield Type | Foil, Braid |
| Cable Type | Multi-Pair |
| Number of Conductors | 14 (7 Pair Twisted) |
| Conductor Strand | 7/36 |
| Conductor Material | Copper, Tinned |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Length | 100' (30.5m) |
| Color | Beige |
| Conductor Insulation | Polyolefin (PO) |
| Usage | Communication, Computer, Control |
| Jacket (Insulation) Thickness | 0.026" (0.66mm) |
| Voltage | 150V |
| Other Names | MB14T-25 |
| rohs | Lead free / RoHS Compliant |
| Product Category | Multi-Conductor Cables |
| Shielding | Shielded |
| Features | Optimal for LVDS digital 100 Ohm applications where length is less than 4 m and speeds are less than 700 MBPS |
| Voltage Rating | 300 V |
| Wire Gauge - AWG | 28 |
| Stranding | 7 x 36 |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Series | 3644 |
| Part # Aliases | 05111176639 80000929515 |
| Type | Communication and Control |
| Insulation Material | Polypropylene (PP) |
| Jacket Color | Beige |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | Cable & Accessory Selection Guide |
| Datasheets | 3644x Series |
| Datasheets | 3M Cable Properties-Internal Wiring |
