Yageo

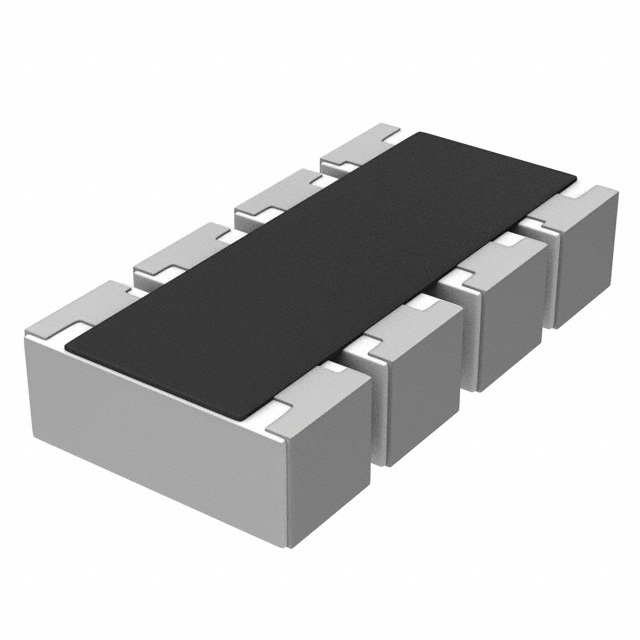

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Product Category | Resistor Networks & Arrays |
| RoHS | RoHS Compliant By Exemption |
| Product Type | Arrays |
| Circuit Type | Isolated |
| Number of Resistors | 4 |
| Resistor Values | 10 kOhms |
| Tolerance | 5 % |
| Temperature Coefficient | 200 PPM / C |
| Operating Temperature Range | - 55 C to + 155 C |
| Dimensions | 1.6 mm W x 3.2 mm L |
| Termination Style | SMD/SMT |
| Packaging | Reel |
| Package / Case | 0164 |
| Series | YC/TC 164 |
| Factory Pack Quantity | 5000 |
| Temp.coeff. | 200ppm |
| Matchcode | CN1206R410K5% |
| Max.oper.volt. | 50V |
| Package | 1206 |
| Unit Pack | 5000 |
| Standard Leadtime | 15 weeks |
| MOQ | 5000 |
| No.pins | 8 |
| Res.tolerance | 5% |
| Max.oper.temp. | 125°C |
| Automotive | AEC-Q(200) |
| Resistor value | 10KR |
| Termination | CONVEX |
| Power rating | 0.063W |
| Technology | THICKFILM |
| Min.oper.temp. | -55°C |
| Leadfree Defin. | RoHS-conform |
| No.resistors | 4 |
| Resistance (Ohms) | 10k |
| Power Per Element | 62.5mW |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0603 |
| Height | 0.028" (0.70mm) |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Operating Temperature | -55°C ~ 155°C |
| Number of Pins | 8 |
| Standard Package | 5,000 |
| Package/Case | 1206 (3216 Metric), Convex, Long Side Terminals |
| rohs | Lead free / RoHS Compliant |
| Other Names | YC164J-10KCT |
| Case Style | Moulded |
| Circuit Designator | ISOL |
| Depth | 1.6mm |
| Length | 3.2mm |
| Maximum Operating Temperature | +155°C |
| Minimum Operating Temperature | -55°C |
| Power Rating | 1/16W |
| Power Rating per Resistor | 1/16W |
| Resistance | 10kΩ |
| Operating Temp Range | -55C to 155C |
| Terminal Pitch | 0.8 mm |
| Rad Hardened | No |
| No. of Terminals | 8 |
| Failure Rate | Not Required |
| Tolerance (+ or -) | 5% |
| Mounting Style | Surface Mount |
| Type | Array |
| Military Standard | Not Required |
| Product Length (mm) | 3.2 mm |
| Product Depth (mm) | 1.6 mm |
| Product Height (mm) | 0.6 mm |
| Power Rating Per Resistor | 1/16 W |
| Resistance Tolerance | :± 5% |
| Power Rating per Element | :62.5mW |
| Voltage Rating | :50V |
| No. of Elements | :4 |
| Resistor Case Style | :1206 [3216 Metric] |
| SVHC | :No SVHC (20-Jun-2013) |
| Climatic Category | :55/125/56 |
| External Depth | :0.6mm |
| External Length / Height | :3.2mm |
| External Width | :1.6mm |
| Full Power Rating Temperature | :70°C |
| Operating Temperature Max | :155°C |
| Operating Temperature Min | :-55°C |
| Reel Quantity | :5000 |
| Resistor Element Material | :Thick Film Array |
| Resistor Mounting | :SMD |
| Temperature Coeff. + | :200ppm/°C |
| Temperature Coeff. - | :200ppm/°C |
| Tolerance + | :5% |
| Tolerance - | :5% |
| Voltage Rating V AC | :50V |
| Voltage Rating V DC | :50V |
| Weight (kg) | 0.000011 |
| Tariff No. | 85332100 |
| MSL | :- |
| Body Height | :0.6mm |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | YC, TC164 Series |
