c&k components

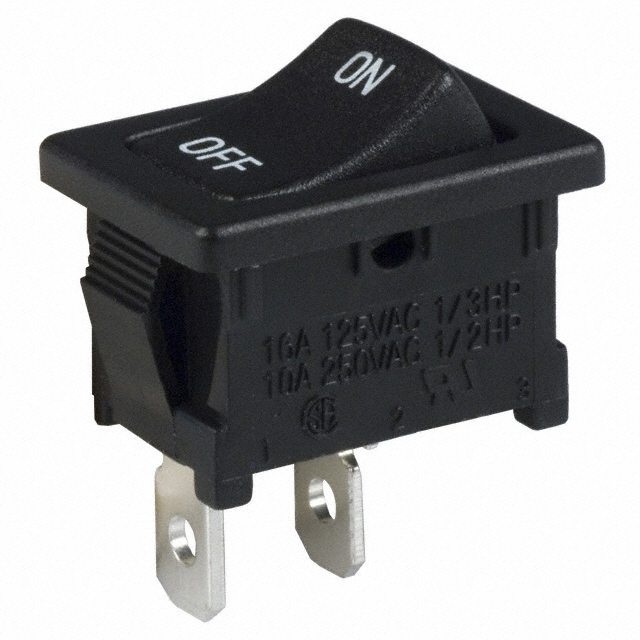

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Switch Configuration | ON None OFF |
| Pole Throw Configuration | SPST |
| Mounting | Panel Mount |
| Maximum Current Rating | 16@125VAC@(CSA/UL) A |
| Maximum AC Voltage Rating | 250 V |
| Maximum Power Rating | 372.85@(CSA/UL) VA |
| Contact Material | AgSn02ln03 |
| Terminal Type | Quick Connect |
| Operating Temperature | -20 to 85 °C |
| Standard Package | Bulk |
| Actuator Style | Curved Rocker |
| Electrical Life | 10000 |
| Product Length | 21 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 85 |
| Product Depth | 15 |
| Product Height | 24.5 |
| Maximum Power Rating | 372.85@UL |
| Base/Housing Material | N/A/Nylon 6/6 |
| Maximum AC Voltage Rating | 250 |
| Contact Plating | Silver |
| Minimum Operating Temperature | -20 |
| Maximum Current Rating | 16@125VAC@UL |
| Actuator Material | Nylon 6/6 |
| Unit Pack | 1 |
| MOQ | 1000 |
| Packaging | Bulk |
| Switch Function | On-Off |
| Current Rating | 16A (AC) |
| Mounting Type | Panel Mount, Snap-In |
| Voltage Rating - AC | 125V |
| Electrical Life | 10,000 Cycles |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Color - Actuator/Cap | Black |
| Actuator Marking | On - Off, Vertical |
| Panel Cutout Dimensions | Rectangular - 19.40mm x 13.00mm |
| Circuit | SPST |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 1 |
| Voltage Rating AC | 125 V |
| Product Category | Rocker Switches |
| Contact Rating | 16 A at 125 V |
| Series | DA |
| Contact Form | SPST |
| Mounting Style | Panel |
| Actuator | Rocker |
| RoHS | RoHS Compliant |
| Weight (g): | 3.20000 |
| 致动器标志 | On - Off, Vertical |
| 系列 | DA |
| 颜色 - 致动器/盖帽 | Black |
| 面板开口尺寸 | Rectangular - 19.40mm x 13.00mm |
| 开关功能 | On-Off |
| 额定电压 - 交流 | 125V |
| 电路 | SPST |
| 额定电流 | 16A (AC) |
| 致动器样式 | Concave (Curved) |
| 装配类型 | Panel Mount, Snap-In |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | DA Series Rocker Switches |
