c&k components

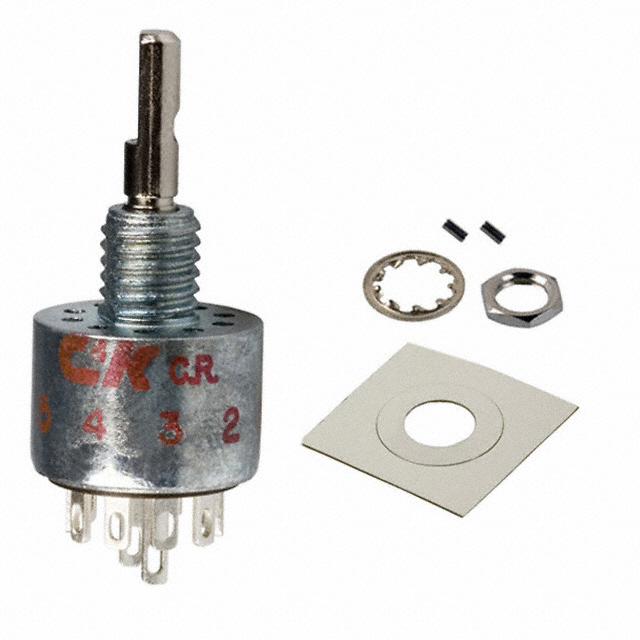

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Pole Throw Configuration | DP5T |
| Number of Positions | 5 |
| Mounting | Panel Mount |
| Maximum Current Rating | 0.25@125VAC 28VDC A |
| Maximum AC Voltage Rating | 125 V |
| Maximum DC Voltage Rating | 28 V |
| Contact Material | Copper Alloy |
| Terminal Type | Solder Lug |
| Operating Temperature | -30 to 85 °C |
| Standard Package | Bulk |
| Actuator Style | Flatted Shaft |
| Electrical Life | 10000 |
| Product Length | 13.34 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 85 |
| Product Height | 31.37 |
| Product Depth | 13.34 |
| Body Orientation | Straight |
| Maximum AC Voltage Rating | 125 |
| Maximum Current Rating | 0.25@125VAC 28VDC |
| Base/Housing Material | (Diallyl Phthalate|Melamine Pheno... |
| Contact Plating | Silver |
| Actuator Material | Zinc Alloy|Stainless Steel |
| Minimum Operating Temperature | -30 |
| Angle of Throw | 36 |
| Maximum DC Voltage Rating | 28 |
| Unit Pack | 1 |
| MOQ | 50 |
| Industry Aliases | MB00-L1-N-Z-Q-D |
| Subcategory | Switch Rotary |
| Lead Time | 84 Days |
| Orientation | Vertical |
| Mounting Type | Panel Mount |
| Number of Decks | 1 |
| Angle of Throw | 36° |
| Termination Style | Solder Lug |
| Number of Poles per Deck | 2 |
| Actuator Type | Flatted (3.17mm dia) |
| Contact Rating @ Voltage | 0.25A @ 125VAC |
| Circuit per Deck | DP5T |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 1 |
| Voltage Rating AC | 125 V |
| Product Category | Rotary Switches |
| Current Rating | 250 mA |
| Voltage Rating | 125 V |
| Series | M |
| Contact Form | DPST |
| Voltage Rating DC | 28 V |
| Actuator | Rocker |
| RoHS | RoHS Compliant |
| 每层电路 | DP5T |
| 系列 | M |
| 端接样式 | Solder Lug |
| 位置数 | 5 |
| 每层极数 | 2 |
| 取向 | Vertical |
| 不同电压时的触头额定电流 | 0.25A @ 125VAC |
| 装配类型 | Panel Mount |
| 层数 | 1 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | M Series |
