c&k components

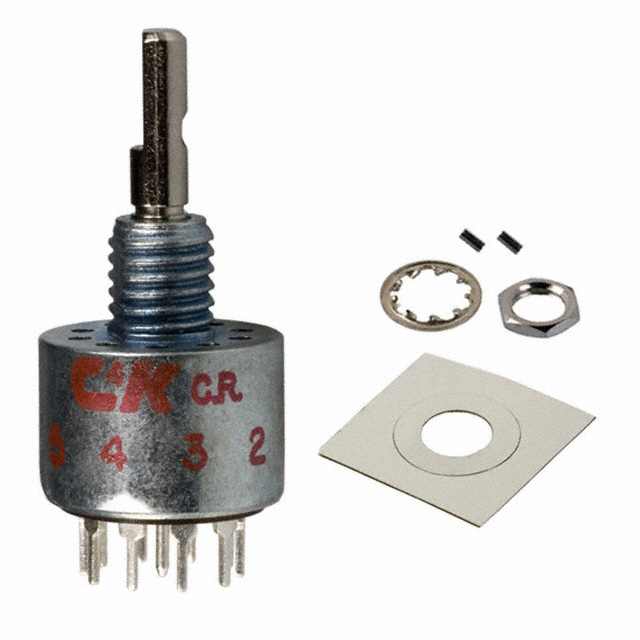

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Pole Throw Configuration | SP12T |
| Number of Positions | 12 |
| Mounting | Panel Mount/Through Hole |
| Maximum Current Rating | 0.25@125VAC 28VDC A |
| Maximum AC Voltage Rating | 125 V |
| Maximum DC Voltage Rating | 28 V |
| Contact Material | Copper Alloy |
| Terminal Type | PC Pins |
| Operating Temperature | -30 to 85 °C |
| Standard Package | Bulk |
| Actuator Style | Flatted Shaft |
| Electrical Life | 10000 |
| Product Length | 13.34 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 85 |
| Contact Plating | Silver |
| Product Height | 25.91 |
| Product Depth | 13.34 |
| Body Orientation | Straight |
| Maximum AC Voltage Rating | 125 |
| Maximum Current Rating | 0.25@125VAC 28VDC |
| Maximum DC Voltage Rating | 28 |
| Base/Housing Material | (Diallyl Phthalate|Melamine Pheno... |
| Actuator Material | Zinc Alloy|Stainless Steel |
| Minimum Operating Temperature | -30 |
| Angle of Throw | 30 |
| Unit Pack | 1 |
| MOQ | 50 |
| Industry Aliases | MC00-L1-N-C-Q-D |
| Subcategory | Switch Rotary |
| Lead Time | 84 Days |
| Orientation | Vertical |
| Mounting Type | Panel, PCB Through Hole |
| Number of Decks | 1 |
| Angle of Throw | 30° |
| Termination Style | PC Pin |
| Number of Poles per Deck | 1 |
| Actuator Type | Flatted (3.17mm dia) |
| Contact Rating @ Voltage | 0.25A @ 125VAC |
| Circuit per Deck | SP12T |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 1 |
| Voltage Rating AC | 125 V |
| Product Category | Rotary Switches |
| Current Rating | 250 mA |
| Series | M |
| Contact Form | SPDT |
| Voltage Rating | 125 V |
| Voltage Rating DC | 28 V |
| Index Angle | 30 deg |
| Packaging | Bulk |
| Index Stops | Continuous |
| Actuator | .650" Long, Flatted |
| Contact Style | Non Shorting |
| RoHS | RoHS Compliant |
| Operating Temp Range | -30C to 85C |
| Current Rating (Max) | 0.25 A |
| Operating Temperature Max Deg. C | 85C |
| Operating Temperature Min Deg. C | -30C |
| Illumination Type | Not Required |
| Product Length (mm) | 13.34 mm |
| Product Depth (mm) | 13.34 mm |
| Product Height (mm) | 25.91 mm |
| Total # of Positions | 12 |
| AC Voltage Rating (Max) | 125V VAC |
| DC Voltage Rating (Max) | 28V VDC |
| No. of Poles | :1 |
| No. of Switch Positions | :12 |
| Contact Current AC Max | :250mA |
| Contact Current DC Max | :250mA |
| Contact Voltage AC Max | :125V |
| Contact Voltage DC Max | :28V |
| SVHC | :No SVHC (20-Jun-2013) |
| Weight (kg) | 0.001 |
| Tariff No. | 85365080 |
| ActuatorType | Shaft |
| Application | Fortestequipment,industrialequipment,medicalequipmentapplications. |
| Brand/Series | MSeries |
| Current,Rating | 250mA |
| DielectricStrength | 600V |
| ElectricalLife | 10000Make-and-BreakCycles@150mA,125VACor28VDC |
| Material,Contact | Silver |
| MountingHoleSize | 0.26" |
| MountingType | PCB |
| NumberofPoles | 1 |
| NumberofPositions | 12 |
| Standards | ULRecognized,CSACertified |
| Temperature,Operating | -30to+85°C |
| Termination | PCBPins |
| Type | Rotary |
| Voltage,Rating | 125VAC |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | M Series |
