C&K Components

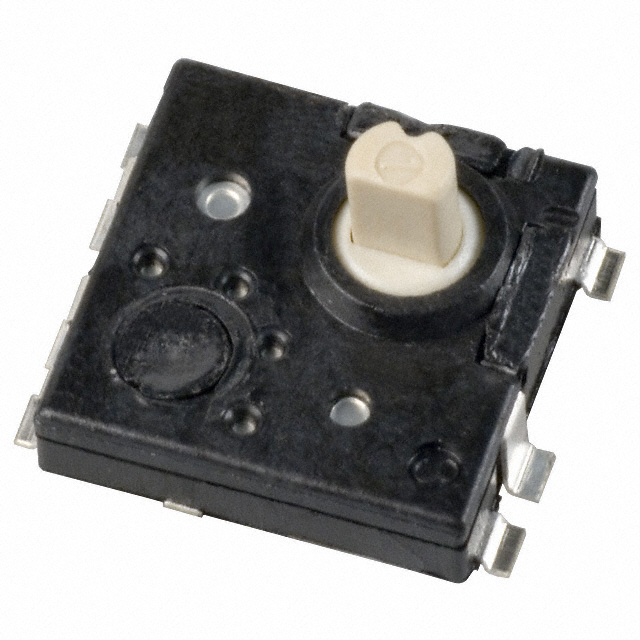

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| EU RoHS | Compliant |
| Maximum Operating Temperature | 85 |
| Pole Throw Configuration | SPST |
| Mounting | Surface Mount |
| Switch Configuration | N.O. |
| Maximum Current Rating | 0.05 |
| Minimum Operating Temperature | -40 |
| Type | Navigation Switch |
| Total high/long | H5,0mm |
| Matchcode | TPA511GLFS |
| max.Volt/Switch | 24 DCV |
| Operating force | 1,8/4,0N |
| Illuminated | NOY/N |
| Unit Pack | 1000 |
| Standard Leadtime | 8 weeks |
| MOQ | 10000 |
| Plating | AG |
| Leadfree Defin. | RoHS-conform |
| Ground | NOY/N |
| Actuator size | 2.3mm |
| Operating temp. | -40 to 85°C |
| Automotive | NO |
| Termination | SMT |
| Sealing | IP50 |
| Operating life | 200000cycles |
| max.I / Switch | 50mA |
| Dimension | 8,0x8,1mm |
| Model Construct | straight |
| Operating Force | 180/400gf |
| Switch Function | 2 Axis with Select |
| Termination Style | Gull Wing |
| Output | Mechanical Switch |
| Actuator Type | Joystick |
| Standard Package | 1,000 |
| Contact Rating @ Voltage | 0.05A @ 24VDC |
| rohs | Lead free / RoHS Compliant |
| Other Names | 401-1130-6 |
| Control Type | Navigation |
| Directional Operating Force | 1.8 N, 4 N |
| Directional Resolution | 5 with Selection |
| Factory Pack Quantity | 1000 |
| Series | TPA |
| Center Push | Yes |
| Stem Height | 2.3 mm |
| Packaging | Reel |
| Body Size | 9.3 mm L x 8 mm W x 2.7 mm H |
| Switch Contact Rating | 50 mAmps |
| Part # Aliases | Y43A51110FP |
| RoHS | RoHS Compliant |
| Contact Voltage DC Nom | :24V |
| Contact Current Max | :50mA |
| Actuator Style | :Raised Slide |
| Switch Terminals | :Solder |
| No. of Directions | :4 |
| SVHC | :No SVHC (16-Dec-2013) |
| Contact Current Min | :10mA |
| Contact Resistance | :200mohm |
| DC Power | :0.2VA |
| Dielectric Strength VDC | :250V |
| Operating Temperature Max | :85°C |
| Operating Temperature Min | :-40°C |
| Weight (kg) | 0.045 |
| Tariff No. | 85365011 |
