c&k components

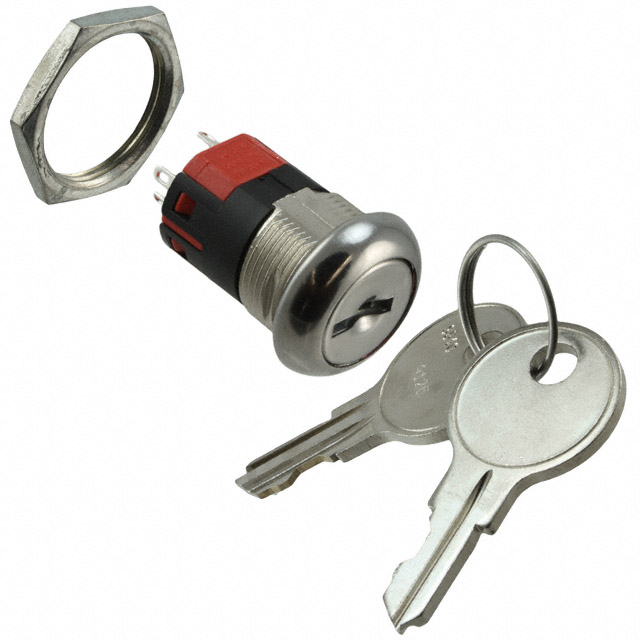

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Pole Throw Configuration | SPDT |
| Terminal Type | Solder Lug |
| Mounting | Panel Mount |
| Maximum AC Voltage Rating | 250@(CSA/UL) V |
| Maximum DC Voltage Rating | 28 V |
| Maximum Current Rating | 4@125VAC 28VDC A |
| Standard Package | Bulk |
| Angle of Throw | 90 |
| Product Length | 23.16 |
| Key Style | Flat Key |
| Key Material | Brass |
| Maximum DC Voltage Rating | 28 |
| Product Depth | 23.16 |
| Body Orientation | Straight |
| Maximum AC Voltage Rating | 250@(CSA/UL) |
| Maximum Current Rating | 4@125VAC 28VDC |
| Base/Housing Material | N/A/(Glass/Polyester) |
| Contact Plating | Silver |
| EU RoHS | Compliant |
| Product Height | 34.85 |
| Type | Tumbler Lock |
| Contact Material | Copper |
| Unit Pack | 1 |
| MOQ | 100 |
| Industry Aliases | Y101132C203NQ |
| Subcategory | Switch KeyLock |
| Lead Time | 84 Days |
| Circuit | SPDT |
| Mounting Type | Panel Mount |
| Key Removable Positions | 1 only |
| Angle of Throw | 90° |
| Termination Style | Solder Lug |
| Actuator Type | Flat Key |
| Contact Rating @ Voltage | 4A @ 125VAC |
| Number of Positions | 2 |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 1 |
| Voltage Rating AC | 125 VAC |
| Product Category | Keylock Switches |
| Current Rating | 4 A |
| Contact Rating | 4 A |
| Contact Form | SPST |
| Switch Function | ON - OFF |
| Indexing | 90 deg |
| Key Type | Switchlock |
| Housing Material | Zinc Alloy |
| Flammability Rating | UL 94 V-0 |
| Series | Y |
| RoHS | RoHS Compliant |
| Current Rating (Max) | 4 A |
| Mounting Style | Panel |
| Product Length (mm) | 22.23 mm |
| Product Depth (mm) | 25.65 mm |
| Product Height (mm) | 34.85 mm |
| AC Voltage Rating (Max) | 250V VAC |
| DC Voltage Rating (Max) | 28V VDC |
| DELETED | Compliant |
| Contact Configuration | :SPST |
| Switch Operation | :(Not Applicable) |
| Actuator Style | :Flat |
| No. of Switch Positions | :2 |
| Contact Voltage AC Nom | :250V |
| Contact Voltage DC Nom | :28V |
| Contact Current Max | :4A |
| Switch Terminals | :Solder |
| SVHC | :No SVHC (20-Jun-2013) |
| Actuation Type | :Flat |
| Behind Panel Depth | :28.8mm |
| Contact Current @ Contact Voltage AC Max | :4A |
| Contact Current @ Contact Voltage DC Max | :4A |
| Contact Current AC Max | :2A |
| Contact Current DC Max | :4A |
| Contact Current Rating | :2A |
| Contact Voltage AC Max | :250V |
| Contact Voltage DC Max | :28V |
| Full Angle | :90° |
| Indexing Angle | :90° |
| No. of Poles | :1 |
| No. of Positions | :2 |
| Panel Thickness Max | :4.95mm |
| Weight (kg) | 0.046 |
| Tariff No. | 85365080 |
| Weight (g): | 44.00000 |
| Application | Pointofsaleterminals,cashregisters,computers |
| Material | ZincAlloywithStainlessSteelFacing(Lock) |
| Material,Contact | SilverPlatedCopper |
| Resistance,Insulation | 10Gigaohms(Min.) |
| Standards | ULRecognized,CSACertified |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | Y Series |
