c&k components

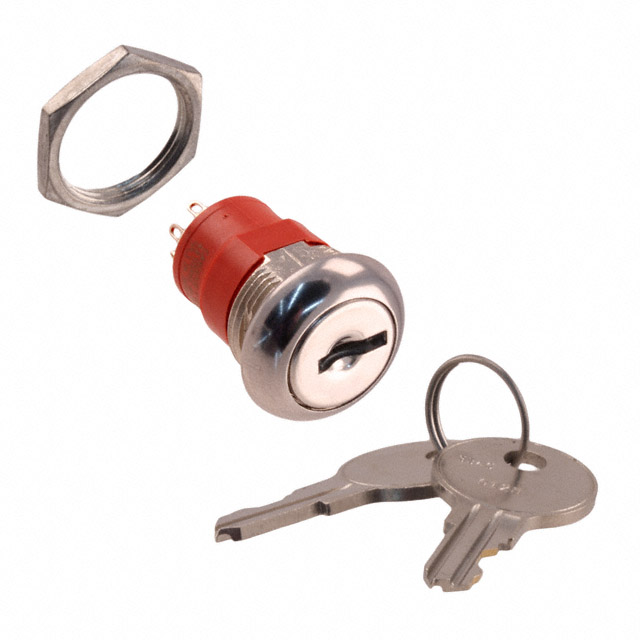

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Pole Throw Configuration | DPDT |
| Terminal Type | Solder Lug |
| Mounting | Panel Mount |
| Maximum AC Voltage Rating | 250@(CSA/UL) V |
| Maximum DC Voltage Rating | 28 V |
| Maximum Current Rating | 4@125VAC 28VDC A |
| Standard Package | Bulk |
| Angle of Throw | 45 |
| Product Length | 23.16 |
| Key Style | Flat Key |
| Key Material | Brass |
| Maximum DC Voltage Rating | 28 |
| Product Depth | 23.16 |
| Body Orientation | Straight |
| Maximum AC Voltage Rating | 250@(CSA/UL) |
| Maximum Current Rating | 4@125VAC 28VDC |
| Base/Housing Material | N/A/(Glass/Polyester) |
| Contact Plating | Silver |
| EU RoHS | Compliant |
| Product Height | 32.39 |
| Type | Tumbler Lock |
| Contact Material | Copper |
| Unit Pack | 1 |
| MOQ | 100 |
| Industry Aliases | Y208122A203NQ |
| Subcategory | Switch KeyLock |
| Lead Time | 72 Days |
| Circuit | DPDT |
| Mounting Type | Panel Mount |
| Key Removable Positions | 1 only |
| Angle of Throw | 45° |
| Termination Style | Solder Lug |
| Actuator Type | Flat Key |
| Contact Rating @ Voltage | 4A @ 125VAC |
| Number of Positions | 2 |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 1 |
| Product Category | Keylock Switches |
| Contact Rating | 4 A |
| Contact Form | DPST |
| Switch Function | ON - (OFF) |
| Indexing | 45 deg |
| Key Type | Switchlock |
| Housing Material | Polyester, Glass Filled |
| Series | Y |
| RoHS | RoHS Compliant |
| Current Rating (Max) | 4 A |
| Mounting Style | Panel |
| Product Length (mm) | 23.16 mm |
| Product Depth (mm) | 23.16 mm |
| Product Height (mm) | 32.39 mm |
| AC Voltage Rating (Max) | 250V |
| DC Voltage Rating (Max) | 28V |
| 系列 | Y |
| 端接样式 | Solder Lug |
| 钥匙拔出位置 | 1 only |
| 位置数 | 2 |
| 不同电压时的触头额定电流 | 4A @ 125VAC |
| 致动器类型 | Flat Key |
| 钥匙类型 | 平面 |
| 位置数目 | 2 |
| 接端类型 | 焊接 |
| 座圈形状 | 圆形 |
| 触点配置 | DP |
| 面板后的深度 | 23.14mm |
| 外壳材料 | 玻璃填充聚酯 |
| 触点材料 | 银 |
| 应用 | 销售点终端，收银机，计算机 |
| 触点额定电流 | 4 A |
| 钥匙指标角度 | 45° |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | Y Series |
