Cornell Dubilier

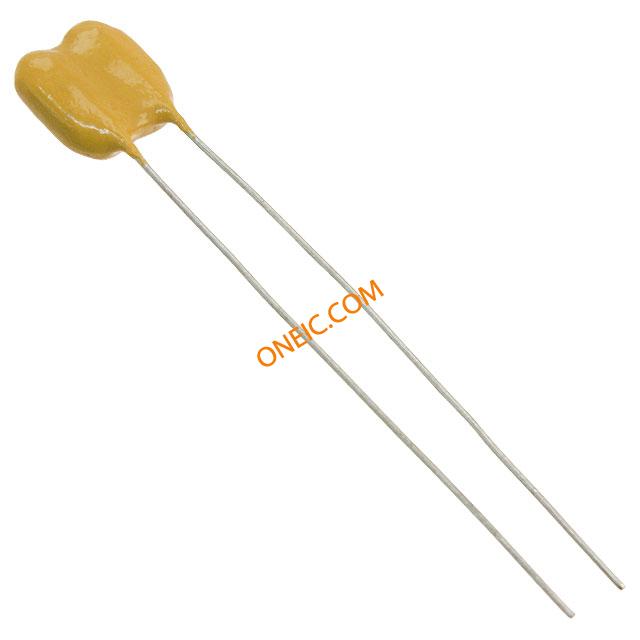

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Product Category | Mica Capacitors |
| RoHS | RoHS Compliant By Exemption |
| Capacitance | 200 pF |
| Tolerance | 5 % |
| Voltage Rating | 500 V |
| Operating Temperature Range | - 55 C to + 125 C |
| Temperature Coefficient | 0 PPM / C, 70 PPM / C |
| Termination Style | Radial |
| Product | Mica Standard Dipped Capacitors |
| Case Height | 0.37 in |
| Case Length | 0.39 in |
| Case Width | 0.21 in |
| Dimensions | 0.21 in L x 0.39 in W x 0.37 in H |
| Lead Spacing | 0.141 in |
| Packaging | Bulk |
| Series | CD10 |
| Factory Pack Quantity | 100 |
| Part # Aliases | CD10FD201J03F |
| Lead Diameter | 0.4 |
| Product Length | 9.9(Max) |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 125 |
| Product Depth | 5.3(Max) |
| Mounting | Through Hole |
| Product Height | 9.4(Max) |
| Capacitance Value | 200pF |
| Lead Pitch For Radial | 3.6 |
| Voltage | 500VDC |
| Seated Plane Height | 9.4(Max) |
| Voltage - Rated | 500V |
| Height - Seated (Max) | 0.370" (9.40mm) |
| Standard Package | 100 |
| Size / Dimension | 0.390" L x 0.209" W (9.90mm x 5.30mm) |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | Radial |
| Mounting Type | Through Hole |
| Dielectric Material | Mica |
| Features | General Purpose |
| rohs | Lead free / RoHS Compliant |
| Operating Temp Range | -55C to 125C |
| Rad Hardened | No |
| Failure Rate | Not Required |
| Lead Diameter (nom) | 0.4 mm |
| Construction | Radial |
| Tolerance (+ or -) | 5% |
| Lead Spacing (nom) | 3.6 mm |
| Mounting Style | Through Hole |
| Military Standard | Not Required |
| Product Length (mm) | 9.9 mm |
| Product Depth (mm) | 5.3 mm |
| Product Height (mm) | 9.4 mm |
| Seated Plane Height | 9.4 mm |
| Size (mm) | 9.9 X 5.3 X 9.4 |
| Product Diameter (mm) | Not Required mm |
| CaseCode | FD |
| Material,Element | Mica |
| Termination | Radial |
| Voltage,Rating | 500VDC |
| 电容 | 200pF |
| 引线间距 | 0.142" (3.60mm) |
| 容差 | ±5% |
| 电压 - 额定 | 500V |
| 操作温度 | -55°C ~ 125°C |
| 高度 - 安装（最大值） | 0.370" (9.40mm) |
| 特性 | General Purpose |
| 封装/外壳 | Radial |
| 大小/尺寸 | 0.390" L x 0.209" W (9.90mm x 5.30mm) |
| 装配类型 | Through Hole |
| 介电材料 | Mica |
| 系列 | CD10 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | Mica Caps, Standard Dip |
