Manufacturer Part Number:

ACPL-K342-000E

OneIC Part Number:

9-ACPL-K342-000E

Manufacturer:

avago technologies

Description:

Optocoupler Logic-Out Push-Pull DC-IN 1-CH 8-Pin SO T/R

Customer Reference:

Datasheet:

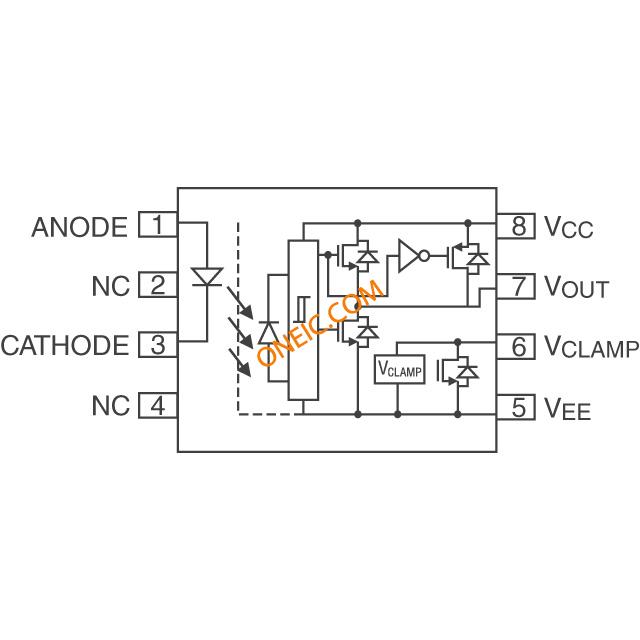

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Package	8SO
Input Type	DC
Logic Gate Type	Inverter
Output Type	Push-Pull
Direction Type	Uni-Directional
Typical Fall Time	0.018 us
Maximum Forward Current	16 mA
Minimum Forward Voltage	1.2 V
Maximum Forward Voltage	1.95 V
Maximum Power Dissipation	255 mW
Maximum Propagation Delay Time	350 ns
Maximum Reverse Voltage	5 V
Operating Temperature	-40 to 105 °C
Standard Package	Rail / Tube
Product Category	Logic Output Optocouplers
RoHS	RoHS Compliant
Maximum Forward Diode Voltage	1.95 V
Maximum Reverse Diode Voltage	5 V
Maximum Continuous Output Current	2.5 A
Maximum Operating Temperature	+ 105 C
Minimum Operating Temperature	- 40 C
Package / Case	SOIC-8
Packaging	Tube
Fall Time	18 ns
Minimum Forward Diode Voltage	1.2 V
Rise Time	22 ns
Maximum Working Insulation Voltage	1140
Minimum Peak Output Current	2
Mounting	Surface Mount
Minimum Isolation Voltage	5000
Package Width	6.81
PCB	8
Screening Level	Industrial
Maximum Forward Current	16
Maximum Power Dissipation	255
EU RoHS	Compliant
Maximum Reverse Voltage	5
Number of Channels per Chip	1
Maximum Fall Time	18(Typ)
Minimum Operating Temperature	-40
Maximum Peak Output Current	2.5
Supplier Package	SO
Standard Package Name	SOIC
Maximum Operating Temperature	105
Maximum Forward Voltage	1.95
Minimum Forward Voltage	1.2
Common Mode Voltage	1500
Package Length	5.85
Minimum Forward Current	7
Pin Count	8
Minimum Common Mode Rejection	40
Package Height	3.18
Agency Approvals	CSA/UL
Maximum Operating Supply Voltage	30
Maximum Rise Time	22(Typ)
Lead Shape	Gull-wing
Voltage - Isolation	5000Vrms
Mounting Type	Surface Mount
Supplier Device Package	8-SO
Voltage - Supply	15 V ~ 30 V
Type	Gate Driver, Miller Clamp
Package/Case	8-SOIC (0.268", 6.81mm Width)
rohs	Lead free / RoHS Compliant
Input Current Type	DC
Isolation Voltage	5000 V ac
Logic Output	Yes
Maximum Input Current	16 mA
Number of Channels	1
Number of Pins	8
Output Device	Transistor
Package Type	SO
Typical Rise Time	22ns
No. of Channels	:1
Optocoupler Output Type	:Gate Drive
Input Current	:16mA
Output Voltage	:30V
Opto Case Style	:SOIC
No. of Pins	:8
SVHC	:No SVHC (20-Jun-2013)
Weight (kg)	0.00025
Tariff No.	85423990
Case	SO8
Insulation voltage	5kV
Output type	IGBT driver
Gross weight	0.41 g
Number of channels	1
Pulse voltage max	50kV/μs
Multiplicity	1
Type of semiconductor component	optocoupler
Collective package [pcs]	1
spg	1

Documents & Media

RESOURCE TYPE	LINK
Datasheets	ACPL-H342/K342
