Standard Tactile Switches
Alps Alpine Co., Ltd.- Standard Tactile Switches
Standard Tactile Switches - 型号列表
355 parts in total| Mfr Part # | Quantity Available | Price | Standard Package | Voltage Rating | Current Rating (Max) | Switch Function/Rating | Packaging | Mounting Type | Terminal Type | Mounting Style | Operating Force | RoHS | Termination Style | Series | Travel Range | Connector Type | Switch Actuation Level | Operating Temperature | Switch Function | Height - Seated (Max) | Contact Form | Product Category | Factory Pack Quantity | Color | Part # Aliases | Actuator Type | Actuator Length | Depth | Actuator Color | Voltage - DC Reverse (Vr) (Max) | Height | Length - Overall | Actuator Style/Size | Illumination Type, Color | Contact Finish | Contact Rating (Current) | Contact Layout, Typical | SVHC | Tariff No | Current - Max/Contact | Connector - Voltage Input | Voltage - Supply (Vcc/Vdd) | Weight | Contact Resistance | Dimensions - Overall | Type | Direction | Card Standard | Electrical Life | Other Specifications | Current - Cathode | Voltage - Supply (Min) | Contact Rating @ Voltage | Width | Length | Number of Positions | Color - Actuator/Cap | Voltage - Test | Number of Poles | Size | Actuation Force | Color - Connectors | Design | Switch Type | Mechanical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SKHHAKA010 Switch Tactile N.O. SPST Round Button PC Pins 0.05A 12VDC 0.98N Thru-Hole Bulk Tact switch,PCB,SPST,black,0.98N o/force Tactile Switches 6.0x6.0x5.0mm 100gf SKHHAKA010 SWITCH, SPST, 0.05A, 12V, THT Alps 黑色 杆 触觉开关 SKHHAK, 单刀单掷 - 常开, 50 mA 5mm alps electric | 3044 | 5: ¥0.5887 | Bulk | 12 V | 0.05@12VDC A | N.O. | Bulk | Through Hole | PC Pins | Through Hole | 0.98 N | Compliant | Solder Pin | SKHH | 0.25 mm | No | SPST | -30 to 85 °C | OFF - (ON) | 5 mm | SPST | Tactile Switches | 1000 | Black | SKHHAK | Stem | 5mm | :6mm | Black | - | - | - | - | - | - | 50 mA | SPST-NO | :No SVHC (20-Jun-2013) | 85365007 | :50mA | :Solder | :12V | 0.00055 | :100mohm | - | - | - | - | - | - | :10µA | :1VDC | :50mA | :6mm | :5mm | :1000000 | :Black | - | - | - | - | - | - | - | - |
 SKEGLAA010 Switch Tactile N.O. SPST Button PC Pins 0.005A 12VDC 0.78N Thru-Hole Bulk Tactile Switches 5 mAmps at 12 Volts alps electric | 900 | 100: ¥3.2096 | Bulk | 12 V | 0.005@12VDC A | N.O. | Bulk | Through Hole | PC Pins | Through Hole | 0.78 N | RoHS Compliant | Solder Pin | SKEG | 1 mm | - | SPST | -20 to 70 °C | - | - | - | - | - | Black | - | Snap Top | - | - | - | - | - | - | - | - | Silver | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
SKHHDAA010 Switch Tactile N.O. SPST Square Button PC Pins 0.05A 12VDC 1.57N Thru-Hole Bulk Tactile Switches 50 mAmps at 12 Volts SKHHDAA010 alps electric | 1552 | 60: ¥2.6927 | Bulk | 12 V | 0.05@12VDC A | N.O. | Bulk | Through Hole | PC Pins | Through Hole | 1.57 N | RoHS Compliant | Solder Pin | SKHH | 0.25 mm | Yes | SPST | -30 to 85 °C | - | 7.3 mm | - | - | - | Gray | - | - | - | - | - | - | - | - | - | - | Silver | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
SKPDAFD010 Switch Tactile N.O. SPST Round Button PC Pins 0.005A 12VDC 2.94N Thru-Hole Radial Tape alps electric | 223 | 1: ¥3.332 | Tape & Reel, Cut Tape | 12 V | 0.005@12VDC A | N.O. | Tape | Through Hole | PC Pins | Through Hole | 2.94 N | - | - | - | - | No | SPST | - | N.O. | - | - | - | - | - | - | - | - | 7.8 mm | Gray | 12 V | 6.1 mm | 7.8 mm | Round Button | Not Required | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
SKQJAJA010 Switch Tactile N.O. SPST Round Button PC Pins 0.05A 12VDC 0.98N Thru-Hole Bulk Tactile Switches 6.0x6.0x9.5mm 100gf alps electric | 1000 | 20: ¥9.0554 | Bulk | 12 V | 0.05@12VDC A | N.O. | Bulk | Through Hole | PC Pins | Through Hole | 0.98 N | RoHS Compliant | Solder Pin | SKQJ | 0.25 mm | No | SPST | -20 to 70 °C | N.O. | 9.5 mm | SPST | Tactile Switches | 1000 | Black | SKQJAJ | - | 5.8 mm | 6.6 mm | Black | 12 V | 9.5 mm | 6.6 mm | Round Button | Not Required | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
SKQKAAD010 Switch Tactile N.O. SPST Round Plunger PC Pins 0.05A 12VDC 0.98N Thru-Hole Radial Tape Tactile Switches 50 mAmps at 12 Volts alps electric | 180 | 60: ¥2.6831 | Cut Tape | 12 V | 0.05@12VDC A | N.O. | Reel | Through Hole | PC Pins | Through Hole | 0.98 N | RoHS Compliant | Solder Pin | SKQK | - | No | SPST | -20 to 70 °C | N.O. | - | - | - | - | - | - | Round | 1.3 mm | 6.6 mm | Black | 12 V | 5 mm | 6.6 mm | Round Plunger | - | Silver | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 SKRGARD010 Switch Tactile N.O. SPST Round Button PC Pins 0.05A 12VDC 1.57N Thru-Hole Radial Tape Tactile Switches 50 mAmps at 12 Volts Tactile Switch • Mounting : Radial • Operating direction: Vertical • Operating force: 1.57 N • Travel: 0.25 mm • Dimensions (WxDxH) : 6.2(round)x5 mm alps electric | 1200 | 5: ¥1.0003 | Cut Tape, Tape & Reel | 12 V | 0.05@12VDC A | N.O. | Reel | Through Hole | PC Pins | Through Hole | 1.57 N | RoHS Compliant | Solder Pin | SKRG | 0.25 mm | No | SPST | - | N.O. | 9.5 mm | SPST | - | - | White | - | Round | 5.9 mm | 6.2 mm | White | 12 V | 9.5 mm | 6.2 mm | Round Button | Not Required | - | - | - | - | - | - | - | - | - | 500m? max. | 6.2(round)x5 mm | Switches | Vertical | Tactile Switch | 500,000 cycles | 2000 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
SKRELGE010 Switch Tactile N.O. SPST Button Gull Wing 0.05A 12VDC 2.16N SMD T/R Tactile Switches 3.9x3.55x1.5mm 220gf w/ bosses alps electric | 48 | 1: ¥0.4616 | Tape & Reel | 12 V | 0.05@12VDC A | N.O. | Reel | Surface Mount | Gull Wing | SMD/SMT | 2.16 N | RoHS Compliant | Leadless | SKRE | 0.2 mm | No | SPST | -30 to 85 °C | N.O. | 1.55 mm | SPST | Tactile Switches | 5000 | - | SKRELG | - | 0.5 mm | 3.55 mm | - | 12 V | 1.5 mm | 4.8 mm | Button | Not Required | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
SKRELFE010 Switch Tactile N.O. SPST Button Gull Wing 0.05A 12VDC 2.16N SMD T/R Tactile Switches 3.9x3.55x1.5mm 220gf no bosses alps electric | 10 | 1: ¥6.80 | Tape & Reel | 12 V | 0.05@12VDC A | N.O. | Reel | Surface Mount | Gull Wing | SMD/SMT | 2.16 N | RoHS Compliant | Leadless | SKRE | 0.2 mm | No | SPST | -30 to 85 °C | N.O. | 1.55 mm | SPST | Tactile Switches | 5000 | - | SKRELF | - | 0.5 mm | 3.55 mm | - | 12 V | 1.5 mm | 4.8 mm | Button | Not Required | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 SKRKAGE010 Switch Tactile N.O. SPST Button Gull Wing 0.05A 12VDC 1.57N SMD T/R Tactile Switches 3.9X2.9X1.5mm 160gf Tactile Switch • Mounting : Surface mount • Operating direction: Vertical • Operating force: 1.57 N • Travel: 0.13 mm • Dimensions (WxDxH) : 3.9x2.9x1.5 mm alps electric | 490 | 1: ¥9.52 | Tape & Reel | 12 V | 0.05@12VDC A | N.O. | Reel | Surface Mount | Gull Wing | SMD/SMT | 1.57 N | RoHS Compliant | Leadless | SKRK | 0.13 mm | No | SPST | -30 to 85 °C | N.O. | 1.5 mm | SPST | Tactile Switches | 5000 | - | - | Round | - | 2.9 mm | - | 12 V | 1.5 mm | 4.8 mm | Button | Not Required | Silver | - | - | - | - | - | - | - | - | 100m? max. | 3.9x2.9x1.5 mm | Switches | Vertical | Tactile Switch | 200,000 cycles | 5000 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
SKPDALD010 Switch Tactile N.O. SPST Round Button PC Pins 0.005A 12VDC 0.78N Thru-Hole Box Tactile Switches 7.8x7.8x5.0mm 80gf SKPDALD010 alps electric | 993 | 1: ¥2.0604 | Cut Tape | 12 V | 0.005@12VDC A | N.O. | Reel | Through Hole | PC Pins | Through Hole | 0.78 N | RoHS Compliant | Solder Pin | SKPD | 1 mm | No | SPST | -40 to 90 °C | OFF - (ON) | 5 mm | SPST | Tactile Switches | 800 | Gray | SKPDAL | - | - | - | - | - | - | - | - | - | Silver | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
SKQMARE010 Switch Tactile N.O. Button PC Pins 0.05A 12VDC 2.55N Thru-Hole T/R Tactile Switches 6.0x3.5x5mm 260gF alps electric | 2000 | 40: ¥4.1205 | Tape & Reel | 12 V | 0.05@12VDC A | N.O. | Reel | Through Hole | PC Pins | SMD/SMT | 2.55 N | RoHS Compliant | Gull Wing Lead | SKQM | 0.25 mm | No | - | - 20 C to + 70 C | N.O. | 5 mm | SPST | Tactile Switches | 2000 | Red | SKQMAR | - | 1.5 mm | 3.5 mm | Red | 12 V | 5 mm | 6.3 mm | Button | Not Required | Silver | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 SKRGAAD010 Switch Tactile N.O. SPST Button PC Pins 0.05A 12VDC 1.27N Thru-Hole Radial Tape Tactile Switches RND 6.0x4.3mm 100gf alps electric | 5325 | 1: ¥1.1907 | Tape & Reel | 12 V | 0.05@12VDC A | N.O. | Reel | Through Hole | PC Pins | Through Hole | 1.27 N | RoHS Compliant | Solder Pin | SKRG | 0.25 mm | No | SPST | - | N.O. | 4.3 mm | SPST | Tactile Switches | - | Black | - | Round | 0.7 mm | 6.2 mm | Black | 12 V | 4.3 mm | 6.2 mm | Button | Not Required | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
SKRKAEE010 Switch Tactile N.O. SPST Round Button Gull Wing 0.05A 12VDC 1.57N SMD T/R Tactile Switches 3.9x2.9x2.0mm 160gf alps electric | 81340 | 1: ¥3.264 | Tape & Reel | 12 V | 0.05@12VDC A | N.O. | Reel | Surface Mount | Gull Wing | SMD/SMT | 1.57 N | RoHS Compliant | Leadless | SKRK | 0.13 mm | No | SPST | -30 to 85 °C | N.O. | 2 mm | SPST | Tactile Switches | 4500 | - | SKRKAE | Round | - | 2.9 mm | - | 12 V | 2 mm | 4.8 mm | Round Button | Not Required | Silver | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
SKHHAJA010 Switch Tactile N.O. SPST Round Button PC Pins 0.05A 12VDC 0.98N Thru-Hole Bulk Tact switch,PCB,SPST,black,0.98N o/force Tactile Switches 6.0x6.0x4.3mm 100gf SKHHAJA010 SWITCH, SPST, 0.05A, 12V, SOLDER PCB Switch 12 VDC 50 mA Through Hole, SKHHAJA010, Alps Alps 黑色 杆 触觉开关 , 单刀单掷 - 常开, 50 mA 4.3mm alps electric | 528 | 5: ¥0.7972 | Bulk | 12 V | 0.05@12VDC A | N.O. | Bulk | Through Hole | PC Pins | Through Hole | 0.98 N | Compliant | Solder Pin | SKHH | 0.25 mm | No | SPST | -30 to 85 °C | OFF - (ON) | 4.3 mm | SPST | Tactile Switches | 1000 | Black | SKHHAJ | Stem | 4.3mm | - | Black | - | - | - | - | - | - | 50 mA | SPST-NO | :No SVHC (20-Jun-2013) | 85365080 | :50mA | :Solder | :12V | 0.0011 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
SKHHANA010 Switch Tactile N.O. SPST Round Button PC Pins 0.05A 12VDC 0.98N Thru-Hole Bulk Tact switch,PCB,SPST,black,0.98N o/force Tactile Switches 6.0x6.0x9.5mm 100gf SKHHANA010 SWITCH, TACTILE, 6X6MM, VERT, BLK PCB Switch 12 VDC 50 mA Through Hole, SKHHANA010, Alps Alps 黑色 杆 触觉开关 SKHHAN, 单刀单掷 - 常开, 50 mA 9.5mm alps electric | 564 | 5: ¥0.7123 | Bulk | 12 V | 0.05@12VDC A | N.O. | Bulk | Through Hole | PC Pins | Through Hole | 0.98 N | Compliant | Solder Pin | SKHH | 0.25 mm | No | SPST | -30 to 85 °C | OFF - (ON) | 9.5 mm | SPST | Tactile Switches | 1000 | Black | SKHHAN | Stem | 9.5mm | - | Black | - | - | - | - | - | - | 50 mA | SPST-NO | :No SVHC (20-Jun-2013) | 85365080 | :50mA | :Solder | :12V | 0.0011 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
SKHLLBA010 Switch Tactile N.O. Button PC Pins 0.05A 12VDC 1.57N Thru-Hole Tactile Switches 6.0x3.5mm R/A 160gf SKHLLBA010 alps electric | 988 | 90: ¥0.5616 | Bulk | 12 V | 0.05@12VDC A | N.O. | Bulk | Through Hole | PC Pins | Through Hole | 1.57 N | RoHS Compliant | Solder Pin | SKHL | 0.25 mm | No | - | - 20 C to + 70 C | OFF - (ON) | 3.72 mm | SPST | Tactile Switches | 1000 | Gray | SKHLLB | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

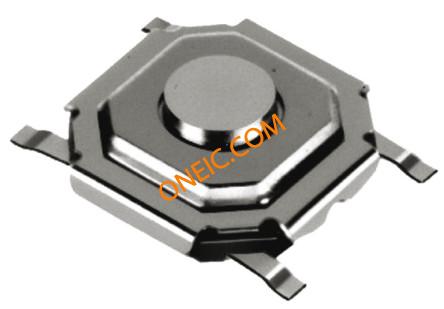

 SKQGADE010 Switch Tactile N.O. SPST Round Button Gull Wing 0.05A 12VDC 2.55N SMD T/R Tact switch,SMT,SPST,with stem,2.55N o/f Tactile Switches 5.2x5.2x1.5mm 260gf SKQGADE010 SWITCH, SPST, 0.05A, 12VDC, SMD Alps 杆 触觉开关 SKQGAD, 单刀单掷 - 常开, 50 mA 1.5mm alps electric | 10333 | 80: ¥0.6396 | Tape & Reel, Cut Tape | 12 V | 0.05@12VDC A | N.O. | Reel | Surface Mount | Gull Wing | SMD/SMT | 2.55 N | Compliant | Gull Wing Lead | SKQG | 0.25 mm | No | SPST | +85°C | - | 0.7 mm | SPST | Tactile Switches | 4000 | - | SKQGAD | Stem | 1.5mm | - | - | - | - | - | - | - | - | 50 mA | SPST-NO | :No SVHC (20-Jun-2013) | 85365007 | :50mA | :Solder | :12V | 0.00045 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
SKEGLBA010 Switch Tactile N.O. SPST Button PC Pins 0.005A 12VDC 1.96N Thru-Hole Bulk Tactile Switches 5 mAmps at 12 Volts SKEGLBA010 alps electric | 217 | 1: ¥3.4335 | Bulk | 12 V | 0.005@12VDC A | N.O. | Bulk | Through Hole | PC Pins | Through Hole | 1.96 N | RoHS Compliant | Solder Pin | SKEG | 1 mm | - | SPST | -20 to 70 °C | - | - | - | - | - | Gray | - | Snap Top | - | - | - | - | - | - | - | - | Silver | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
SKHHARA010 Switch Tactile N.O. SPST Round Button PC Pins 0.05A 12VDC 2.55N Thru-Hole Bulk Tact switch,PCB,SPST,red,2.55N op/force Tactile Switches 6.0x6.0x5.0mm 260gf SKHHARA010 PCB Switch 12 VDC 50 mA Through Hole, SKHHARA010, Alps Alps 红色 杆 触觉开关 , 单刀单掷 - 常开, 50 mA 5mm alps electric | 302 | 1: ¥0.3519 | Bulk | 12 V | 0.05@12VDC A | N.O. | Bulk | Through Hole | PC Pins | Through Hole | 2.55 N | Compliant | Solder Pin | SKHH | 0.25 mm | No | SPST | -30 to 85 °C | OFF - (ON) | 5 mm | SPST | Tactile Switches | 1000 | Red | SKHHAR | Stem | 5mm | - | Red | - | - | - | - | - | - | 50 mA | SPST-NO | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 250 | 1 | 6 x 6 x 5 mm | 2.6 N | red | Through-Hole | Momentary function | 200000Cycles |
