Anaren, Inc.- Inductors

Anaren, Inc. was founded in 1967 by Hugh A. Hair and Carl W. Gerst Jr. in East Syracuse, New York, USA. The company started as a supplier of microwave components and subassemblies for the defense electronics market. Over the decades, Anaren has evolved into a leading innovator of standard and custom microwave and RF technology. The company's core business areas include high-frequency electronics for aerospace, defense, wireless infrastructure, and medical applications. Anaren's product portfolio includes a wide range of RF and microwave components such as couplers, dividers, baluns, filters, and integrated assemblies. Notable product lines include the Xinger® brand of passive components, which are compact surface-mount devices offering excellent performance up to millimeter-wave frequencies. The company also designs and manufactures ceramic-based multilayer organic (MLO) technologies for high-density interconnects and antenna solutions. Anaren's custom design capabilities enable it to provide complex microwave integrated assemblies for radar, electronic warfare, and satellite communications. In the global RF/microwave components market, Anaren is recognized for its engineering expertise and high-reliability solutions. In 2018, Anaren was acquired by TTM Technologies, expanding its reach as part of a larger aerospace and defense electronics provider.

Inductors - 型号列表

14 parts in total

Mfr Part #	Quantity Available	Price	Product	Tradename	Other Names	Standard Package	RoHS	Impedance	Insertion Loss	Frequency Range	Return Loss (Min)	Insertion Loss (Max)	Impedance - Unbalanced/Balanced	Packaging	Mounting Type	Package / Case	Termination Style	Operating Temperature	Phase Difference	Depth	Height	Mounting Style	Length - Overall	Number of Positions	Turns Ratio - Primary:Secondary
BD2425NNRF Signal Conditioning 2.4-2.525GHz 50 Ohm Nor. Semi nRF24L01 XFRMR BALUN RF 2400-2500MHZ 0404 RF Transformer 4Term. SMD Anaren	3256	1: ¥3.876	Baluns	Xinger	1173-1067-2	4,000	Lead free / RoHS Compliant	50 Ohms	1.25 dB	2.4GHz ~ 2.525GHz	18.0dB	1.25dB	50 / - Ohm	Tape & Reel (TR)	Surface Mount	4-SMD, No Lead	SMD/SMT	- 55 C to + 85 C	-	-	-	-	-	-	-
B0922N7575AHF Signal Conditioning 950-2150MHz 75 Ohm IL=.76dB XFRMR BALUN RF 950-2150MHZ 0404 RF Transformer 1:1 4Term. SMD Anaren	5655	1: ¥3.74	Baluns	Xinger	1173-1055-2	4,000	Lead free / RoHS Compliant	75 Ohms	0.76 dB	950MHz ~ 2.15GHz	13.2dB	0.76dB	75 / 75 Ohm	Tape & Reel (TR)	Surface Mount	4-SMD, No Lead	SMD/SMT	- 55 C to + 85 C	18.39°	1.04 mm	0.71 mm	Surface Mount	1.04 mm	4	1
B0430J50100AHF Signal Conditioning 400-3000MHz 50/100 Ohm IL=4.0dB XFRMR BALUN RF 400-3000MHZ 0805 RF Transformer 1:1.41 6Term. SMD Anaren	50526	1: ¥8.636	Baluns	Xinger	1173-1052-2	4,000	Lead free / RoHS Compliant	100 Ohms	4 dB	400MHz ~ 3GHz	8.4dB	4.0dB	50 / 100 Ohm	Tape & Reel (TR)	Surface Mount	0805 (2012 Metric)	SMD/SMT	- 55 C to + 85 C	7°	-	-	-	-	-	-

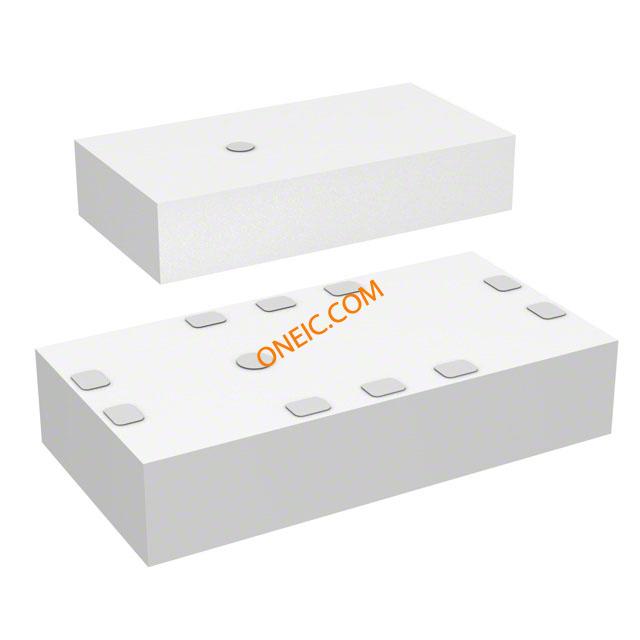

BD0205F5050AHF Signal Conditioning 200-500MHz 50 Ohm IL +1.1dB XFRMR BALUN RF 70-1000MHZ 1608 RF Transformer 1:1 10Term. SMD Anaren	4138	1: ¥29.308	Baluns	Xinger	1173-1072-2	4,000	Lead free / RoHS Compliant	50 Ohms	1.1 dB	70MHz ~ 1GHz	4.0dB	3.4dB	50 / 50 Ohm	Tape & Reel (TR)	Surface Mount	1608 (4121 Metric)	SMD/SMT	- 55 C to + 85 C	1°	2.1 mm	0.84 mm	Surface Mount	4.1 mm	10	1
BD1722N5050AHF Signal Conditioning 1.7-2.2GHz 50 Ohm IL=1.02dB XFRMR BALUN RF 1700-2200MHZ 0404 RF Transformer 1:1 4Term. SMD Anaren	6593	1: ¥3.74	Baluns	Xinger	1173-1060-2	4,000	Lead free / RoHS Compliant	50 Ohms	1.1 dB	1.7GHz ~ 2.2GHz	12.5dB	1.02dB	50 / 50 Ohm	Tape & Reel (TR)	Surface Mount	4-SMD, No Lead	SMD/SMT	- 55 C to + 85 C	3.42°	1.04 mm	0.57 mm	Surface Mount	1.04 mm	4	1
BD1631J50100AHF Signal Conditioning 2.0-2.5GHz 50/100 Ohm IL=1.0dB XFRMR BALUN RF 1.6-3.1GHZ 0805 RF Transformer 1:1.41 6Term. SMD Anaren	21918	1: ¥4.488	Baluns	Xinger	1173-1059-2	4,000	Lead free / RoHS Compliant	100 Ohms	1 dB	1.6GHz ~ 3.1GHz	10dB	0.9dB	50 / 100 Ohm	Tape & Reel (TR)	Surface Mount	0805 (2012 Metric)	SMD/SMT	- 55 C to + 85 C	2.3°	1.29 mm	0.7 mm	Surface Mount	2.04 mm	6	1
B0322J5050AHF Signal Conditioning 300-2200MHz 50 Ohm IL=1.6dB XFRMR BALUN RF 300-2200MHZ 0805 RF Transformer 1:1 6Term. SMD Anaren	4707	1: ¥8.636	Baluns	Xinger	1173-1051-2	4,000	Lead free / RoHS Compliant	50 Ohms	1.6 dB	300MHz ~ 2.2GHz	12.2dB	1.6dB	50 / 50 Ohm	Tape & Reel (TR)	Surface Mount	0805 (2012 Metric)	SMD/SMT	- 55 C to + 85 C	17°	1.29 mm	0.71 mm	Surface Mount	2.04 mm	6	1
BD0810J50100AHF Signal Conditioning 800-1000MHz 50/100 Ohm IL=.95dB XFRMR BALUN RF 800-1000MHZ 0805 RF Transformer 1:1.41 6Term. SMD Anaren	10	1: ¥9.2248	Baluns	Xinger	1173-1056-2	4,000	Lead free / RoHS Compliant	100 Ohms	0.95 dB	800MHz ~ 1GHz	13.0dB	0.95dB	50 / 100 Ohm	Tape & Reel (TR)	Surface Mount	0805 (2012 Metric)	SMD/SMT	- 55 C to + 85 C	1°	1.29 mm	0.72 mm	Surface Mount	2.04 mm	6	1
BD2425N100ATI Signal Conditioning 2.3-2.6GHz 50 Ohm IL=.84dB TI CC2530 XFRMR BALUN RF 2400-2500MHZ 0404 RF Transformer 4Term. SMD Anaren	4940	1: ¥4.148	Baluns	Xinger	1173-1061-2	4,000	Lead free / RoHS Compliant	50 Ohms	0.8 dB	2.3GHz ~ 2.6GHz	17.3dB	0.84dB	50 / - Ohm	Tape & Reel (TR)	Surface Mount	4-SMD, No Lead	SMD/SMT	- 55 C to + 85 C	-	1.04 mm	0.57 mm	Surface Mount	1.04 mm	4	-
BD2425NCSR Signal Conditioning 2.4-2.5GHz 50 Ohm IL=.5dB XFRMR BALUN RF 2400-2500MHZ 0404 ULTRA LOW PROFILE 0404 BALUN WITH FREQUENCY RANGE 2400-2500 MHZ Anaren	3985	1: ¥4.148	Baluns	Xinger	1173-1066-2	4,000	Lead free / RoHS Compliant	50 Ohms	1 dB	2.4GHz ~ 2.5GHz	10dB	1.0dB	50 / - Ohm	Tape & Reel (TR)	Surface Mount	4-SMD, No Lead	SMD/SMT	- 55 C to + 85 C	2°	-	-	-	-	-	-
B0310J50100AHF Signal Conditioning 300-1000MHz 50/100 Ohm IL=1.0dB XFRMR BALUN RF 300-1000MHZ 0805 RF Transformer 1:1.41 6Term. SMD Anaren	55603	1: ¥8.228	Baluns	Xinger	1173-1050-2	4,000	Lead free / RoHS Compliant	100 Ohms	1 dB	300MHz ~ 1GHz	8.1dB	1.0dB	50 / 100 Ohm	Tape & Reel (TR)	Surface Mount	0805 (2012 Metric)	SMD/SMT	- 55 C to + 85 C	38°	1.29 mm	0.7 mm	Surface Mount	2.04 mm	6	1
BD2425N50200AHF Signal Conditioning 2.4-2.5GHz 50/200 Ohm IL=.7dB XFRMR BALUN RF 2400-2500MHZ 0404 RF Transformer 1:2 4Term. SMD Anaren	1407	1: ¥3.876	Baluns	Xinger	1173-1063-2	4,000	Lead free / RoHS Compliant	200 Ohms	0.7 dB	2.4GHz ~ 2.5GHz	21.0dB	0.7dB	50 / 200 Ohm	Tape & Reel (TR)	Surface Mount	4-SMD, No Lead	SMD/SMT	- 55 C to + 85 C	2°	-	-	-	-	-	-
BD2425N50100AHF Signal Conditioning 2.4-2.5GHz 50/100 Ohm IL=.7dB XFRMR BALUN RF 2400-2500MHZ 0404 RF Transformer 1:1.41 4Term. SMD Anaren	5870	1: ¥3.876	Baluns	Xinger	1173-1062-2	4,000	Lead free / RoHS Compliant	100 Ohms	0.7 dB	2.4GHz ~ 2.5GHz	18.0dB	0.7dB	50 / 100 Ohm	Tape & Reel (TR)	Surface Mount	4-SMD, No Lead	SMD/SMT	- 55 C to + 85 C	1°	1.04 mm	0.56 mm	Surface Mount	1.04 mm	4	1
B0205F50200AHF Signal Conditioning 200-500MHz 50/200 Ohm IL=1.6dB XFRMR BALUN RF 200-500MHZ 1608 RF Transformer 1:2 10Term. SMD Anaren	4569	1: ¥29.308	Baluns	Xinger	1173-1073-2	4,000	Lead free / RoHS Compliant	200 Ohms	1.6 dB	200MHz ~ 500MHz	13.9dB	1.6dB	50 / 200 Ohm	Tape & Reel (TR)	Surface Mount	1608 (4121 Metric)	SMD/SMT	- 55 C to + 85 C	1.3°	2.1 mm	0.89 mm	Surface Mount	4.1 mm	10	1
