Anaren, Inc.- RF Transceivers

Anaren, Inc. was founded in 1967 by Hugh A. Hair and Carl W. Gerst Jr. in East Syracuse, New York, USA. The company started as a supplier of microwave components and subassemblies for the defense electronics market. Over the decades, Anaren has evolved into a leading innovator of standard and custom microwave and RF technology. The company's core business areas include high-frequency electronics for aerospace, defense, wireless infrastructure, and medical applications. Anaren's product portfolio includes a wide range of RF and microwave components such as couplers, dividers, baluns, filters, and integrated assemblies. Notable product lines include the Xinger® brand of passive components, which are compact surface-mount devices offering excellent performance up to millimeter-wave frequencies. The company also designs and manufactures ceramic-based multilayer organic (MLO) technologies for high-density interconnects and antenna solutions. Anaren's custom design capabilities enable it to provide complex microwave integrated assemblies for radar, electronic warfare, and satellite communications. In the global RF/microwave components market, Anaren is recognized for its engineering expertise and high-reliability solutions. In 2018, Anaren was acquired by TTM Technologies, expanding its reach as part of a larger aerospace and defense electronics provider.

RF Transceivers - 型号列表

26 parts in total

Mfr Part #	Quantity Available	Price	Standard Package	RoHS	Frequency	Sensitivity	Data Interface	Power - Output	Voltage - Supply	Packaging	Package / Case	Antenna Connector	Applications	Operating Temperature	Frequency - Max	Frequency Range	Current - Receiving	Tradename	Frequency Bands (Low / High)	Size / Dimension	Interface	Standard Package Name	EU RoHS	Output Power	Width	Mounting Type	Length - Overall	Package Quantity	Number of Positions	Shell Size - Insert	Printed Circuit Board	Product	Other Names	SVHC	Tariff No	Modulation	Voltage Rating	Data Rate (Max)	Voltage - Supply (Min)	Weight	Module/Board Type	Mechanical Life	Current - Output	Frequency - Min	Height	Current - Supply	Rad Hardened	Depth	Package Cooled	Operating Temperature - Junction	Memory Size	Current - Transmitting	Current - Supply (Main IC)	Modulation or Protocol	DELETED	Power - Max	Available Frequency Range	Voltage - Input Offset (Max)	Length	Lead Style	Connector Type	Series	Material Finish
3 A1101R04C00GM 433 MHZ CONNECTORIZED ANTENNA RADIO, MATRIX TRAY RF Modules 400MHz Radio Only Connector RF Transceiver 30-Pin SMD Tray IC RADIO MOD 433MHZ CONN 24-LGA RADIO MOD, TXRX, CC1101, U.FL CONN anaren microwave	234	1: ¥113.968	40	RoHS Compliant	433.05MHz ~ 434.79MHz	-112dBm	Solder Pad	10dBm	1.8 V to 3.6 V	Tray	24-BLGA	U.FL	General Purpose	+ 85 C	:434.79MHz	:433.05MHz to 434.79MHz	15mA	AIR	433 MHz to 434.4 MHz	12 mm x 9 mm x 2.5 mm	SPI	SMD	Compliant	10 dBm	9	Surface Mount	12	SMD	30	2.5	30	Radio Modules	1173-1025	:No SVHC (20-Jun-2013)	85423190	:FM	1.8VDC	600kbps	3.6VDC	0.000366	:Serial	New Technology: Cutting edge technology for the newest designs.	:15mA	:433.05MHz	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
4 A1101R08A00GM RF Transceiver 30-Pin SMD Tray RF Modules 800MHz Radio Only Internal Antenna IC RADIO MOD 868MHZ ANT 24-LGA Module,868MHz,PCB Ant,Matrix Tray RADIO MODULE, TXRX, CC1101, INT ANT anaren microwave	51	1: ¥45.492	Trays	RoHS Compliant	865MHz ~ 868MHz	-112dBm	Solder Pad	10dBm	1.8 V to 3.6 V	Tray	24-BLGA	U.FL	General Purpose	+ 85 C	868	865 to 868	15mA	AIR	868 MHz	12 mm x 9 mm x 2.5 mm	SPI	SMD	Compliant	10 dBm	9mm	Surface Mount	16	SMD	30	2.5	30	Radio Modules	1173-1026	:No SVHC (20-Jun-2013)	85423190	:FM	1.8VDC	600kbps	3.6VDC	0.000359	Transceiver	New Technology: Cutting edge technology for the newest designs.	:15mA	-	2.5mm	-	-	-	-	-	-	-	-	-	-	10dBm	SPI	-112dBm	16mm	-	-	-	-
2 A1101R08A00GR RF Transceiver 30-Pin SMD T/R RF Modules 800MHz Radio Only Internal Antenna IC RADIO MOD 868MHZ ANT 24-LGA anaren microwave	10	500: ¥83.30	Tape & Reel	RoHS Compliant	865MHz ~ 868MHz	-112dBm	Solder Pad	10dBm	1.8 V to 3.6 V	Reel	24-BLGA	U.FL	General Purpose	+ 85 C	868	865 to 868	15mA	AIR	868 MHz	12 mm x 9 mm x 2.5 mm	SPI	SMD	Compliant	10 dBm	9	Surface Mount	16	SMD	30	2.5	30	Radio Modules	-	-	-	-	1.8VDC	600kbps	3.6VDC	-	-	New Technology: Cutting edge technology for the newest designs.	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3 A1101R08C00GM RF Transceiver 24-Pin SMD Tray RF Modules 800MHz Radio Only Connector IC RADIO MOD 868MHZ CONN 24-LGA RADIO MOD, TXRX, CC1101, U.FL CONN anaren microwave	275	1: ¥113.968	Trays	RoHS Compliant	865MHz ~ 868MHz	-112dBm	Solder Pad	10dBm	1.8 V to 3.6 V	Tray	24-BLGA	U.FL	General Purpose	+ 85 C	868	865 to 868	15mA	AIR	868 MHz	12 mm x 9 mm x 2.5 mm	SPI	SMD	Compliant	10 dBm	9	Surface Mount	12	SMD	24	2.5	24	Radio Modules	1173-1027	:No SVHC (20-Jun-2013)	85423190	:FM	1.8VDC	600kbps	3.6VDC	0.000366	:Serial	New Technology: Cutting edge technology for the newest designs.	:15mA	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	No Lead	-	-	-
2 A1101R08C00GR RF Transceiver 30-Pin SMD T/R RF Modules 800MHz Radio Only Connector IC RADIO MOD 868MHZ CONN 24-LGA anaren microwave	10	500: ¥83.30	Tape & Reel	RoHS Compliant	865MHz ~ 868MHz	-112dBm	Solder Pad	10dBm	1.8 V to 3.6 V	Reel	24-BLGA	U.FL	General Purpose	+ 85 C	868	865 to 868	15mA	AIR	868 MHz	12 mm x 9 mm x 2.5 mm	SPI	SMD	Compliant	10 dBm	9	Surface Mount	16	SMD	30	2.5	30	Radio Modules	-	-	-	-	1.8VDC	600kbps	3.6VDC	-	-	New Technology: Cutting edge technology for the newest designs.	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
4 A1101R09A00GM RF Transceiver 30-Pin SMD Tray RF Modules 900MHz Radio Only Internal Antenna IC RADIO MOD 915MHZ ANT 24-LGA RADIO MODULE, TXRX, CC1101, INT ANT anaren microwave	164	1: ¥113.968	Trays	RoHS Compliant	902MHz ~ 928MHz	-112dBm	Solder Pad	10dBm	1.8 V to 3.6 V	Tray	24-BLGA	U.FL	General Purpose	+ 85 C	:928MHz	:902MHz to 928MHz	15mA	AIR	900 MHz	12 mm x 9 mm x 2.5 mm	SPI	SMD	Compliant	10 dBm	9	Surface Mount	16	SMD	30	2.5	30	Radio Modules	1173-1028	:No SVHC (20-Jun-2013)	85423190	:FM	1.8VDC	500kbps	3.6VDC	0.000359	:Serial	New Technology: Cutting edge technology for the newest designs.	:15mA	:902MHz	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
4 A1101R09C00GM RF Transceiver 30-Pin SMD Tray RF Modules 900MHz Radio Only Connector IC RADIO MOD 915MHZ CONN 24-LGA RADIO MOD, TXRX, CC1101, U.FL CONN anaren microwave	122	1: ¥113.968	Trays	RoHS Compliant	902MHz ~ 928MHz	-112dBm	Solder Pad	10dBm	1.8 V to 3.6 V	Tray	24-BLGA	U.FL	General Purpose	+ 85 C	928000 kHz	902 to 928 MHz	15mA	AIR	900 MHz	12 mm x 9 mm x 2.5 mm	SPI	SMD	Compliant	10 dBm	9	Surface Mount	16 mm	SMD	30	2.5	30	Radio Modules	1173-1029	:No SVHC (20-Jun-2013)	85423190	:FM	1.8VDC	500kbps	3.6VDC	0.000366	:Serial	New Technology: Cutting edge technology for the newest designs.	:15mA	:902MHz	2.5 mm	-	No	9 mm	SMD	85C	-	-	-	-	-	-	-	-	-	-	-	-	-
3 A1101R09C00GR RF Transceiver 30-Pin SMD T/R RF Modules 900MHz Radio Only Connector IC RADIO MOD 915MHZ CONN 24-LGA anaren microwave	10	500: ¥83.30	Tape & Reel	RoHS Compliant	902MHz ~ 928MHz	-112dBm	Solder Pad	10dBm	1.8 V to 3.6 V	Reel	24-BLGA	U.FL	General Purpose	+ 85 C	928	902 to 928	15mA	AIR	900 MHz	12 mm x 9 mm x 2.5 mm	SPI	SMD	Compliant	10 dBm	9	Surface Mount	16	SMD	30	2.5	30	Radio Modules	-	-	-	-	1.8VDC	500kbps	3.6VDC	-	-	New Technology: Cutting edge technology for the newest designs.	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
4 A2500R24A00GM RF Transceiver 30-Pin SMD T/R RF Modules 2400MHz Radio Only Internal Antenna IC RADIO MOD 2.4GHZ ANT 24-LGA Module,2.4GHz,PCB Ant,Matrix Tray RADIO MODULE, TXRX, CC2500, INT ANT anaren microwave	203	1: ¥115.60	Trays	RoHS Compliant	2.4GHz ~ 2.4835GHz	-104dBm	Solder Pad	1dBm	1.8 V to 3.6 V	Tape and Reel	24-BLGA	Internal	General Purpose	+ 85 C	:2.483GHz	:2.4GHz to 2.483GHz	16mA	AIR	2.4 GHz to 2.4835 GHz	12 mm x 9 mm x 2.5 mm	SPI	SMD	Compliant	0.5 dBm	9mm	Surface Mount	12	SMD	30	2.5	30	Radio Modules	1173-1031	:No SVHC (20-Jun-2013)	85423190	:FM	1.8VDC	:2.45Kbps	3.6VDC	0.000359	Transceiver	New Technology: Cutting edge technology for the newest designs.	:16mA	:2.4GHz	2.5mm	-	-	-	-	-	-	-	-	-	-	0.5dBm	SPI	-104dBm	12mm	-	-	-	-
2 A2500R24A00GR RF Transceiver 30-Pin SMD T/R RF Modules 2400MHz Radio Only Internal Antenna IC RADIO MOD 2.4GHZ ANT 24-LGA anaren microwave	10	500: ¥83.30	Tape & Reel	RoHS Compliant	2.4GHz ~ 2.4835GHz	-104dBm	Solder Pad	1dBm	1.8 V to 3.6 V	Reel	24-BLGA	Internal	General Purpose	+ 85 C	2483500 kHz	2400 to 2483.5 MHz	16mA	AIR	2.4 GHz to 2.4835 GHz	12 mm x 9 mm x 2.5 mm	SPI	SMD	Compliant	0.5 dBm	9	Surface Mount	12 mm	SMD	30	2.5	30	Radio Modules	-	-	-	-	1.8VDC	-	3.6VDC	-	-	New Technology: Cutting edge technology for the newest designs.	-	-	2.5 mm	-	No	9 mm	SMD	85C	-	-	-	-	Compliant	-	-	-	-	-	Solder Pad	Air	-
3 A2500R24C00GM RF Transceiver 30-Pin SMD Tray RF Modules 2400MHz Radio Only Connector IC RADIO MOD 2.4GHZ CONN 24-LGA RADIO MOD, TXRX, CC2500, U.FL CONN anaren microwave	139	2000: ¥66.0838	Trays	RoHS Compliant	2.4GHz ~ 2.4835GHz	-104dBm	Solder Pad	1dBm	1.8 V to 3.6 V	Tray	24-BLGA	U.FL	General Purpose	+ 85 C	2483500 kHz	2400 to 2483.5 MHz	16mA	AIR	2.4 GHz to 2.4835 GHz	9 mm x 12 mm x 2.5 mm	SPI	SMD	Compliant	0.5 dBm	9	Surface Mount	12 mm	SMD	30	2.5	30	Radio Modules	1173-1032	:No SVHC (20-Jun-2013)	85423190	:FM	1.8VDC	:2.45Kbps	3.6VDC	0.000366	:SPI	New Technology: Cutting edge technology for the newest designs.	:16mA	:2.4GHz	2.5 mm	16 mA	No	9 mm	SMD	85C	-	-	-	-	Compliant	-	-	-	-	-	-	-	-
2 A2500R24C00GR RF Transceiver 30-Pin SMD Tray RF Modules 2400MHz Radio Only Connector IC RADIO MOD 2.4GHZ CONN 24-LGA anaren microwave	10	500: ¥83.30	Tape & Reel	RoHS Compliant	2.4GHz ~ 2.4835GHz	-104dBm	Solder Pad	1dBm	1.8 V to 3.6 V	Reel	24-BLGA	U.FL	General Purpose	+ 85 C	2483500 kHz	2400 to 2483.5 MHz	16mA	AIR	2.4 GHz to 2.4835 GHz	9 mm x 12 mm x 2.5 mm	SPI	SMD	Compliant	0.5 dBm	9	Surface Mount	12 mm	SMD	30	2.5	30	Radio Modules	-	-	-	-	1.8VDC	-	3.6VDC	-	-	New Technology: Cutting edge technology for the newest designs.	-	-	2.5 mm	-	No	9 mm	SMD	85C	-	-	-	-	Compliant	-	-	-	-	-	-	-	-
3 A8520E24A91GM Radio Module 34-Pin SMD RF Modules 2.4GHz OutP 16dBm -20C +85C RANGE EXTENDER MODULE TXRX RADIO MODULE, TXRX, CC8520, INT ANT anaren microwave	59	1: ¥258.604	Trays	RoHS Compliant	2.4GHz	-87dBm	PCB, Surface Mount	20dBm	2.2 V ~ 3.6 V	Tray	34SMD	Internal	General Purpose	+ 85 C	:2.483GHz	:2.4GHz to 2.483GHz	-	AIR	2.4 GHz	11 mm x 19 mm x 2.5 mm	-	SMD	Compliant	16 dBm	11	Surface Mount	19	SMD	34	2.5	34	-	1173-1138	:No SVHC (16-Dec-2013)	85423190	:FM	-	-	-	0.000701	:-	-	-	:2.4GHz	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 A1101R09A00GR RF Transceiver 30-Pin SMD T/R RF Modules 900MHz Radio Only Internal Antenna IC RADIO MOD 915MHZ ANT 24-LGA anaren microwave	500	1: ¥83.30	Tape & Reel	RoHS Compliant	902MHz ~ 928MHz	-112dBm	Solder Pad	10dBm	1.8 V to 3.6 V	Reel	24-BLGA	U.FL	General Purpose	+ 85 C	928	902 to 928	15mA	AIR	900 MHz	12 mm x 9 mm x 2.5 mm	SPI	SMD	Compliant	10 dBm	9	Surface Mount	16	SMD	30	2.5	30	Radio Modules	-	-	-	-	1.8VDC	500kbps	3.6VDC	-	-	New Technology: Cutting edge technology for the newest designs.	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

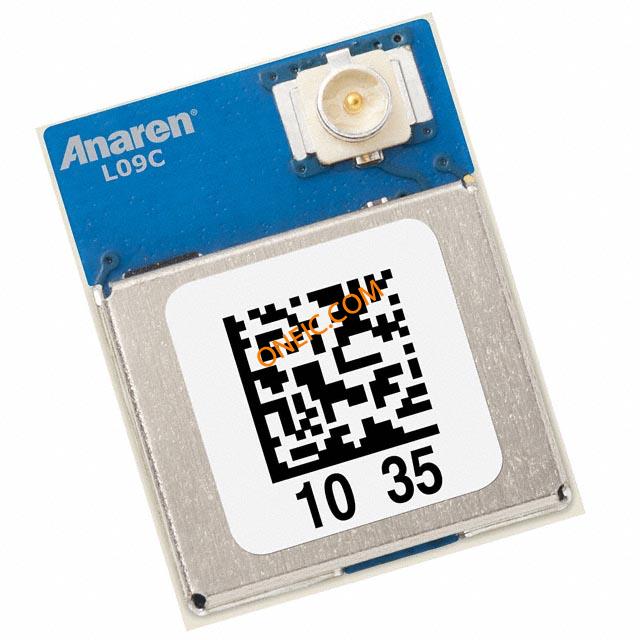

2 A110LR09C00GM IC RADIO MOD 915MHZ U.FL 24-LGA MODULE, RF, RADIO, 900MHZ, SPI, U.FL Anaren Microwave	381	1: ¥117.844	1	Lead free / RoHS Compliant	868MHz ~ 928MHz	-112dBm	Solder Pad	12dBm	1.8 V ~ 3.6 V	Tray	24-LGA	U.FL	General Purpose	-40°C ~ 85°C	:928MHz	:868MHz to 870MHz, 902MHz to 928MHz	15mA	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	1173-1139	:No SVHC (16-Dec-2013)	85423990	:-	-	600kbps	-	0.000359	:SPI	-	:15mA	:902MHz	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 A2530R24AZ1GM NO RANGE EXTENDER MOD TXRX Zigbee / 802.15.4 Modules 2.4GHz Internal Ant. Chip CC2530 Radio MODULE, ZIGBEE, AIR, CC2530 SOC Anaren	92	1: ¥157.148	27	RoHS Compliant	2.4GHz	-90dBm	PCB, Surface Mount	4dBm	2.2 V ~ 3.6 V	Tray	34-SMD Module	On-Board, Trace	General Purpose	-40°C ~ 85°C	:2.483GHz	:2.4GHz to 2.48GHz	25mA	AIR	2.4 GHz	11 mm x 19 mm x 2.5 mm	SPI, UART	-	-	-	-	-	-	-	-	-	-	-	1173-1129	:No SVHC (16-Dec-2013)	85423190	:-	-	-	-	0.007	:SPI, UART	-	:29mA	:2.4GHz	-	28 mA	-	-	-	-	256kB Flash, 8kB RAM	34mA @ 4dBm	68 mA	802.15.4 Zigbee	-	-	-	-	-	-	-	-	-

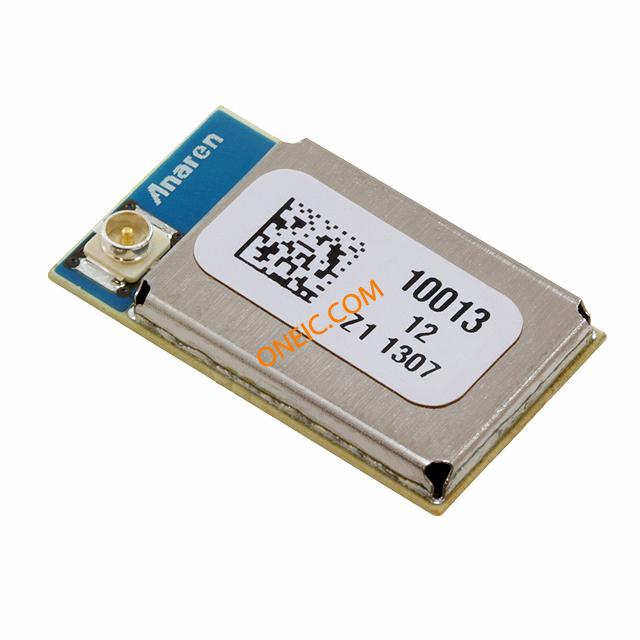

2 A2530R24CZ1GM NO RANGE EXTENDER MOD TXRX Zigbee / 802.15.4 Modules 2.4GHz Conn. Chip CC2530 Radio MODULE, ZIGBEE, AIR, CC2530 SOC Anaren	64	1: ¥157.148	27	RoHS Compliant	2.4GHz	-90dBm	PCB, Surface Mount	4dBm	2.2 V ~ 3.6 V	Tray	34-SMD Module	U.FL	General Purpose	-40°C ~ 85°C	:2.483GHz	:2.4GHz to 2.48GHz	25mA	AIR	2.4 GHz	11 mm x 19 mm x 2.5 mm	SPI, UART	-	-	-	-	-	-	-	-	-	-	-	1173-1127	:No SVHC (16-Dec-2013)	85423190	:-	-	-	-	0.007	:SPI, UART	-	:29mA	:2.4GHz	-	28 mA	-	-	-	-	256kB Flash, 8kB RAM	34mA @ 4dBm	68 mA	802.15.4 Zigbee	-	-	-	-	-	-	-	-	-
2 A2530E24AZ1GM RANGE EXTENDER MODULE TXRX Zigbee / 802.15.4 Modules 2.4GHz Internal Ant. Chip CC2530 Range Ex MODULE, ZIGBEE, AIR, CC2530 SOC Anaren	43	1: ¥204.816	27	RoHS Compliant	2.4GHz	-95dBm	PCB, Surface Mount	17dBm	2.2 V ~ 3.6 V	Tray	34-SMD Module	On-Board, Trace	General Purpose	-40°C ~ 85°C	:2.483GHz	:2.4GHz to 2.4835GHz	28mA	AIR	2.4 GHz	11 mm x 19 mm x 2.5 mm	SPI, UART	-	-	-	-	-	-	-	-	-	-	-	1173-1126	:No SVHC (16-Dec-2013)	85423190	:-	-	-	-	0.007	:SPI, UART	-	:68mA	:2.4GHz	-	28 mA	-	-	-	-	256kB Flash, 8kB RAM	130mA	68 mA	802.15.4 Zigbee	-	-	-	-	-	-	-	-	-
2 A2530E24CZ1GM RANGE EXTENDER MODULE TXRX Zigbee / 802.15.4 Modules 2.4GHz Conn. Chip CC2530 Range Ex MODULE, ZIGBEE, AIR, CC2530 SOC Anaren	24	1: ¥204.816	27	RoHS Compliant	2.4GHz	-95dBm	PCB, Surface Mount	17dBm	2.2 V ~ 3.6 V	Tray	34-SMD Module	U.FL	General Purpose	-40°C ~ 85°C	:2.483GHz	:2.4GHz to 2.48GHz	28mA	AIR	2.4 GHz	11 mm x 19 mm x 2.5 mm	SPI, UART	-	-	-	-	-	-	-	-	-	-	-	1173-1125	:No SVHC (16-Dec-2013)	85423190	:-	-	-	-	0.007	:SPI, UART	-	:68mA	:2.4GHz	-	28 mA	-	-	-	-	256kB Flash, 8kB RAM	130mA	68 mA	802.15.4 Zigbee	-	-	-	-	-	-	-	-	:MSL 3 - 168 hours
A110LR09C00GR IC RADIO MOD 915MHZ U.FL 24-LGA Anaren	10	500: ¥78.54	500	Lead free / RoHS Compliant	868MHz ~ 928MHz	-112dBm	Solder Pad	12dBm	1.8 V ~ 3.6 V	Tape & Reel (TR)	24-LGA	U.FL	General Purpose	-40°C ~ 85°C	-	-	15mA	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	600kbps	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
