Baumer Group- Inductive Proximity Sensors

Baumer Group is a leading Swiss manufacturer of sensors and automation components, founded in 1952 and headquartered in Frauenfeld, Switzerland. As a family-owned company, Baumer has grown into a global player with a presence in over 30 countries and production sites worldwide. The company specializes in high-precision sensor solutions for industrial automation, process control, and machine monitoring. Its extensive product portfolio includes inductive, photoelectric, capacitive, and ultrasonic sensors, as well as pressure, temperature, and force sensors. Baumer’s encoder range features incremental and absolute rotary encoders, linear encoders, and heavy-duty encoders, known for reliability in demanding environments. The company also offers advanced vision systems and smart cameras for quality inspection and object recognition. Baumer’s process sensors cover level, flow, temperature, and pressure measurement for hygienic and industrial applications. With a strong focus on innovation, Baumer invests heavily in R&D and holds numerous patents in sensor miniaturization and digital integration. The company serves a wide range of industries including automotive, packaging, food and beverage, pharmaceuticals, and renewable energy. As one of the world's top sensor specialists, Baumer is recognized for its engineering excellence, high-quality standards, and commitment to customer-specific solutions.

Inductive Proximity Sensors - 型号列表

53 parts in total

Mfr Part #	Quantity Available	Price	Output Type	Voltage Rating	Voltage - Supply	Current - Switching	Length	Housing Material	Supplier Device Package	Seal Rating	Operating Temperature	Protection Features	Current - Short Circuit Rating (SCCR)	Detection Capability	Terminal Type	Shielding	Mounting Type	Thread Size	Voltage - DC Spark Over (Nom)	Size / Dimension	Style	Ingress Protection	Overload Protection	Reverse Polarity Protection	Connector Type	Operating Range	Sensor Type	Current Rating (Max)	Weight	Body Material	Front Panel Wire Connection	Measuring Range	Number of Units	Connection Method	Output Configuration	Depth	Width	Frequency - Max	Size - Body	Package Quantity	Number of Positions	Spg	Plating - Body
2 IFRM08P13G1S35L PNP Barrel Inductive Proximity Sensor, M8 x 1, 100mA, 10 to 30V dc, IP67 Baumer PNP 电感接近传感器柱体 46mm length, 10 → 30 V 直流, IP67 Baumer Group	103	1: ¥569.7108	PNP	30V	10 → 30 V dc	100 mA	46mm	Stainless Steel	Barrel	IP67	+75°C	Yes	Yes	-	-	Total	Flush	M8 x 1	30V	46 x 8 mm	柱体	IP67	是	是	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
IFRM12P13G3S14L 10mm PNP Barrel Inductive Proximity Sensor, M12 x 1, 100mA, 10 to 30V dc, IP67 Baumer Group	114	1: ¥510.748	PNP	30V	10 → 30 V dc	100 mA	50mm	Stainless Steel	Barrel	IP67	+75°C	Yes	Yes	10 mm	-	Total	Flush	M12 x 1	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 IFRM 08P1701/L 2mm PNP Barrel Inductive Proximity Sensor, M8 x 1, 200mA, 10 to 30V dc, IP67 Baumer PNP 电感式传感器 2 mm Detection Range, 柱体 30mm length, 10 → 30 V 直流, IP67 Baumer Group	-		PNP	30V	10 → 30 V dc	200 mA	30mm	Stainless Steel	Barrel	IP67	+75°C	Yes	Yes	2 mm	Wire Lead	Total	Flush	M8 x 1	30V	30 x 8 mm	柱体	IP67	是	是	导线	2 mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
IFRD08P17A1S35L 2mm PNP Barrel Inductive Proximity Sensor, M8 x 1, 200mA, 10 to 30V dc, IP67, IP68 Baumer Group	56	1: ¥1,039.3392	PNP	30V	10 → 30 V dc	200 mA	46mm	Stainless Steel	Barrel	IP67, IP68	+75°C	Yes	Yes	2 mm	M8 Connector	Partial	Flush	M8 x 1	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 IFRM 06P17A5/S35L 2mm PNP Barrel Inductive Proximity Sensor, 200mA, 10 to 30V dc, IP67 Baumer PNP 电感式传感器 2 mm Detection Range, 柱体 28mm length, 10 → 30 V 直流, IP67 Baumer Group	-		PNP	30V	10 → 30 V dc	200 mA	28mm	Stainless Steel	Barrel	IP67	+75°C	Yes	Yes	2 mm	M8 Connector	Total	Flush	-	30V	28 x 6.5 mm	柱体	IP67	是	是	M8 连接器	2 mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
IFRD12P17A3S14L 4mm PNP Barrel Inductive Proximity Sensor, M12 x 1, 200mA, 10 to 30V dc, IP67, IP68 Baumer Group	59	1: ¥979.982	PNP	30V	10 → 30 V dc	200 mA	50mm	Stainless Steel	Barrel	IP67, IP68	+75°C	Yes	Yes	4 mm	M12 Connector	Partial	Flush	M12 x 1	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
MY COM L75/P/80/L PNP Barrel Inductive Proximity Sensor, M8 x 0.5, 50mA, 5 to 36V dc, IP67 Baumer Group	-		PNP	36V	5 → 36 V dc	50 mA	30mm	Nickel Plated Brass	Barrel	IP67	+75°C	-	-	-	Wire Lead	-	-	M8 x 0.5	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3 IFRM 06P17A1/S35L 2mm PNP Barrel Inductive Proximity Sensor, 200mA, 10 to 30V dc, IP67 Sensor: inductive; Output conf: PNP / NO; 0÷2mm; 10÷30VDC; IP67 Baumer PNP 电感式传感器 2 mm Detection Range, 柱体 46mm length, 10 → 30 V 直流, IP67 Baumer Group	-		PNP	30V	10 → 30 V dc	200 mA	46mm	Stainless Steel	Barrel	IP67	+75°C	Yes	Yes	2 mm	M8 Connector	Total	Flush	-	30V	46 x 6.5 mm	柱体	IP67	是	是	M8 连接器	2 mm	inductive	200mA	9.5 g	stainless steel	embedded	0...2mm	1	connector M8	PNP / NO	-	-	5000Hz	Ø6.5 x 46mm	3	3	3	-
IWRM 12U 9501 1 to 2mm PNP Barrel Inductive Proximity Sensor, M12 x 1, 20mA, 14 to 30V dc, IP67 Baumer Group	-		PNP	30V	14 → 30 V dc	20 mA	50mm	Nickel Plated Brass	Barrel	IP67	+60°C	Yes	Yes	1 → 2 mm	Wire Lead	Partial	Flush	M12 x 1	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 IFRM 06P 17G1 S35L 3mm PNP Barrel Inductive Proximity Sensor, 200mA, 12 to 30V dc, IP67 Baumer PNP 电感接近传感器 3 mm Detection Range, 柱体 46mm length, 12 → 30 V 直流, IP67 Baumer Group	-		PNP	30V	12 → 30 V dc	200 mA	46mm	Stainless Steel	Barrel	IP67	+75°C	Yes	Yes	3 mm	M8 Connector	Total	Flush	-	30V	46 x 6.5 mm	柱体	IP67	是	是	M8 连接器	3 mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
FZDK 20P 5101 S35A 5 to 500mm PNP Block Inductive Proximity Sensor, 100mA, 10 to 30V dc, IP67 Baumer Group	-		PNP	30V	10 → 30 V dc	100 mA	42mm	Plastic	Block	IP67	+65°C	Yes	Yes	5 → 500 mm	4-Pin M12 Connector	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	15mm	20mm	-	-	-	-	-	-
IFRD18P17A3S14L 6mm PNP Barrel Inductive Proximity Sensor, M18 x 1, 200mA, 10 to 30V dc, IP67, IP68 Baumer Group	51	1: ¥1,143.3656	PNP	30V	10 → 30 V dc	200 mA	60mm	Stainless Steel	Barrel	IP67, IP68	+75°C	Yes	Yes	6 mm	M12 Connector	Partial	Flush	M18 x 1	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 IFFM 20P1501 5mm PNP Block Inductive Proximity Sensor, 200mA, 10 to 50V dc, IP67 Baumer PNP 电感式传感器 5 mm Detection Range, 块状 32mm length, 10 → 50 V 直流, IP67 Baumer Group	-		PNP	50V	10 → 50 V dc	200 mA	32mm	Nickel Plated Brass	Block	IP67	+75°C	Yes	Yes	5 mm	Wire Lead	-	Flush	-	50V	32 x 20 x 32 mm	块状	IP67	是	是	导线	5 mm	-	-	-	-	-	-	-	-	-	32mm	20mm	-	-	-	-	-	-
3 IFRM 08P1713/L 2mm PNP Barrel Inductive Proximity Sensor, M8 x 1, 200mA, 10 to 30V dc, IP67 Sensor: inductive; Output conf: PNP / NO; 0÷2mm; 10÷30VDC; M8; IP67 Baumer PNP 电感式传感器 2 mm Detection Range, 柱体 22mm length, 10 → 30 V 直流, IP67 Baumer Group	-		PNP	30V	10 → 30 V dc	200 mA	22mm	Stainless Steel	Barrel	IP67	+75°C	Yes	Yes	2 mm	Wire Lead	Total	Flush	M8 x 1	30V	22 x 8 mm	柱体	IP67	是	是	导线	2 mm	inductive	200mA	0.04 kg	stainless steel	embedded	0...2mm	1	lead 2m	PNP / NO	-	-	-	Ø8 x 22mm	-	-	-	-
2 IFRM 18P17A5/L 8mm PNP Barrel Inductive Proximity Sensor, M18 x 1, 200mA, 10 to 30V dc, IP67 Baumer PNP 电感式传感器 8 mm Detection Range, 柱体 34.5mm length, 10 → 30 V 直流, IP67 Baumer Group	-		PNP	30V	10 → 30 V dc	200 mA	34.5mm	Stainless Steel	Barrel	IP67	+75°C	Yes	Yes	8 mm	Wire Lead	Total	Flush	M18 x 1	30V	34.5 x 18 mm	柱体	IP67	是	是	导线	8 mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 IFRM 03P1501/KS35L 0.8mm PNP Barrel Inductive Proximity Sensor, 100mA, 10 to 30V dc, IP67 Baumer PNP 电感式传感器 0.8 mm Detection Range, 柱体 22mm length, 10 → 30 V 直流, IP67 Baumer Group	-		PNP	30V	10 → 30 V dc	100 mA	22mm	Stainless Steel	Barrel	IP67	+75°C	Yes	Yes	0.8 mm	M8 Connector	Total	Flush	-	30V	22 x 3 mm	柱体	IP67	是	是	M8 连接器	0.8 mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

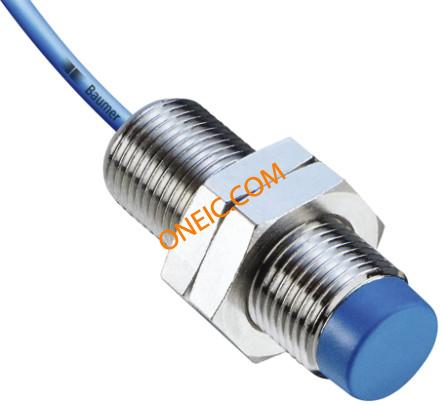

3 IFRM 12X9103 4mm NAMUR Barrel Inductive Proximity Sensor, M12 x 1, 4mA, 5 to 30V dc, IP67 Sensor: inductive; Output conf: NAMUR; 0÷4mm; 5÷30VDC; M12; IP67 Baumer NAMUR 电感式传感器 4 mm Detection Range, 柱体 34mm length, 5 → 30 V 直流, IP67 Baumer Group	-		NAMUR	30V	5 → 30 V dc	4 mA	34mm	Nickel Plated Brass	Barrel	IP67	+75°C	-	-	4 mm	Pre-Wired	Unshielded	-	M12 x 1	30V	12 (Dia.) x 34 mm	柱体	IP67	-	-	Pre-Wired	4 mm	inductive	10mA	0.1 kg	brass	non-embedded	0...4mm	1	lead 2m	NAMUR	-	-	2000Hz	-	-	-	-	nickel
IWRM 18U 9501 2 to 5mm PNP Barrel Inductive Proximity Sensor, M18 x 1, 20mA, 15 to 30V dc, IP67 Baumer Group	-		PNP	30V	15 → 30 V dc	20 mA	65mm	Nickel Plated Brass	Barrel	IP67	+60°C	Yes	Yes	2 → 5 mm	Wire Lead	Partial	Flush	M18 x 1	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

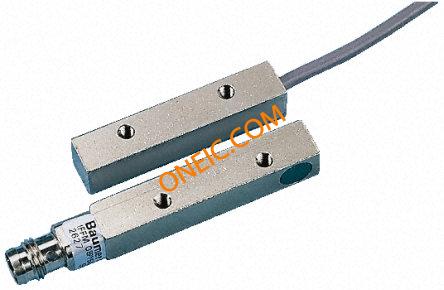

2 IFFM 08P 1701 O1L 2mm PNP Block Inductive Proximity Sensor, 200mA, 10 to 30V dc, IP67 Baumer PNP 电感式传感器 2 mm Detection Range, 块状 38.5mm length, 10 → 30 V 直流, IP67 Baumer Group	-		PNP	30V	10 → 30 V dc	200 mA	38.5mm	Nickel Plated Brass	Block	IP67	+75°C	Yes	Yes	2 mm	Wire Lead	Total	Flush	-	30V	38.5 x 8 x 8 mm	块状	IP67	是	是	导线	2 mm	-	-	-	-	-	-	-	-	-	8mm	8mm	-	-	-	-	-	-

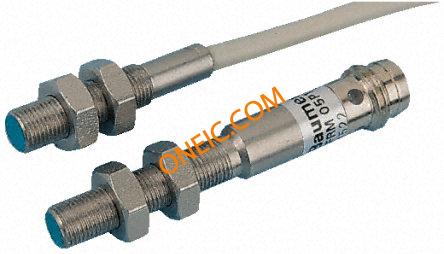

2 IFRM 05P 15A1L 1mm PNP Barrel Inductive Proximity Sensor, M5 x 0.5, 100mA, 10 to 30V dc, IP67 Baumer PNP 电感式传感器 1 mm Detection Range, 柱体 25mm length, 10 → 30 V 直流, IP67 Baumer Group	-		PNP	30V	10 → 30 V dc	100 mA	25mm	Stainless Steel	Barrel	IP67	+75°C	Yes	Yes	1 mm	Wire Lead	Total	Flush	M5 x 0.5	30V	25 x 5 mm	柱体	IP67	是	是	导线	1 mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
