Baumer Group- General Purpose Ultrasonic Sensors

Baumer Group is a leading Swiss manufacturer of sensors and automation components, founded in 1952 and headquartered in Frauenfeld, Switzerland. As a family-owned company, Baumer has grown into a global player with a presence in over 30 countries and production sites worldwide. The company specializes in high-precision sensor solutions for industrial automation, process control, and machine monitoring. Its extensive product portfolio includes inductive, photoelectric, capacitive, and ultrasonic sensors, as well as pressure, temperature, and force sensors. Baumer’s encoder range features incremental and absolute rotary encoders, linear encoders, and heavy-duty encoders, known for reliability in demanding environments. The company also offers advanced vision systems and smart cameras for quality inspection and object recognition. Baumer’s process sensors cover level, flow, temperature, and pressure measurement for hygienic and industrial applications. With a strong focus on innovation, Baumer invests heavily in R&D and holds numerous patents in sensor miniaturization and digital integration. The company serves a wide range of industries including automotive, packaging, food and beverage, pharmaceuticals, and renewable energy. As one of the world's top sensor specialists, Baumer is recognized for its engineering excellence, high-quality standards, and commitment to customer-specific solutions.

General Purpose Ultrasonic Sensors - 型号列表

11 parts in total

Mfr Part #	Quantity Available	Protection Features	Output Type	Voltage Rating	Voltage - Supply	Current - Switching	Frequency - Output 1	Current - Short Circuit Rating (SCCR)	Length	Terminal Type	Housing Material	Supplier Device Package	Seal Rating	Detection Capability	Operating Temperature	Depth	Width	Overload Protection	Reverse Polarity Protection	Voltage - DC Spark Over (Nom)	Connector Type	Size / Dimension	Style	Operating Range	Ingress Protection	Diameter	Thread Size
2 UNAM 30I6103/S14 Baumer 100 to 1000mm Analogue Barrel Ultrasonic Proximity Sensor, M12 Connector Baumer 模拟柱体超声波传感器 100 → 1000 mm 检测距离, M12 连接器接端 Baumer Group	-	Yes	Analogue	30V	15 → 30 V dc	20 mA	240kHz	Yes	81mm	M12 Connector	Nickel Plated Brass	Barrel	IP67	100 → 1000 mm	+60°C	-	-	是	是	30V	M12 连接器	81 x 30 mm	柱体	100 → 1000 mm	IP67	30 mm	M30 x 1.5
2 UNDK 30U6103/S14 Baumer 100 to 1000mm Analogue Block Ultrasonic Proximity Sensor, M12 Connector Baumer 模拟块状超声波传感器 100 → 1000 mm 检测距离, M12 连接器接端 Baumer Group	-	Yes	Analogue	30V	15 → 30 V dc	20 mA	240kHz	Yes	65mm	M12 Connector	Die Cast Zinc	Block	IP67	100 → 1000 mm	+60°C	31.1mm	30mm	是	是	30V	M12 连接器	65 x 30 x 31.1 mm	块状	100 → 1000 mm	IP67	-	-
UNDK 20U 6912 S35A Baumer 60 to 400mm Analogue Block Ultrasonic Proximity Sensor, M8 Connector Baumer Group	-	Yes	Analogue	30V	15 → 30 V dc	20 mA	290kHz	Yes	42mm	M8 Connector	Polyester	Block	IP67	60 → 400 mm	+60°C	15mm	20mm	-	-	-	-	-	-	-	-	-	-
2 UZDK 30P6103/S14 Baumer 100 to 1000mm PNP Block Ultrasonic Proximity Sensor, M12 Connector Baumer PNP 块状超声波传感器 100 → 1000 mm 检测距离, M12 连接器接端 Baumer Group	-	Yes	PNP	30V	12 → 30 V dc	200 mA	240kHz	Yes	65mm	M12 Connector	Die Cast Zinc	Block	IP67	100 → 1000 mm	+60°C	31.1mm	30mm	是	是	30V	M12 连接器	65 x 30 x 31.1 mm	块状	100 → 1000 mm	IP67	-	-
URDK 10P 8914 S35A Baumer 200mm PNP Block Ultrasonic Proximity Sensor, M8 Connector Baumer Group	-	Yes	PNP	30V	12 → 30 V dc	200 mA	380kHz	Yes	27mm	M8 Connector	Plastic	Block	IP67	200 mm	+60°C	14mm	12mm	-	-	-	-	-	-	-	-	-	-
2 UNDK 20P6914/S35A Baumer 10 to 200mm PNP Block Ultrasonic Proximity Sensor, M8 Connector Baumer PNP 块状超声波传感器 10 → 200 mm 检测距离, M8 连接器接端 Baumer Group	-	Yes	PNP	30V	12 → 30 V dc	200 mA	380kHz	Yes	42mm	M8 Connector	Polyester	Block	IP67	10 → 200 mm	+60°C	15mm	20mm	是	是	30V	M8 连接器	42 x 20 x 15 mm	块状	10 → 200 mm	IP67	-	-
2 UNAM 18P1703 Baumer 100 to 700mm PNP Barrel Ultrasonic Proximity Sensor, M12 Connector Baumer PNP 柱体超声波传感器 100 → 700 mm 检测距离, M12 连接器接端 Baumer Group	-	Yes	PNP	30V	12 → 30 V dc	200 mA	240kHz	Yes	89mm	M12 Connector	Nickel Plated Brass	Barrel	IP67	100 → 700 mm	+60°C	-	-	是	是	30V	M12 连接器	89 x 18 mm	柱体	100 → 700 mm	IP67	18 mm	M18 x 1

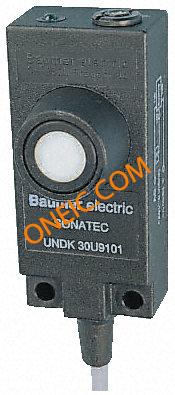

2 UNDK 30P1703/S14 Baumer 100 to 1000mm PNP Block Ultrasonic Proximity Sensor, M12 Connector Baumer PNP 块状超声波传感器 100 → 1000 mm 检测距离, M12 连接器接端 Baumer Group	-	Yes	PNP	30V	12 → 30 V dc	200 mA	240kHz	Yes	65mm	M12 Connector	Die Cast Zinc	Block	IP67	100 → 1000 mm	+60°C	31.1mm	30mm	是	是	30V	M12 连接器	65 x 30 x 31.1 mm	块状	100 → 1000 mm	IP67	-	-
UNDK 20P 6903 S35A Baumer 100 to 1000mm PNP Block Ultrasonic Proximity Sensor, M8 Connector Baumer Group	-	Yes	PNP	30V	12 → 30 V dc	200 mA	240kHz	Yes	42mm	M8 Connector	Polyester	Block	IP67	100 → 1000 mm	+60°C	15mm	20mm	-	-	-	-	-	-	-	-	-	-
UNDK 10P 8914 S35A Baumer 10 to 200mm PNP Block Ultrasonic Proximity Sensor, M8 Connector Baumer Group	-	Yes	PNP	30V	12 → 30 V dc	200 mA	380kHz	Yes	27mm	M8 Connector	Plastic	Block	IP67	10 → 200 mm	+60°C	14mm	12mm	-	-	-	-	-	-	-	-	-	-
2 UNDK 30P1712/S14 Baumer 60 to 400mm PNP Block Ultrasonic Proximity Sensor, M12 Connector Baumer PNP 块状超声波传感器 60 → 400 mm 检测距离, M12 连接器接端 Baumer Group	-	Yes	PNP	30V	12 → 30 V dc	200 mA	400kHz	Yes	65mm	M12 Connector	Die Cast Zinc	Block	IP67	60 → 400 mm	+60°C	31.1mm	30mm	是	是	30V	M12 连接器	65 x 30 x 31.1 mm	块状	60 → 400 mm	IP67	-	-
