Franz Binder GmbH & Co. Elektrische Bauelemente KG
Armored & Heavy-Duty Cable

Franz Binder GmbH & Co. Elektrische Bauelemente KG- Armored & Heavy-Duty Cable

Franz Binder GmbH & Co. Elektrische Bauelemente KG, commonly known as Binder, is a leading German manufacturer of circular connectors and connectivity solutions. Founded in 1960 by Franz Binder and headquartered in Neckarsulm, Germany, the company has grown into a globally recognized brand in the electronic components industry. Binder specializes in the design and production of high-quality circular connectors for industrial automation, medical technology, sensor systems, and harsh-environment applications. Its core product families include the widely adopted M5, M8, M12, M16, M23, and 7/8-inch connectors, along with DIN EN 175301-803 valve connectors (formerly DIN 43650). Binder also offers custom connector solutions, cable assemblies, and overmolded harnesses tailored to specific customer requirements. The company’s products are known for their reliability, IP67/IP68 sealing, and resistance to vibration and temperature extremes. With subsidiaries such as Binder UK Ltd. and Binder USA, the company maintains a strong global presence and distribution network. Binder is recognized as one of the top tier suppliers in the industrial connector market, competing with the likes of TE, Amphenol, and Phoenix Contact. Its connectors are integral components in factory automation, robotics, transportation, and measurement instrumentation worldwide.

Armored & Heavy-Duty Cable - 型号列表

46 parts in total

Mfr Part #	Quantity Available	Price	Leadfree Defin	Material Flammability Rating	Core Type	Resistance	Voltage Rating	Connector Impedance	Current Rating (Max)	Cable Type	Wire Gauge	1st Connector	2nd Connector	Outer Diameter	Color - Connectors	Number of Contacts	Cross Section Shape	Insulation Material	Number of Positions	Number of Cores/Bus Width	Wire Gauge or Range - AWG	Jacket (Insulation) Material	Type	Number of Cores	Seal Rating	Ingress Protection	Operating Temperature	Length	Minimum Bend Radius	LED	Number of Poles	Voltage - Supply (Min)	Voltage - Protection Level (VP) (2416)	Shell Finish	Material - Core	1st Connector Type	Contact Material	Cable Insulation	Series	Contact Type	RoHS
2 79 3414 15 03 3way IP65 M8 1end PUR lead w/ r/a skt,4A Binder M8对无终端接头 3 芯电缆组件 Binder	33	1: ¥104.12	No	No	18/0.1 mm	148 Ω/km	60 V	插座	3 A	Multicore	26	3 Way Female Circular	Free End	3mm	Black	3	0.14 mm	PVC	3	18	0.1 mm	Polyurethane	No	3	IP65	No	+70°C	-	5 x D	-	-	-	-	-	-	-	-	-	-	-	-

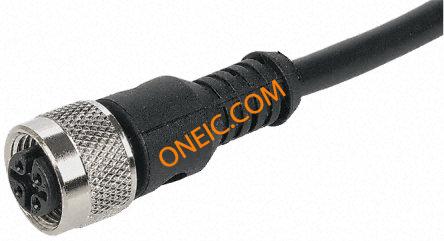

3 79 3430 37 04 Binder 4 way PUR lead w/straight skt,4A Sensor cable M12 Socket Open 5.00 m, 79-3430-37-04, Binder Binder 763 系列 M12对无终端接头 4 芯电缆组件 Binder	158	1: ¥123.14	No	No	42/0.1 mm	55 Ω/km	250 V	插座	4 A	Multicore	22	4 Way Female Circular	Free End	5mm	Black	4	0.34 mm	PVC	4	42	0.1 mm	Polyurethane	No	4	IP68	No	+85°C	5.00	25 mm	without	4	250 V	IP 68	PUR	PUR	Open	-	聚氨酯	763	包容式	-

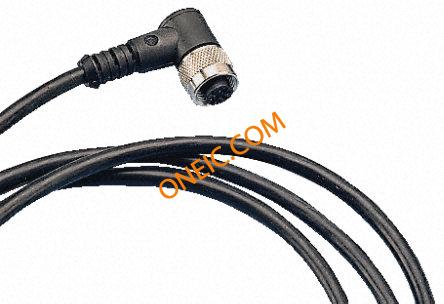

3 79 3434 13 04 RIGHT ANGLE SOCKET PVC 4WAY 2M Sensor cable M12 (90°) Socket Open 2.00 m, 79-3434-13-04, Binder Binder 直角 M12对无终端接头 4 芯电缆组件 Binder	157	1: ¥109.88	No	No	7/0.25 mm	79.9 Ω/km	250 V	插座	4 A	Multicore	22	4 Way Female Circular	Free End	5mm	Black	4	0.34 mm	PVC	4	7	0.25 mm	PVC	No	4	IP68	No	+85°C	2.00	-	without	4	250 V	IP 68	PVC	PUR	Open	-	-	-	-	-
3 79 3406 52 03 SOCKET PUR 2M Sensor cable M8 Socket Open 2.00 m, 79-3406-52-03, Binder Binder M8 至无终端接头 3 芯电缆组件 Binder	133	1: ¥75.87	No	No	32/0.1 mm	72 Ω/km	60 V	插座	4 A	Multicore	24	3 Way Female Circular	Free End	4.5mm	Black	3	0.25 mm	PVC	3	32	0.1 mm	Polyurethane	No	3	IP67	No	+85°C	2.00	5 x D	without	3	60 V	IP 67	PUR	PUR	Open	Brass, gold-plated	-	-	-	-
3 79 3434 33 04 RIGHT ANGLE SOCKET PUR 4WAY 2M Sensor cable M12 (90°) Socket Open 2.00 m, 79-3434-33-04, Binder Binder 直角 M12对无终端接头 4 芯电缆组件 Binder	10	1: ¥66.844	No	No	42/0.1 mm	55 Ω/km	250 V	插座	4 A	Multicore	22	4 Way Female Circular	Free End	5mm	Black	4	0.34 mm	PVC	4	42	0.1 mm	Polyurethane	No	4	IP68	No	+85°C	2.00	25 mm	without	4	250 V	IP 68	PUR	PUR	Open	-	-	-	-	-

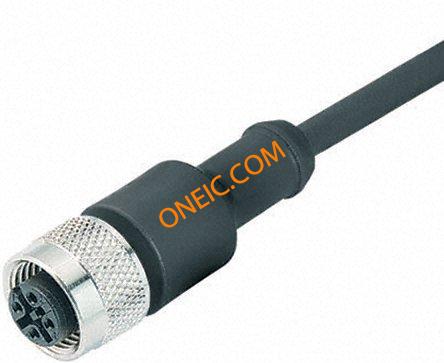

3 79-3430-35-04 Cable connector (f) moulded 5m 3-way CABLECONNECTOR Sensor cable M12 Socket Open 5.00 m, 79-3430-35-04, Binder Binder M12对无终端接头 4 芯电缆组件 Binder	87	1: ¥102.91	No	No	42/0.1 mm	55 Ω/km	250 V	插座	4 A	Multicore	22	3 Way Female Circular	Free End	4.5mm	Black	3	0.34 mm	PVC	4	42	0.1 mm	Polyurethane	No	3	IP68	No	+85°C	5.00	22 mm	without	3	250 V	IP 68	PUR	PUR	Open	-	-	-	-	RoHS Compliant Part

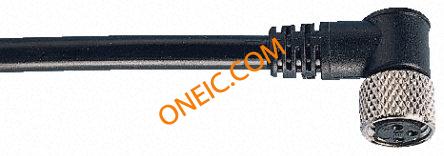

3 79 3408 55 03 RIGHT ANGLE SOCKET PUR 5M Sensor cable M8 (90°) Socket Open 5.00 m, 79-3408-55-03, Binder Binder 直角 M8对无终端接头 3 芯电缆组件 Binder	56	1: ¥100.90	No	No	32/0.1 mm	79.9 Ω/km	60 V	插座	4 A	Multicore	24	3 Way Female Circular	Free End	4.5mm	Black	3	0.25 mm	PVC	3	32	0.1 mm	Polyurethane	No	3	IP67	No	+85°C	5.00	5 x D	without	3	60 V	IP 67	PUR	PUR	Open	Brass, gold-plated	-	-	-	-
3 79 3406 45 03 SOCKET PVC 5M Sensor cable M8 Socket Open 5.00 m, 79-3406-45-03, Binder Binder M8对无终端接头 3 芯电缆组件 Binder	45	1: ¥89.36	No	No	32/0.1 mm	79.5 Ω/km	60 V	插座	4 A	Multicore	24	3 Way Female Circular	Free End	4.5mm	Black	3	0.25 mm	PVC	3	32	0.1 mm	PVC	No	3	IP67	No	+85°C	5.00	5 x D	without	3	60 V	IP 67	PVC	PUR	Open	Brass, gold-plated	-	-	-	-

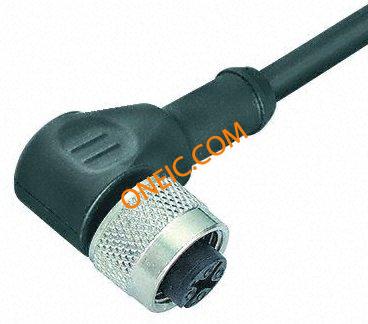

2 79 3434 17 04 Binder 4 way M12 PVC lead w/ r/a skt,4A Binder 763 系列 M12对无终端接头 4 芯电缆组件 Binder	407	1: ¥104.89	No	No	7/0.25 mm	79.9 Ω/km	250 V	插座	4 A	Multicore	22	4 Way Female Circular	Free End	5mm	Black	4	0.34 mm	PVC	4	7	0.25 mm	PVC	No	4	IP68	No	+85°C	5m	-	-	-	-	-	-	-	-	-	PVC	763	包容式	-
3 79-3440-32-05 Cable connector (f) moulded 2m 5-way CABLECONNECTOR Sensor cable M12 Socket Open 2.00 m, 79-3440-32-05, Binder Binder M12对无终端接头 5 芯电缆组件 Binder	93	1: ¥108.15	No	No	32/0.1 mm	55 Ω/km	125 V	插座	4 A	Multicore	24	5 Way Female Circular	Free End	5mm	Black	5	0.25 mm	PVC	5	32	0.1 mm	Polyurethane	No	5	IP68	No	+85°C	2.00	25 mm	without	5	125 V	IP 68	PUR	PUR	Open	-	-	-	-	RoHS Compliant Part

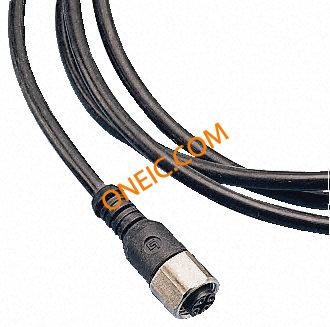

3 79 3440 52 05 SOCKET PUR 5WAY 2M Sensor cable M12 Socket Open 2.00 m, 79-3440-52-05, Binder Binder 763 系列 M12对无终端接头 5 芯电缆组件 Binder	100	1: ¥167.89	No	No	32/0.1 mm	55 Ω/km	125 V	插座	4 A	Multicore	24	5 Way Female Circular	Free End	5mm	Black	5	0.25 mm	PVC	5	32	0.1 mm	Polyurethane	No	5	IP68	No	+85°C	2.00	25 mm	without	5	125 V	IP 68	PUR	PUR	Open	-	聚氨酯	763	包容式	-

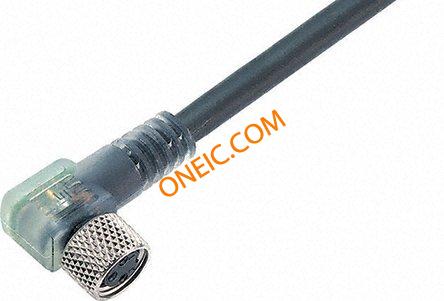

3 79 3404 52 03 RIGHT ANGLE SOCKET PUR 2M LED Sensor cable M8 (90°) Socket Open 2.00 m, 79-3404-52-03, Binder Binder 直角 M8对无终端接头 3 芯电缆组件 Binder	89	1: ¥136.20	No	No	32/0.1 mm	72 Ω/km	60 V	插座	4 A	Multicore	24	3 Way Female Circular	Free End	4.5mm	Black	3	0.25 mm	PVC	3	32	0.1 mm	Polyurethane	No	3	IP67	No	+85°C	2.00	5 x D	with	3	60 V	IP 67	PUR	PUR	Open	Brass, gold-plated	-	-	-	-
3 79-3480-32-08 Cable connector (f) moulded 2m 8-way Sensor cable M12 Socket Open 2.00 m, 79-3480-32-08, Binder Binder 763 系列 M12对无终端接头 8 芯电缆组件 Binder	156	1: ¥139.97	No	No	19/0.127 mm	73 Ω/km	60 v	插座	2 A	Multicore	24	8 Way Female Circular	Free End	6mm	Black	8	0.25 mm	PVC	8	19	0.127 mm	Polyurethane	No	8	IP68	No	+85°C	2.00	60 mm	without	8	60 V	IP 67	PUR	PUR	Open	-	聚氨酯	763	-	-
3 79 3414 02 03 RIGHT ANGLE SOCKET PVC 2M Sensor cable M8 (90°) Socket Open 2.00 m, 79-3414-02-03, Binder Binder 直角 M8 至无终端接头 3 芯电缆组件 Binder	27	1: ¥81.93	No	No	18/0.1 mm	148 Ω/km	60 V	插座	3 A	Multicore	26	3 Way Female Circular	Free End	3mm	Black	3	0.14 mm	PVC	3	18	0.1 mm	PVC	No	3	IP65	No	+70°C	2.00	5 x D	without	3	60 V	IP 65	PVC	PUR	Open	Brass, gold-plated	-	-	-	-
3 79 3406 55 03 SOCKET PUR 5M Sensor cable M8 Socket Open 5.00 m, 79-3406-55-03, Binder Binder M8对无终端接头 3 芯电缆组件 Binder	242	1: ¥100.57	No	No	32/0.1 mm	72 Ω/km	60 V	插座	4 A	Multicore	24	3 Way Female Circular	Free End	4.5mm	Black	3	0.25 mm	PVC	3	32	0.1 mm	Polyurethane	No	3	IP67	No	+85°C	5.00	5 x D	without	3	60 V	IP 67	PUR	PUR	Open	Brass, gold-plated	-	-	-	-
3 79 3434 37 04 Binder 4 way M12 PUR lead w/ r/a skt,4A Sensor cable M12 (90°) Socket Open 5.00 m, 79-3434-37-04, Binder Binder 763 系列 M12对无终端接头 4 芯电缆组件 Binder	64	1: ¥118.98	No	No	42/0.1 mm	55 Ω/km	250 V	插座	4 A	Multicore	22	4 Way Female Circular	Free End	5mm	Black	4	0.34 mm	PVC	4	42	0.1 mm	Polyurethane	No	4	IP68	No	+85°C	5.00	25 mm	without	4	250 V	IP 68	PUR	PUR	Open	-	聚氨酯	763	包容式	-
2 79-3430-32-04 Cable connector (f) moulded 2m 3-way CABLECONNECTOR Binder M12对无终端接头 4 芯电缆组件 Binder	36	1: ¥82.95	No	No	42/0.1 mm	55 Ω/km	250 V	插座	4 A	Multicore	22	3 Way Female Circular	Free End	4.5mm	Black	3	0.34 mm	PVC	4	42	0.1 mm	Polyurethane	No	3	IP68	No	+85°C	2m	22 mm	-	-	-	-	-	-	-	-	-	-	-	RoHS Compliant Part
3 79 3410 12 03 SOCKET PUR 2M Sensor cable M8 Socket Open 2.00 m, 79-3410-12-03, Binder Binder 7/8-16 UN对无终端接头 3 芯电缆组件 Binder	30	1: ¥92.01	No	No	18/0.1 mm	148 Ω/km	60 V	插座	3 A	Multicore	26	3 Way Female Circular	Free End	3mm	Black	3	0.14 mm	PVC	3	18	0.1 mm	Polyurethane	No	3	IP65	No	+70°C	2.00	5 x D	without	3	60 V	IP 65	PUR	PUR	Open	Brass, gold-plated	-	-	-	-
3 79 3440 55 05 SOCKET PUR 5WAY 5M Sensor cable M12 Socket Open 5.00 m, 79-3440-55-05, Binder Binder 763 系列 M12对无终端接头 5 芯电缆组件 Binder	103	1: ¥182.64	No	No	32/0.1 mm	55 Ω/km	125 V	插座	4 A	Multicore	24	5 Way Female Circular	Free End	5mm	Black	5	0.25 mm	PVC	5	32	0.1 mm	Polyurethane	No	5	IP68	No	+85°C	5.00	25 mm	without	5	125 V	IP 68	PUR	PUR	Open	-	聚氨酯	763	包容式	-
3 79 3404 55 03 RIGHT ANGLE SOCKET PUR 5M LED Sensor cable M8 (90°) Socket Open 5.00 m, 79-3404-55-03, Binder Binder 直角 M8对无终端接头 3 芯电缆组件 Binder	54	1: ¥143.81	No	No	32/0.1 mm	72 Ω/km	60 V	插座	4 A	Multicore	24	3 Way Female Circular	Free End	4.5mm	Black	3	0.25 mm	PVC	3	32	0.1 mm	Polyurethane	No	3	IP67	No	+85°C	5.00	5 x D	with	3	60 V	IP 67	PUR	PUR	Open	Brass, gold-plated	-	-	-	-
