Franz Binder GmbH & Co. Elektrische Bauelemente KG- Specialty & Connectorized Cable

Franz Binder GmbH & Co. Elektrische Bauelemente KG, commonly known as Binder, is a leading German manufacturer of circular connectors and connectivity solutions. Founded in 1960 by Franz Binder and headquartered in Neckarsulm, Germany, the company has grown into a globally recognized brand in the electronic components industry. Binder specializes in the design and production of high-quality circular connectors for industrial automation, medical technology, sensor systems, and harsh-environment applications. Its core product families include the widely adopted M5, M8, M12, M16, M23, and 7/8-inch connectors, along with DIN EN 175301-803 valve connectors (formerly DIN 43650). Binder also offers custom connector solutions, cable assemblies, and overmolded harnesses tailored to specific customer requirements. The company’s products are known for their reliability, IP67/IP68 sealing, and resistance to vibration and temperature extremes. With subsidiaries such as Binder UK Ltd. and Binder USA, the company maintains a strong global presence and distribution network. Binder is recognized as one of the top tier suppliers in the industrial connector market, competing with the likes of TE, Amphenol, and Phoenix Contact. Its connectors are integral components in factory automation, robotics, transportation, and measurement instrumentation worldwide.

Specialty & Connectorized Cable - 型号列表

12 parts in total

Mfr Part #	Quantity Available	Price	Leadfree Defin	Material Flammability Rating	Voltage Rating	Current Rating (Max)	Cable Type	Wire Gauge	Shield Type	Cross Section Shape	Insulation Material	Type	Number of Cores	Ingress Protection	Operating Temperature	Number of Poles	Voltage - Protection Level (VP) (2416)	Locking Feature	Contact Material	Housing Material	Termination Style	1st Connector Gender	Series	Description	Connection Method	Mounting Type	Length	Number of Positions	Design	RoHS	Jacket (Insulation) Material
3 09-3481-116-08 Socket (m) with wires 8-way PG9 Panel-mount plug, 713 series 8-pole Poles 8, 09-3481-116-08, Binder Binder 执行器/传感器电缆 Binder	328	1: ¥135.86	No	No	60 V	2 A	Multicore	24	Unscreened	0.25 mm	Polyamide	No	8	No	+85°C	8	IP 68	Thread locking M12 x 1	CuSn(Zn)+Au	Metal	Stranded Wires, Prepared	Male	713	Panel-mount plugs with 0.2 m strands for rear side assembly	0.25 mm²	PG 9	-	-	-	-	-
3 09-3412-00-03 Female socket with wires 3-way FEMALESOCKET Panel-mount socket, 768 series 3-pole Poles 3, 09-3412-00-03, Binder Binder 768/718 系列 200mm长 3 芯执行器/传感器电缆 Binder	252	1: ¥74.94	No	No	60 V	4 A	Multicore	24	Unscreened	0.25 mm	Polyurethane	No	3	No	+85°C	3	IP 67	M8 x 1 thread locking	CuSn(Zn)+Au	Polybutylene terephthalate (PBT)	Stranded Wires, Prepared	Female	768	Panel-mount sockets with 0.2 m leads 0.25 mm² for front side mounting	0.25 mm²	-	200mm	3	Front side mounting	RoHS Compliant Part	Polyurethane
3 09-3441-282-05 Socket with wire (m) 5-way PG9 Panel-mount plug, 713 series 4-pole Poles 5, 09-3441-282-05, Binder Binder 执行器/传感器电缆 Binder	10	1: ¥106.556	No	No	125 V	4 A	Multicore	24	Unscreened	0.25 mm	Polyamide	No	5	No	+85°C	5	IP 68	Thread locking M12 x 1	CuSn(Zn)+Au	Stainless steel	Stranded Wires, Prepared	Male	713	Panel-mount plugs with 0.2 m strands for front assembly	0.25 mm²	PG9	-	-	-	-	-
3 09-3390-00-04 Female socket with wires 4-way Panel-mount socket, 768 series 4-pole Poles 4, 09-3390-00-04, Binder Binder 768/718 系列 200mm长 4 芯执行器/传感器电缆 Binder	165	1: ¥88.39	No	No	30 V	4 A	Multicore	24	Unscreened	0.25 mm	Polyurethane	No	4	No	+85°C	4	IP 67	M8 x 1 thread locking	CuSn(Zn)+Au	Polybutylene terephthalate (PBT)	Stranded Wires, Prepared	Female	768	Panel-mount sockets with 0.2 m leads 0.25 mm2 for front side mounting	0.25 mm²	-	200mm	4	Front side mounting	-	Polyurethane

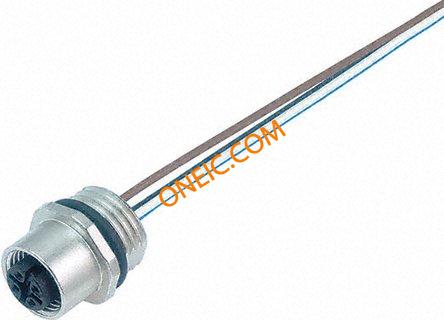

3 09-3432-282-04 Socket with wire (f) 4-way PG9 SOCKETWITHWIRES Panel-mount socket, 713 series 4-pole Poles 4, 09-3432-282-04, Binder Binder 执行器/传感器电缆 Binder	10	1: ¥163.65	No	No	250 V	4 A	Multicore	24	Unscreened	0.25 mm	Polyamide	No	4	No	+85°C	4	IP 68	Thread locking M12 x 1	CuSn(Zn)+Au	Stainless steel	Stranded Wires, Prepared	Female	713	Panel-mount sockets with 0.2 m strands for front assembly	0.25 mm²	PG 9	-	-	-	RoHS Compliant Part	-
3 09-3431-116-04 Socket (m) with wires 4-way PG9 Panel-mount plug, 713 series 4-pole Poles 4, 09-3431-116-04, Binder Binder 763 系列 200mm长 4 芯执行器/传感器电缆 Binder	14	1: ¥90.032	No	No	250 V	4 A	Multicore	24	Unscreened	0.25 mm	Polyamide	No	4	No	+85°C	4	IP 67	Thread locking M12 x 1	CuSn(Zn)+Au	Metal	Stranded Wires, Prepared	Male	713	Panel-mount plugs with 0.2 m strands for rear side assembly	0.25 mm²	PG 9	200mm	4	Panel-mount plug, rear mounting	-	-

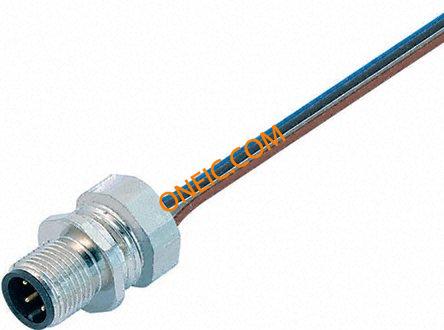

3 09-3481-22-08 Socket (m) with wires 8-way PG9 Panel-mount plug, 713 series 8-pole Poles 8, 09-3481-22-08, Binder Binder 执行器/传感器电缆 Binder	10	1: ¥144.40	No	No	60 V	2 A	Multicore	24	Unscreened	0.25 mm	Polyamide	No	8	No	+85°C	8	IP 68	Thread locking M12 x 1	CuSn(Zn)+Au	Metal	Stranded Wires, Prepared	Male	713	Panel-mount plugs with 0.2 m strands for front assembly	0.25 mm²	PG 9	-	-	-	-	-
3 09-3442-282-05 Socket with wire (f) 5-way PG9 Panel-mount socket, 713 series 5-pole Poles 5, 09-3442-282-05, Binder Binder 执行器/传感器电缆 Binder	20	1: ¥135.07	No	No	125 V	4 A	Multicore	24	Unscreened	0.25 mm	Polyamide	No	5	No	+85°C	5	IP 68	Thread locking M12 x 1	CuSn(Zn)+Au	Stainless steel	Stranded Wires, Prepared	Female	713	Panel-mount sockets with 0.2 m strands for front assembly	0.25 mm²	PG 9	-	-	-	-	-
3 09-3441-116-05 Socket (m) with wires 5-way PG9 Panel-mount plug, 713 series 5-pole Poles 5, 09-3441-116-05, Binder Binder 763 系列 200mm长 5 芯执行器/传感器电缆 Binder	10	1: ¥103.156	No	No	125 V	4 A	Multicore	24	Unscreened	0.25 mm	Polyamide	No	5	No	+85°C	5	IP 68	Thread locking M12 x 1	CuSn(Zn)+Au	Metal	Stranded Wires, Prepared	Male	713	Panel-mount plugs with 0.2 m strands for rear side assembly	0.25 mm²	PG 9	200mm	5	-	-	-

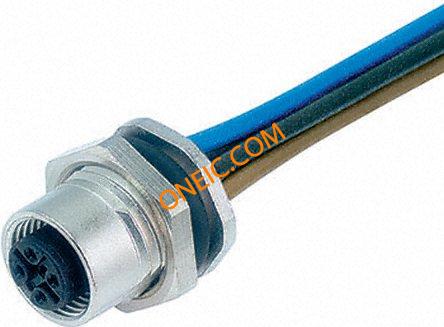

2 09-3432-87-04 Socket (f) with wires 4-way PG9 SOCKETWITHWIRES Binder 执行器/传感器电缆 Binder	26	1: ¥75.57	No	No	250 V	4 A	Multicore	24	Unscreened	0.25 mm	Polyamide	No	4	No	+85°C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	RoHS Compliant Part	-
3 09-3391-00-04 Male socket with wires 4-way MALESOCKET Panel-mount plug, 768 series 4-pole Poles 4, 09-3391-00-04, Binder Binder 768/718 系列 200mm长 4 芯执行器/传感器电缆 Binder	484	1: ¥81.54	No	No	30 V	4 A	Multicore	24	Unscreened	0.25 mm	Polyamide	No	4	No	+85°C	4	IP 67	M8 x 1 thread locking	CuSn(Zn)+Au	Polybutylene terephthalate (PBT)	Stranded Wires, Prepared	Male	768	Panel-mount plugs with 0.2 m leads 0.25 mm² for front side mounting	0.25 mm²	-	200mm	4	Front side mounting	RoHS Compliant Part	-
3 09-3403-00-03 Male socket with wires 3-way Panel-mount plug, 768 series 3-pole Poles 3, 09-3403-00-03, Binder Binder 768/718 系列 200mm长 3 芯执行器/传感器电缆 Binder	10	1: ¥56.304	No	No	60 V	4 A	Multicore	24	Unscreened	0.25 mm	Polyamide	No	3	No	+85°C	3	IP 67	M8 x 1 thread locking	CuSn(Zn)+Au	Polybutylene terephthalate (PBT)	Stranded Wires, Prepared	Male	768	Panel-mount plugs with 0.2 m leads 0.25 mm² for front side mounting	0.25 mm²	-	200mm	3	Front side mounting	-	-
