Block Transformatoren-Elektronik GmbH- AC-DC Converters - Single Output

Block Transformatoren-Elektronik GmbH, commonly referred to as BLOCK, is a German family-owned company founded by Walter Block in 1936 and headquartered in Verden, Germany. The company specializes in the development, manufacturing, and distribution of transformers, switched-mode power supplies, chokes, filters, and electronic modules. Its comprehensive product portfolio includes industrial power supplies, electronic load relays, and custom magnetic components tailored to customer specifications. BLOCK serves a wide range of industries such as industrial automation, renewable energy, medical technology, building automation, and transportation. Renowned for its high quality and reliability, the company's products meet international standards and hold certifications including UL, CSA, and VDE. With a strong commitment to innovation and energy efficiency, BLOCK continuously invests in research and development. The company operates a global sales network with subsidiaries like Block USA, Inc., ensuring local support and service. As a leading provider in the transformer and power supply market, BLOCK maintains a reputation for engineering excellence and long-term partnerships.

AC-DC Converters - Single Output - 型号列表

46 parts in total

Mfr Part #	Quantity Available	Price	Efficiency	Voltage Rating	Current - Output	Weight	Type	Maximum Temperature Limit	Noise	Depth	Width	Length	Size / Dimension	Phase Difference	Operating Temperature	Power - Rated	Power (Watts)	Voltage - Supply	Current Rating (Max)	Voltage - Output (Max)	Voltage - Output (Min/Fixed)	Mounting Type	Number of Outputs	Line Regulation	Load Regulation	Ripple	Derating	Frequency	Voltage - Test	Current - Output 1	Voltage - Input (Min)	Voltage Regulation - Load	Size	Width - Overall	CAD Drawing	Temperature
PEL 230/24-2,5 DIN Rail Power Supply 230/24-2.5 Block	115	1: ¥506.2124	88%	120 → 373 V dc, 85 → 264 V ac	2.5A	0.24kg	Switch Mode	+85°C	100mV	89mm	59mm	72mm	72 x 59 x 89mm	1	-25°C	-	-	-	-	-	-	-	2	-	-	-	-	-	-	-	-	-	-	-	-	-
2 PSR230/24-1.3 DIN rail mount 1 phase i/p SMPSU,24V 30W Block 开关模式 DIN 导轨和面板安装电源 , 83%效能, 1.3A输出 Block	112	1: ¥520.9004	83%	90 → 264V ac	1.3A	0.3kg	Switch Mode	+70°C	150mV Pk-Pk	95mm	40mm	90mm	90 x 40 x 95mm	1	-10°C	32W	83%	1	1.3 A	-	-	DIN 导轨	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 PVSE 400/24-40 PSU three-phase 24V,40A,economy Block 开关模式 DIN 导轨和面板安装电源, 40A输出 Block	10	1: ¥3,206.74	93.1%	340 → 550 V ac, 480 → 780 V dc	40A	2.5kg	Switch Mode	+70°C	150mV Pk-Pk	127mm	128mm	205mm	205 x 128 x 127mm	3	-10°C	960W	93.1%	交流	40 A	28.8V 直流	22.8V 直流	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
GLC 230/24-7.5 GLC unregulated linear PSU,24V 165W DC power supply 24 VDC 7.5 A, GLC 230/24-7.5, Block Block 线性 DIN 导轨和面板安装电源, 7.5A输出 Block	44	1: ¥1,311.1828	81%	230V ac	7.5A	6.5kg	Linear	+60°C	±5%	124mm	175mm	212mm	212 x 175 x 124mm	1	-	180W	81%	400V 交流	7.5 A	24V 直流	24V 直流	DIN 导轨	-	+6 %, -10 %	±25%	<5%	from +40 °C	50...60 Hz	4000 VAC	7.5 A	24 VDC	-10 %, 6 %	175 x 124 mm	175 x 124 x 212 mm	3D CAD Model	max.60 °C
2 PSR230/12-2 DIN rail mount 1 phase i/p SMPSU,12V 24W Block 24W 开关模式 DIN 导轨和面板安装电源 , 80%效能, 2A输出 Block	104	1: ¥564.1892	80%	90 → 264V ac	2A	0.3kg	Switch Mode	+70°C	150mV Pk-Pk	95mm	40mm	90mm	90 x 40 x 95mm	1	-10°C	24W	80%	1	2 A	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PSR500/24-20 PSR DIN rail 3 phase i/p SMPSU,24V 480W Block	27	1: ¥2,105.11	85%	325 → 550V ac	20A	2kg	Switch Mode	+70°C	100mV Pk-Pk	138mm	118mm	218mm	218 x 118 x 138mm	3	-10°C	480W	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 PEL 230/18-2,5 DIN Rail Power Supply 230/18-2.5 Block 2输出开关模式 DIN 导轨和面板安装电源 , 83%效能, 264V ac输入, 2.5A输出, 28V dc输出 Block	10	1: ¥618.34	83%	120 → 373 V dc, 85 → 264 V ac	2.5A	0.24kg	Switch Mode	+85°C	50mV	-	-	-	-	1	-25°C	-	83%	交流	2.5 A	28V 直流	15V 直流	-	2	-	-	-	-	-	-	-	-	-	-	-	-	-
PSR230/24-2.5 DIN rail mount 1 phase i/p SMPSU,24V 60W Block	80	1: ¥732.4008	90%	90 → 264V ac	2.5A	0.7kg	Switch Mode	+70°C	150mV Pk-Pk	130mm	51mm	145mm	145 x 51 x 130mm	1	-10°C	60W	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 PELR 24/24-5 DIN Rail Power Supply 24/24-5 Block 2输出冗余模块 DIN 导轨和面板安装电源 , 97%效能, 24V dc输入, 5A输出, 24V dc输出 Block	10	1: ¥479.32	97%	11 → 30V dc	10A	0.16kg	Redundancy Module	+85°C	-	89mm	59mm	72mm	72 x 59 x 89mm	-	-25°C	7W	97%	直流	5 A	24V 直流	12V 直流	-	2	-	-	-	-	-	-	-	-	-	-	-	-	-
2 PVSB 400/24-10 PSU three-phase 24V,10A Block 开关模式 DIN 导轨和面板安装电源, 10A输出 Block	10	1: ¥1,634.36	91.7%	340 → 550 V ac, 480 → 780 V dc	10A	1kg	Switch Mode	+70°C	150mV Pk-Pk	127mm	57mm	179mm	179 x 57 x 127mm	3	-10°C	240W	91.7%	交流	10 A	28.8V 直流	22.8V 直流	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
GLC 230/24-10 GLC unregulated linear PSU,24V 220W DC power supply 24 VDC 10 A, GLC 230/24-10, Block Block 线性 DIN 导轨和面板安装电源, 10A输出 Block	10	1: ¥2,022.40	81%	230V ac	10A	7.3kg	Linear	+60°C	±5%	124mm	175mm	212mm	212 x 175 x 124mm	1	-	240W	81%	400V 交流	10 A	24V 直流	24V 直流	DIN 导轨	-	+6 %, -10 %	±25%	<5%	from +40 °C	50...60 Hz	4000 VAC	10 A	24 VDC	±25%	175 x 124 mm	175 x 124 x 212 mm	3D CAD Model	max.60 °C
PSR230/12-4 DIN rail mount 1 phase i/p SMPSU,12V 48W Block	74	1: ¥784.6588	89%	90 → 264V ac	4A	0.7kg	Switch Mode	+70°C	150mV Pk-Pk	130mm	51mm	130mm	130 x 51 x 130mm	1	-10°C	48W	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
DGU5 400/24-32 3 phase unregulated PSU,24V 704W Block	26	1: ¥2,243.15	89%	208.5 → 300.5V ac	32A	17.5kg	Linear	+60°C	±4%	247mm	203mm	359mm	359 x 203 x 247mm	3	0°C	704W	-	-	-	-	-	-	-	+6 %, -10 %	±10%	-	-	-	-	-	-	-	-	-	-	-
2 PSR500/24-40 PSR DIN rail 3 phase i/p SMPSU,24V 960W Block 960W 开关模式 DIN 导轨和面板安装电源 , 88%效能, 40A输出 Block	21	1: ¥2,776.576	88%	325 → 550V ac	40A	3.8kg	Switch Mode	+70°C	100mV Pk-Pk	138mm	120mm	260mm	260 x 120 x 138mm	3	-10°C	960W	88%	3	40 A	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 PVSE 230/24-5 PSU single-phase 24V,5A,economy Block 120W 开关模式 DIN 导轨和面板安装电源 , 87%效能, 5A输出 Block	52	1: ¥1,111.7116	87%	120 → 373 V dc, 85 → 264 V ac	5A	1kg	Switch Mode	+70°C	70mV Pk-Pk	127mm	57mm	163mm	163 x 57 x 127mm	1	-10°C	120W	87%	1	5 A	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 PSR500/24-5 PSR DIN rail 3 phase i/p SMPSU,24V 120W Block 120W 开关模式 DIN 导轨和面板安装电源 , 83%效能, 5A输出 Block	49	1: ¥1,194.4404	83%	325 → 550V ac	5A	0.7kg	Switch Mode	+60°C	100mV Pk-Pk	120mm	67mm	138mm	138 x 67 x 120mm	3	-10°C	120W	83%	3	5 A	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PEL 230/24-1,3 DIN Rail Power Supply 230/24-1.3 Block	130	1: ¥449.4188	82%	120 → 373 V dc, 85 → 264 V ac	1.3A	0.17kg	Switch Mode	+85°C	100mV	89mm	59mm	54mm	54 x 59 x 89mm	1	-25°C	-	-	-	-	-	-	-	2	-	-	-	-	-	-	-	-	-	-	-	-	-
2 PSR230/24-5 DIN rail mount 1 phase i/p SMPS,24V 120W Block 开关模式 DIN 导轨和面板安装电源 , 90%效能, 5A输出 Block	61	1: ¥952.374	90%	90 → 264V ac	5A	0.9kg	Switch Mode	+70°C	150mV Pk-Pk	130mm	67mm	145mm	145 x 67 x 130mm	1	-10°C	120W	90%	1	5 A	-	-	DIN 导轨	-	-	-	-	-	-	-	-	-	-	-	-	-	-
GLC 230/24-2 GLC unregulated linear PSU,24V 44W DC power supply 24 VDC 2 A, GLC 230/24-2, Block Block 线性 DIN 导轨和面板安装电源, 2A输出 Block	10	1: ¥687.33	76%	230V ac	2A	1.8kg	Linear	+60°C	±5%	75mm	90mm	138mm	138 x 90 x 75mm	1	-	48W	76%	400V 交流	2 A	24V 直流	24V 直流	DIN 导轨	-	+6 %, -10 %	±25%	<5%	from +40 °C	50...60 Hz	4000 VAC	2 A	24 VDC	-10 %, 6 %	90 x 75 mm	90 x 75 x 138 mm	3D CAD Model	max.60 °C

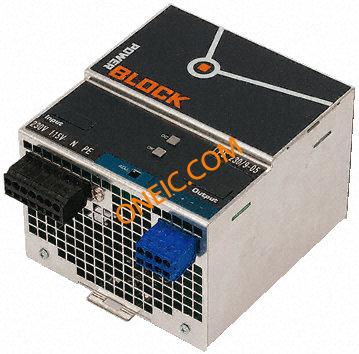

2 LPS230/12-0.5 LPS linear regulated PSU,+/-12-15V 7.5W Block 线性 DIN 导轨和面板安装电源, 500mA输出 Block	10	1: ¥709.90	50%	115 V ac, 230 V ac	0.5A	1.5kg	Linear	+60°C	10mV Pk-Pk	120mm	65mm	120mm	120 x 65 x 120mm	-	-10°C	6 → 7.5W	50%	交流	500 mA	15V 直流	12V 直流	DIN 导轨	-	-	-	-	-	-	-	-	-	-	-	-	-	-
