Chauvin Arnoux- Test Leads

Chauvin Arnoux, founded in 1893 by Raphael Chauvin and René Arnoux, is a renowned French manufacturer of test and measurement instruments. Headquartered in Paris, France, the company serves as the parent of the Chauvin Arnoux Group, specializing in measuring electrical and physical quantities. With over 130 years of experience, Chauvin Arnoux has built a global presence through 10 subsidiaries, including offices in China and the United States, and a network of 150 agents and 3000 distributors worldwide. The company designs and produces a wide range of portable and benchtop instruments for electrical testing, maintenance, and quality analysis. Key product lines include the C.A 6416/6417 ground resistance testers, the C.A 6520/6530 insulation resistance testers, the C.A 6240 low-resistance ohmmeters, and the Qualistar+ C.A 8330 series power quality analyzers. The scope also encompasses digital oscilloscopes under the Metrix brand, clamp meters and current probes (such as the E3N series), and environmental measurement tools. Chauvin Arnoux's instruments are widely used in industrial maintenance, electrical safety testing, building installation verification, and power utility applications. The company holds a strong market position in Europe and is recognized globally for its technical innovation, product reliability, and adherence to international safety standards. Through continuous R&D, Chauvin Arnoux integrates advanced features like Bluetooth connectivity, data logging, and multi-parameter analysis into its devices. Its extensive catalog and customer-centric approach have made it a preferred choice among electricians, engineers, and service professionals.

Test Leads - 型号列表

19 parts in total

Mfr Part #	Quantity Available	Price	Model Number	Safety Category	Accuracy	Output Type	Current Rating (Max)	Adapter Type	Operating Temperature	Maximum Payload	Connector Type	Length - Extended	RoHS	Calibration	Battery Chemistry	Battery Life	Safety Outputs and Type	Current - Max	Voltage - Protection Level (VP) (2416)	Length	Outside Pipe Diameter (Max)	Part Number	Resolution	Lead Style	Length - Lead Wire
P01120563 Flexible Current Probe 30A/300A AC 17cm RSCAL(7406537) Flexible Current Probe UKAS(7406537) Flexible Current Probe FlexibleCurrentProbe30A/300AAC17cm Chauvin Arnoux	23	1: ¥2,474.86	MA100	CAT III 1000 V, CAT IV 600 V	±1 %	Current	300A ac	AC	+55°C	170mm	4 mm Plug	2m	Not Applicable	RSCAL	9V	100 h	-	-	-	-	-	-	-	-	-
P01120564 UKAS(7406525) Flexible Current Probe RSCAL(7406525) Flexible Current Probe Flexible Current Probe 300A/3000AAC 25cm FlexibleCurrentProbe300A/3000AAC25cm Chauvin Arnoux	25	1: ¥2,267.80	MA100	CAT III 1000 V, CAT IV 600 V	±1 %	Current	3000A ac	AC	+55°C	250mm	4 mm Plug	2m	Not Applicable	UKAS	9V	100 h	-	-	-	-	-	-	-	-	-
P01120572 Flexible Current Probe 3000A AC 35cm RSCAL(7406540) Flexible Current Probe UKAS(7406540) Flexible Current Probe Chauvin Arnoux	12	1: ¥4,545.46	MA200	CAT III 1000 V, CAT IV 600 V	±1% + 0.3 A	Current	3000A ac	AC	+55°C	170mm	BNC	2m	Not Applicable	RSCAL	9V	100 h	-	-	-	-	-	-	-	-	-
2 P01120408 RSCAL(2931833),MN39 mini current clamp UKAS(2931833),MN39 mini current clamp MN39 ac mini clamp,200A Chauvin Arnoux 万用表钳形电流适配器, 交流类型 240A ac, 最大20mm导体 Chauvin Arnoux	10	1: ¥1,700.50	MN39	CAT III 600 V	±1 %	Voltage	240A ac	AC	+55°C	20mm	BNC	1.5m	Not Applicable	RSCAL	-	-	CAT III 600 V	240A 交流	600V	1.5m	20mm	MN39	-	-	-

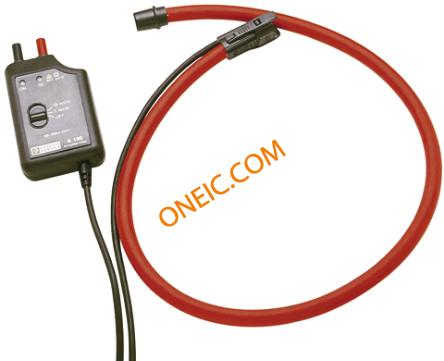

P01120507 UKAS(7406519) Flexible Current Probe Flexible Current Probe 0.3kA/3kA AC 80cm RSCAL(7406519) Flexible Current Probe Chauvin Arnoux	14	1: ¥4,190.50	A100	CAT III 1000 V, CAT IV 600 V	±1 %	Current	3kA ac	AC	+55°C	80cm	4 mm Plug	2m	Not Applicable	UKAS	9V	150 h	-	-	-	-	-	-	-	-	-
P01120415 RSCAL(2931855),MN89 mini current clamp UKAS(2931855),MN89 mini current clamp Mini current clamp,0.5A-200A Minicurrentclamp,0.5A-200A Chauvin Arnoux	41	1: ¥1,419.84	P01120415	CAT III 600 V	±2 %	Voltage	240A ac	AC	+55°C	20mm	BNC	1.5m	Not Applicable	RSCAL	-	-	-	-	-	-	-	-	-	-	-
P01120501 UKAS(7406528) Flexible Current Probe RSCAL(7406528) Flexible Current Probe Flexible Current Probe 2000A AC 45cm Chauvin Arnoux	27	1: ¥2,129.76	A100	CAT III 1000 V, CAT IV 600 V	±1 %	Current	2kA ac	AC	+55°C	45cm	4 mm Plug	2m	Not Applicable	UKAS	9V	150 h	-	-	-	-	-	-	-	-	-
P01120505 Flexible Current Probe 0.2kA/2kA AC 80cm RSCAL(7406512) Flexible Current Probe UKAS(7406512) Flexible Current Probe Chauvin Arnoux	17	1: ¥3,312.96	A100	CAT III 1000 V, CAT IV 600 V	±1 %	Current	2kA ac	AC	+55°C	80cm	4 mm Plug	2m	Not Applicable	RSCAL	9V	150 h	-	-	-	-	-	-	-	-	-
P01120506 UKAS(7406515) Flexible Current Probe Flexible Current Probe 0.3kA/3kA AC 45cm RSCAL(7406515) Flexible Current Probe Chauvin Arnoux	16	1: ¥3,658.06	A100	CAT III 1000 V, CAT IV 600 V	±1 %	Current	3kA ac	AC	+55°C	45cm	4 mm Plug	2m	Not Applicable	UKAS	9V	150 h	-	-	-	-	-	-	-	-	-
P01120406 UKAS(2931827),MN13 mini current clamp RSCAL(2931827),MN13 mini current clamp MN13 ac mini clamp,200A Chauvin Arnoux	52	1: ¥1,114.18	MN13	CAT III 600 V	±1 %	Voltage	240A ac	AC	+55°C	20mm	BNC	1.5m	Not Applicable	UKAS	-	-	-	-	-	-	-	-	-	-	-
PO1120074A CURRENT PROBE K2 Chauvin Arnoux	17	1: ¥3,324.2956	PO1120074A	CAT II 300 V	±1%	Current	300mA ac	AC/DC	+55°C	3.9mm	4 mm	1.5m	-	-	9 V	20 hrs	-	-	-	-	-	-	100 (CA) μA; 50 (CC) μA	-	-

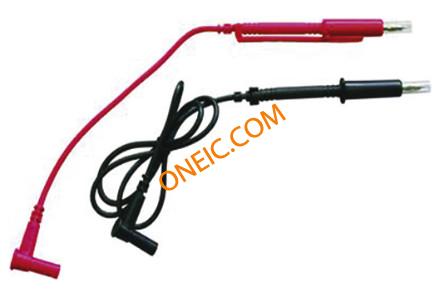

IP2X DIAM2 Set of 2 leads 1.5m long 2mm IP2X probes Chauvin Arnoux	346	1: ¥169.592	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Voltage Probe Set	1.5m
P01120404 MN11 ac mini clamp,200A UKAS(2931811),MN11 mini current clamp RSCAL(2931811),MN11 mini current clamp Chauvin Arnoux	38	1: ¥1,528.30	MN11	CAT III 600 V	±1 %	Current	240A ac	AC	+55°C	20mm	BNC	1.5m	Not Applicable	UKAS	-	-	-	-	-	-	-	-	-	-	-
P01120303 CLAMP SERIE C 103 CLAMPSERIEC103 Chauvin Arnoux	26	1: ¥2,218.50	P011203 03	CAT III 600 V, CAT IV 300 V	±0.5%	Current	1200A ac	AC	+50°C	52mm	Banana Plug	1.5m	-	-	-	-	-	-	-	-	-	-	-	-	-

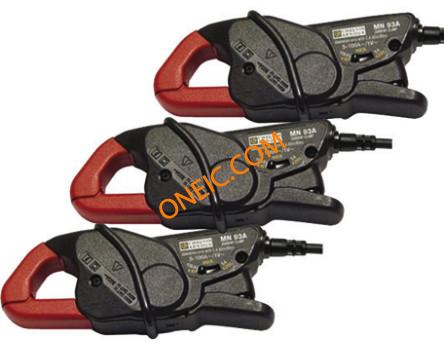

P01120431B CURRENT CLAMP MN93A Chauvin Arnoux	12	1: ¥4,753.0096	K Clamp	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
P01120402 MN09 ac mini clamp,200A UKAS(2931805),MN09 mini current clamp RSCAL(2931805),MN09 mini current clamp MN09acminiclamp,200A Chauvin Arnoux	39	1: ¥1,488.86	MN09	CAT III 600 V	±1 %	Current	240A ac	AC	+55°C	20mm	BNC	1.5m	Not Applicable	UKAS	-	-	-	-	-	-	-	-	-	-	-
P01120504 Flexible Current Probe 0.2kA/2kA AC 45cm UKAS(7406503) Flexible Current Probe RSCAL(7406503) Flexible Current Probe Chauvin Arnoux	21	1: ¥2,681.92	A100	CAT III 1000 V, CAT IV 600 V	±1 %	Current	2kA ac	AC	+55°C	45cm	4 mm Plug	2m	Not Applicable	UKAS	9V	150 h	-	-	-	-	-	-	-	-	-
P01120040A CLAMPMETER Chauvin Arnoux	15	1: ¥3,904.56	P011200 40A	CAT III 600 V, CAT IV 300 V	±12 %	Current	80A ac	AC/DC	+50°C	-	4 mm Plug	1.5m	-	-	9V	70 h	-	-	-	-	-	-	-	-	-

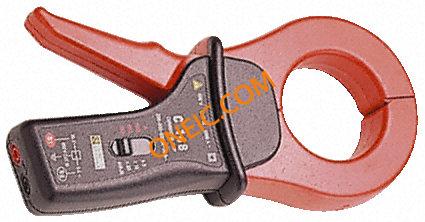

P01120307 CLAMP SERIE C 148 CLAMPSERIEC148 Chauvin Arnoux	15	1: ¥3,687.64	P011203 07	CAT III 600 V, CAT IV 300 V	±1%	Current	1200A ac	AC	+50°C	52mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
