Connor-Winfield Corporation

Connor-Winfield Corporation- Crystals

Connor-Winfield Corporation is a privately held US-based electronic product manufacturer, founded in 1963. The company originally focused on designing and manufacturing quartz-based timing circuits and oscillators for a variety of electronics applications. Over the years, it expanded its portfolio while continuing to emphasize its core timing technologies. Its primary product lines include quartz crystal oscillators, voltage-controlled oscillators (VCXOs), temperature-compensated oscillators (TCXOs), and oven-controlled oscillators (OCXOs). In addition, Connor-Winfield offers custom and semi-custom frequency control solutions, as well as standard oscillators and non-crystal-based oscillators. These precision timing devices are critical in telecommunications, LAN/WAN equipment, computers, microprocessors, and other electronic systems. The company is renowned for its engineering expertise in delivering highly stable and reliable frequency references. Although a niche player, Connor-Winfield holds a respected position in the frequency control market, serving a global customer base with high-quality, American-made products. Its long-standing dedication to timing innovation continues to support the evolving needs of connected devices.

03

Crystals - 型号列表

15 parts in total

Other Names

Frequency

Standard Package

ESR (Equivalent Series Resistance)

Height

Size / Dimension

Load Capacitance

Frequency Stability

Frequency Tolerance

Operating Mode

Packaging

Mounting Type

Package / Case

Operating Temperature

Mfr Part #Quantity AvailablePriceStandard PackageFrequencyOperating ModeFrequency StabilityHeightPackagingMounting TypePackage / CaseSize / DimensionTypeOther NamesLoad CapacitanceFrequency ToleranceESR (Equivalent Series Resistance)Operating TemperatureRoHS
CS-018-114.285M
5
CS-018-114.285M

CRYSTAL 114.285 MHZ 18PF SMD CRYSTAL 114.285MHZ 18PF SMD

Connor-Winfield

79221: ¥23.5961,000114.285MHz3rd Overtone±100ppm0.031" (0.80mm)Tape & Reel (TR)Surface Mount4-SMD, No Lead (DFN, LCC)0.126" L x 0.098" W (3.20mm x 2.50mm)MHz CrystalCW646CT18pF±100ppm80 Ohm-40°C ~ 85°CLead free / RoHS Compliant

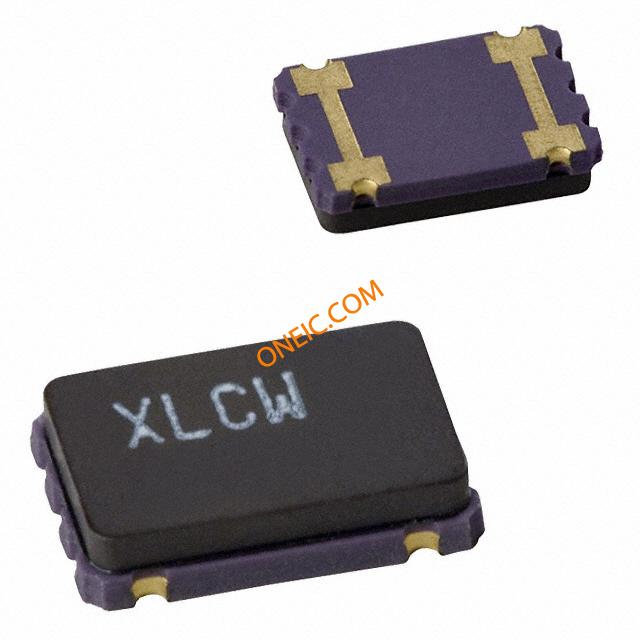

XL-1C-020.0M
4
XL-1C-020.0M

CRYSTAL 20MHZ 16PF SMD

Connor-Winfield

17661: ¥27.47250020MHzFundamental±50ppm0.070" (1.77mm)Tape & Reel (TR)Surface Mount4-SMD, No Lead (DFN, LCC)0.300" L x 0.200" W (7.62mm x 5.08mm)MHz CrystalCW405DKR16pF±50ppm40 Ohm-10°C ~ 60°CLead free / RoHS Compliant
XL-1C-010.0M
4
XL-1C-010.0M

CRYSTAL 10MHZ 16PF SMD

Connor-Winfield

74941: ¥27.47250010MHzFundamental±50ppm0.070" (1.77mm)Tape & Reel (TR)Surface Mount4-SMD, No Lead (DFN, LCC)0.300" L x 0.200" W (7.62mm x 5.08mm)MHz CrystalCW401DKR16pF±50ppm60 Ohm-10°C ~ 60°CLead free / RoHS Compliant
XL-1C-016.M
4
XL-1C-016.M

CRYSTAL 16MHZ 16PF SMD

Connor-Winfield

6500500: ¥17.27250016MHzFundamental±50ppm0.070" (1.77mm)Tape & Reel (TR)Surface Mount4-SMD, No Lead (DFN, LCC)0.300" L x 0.200" W (7.62mm x 5.08mm)MHz CrystalXL1C016.M16pF±50ppm40 Ohm-10°C ~ 60°CLead free / RoHS Compliant
XL-1C-018.432M
4
XL-1C-018.432M

CRYSTAL 18.432MHZ 16PF SMD

Connor-Winfield

101: ¥32.16450018.432MHzFundamental±50ppm0.070" (1.77mm)Tape & Reel (TR)Surface Mount4-SMD, No Lead (DFN, LCC)0.300" L x 0.200" W (7.62mm x 5.08mm)MHz CrystalCW404DKR16pF±50ppm40 Ohm-10°C ~ 60°CLead free / RoHS Compliant
XL-1C-012.0M
4
XL-1C-012.0M

CRYSTAL 12MHZ 16PF SMD

Connor-Winfield

24031: ¥27.47250012MHzFundamental±50ppm0.070" (1.77mm)Tape & Reel (TR)Surface Mount4-SMD, No Lead (DFN, LCC)0.300" L x 0.200" W (7.62mm x 5.08mm)MHz CrystalCW402DKR16pF±50ppm60 Ohm-10°C ~ 60°CLead free / RoHS Compliant
CS-023-114.285M
5
CS-023-114.285M

CRYSTAL 114.285 MHZ 18PF SMD CRYSTAL 114.285MHZ 18PF SMD

Connor-Winfield

98101: ¥29.921,000114.285MHz3rd Overtone±20ppm0.031" (0.80mm)Tape & Reel (TR)Surface Mount4-SMD, No Lead (DFN, LCC)0.126" L x 0.098" W (3.20mm x 2.50mm)MHz CrystalCW647CT18pF±20ppm80 Ohm-40°C ~ 85°CLead free / RoHS Compliant

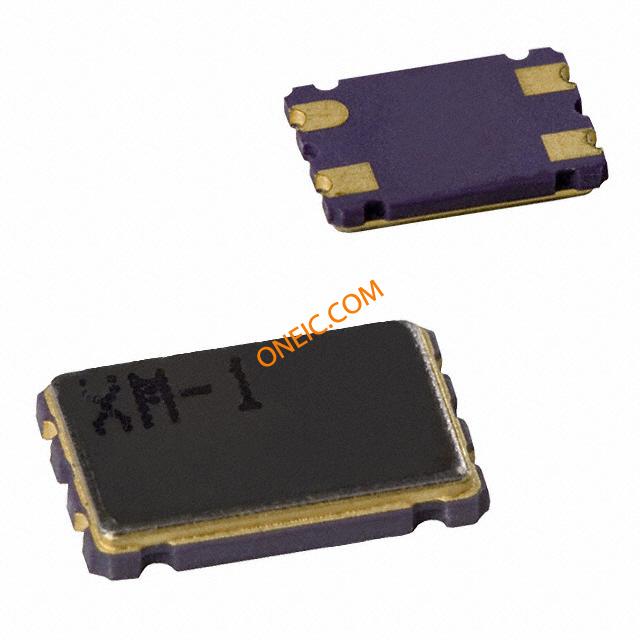

XM-1-012.0M
4
XM-1-012.0M

CRYSTAL 12MHZ 16PF SMD

Connor-Winfield

87791: ¥39.03250012MHzFundamental±50ppm0.051" (1.30mm)Tape & Reel (TR)Surface Mount4-SMD, No Lead (DFN, LCC)0.295" L x 0.197" W (7.50mm x 5.00mm)MHz CrystalCW422DKR16pF±50ppm50 Ohm-10°C ~ 60°CLead free / RoHS Compliant
XM-1-010.0M
4
XM-1-010.0M

CRYSTAL 10MHZ 16PF SMD

Connor-Winfield

4001: ¥39.03250010MHzFundamental±50ppm0.051" (1.30mm)Tape & Reel (TR)Surface Mount4-SMD, No Lead (DFN, LCC)0.295" L x 0.197" W (7.50mm x 5.00mm)MHz CrystalCW421DKR16pF±50ppm50 Ohm-10°C ~ 60°CLead free / RoHS Compliant
XM-1-018.432M
4
XM-1-018.432M

CRYSTAL 18.4320MHZ 16PF SMD CRYSTAL 18.432MHZ 16PF SMD

Connor-Winfield

10500: ¥29.5850018.432MHzFundamental±50ppm0.051" (1.30mm)Tape & Reel (TR)Surface Mount4-SMD, No Lead (DFN, LCC)0.295" L x 0.197" W (7.50mm x 5.00mm)MHz CrystalXM1018.432M16pF±50ppm40 Ohm-10°C ~ 60°CLead free / RoHS Compliant
XM-1-016.0M
4
XM-1-016.0M

CRYSTAL 16MHZ 16PF SMD

Connor-Winfield

12841: ¥39.03250016MHzFundamental±50ppm0.051" (1.30mm)Tape & Reel (TR)Surface Mount4-SMD, No Lead (DFN, LCC)0.295" L x 0.197" W (7.50mm x 5.00mm)MHz CrystalCW423DKR16pF±50ppm40 Ohm-10°C ~ 60°CLead free / RoHS Compliant
CWI45-B-155.52M
CWI45-B-155.52M

CRY 155.25M 50PPM TH CRYSTAL 155.25MHZ SERIES THRU

Connor-Winfield

101: ¥192.781155.25MHzFundamental±50ppm0.306" (7.78mm)BulkThrough HoleHC-45U0.300" L x 0.118" W (7.62mm x 2.99mm)MHz Crystal------
XL-1C-50.0000
4
XL-1C-50.0000

CRYSTAL 50MHZ SERIES SMD

Connor-Winfield

251: ¥24.4122550MHz3rd Overtone±50ppm0.070" (1.77mm)BulkSurface Mount4-SMD, No Lead (DFN, LCC)0.300" L x 0.200" W (7.62mm x 5.08mm)MHz CrystalCW410Series±50ppm40 Ohm-10°C ~ 60°C-

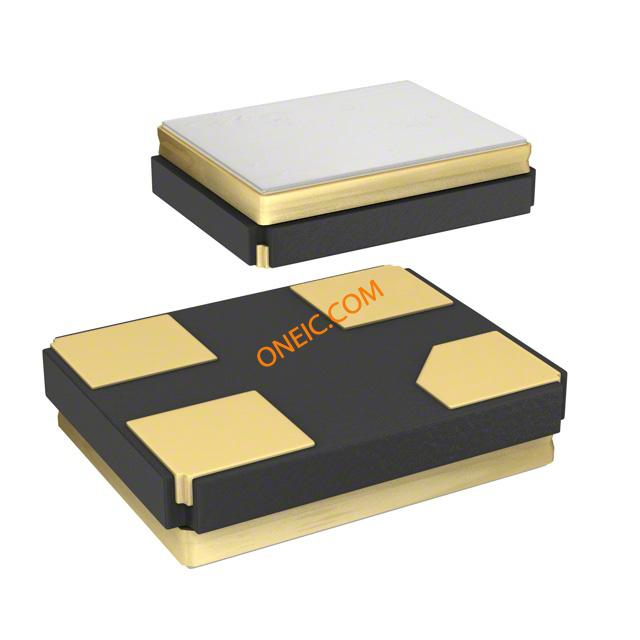

CS-018-114.285MHZ
CS-018-114.285MHZ

CRYSTAL 114.285MHZ 18PF SMD

Connor-Winfield

-1114.285MHz3rd Overtone±100ppm0.031" (0.80mm)Tape & Reel (TR)Surface Mount4-SMD, No Lead (DFN, LCC)0.126" L x 0.098" W (3.20mm x 2.50mm)MHz CrystalQ3790483A18pF±100ppm80 Ohm-40°C ~ 85°C-
XL-1C-016.0M
4
XL-1C-016.0M

CRYSTAL 16MHZ 16PF SMD

Connor-Winfield

8811: ¥27.47250016MHzFundamental±50ppm0.070" (1.77mm)Tape & Reel (TR)Surface Mount4-SMD, No Lead (DFN, LCC)0.300" L x 0.200" W (7.62mm x 5.08mm)MHz CrystalXL1C016.M16pF±50ppm40 Ohm-10°C ~ 60°CLead free / RoHS Compliant
Page 1 / 1
