Nidec Copal Electronics Corporation- Rotary DIP Switches

Nidec Copal Electronics Corporation, established in April 1967, is a Japan-based manufacturer specializing in a broad range of electronic components. Headquartered in Tokyo, Japan, the company operates as a key subsidiary of Nidec Corporation, a world-leading motor and electronics conglomerate. Copal Electronics initially focused on trimmer potentiometers, which quickly gained widespread adoption in various industries and laid the foundation for its growth. With the success of cermet potentiometers, the company expanded rapidly, adding product lines such as precision potentiometers, switches, and optical encoders. Its product portfolio also includes DC fans, DC turbo fans, and thermal variable attenuators for thermal management applications. Copal is notably strong in sensor technology, offering silicon pressure sensors and high-precision sensing solutions for medical and industrial applications. Additionally, the company manufactures polygon laser scanners and a variety of motors for specialized equipment. Serving telecommunications, computer, industrial, medical, and semiconductor equipment markets, Copal is recognized for delivering high-quality, cost-effective components. Leveraging Nidec’s global network, the company has solidified its position as a trusted supplier of niche electronic parts, known for reliability and innovation.

Rotary DIP Switches - 型号列表

194 parts in total

Mfr Part #	Quantity Available	Price	Standard Package	Mounting Type	Number of Positions	Voltage Rating	Current Rating (Max)	Terminal Type	Actuator Style/Size	Switch Actuation Level	Operating Temperature	Other Names	RoHS	Circuit	Contact Rating @ Voltage	Orientation	Actuator Type	Actuator Level	Washable
S-7010ETA Switch DIP SP10T 10 Flush Screwdriver 0.1A 5VDC J-Hook 2.54mm SMD T/R Nidec Copal Electronics Corporation	-		Tape & Reel	Surface Mount	10	5 V	0.1@5VDC A	J-Hook	Flush Screwdriver	SP10T	-40 to 85 °C	-	-	-	-	-	-	-	-
S-7060ETA Switch DIP SP6T 6 Flush Screwdriver 0.1A 5VDC J-Hook 2.54mm SMD T/R Nidec Copal Electronics Corporation	-		Tape & Reel	Surface Mount	6	5 V	0.1@5VDC A	J-Hook	Flush Screwdriver	SP6T	-40 to 85 °C	-	-	-	-	-	-	-	-
SA-5010A3E Switch DIP SP10T 10 Flush Screwdriver 0.1A 5VDC PC Pins Thru-Hole Plastic Bag Nidec Copal Electronics Corporation	-		Bulk	Through Hole	10	5 V	0.1@5VDC A	PC Pins	Flush Screwdriver	SP10T	-25 to 75 °C	-	-	-	-	-	-	-	-
SA-5010B3E Switch DIP SP10T 10 Flush Screwdriver 0.1A 5VDC PC Pins Thru-Hole Plastic Bag Nidec Copal Electronics Corporation	-		Bulk	Through Hole	10	5 V	0.1@5VDC A	PC Pins	Flush Screwdriver	SP10T	-25 to 75 °C	-	-	-	-	-	-	-	-
SA-5150DE Switch DIP SP16T 16 Extended Shaft 0.1A 5VDC PC Pins Thru-Hole Plastic Bag Nidec Copal Electronics Corporation	-		Bulk	Through Hole	16	5 V	0.1@5VDC A	PC Pins	Extended Shaft	SP16T	-25 to 75 °C	-	-	-	-	-	-	-	-
SA-5170A3E Switch DIP SP16T 16 Extended Shaft 0.1A 5VDC PC Pins Thru-Hole Plastic Bag Nidec Copal Electronics Corporation	-		Bulk	Through Hole	16	5 V	0.1@5VDC A	PC Pins	Extended Shaft	SP16T	-25 to 75 °C	-	-	-	-	-	-	-	-
SA-7230C Switch DIP SP10T 10 Flush Screwdriver 0.1A 5VDC PC Pins 2.54mm Thru-Hole Bulk Nidec Copal Electronics Corporation	-		Bulk	Through Hole	10	5 V	0.1@5VDC A	PC Pins	Flush Screwdriver	SP10T	-40 to 85 °C	-	-	-	-	-	-	-	-
SA-7271TA Switch DIP SP16T 16 Flush Screwdriver 0.1A 5VDC J-Hook 2.54mm SMD T/R Nidec Copal Electronics Corporation	-		Tape & Reel	Surface Mount	16	5 V	0.1@5VDC A	J-Hook	Flush Screwdriver	SP16T	-40 to 85 °C	-	-	-	-	-	-	-	-
SC-2030B Switch DIP SP10T 10 Flush Screwdriver 0.1A 5VDC Gull Wing SMD Bulk Nidec Copal Electronics Corporation	334	1: ¥16.40	Bulk	Surface Mount	10	5 V	0.1@5VDC A	Gull Wing	Flush Screwdriver	SP10T	-40 to 85 °C	-	-	-	-	-	-	-	-
SC-2111 Switch DIP SP10T 10 Extended Shaft 0.1A 5VDC PC Pins Thru-Hole Bulk Nidec Copal Electronics Corporation	-		Bulk	Through Hole	10	5 V	0.1@5VDC A	PC Pins	Extended Shaft	SP10T	-40 to 85 °C	-	-	-	-	-	-	-	-
SD-1210W Switch DIP SP16T 16 Flush Screwdriver 0.1A 5VDC PC Pins 2.54mm Thru-Hole Tray Nidec Copal Electronics Corporation	-		Trays	Through Hole	16	5 V	0.1@5VDC A	PC Pins	Flush Screwdriver	SP16T	-40 to 85 °C	-	-	-	-	-	-	-	-
SD-2030TB Switch DIP SP10T 10 Flush Screwdriver 0.1A 5VDC Gull Wing 2.54mm SMD T/R Nidec Copal Electronics Corporation	-		Tape & Reel	Surface Mount	10	5 V	0.1@5VDC A	Gull Wing	Flush Screwdriver	SP10T	-40 to 85 °C	-	-	-	-	-	-	-	-
SD-2230B Switch DIP SP10T 10 Flush Screwdriver 0.1A 5VDC Gull Wing 2.54mm SMD Plastic Bag Nidec Copal Electronics Corporation	-		Bulk	Surface Mount	10	5 V	0.1@5VDC A	Gull Wing	Flush Screwdriver	SP10T	-40 to 85 °C	-	-	-	-	-	-	-	-
SD-2231 Switch DIP SP10T 10 Flush Screwdriver 0.1A 5VDC PC Pins 2.54mm Thru-Hole Plastic Bag Nidec Copal Electronics Corporation	-		Bulk	Through Hole	10	5 V	0.1@5VDC A	PC Pins	Flush Screwdriver	SP10T	-40 to 85 °C	-	-	-	-	-	-	-	-
SD-2231W Switch DIP SP10T 10 Flush Screwdriver 0.1A 5VDC PC Pins 2.54mm Thru-Hole Tray Nidec Copal Electronics Corporation	-		Trays	Through Hole	10	5 V	0.1@5VDC A	PC Pins	Flush Screwdriver	SP10T	-40 to 85 °C	-	-	-	-	-	-	-	-
S-8030W Switch DIP SP8T 8 Flush Screwdriver 0.1A 5VDC PC Pins Thru-Hole Tray Nidec Copal Electronics Corporation	-		Trays	Through Hole	8	5 V	0.1@5VDC A	PC Pins	Flush Screwdriver	SP8T	-25 to 70 °C	-	-	-	-	-	-	-	-
SA-5150A1E Switch DIP SP16T 16 Extended Shaft 0.1A 5VDC PC Pins Thru-Hole Plastic Bag Nidec Copal Electronics Corporation	-		Bulk	Through Hole	16	5 V	0.1@5VDC A	PC Pins	Extended Shaft	SP16T	-25 to 75 °C	-	-	-	-	-	-	-	-
2 CS-4-12XTA SWITCH ROTARY SPDT SMD J-LEAD SWITCH ROTARY SPDT J-LEAD 16V Copal Electronics Inc	7794	1: ¥10.676	500	Surface Mount	2	-	-	-	-	-	-	563-1031-1	Lead free / RoHS Compliant	SPDT	0.1A @ 16VDC	Top Actuated	Rotary for Tool	Flush	Yes

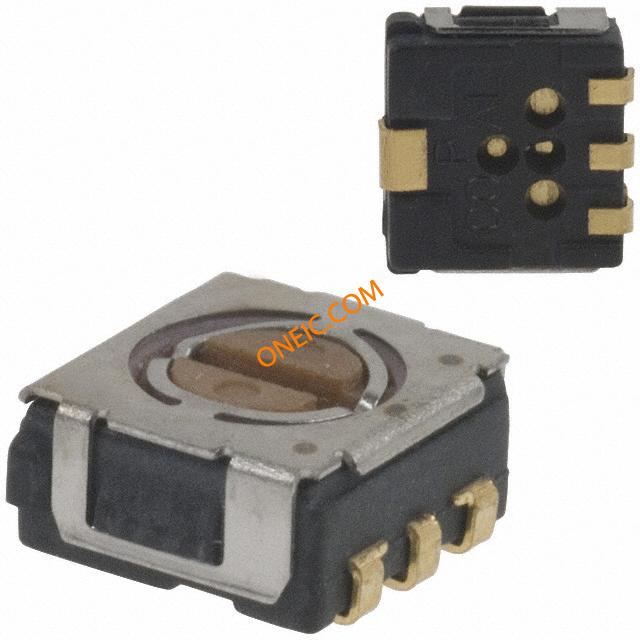

2 CS-4-13NTA SWITCH ROTARY SP3T SMD J-LEAD SWITCH ROTARY SP3T J-LEAD 16V Copal Electronics Inc	14691	1: ¥12.852	500	Surface Mount	3	-	-	-	-	-	-	563-1035-1	Lead free / RoHS Compliant	SP3T	0.1A @ 16VDC	Top Actuated	Rotary for Tool	Flush	Yes

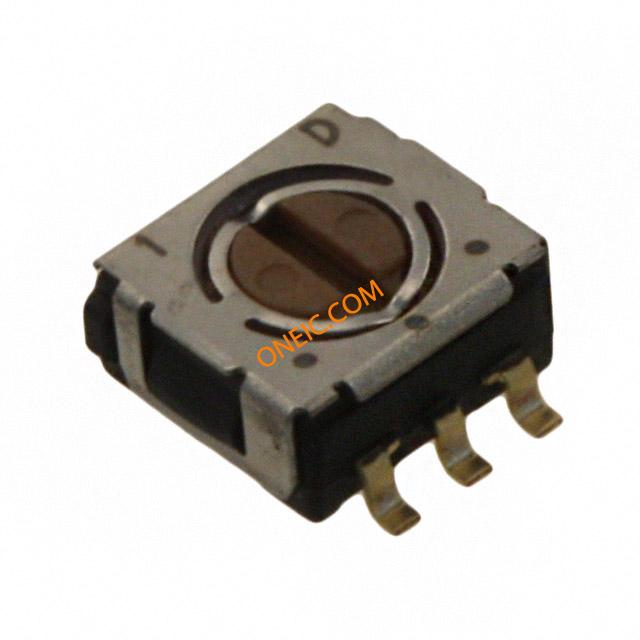

2 CS-4-13NTB SWITCH ROTARY SP3T SMD GULL SWITCH ROTARY SP3T SMD GULL 16V Copal Electronics Inc	1806	1: ¥12.852	500	Surface Mount	3	-	-	-	-	-	-	563-1036-1	Lead free / RoHS Compliant	SP3T	0.1A @ 16VDC	Top Actuated	Rotary for Tool	Flush	Yes

Page 1 / 10
