Nidec Copal Electronics Corporation- Piano DIP Switches

Nidec Copal Electronics Corporation, established in April 1967, is a Japan-based manufacturer specializing in a broad range of electronic components. Headquartered in Tokyo, Japan, the company operates as a key subsidiary of Nidec Corporation, a world-leading motor and electronics conglomerate. Copal Electronics initially focused on trimmer potentiometers, which quickly gained widespread adoption in various industries and laid the foundation for its growth. With the success of cermet potentiometers, the company expanded rapidly, adding product lines such as precision potentiometers, switches, and optical encoders. Its product portfolio also includes DC fans, DC turbo fans, and thermal variable attenuators for thermal management applications. Copal is notably strong in sensor technology, offering silicon pressure sensors and high-precision sensing solutions for medical and industrial applications. Additionally, the company manufactures polygon laser scanners and a variety of motors for specialized equipment. Serving telecommunications, computer, industrial, medical, and semiconductor equipment markets, Copal is recognized for delivering high-quality, cost-effective components. Leveraging Nidec’s global network, the company has solidified its position as a trusted supplier of niche electronic parts, known for reliability and innovation.

Piano DIP Switches - 型号列表

30 parts in total

Mfr Part #	Quantity Available	Price	Standard Package	Mounting Type	Number of Positions	Circuit	Contact Rating @ Voltage	Orientation	Actuator Type	Actuator Level	Washable	Voltage Rating	Current Rating (Max)	Terminal Type	Actuator Style/Size	Switch Actuation Level	Operating Temperature	Other Names	RoHS	Switch Function/Rating
S2110 SWITCH ROTARY Nidec Copal Electronics Corporation	-		Bulk	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
CFP-1011MB Switch DIP OFF ON SPST 10 Flush Piano 0.1A 24VDC Gull Wing 2.54mm SMD Magazine Nidec Copal Electronics Corporation	-		Rail / Tube	Surface Mount	10	-	-	-	-	-	-	24 V	0.1@6VDC A	Gull Wing	Flush Piano	SPST	-40 to 85 °C	-	-	OFF ON
CS-32-12EB SMD SELECTOR 1POLE,2 THROW,GULLWING,NON-SHORT,3MM SQ Nidec Copal Electronics Corporation	-		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
SA-5130CE Switch DIP SP10T 10 Extended Shaft 0.1A 5VDC PC Pins Thru-Hole Plastic Bag Nidec Copal Electronics Corporation	-		Bulk	Through Hole	10	-	-	-	-	-	-	5 V	0.1@5VDC A	PC Pins	Extended Shaft	SP10T	-25 to 75 °C	-	-	-
SC-1130W Switch DIP SP16T 16 Extended Shaft 0.1A 5VDC PC Pins Thru-Hole Tray Nidec Copal Electronics Corporation	-		Trays	Through Hole	16	-	-	-	-	-	-	5 V	0.1@5VDC A	PC Pins	Extended Shaft	SP16T	-40 to 85 °C	-	-	-
SA-5070B1E Switch DIP SP16T 16 Flush Screwdriver 0.1A 5VDC PC Pins Thru-Hole Plastic Bag Nidec Copal Electronics Corporation	-		Bulk	Through Hole	16	-	-	-	-	-	-	5 V	0.1@5VDC A	PC Pins	Flush Screwdriver	SP16T	-25 to 75 °C	-	-	-
SC-1110 Switch DIP SP16T 16 Extended Shaft 0.1A 5VDC PC Pins Thru-Hole Bulk Nidec Copal Electronics Corporation	-		Bulk	Through Hole	16	-	-	-	-	-	-	5 V	0.1@5VDC A	PC Pins	Extended Shaft	SP16T	-40 to 85 °C	-	-	-
SC-1230 Switch DIP SP16T 16 Flush Screwdriver 0.1A 5VDC PC Pins Thru-Hole Bulk Nidec Copal Electronics Corporation	-		Bulk	Through Hole	16	-	-	-	-	-	-	5 V	0.1@5VDC A	PC Pins	Flush Screwdriver	SP16T	-40 to 85 °C	-	-	-
CFP-0201MC Switch DIP OFF ON SPST 2 Flush Piano 0.1A 24VDC PC Pins 2.54mm Thru-Hole Magazine Nidec Copal Electronics Corporation	46	1: ¥3.1425	Rail / Tube	Through Hole	2	-	-	-	-	-	-	24 V	0.1@6VDC A	PC Pins	Flush Piano	SPST	-40 to 85 °C	-	-	OFF ON
CFP-0602TB Switch DIP OFF ON SPST 6 Piano 0.1A 24VDC Gull Wing 2.54mm SMD T/R Nidec Copal Electronics Corporation	-		Tape & Reel	Surface Mount	6	-	-	-	-	-	-	24 V	0.1@6VDC A	Gull Wing	Piano	SPST	-40 to 85 °C	-	-	OFF ON
2 CHP-041TB SWITCH DIP PIANO STYLE 4-POS SMD SWITCH DIP PIANO STYLE 4-POS 6V Copal Electronics Inc	1500	500: ¥9.2548	500	Surface Mount	4	SPST	0.1A @ 6VDC	Side Actuated	Piano	Raised	No	-	-	-	-	-	-	563-1018-1	Lead free / RoHS Compliant	-

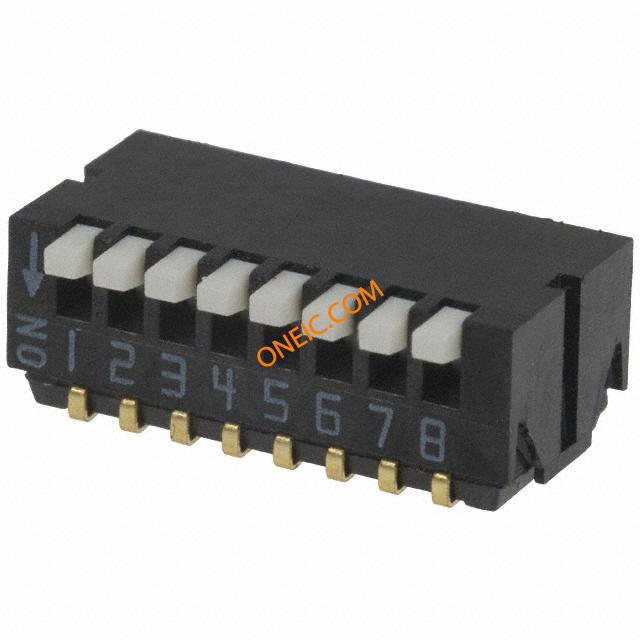

2 CHP-081TA SWITCH DIP PIANO STYLE 8-POS SMD SWITCH DIP PIANO STYLE 8-POS 6V Copal Electronics Inc	11290	1: ¥18.156	500	Surface Mount	8	SPST	0.1A @ 6VDC	Side Actuated	Piano	Raised	No	-	-	-	-	-	-	563-1019-1	Lead free / RoHS Compliant	-
2 CHP-021TA SWITCH DIP PIANO STYLE 2-POS SMD SWITCH DIP PIANO STYLE 2-POS 6V Copal Electronics Inc	1665	1: ¥13.328	500	Surface Mount	2	SPST	0.1A @ 6VDC	Side Actuated	Piano	Raised	No	-	-	-	-	-	-	563-1015-1	Lead free / RoHS Compliant	-

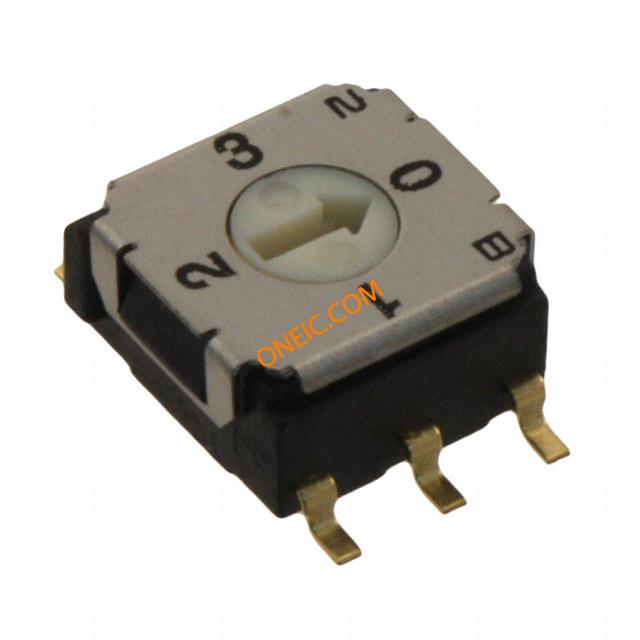

CS-7-14TB SWITCH SELECTOR SP4T SMD GULL SWITCH SELECTOR SP4T SMD GULL 5V Copal Electronics Inc	4271	1: ¥13.94	500	Surface Mount	4	SP4T	0.1A @ 5VDC	Top Actuated	Rotary for Tool	Flush	Yes	-	-	-	-	-	-	563-1217-1	Lead free / RoHS Compliant	-
CHP-021TB SWITCH DIP PIANO STYLE 2-POS SMD Copal Electronics Inc	3000	500: ¥8.6537	500	Surface Mount	2	SPST	0.1A @ 6VDC	Side Actuated	Piano	Raised	No	-	-	-	-	-	-	563-1016-2	Lead free / RoHS Compliant	-
CHP-041TA SWITCH DIP PIANO STYLE 4-POS SMD Copal Electronics Inc	2000	500: ¥9.2548	500	Surface Mount	4	SPST	0.1A @ 6VDC	Side Actuated	Piano	Raised	No	-	-	-	-	-	-	563-1017-2	Lead free / RoHS Compliant	-

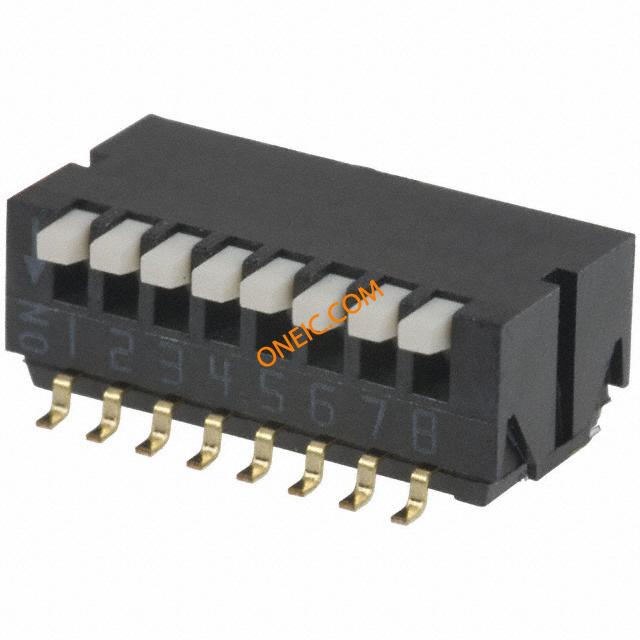

2 CHP-081TB SWITCH DIP PIANO STYLE 8-POS SMD Copal Electronics Inc	1000	500: ¥11.5382	500	Surface Mount	8	SPST	0.1A @ 6VDC	Side Actuated	Piano	Raised	No	-	-	-	-	-	-	563-1020-2	Lead free / RoHS Compliant	-
CS-7-14MB SWITCH SELECTOR SP4T SMD GULL Copal Electronics Inc	10	100: ¥11.798	50	Surface Mount	4	SP4T	0.1A @ 5VDC	Top Actuated	Rotary for Tool	Flush	Yes	-	-	-	-	-	-	-	-	-
CHP-020TA SMD PIANO SWITCH 2 POSITION Copal Electronics Inc	10	500: ¥8.738	500	Surface Mount	2	SPST	0.1A @ 6VDC	Side Actuated	Piano	Raised	No	-	-	-	-	-	-	-	-	-
CHP-020TB SMD PIANO SWITCH 2 POSITION Copal Electronics Inc	10	500: ¥8.738	500	Surface Mount	2	SPST	0.1A @ 6VDC	Side Actuated	Piano	Raised	No	-	-	-	-	-	-	-	-	-
