Nidec Copal Electronics Corporation

Nidec Copal Electronics Corporation- DC Fans

Nidec Copal Electronics Corporation, established in April 1967, is a Japan-based manufacturer specializing in a broad range of electronic components. Headquartered in Tokyo, Japan, the company operates as a key subsidiary of Nidec Corporation, a world-leading motor and electronics conglomerate. Copal Electronics initially focused on trimmer potentiometers, which quickly gained widespread adoption in various industries and laid the foundation for its growth. With the success of cermet potentiometers, the company expanded rapidly, adding product lines such as precision potentiometers, switches, and optical encoders. Its product portfolio also includes DC fans, DC turbo fans, and thermal variable attenuators for thermal management applications. Copal is notably strong in sensor technology, offering silicon pressure sensors and high-precision sensing solutions for medical and industrial applications. Additionally, the company manufactures polygon laser scanners and a variety of motors for specialized equipment. Serving telecommunications, computer, industrial, medical, and semiconductor equipment markets, Copal is recognized for delivering high-quality, cost-effective components. Leveraging Nidec’s global network, the company has solidified its position as a trusted supplier of niche electronic parts, known for reliability and innovation.

03

DC Fans - 型号列表

42 parts in total

Power (Watts)

Noise

Current Rating (Max)

RPM

Air Flow

Static Pressure

Size / Dimension

Voltage Range

Weight

Standard Package

Voltage Rating

Material - Frame

Fan Type

Termination

Bearing Type

Material - Blade

Mfr Part #Quantity AvailablePriceStandard PackageNoisePower (Watts)Voltage RangeVoltage RatingCurrent Rating (Max)RPMWeightAir FlowFan TypeTerminationBearing TypeStatic PressureMaterial - BladeMaterial - FrameSize / DimensionOperating TemperatureRoHSFeatures
F410T-05LC
F410T-05LC

FAN 5VDC 40X10MM .4W 3.88CFM

Copal Electronics Inc

6231: ¥68.2724012 dB(A)0.40W4.5 ~ 5.7VDC5VDC0.080A4600 RPM0.044 lb (19.96g)3.9 CFM (0.110m³/min)Tubeaxial2 Wire LeadsSleeve0.040 in H2O (10.0 Pa)Acrylic Butadiene Styrene(ABS), Polybutylene Terephthalate (PBT)Acrylic Butadiene Styrene(ABS), Polybutylene Terephthalate (PBT)Square - 40mm L x 40mm H x 10mm W14 ~ 140°F (-10 ~ 60°C)--
F410T-05MC
F410T-05MC

FAN 5VDC 40X10MM .6W 5.30CFM

Copal Electronics Inc

121: ¥60.67644018 dB(A)0.60W4.5 ~ 5.7VDC5VDC0.120A5800 RPM0.044 lb (19.96g)5.3 CFM (0.150m³/min)Tubeaxial2 Wire LeadsSleeve0.092 in H2O (23.0 Pa)Acrylic Butadiene Styrene(ABS), Polybutylene Terephthalate (PBT)Acrylic Butadiene Styrene(ABS), Polybutylene Terephthalate (PBT)Square - 40mm L x 40mm H x 10mm W14 ~ 140°F (-10 ~ 60°C)--
F410T-12LC
F410T-12LC

FAN 12VDC 40X10MM .48W 3.88CFM

Copal Electronics Inc

371: ¥62.54164012 dB(A)0.48W10.2 ~ 13.2VDC12VDC0.040A4600 RPM0.044 lb (19.96g)3.9 CFM (0.110m³/min)Tubeaxial2 Wire LeadsSleeve0.040 in H2O (10.0 Pa)Acrylic Butadiene Styrene(ABS), Polybutylene Terephthalate (PBT)Acrylic Butadiene Styrene(ABS), Polybutylene Terephthalate (PBT)Square - 40mm L x 40mm H x 10mm W14 ~ 140°F (-10 ~ 60°C)--

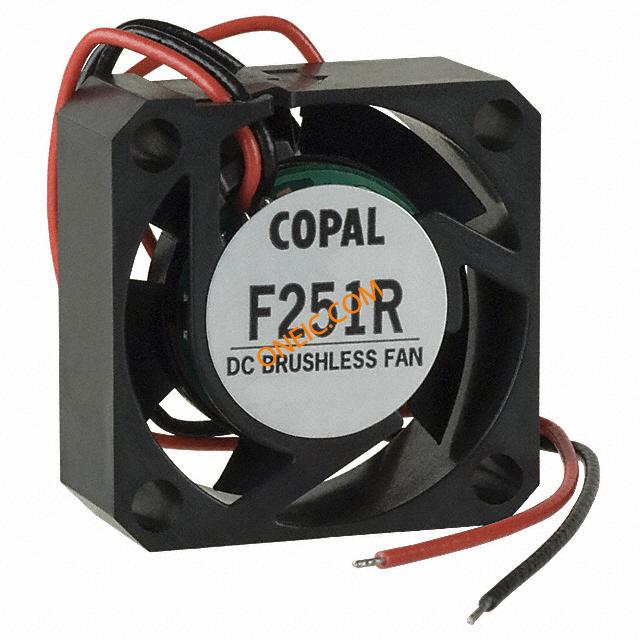

F251R-12L3C
F251R-12L3C

FAN 12VDC 25X10MM .24W 1.24CFM

Copal Electronics Inc

8731: ¥51.408409 dB(A)0.24W10.2 ~ 13.8VDC12VDC0.020A5500 RPM0.015 lb (6.8g)1.2 CFM (0.034m³/min)Tubeaxial2 Wire LeadsSleeve0.056 in H2O (13.9 Pa)Acrylic Butadiene Styrene(ABS), Polybutylene Terephthalate (PBT)Acrylic Butadiene Styrene(ABS), Polybutylene Terephthalate (PBT)Square - 25mm L x 25mm H x 10mm W14 ~ 140°F (-10 ~ 60°C)--
F310R-12LLC
2
F310R-12LLC

FAN 12VDC 30X10MM .30W 2.12CFM

Copal Electronics Inc

17311: ¥51.40810013 dB(A)0.30W10.2 ~ 13.8VDC12VDC0.025A5500 RPM0.018 lb (8.16g)2.1 CFM (0.059m³/min)Tubeaxial2 Wire LeadsSleeve0.056 in H2O (13.9 Pa)Acrylic Butadiene Styrene(ABS), Polybutylene Terephthalate (PBT)Acrylic Butadiene Styrene(ABS), Polybutylene Terephthalate (PBT)Square - 30mm L x 30mm H x 10mm W14 ~ 140°F (-10 ~ 60°C)--
F310R-05LC
2
F310R-05LC

FAN 5VDC 30X10MM .35W 3.18CFM

Copal Electronics Inc

5681: ¥51.40810017 dB(A)0.35W4.5 ~ 5.7VDC5VDC0.070A7000 RPM0.018 lb (8.16g)3.2 CFM (0.09m³/min)Tubeaxial2 Wire LeadsSleeve0.092 in H2O (23.0 Pa)Acrylic Butadiene Styrene(ABS), Polybutylene Terephthalate (PBT)Acrylic Butadiene Styrene(ABS), Polybutylene Terephthalate (PBT)Square - 30mm L x 30mm H x 10mm W14 ~ 140°F (-10 ~ 60°C)--
F310R-12LC
F310R-12LC

FAN 12VDC 30X10MM .48W 3.18CFM

Copal Electronics Inc

6161: ¥51.40810017 dB(A)0.48W10.2 ~ 13.8VDC12VDC0.040A7000 RPM0.018 lb (8.16g)3.2 CFM (0.09m³/min)Tubeaxial2 Wire LeadsSleeve0.092 in H2O (23.0 Pa)Acrylic Butadiene Styrene(ABS), Polybutylene Terephthalate (PBT)Acrylic Butadiene Styrene(ABS), Polybutylene Terephthalate (PBT)Square - 30mm L x 30mm H x 10mm W14 ~ 140°F (-10 ~ 60°C)--
F251R-05LLC
2
F251R-05LLC

FAN 5VDC 25X10MM .25W 1.41CFM

Copal Electronics Inc

3051: ¥51.4084011 dB(A)0.25W4.2 ~ 5.7VDC5VDC0.050A6500 RPM0.015 lb (6.8g)1.4 CFM (0.040m³/min)Tubeaxial2 Wire LeadsSleeve0.080 in H2O (19.9 Pa)Acrylic Butadiene Styrene(ABS), Polybutylene Terephthalate (PBT)Acrylic Butadiene Styrene(ABS), Polybutylene Terephthalate (PBT)Square - 25mm L x 25mm H x 10mm W14 ~ 140°F (-10 ~ 60°C)--

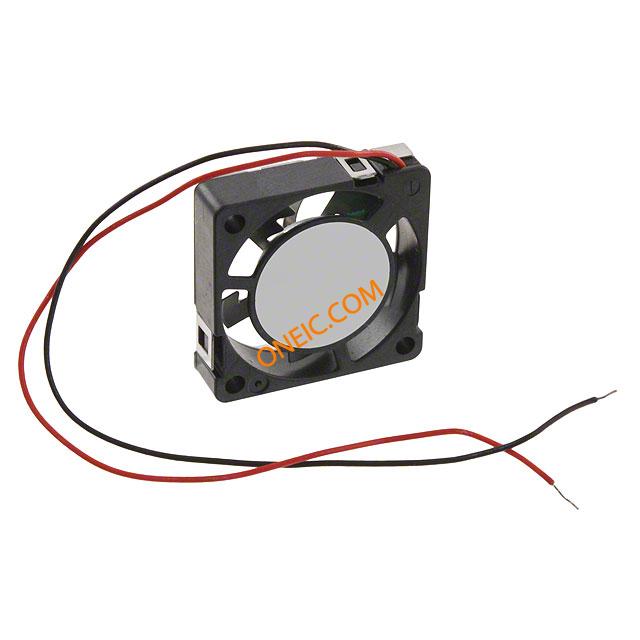

F16EA-03LLC /E
F16EA-03LLC /E

FAN 3.3VDC 16X4MM .07W .424CF

Copal Electronics Inc

11491: ¥53.72503 dB(A)0.07W3.2 ~ 3.5VDC3.3VDC0.020A6500 RPM0.003 lb (1.36g)0.424 CFM (0.012m³/min)Tubeaxial2 Wire LeadsSleeve0.019 in H2O (4.7 Pa)SteelLiquid Crystal Polymer (LCP)Square - 16mm L x 16mm H x 4mm W14 ~ 140°F (-10 ~ 60°C)Lead free / RoHS Compliant-

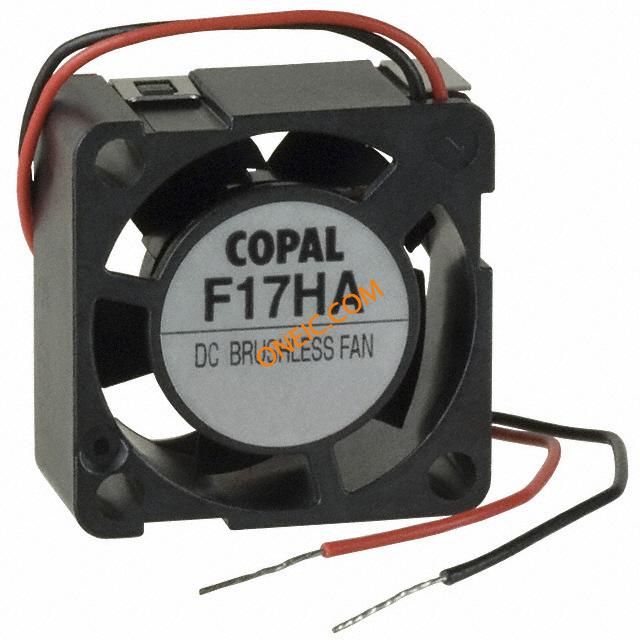

F17HA-05MC
F17HA-05MC

FAN 5VDC 17X8MM .15W .530CFM

Copal Electronics Inc

24121: ¥59.772507 dB(A)0.15W4.5 ~ 5.5VDC5VDC0.030A8000 RPM0.005 lb (2.27g)0.530 CFM (0.015m³/min)Tubeaxial2 Wire LeadsSleeve0.040 in H2O (10.0 Pa)Acrylic Butadiene Styrene(ABS), Polybutylene Terephthalate (PBT)Liquid Crystal Polymer (LCP)Square - 17mm L x 17mm H x 8mm W14 ~ 140°F (-10 ~ 60°C)--

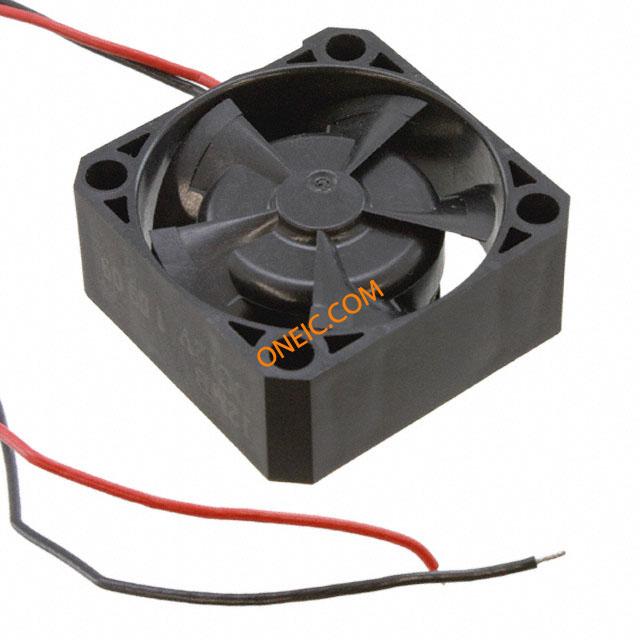

F251R-12MB
F251R-12MB

FAN 12VDC 25X10MM .6W 2.12CFM

Copal Electronics Inc

43801: ¥62.6968020 dB(A)0.60W10.2 ~ 13.8VDC12VDC0.050A10000 RPM0.015 lb (6.8g)2.1 CFM (0.059m³/min)Tubeaxial2 Wire Leads1 Ball/1 Sleeve0.188 in H2O (46.8 Pa)Acrylic Butadiene Styrene(ABS), Polybutylene Terephthalate (PBT)Acrylic Butadiene Styrene(ABS), Polybutylene Terephthalate (PBT)Square - 25mm L x 25mm H x 10mm W14 ~ 140°F (-10 ~ 60°C)--
F251R-05LB
F251R-05LB

FAN 5VDC 25X10MM .30W 1.77CFM

Copal Electronics Inc

1931: ¥57.5964015 dB(A)0.30W4.2 ~ 5.7VDC5VDC0.060A8000 RPM0.015 lb (6.8g)1.8 CFM (0.050m³/min)Tubeaxial2 Wire Leads1 Ball/1 Sleeve0.120 in H2O (29.9 Pa)Acrylic Butadiene Styrene(ABS), Polybutylene Terephthalate (PBT)Acrylic Butadiene Styrene(ABS), Polybutylene Terephthalate (PBT)Square - 25mm L x 25mm H x 10mm W14 ~ 140°F (-10 ~ 60°C)--

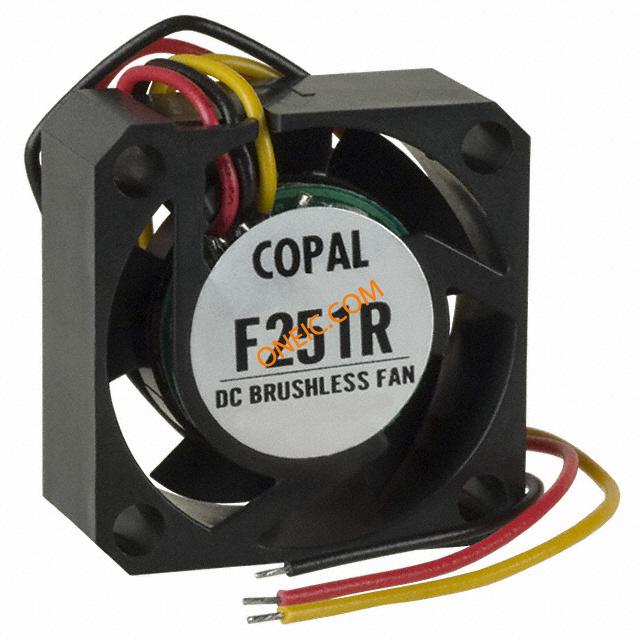

F251RF-05LLB
F251RF-05LLB

FAN 5VDC 25X10MM .25W 1.41CFM

Copal Electronics Inc

691: ¥62.6964011 dB(A)0.25W4.2 ~ 5.7VDC5VDC0.050A6500 RPM0.015 lb (6.8g)1.4 CFM (0.040m³/min)Tubeaxial3 Wire Leads1 Ball/1 Sleeve0.080 in H2O (19.9 Pa)Acrylic Butadiene Styrene(ABS), Polybutylene Terephthalate (PBT)Acrylic Butadiene Styrene(ABS), Polybutylene Terephthalate (PBT)Square - 25mm L x 25mm H x 10mm W14 ~ 140°F (-10 ~ 60°C)-Speed Sensor (Tach)
F251R-12L3B
F251R-12L3B

FAN 12VDC 25X10MM .24W 1.24CFM

Copal Electronics Inc

4021: ¥62.696409 dB(A)0.24W10.2 ~ 13.8VDC12VDC0.020A5500 RPM0.015 lb (6.8g)1.2 CFM (0.034m³/min)Tubeaxial2 Wire Leads1 Ball/1 Sleeve0.056 in H2O (13.9 Pa)Acrylic Butadiene Styrene(ABS), Polybutylene Terephthalate (PBT)Acrylic Butadiene Styrene(ABS), Polybutylene Terephthalate (PBT)Square - 25mm L x 25mm H x 10mm W14 ~ 140°F (-10 ~ 60°C)--
F310R-05LB
F310R-05LB

FAN 5VDC 30X10MM .35W 3.18CFM

Copal Electronics Inc

2571: ¥62.69610017 dB(A)0.35W4.5 ~ 5.7VDC5VDC0.070A7000 RPM0.018 lb (8.16g)3.2 CFM (0.09m³/min)Tubeaxial2 Wire Leads1 Ball/1 Sleeve0.092 in H2O (23.0 Pa)Acrylic Butadiene Styrene(ABS), Polybutylene Terephthalate (PBT)Acrylic Butadiene Styrene(ABS), Polybutylene Terephthalate (PBT)Square - 30mm L x 30mm H x 10mm W14 ~ 140°F (-10 ~ 60°C)--

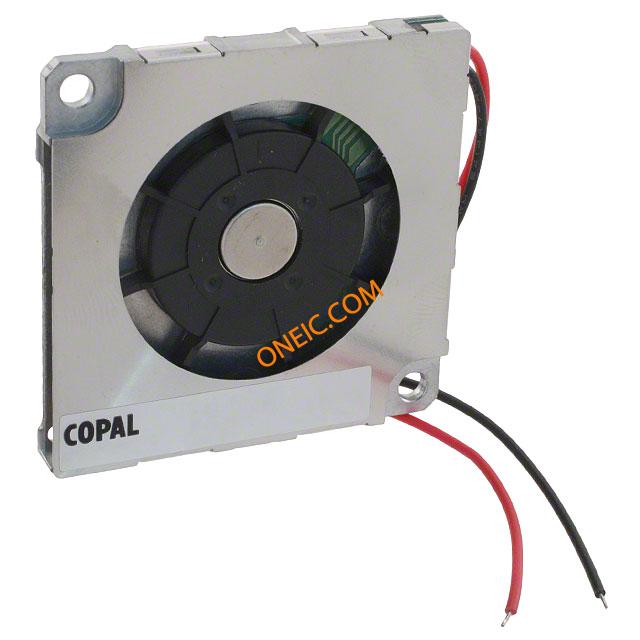

F455B-05MD
F455B-05MD

FAN 5VDC 45X5MM .7W 1.06CFM

Copal Electronics Inc

2001: ¥120.49620023 dB(A)0.70W4.5 ~ 5.5VDC5VDC0.140A5000 RPM0.055 lb (24.95g)1.1 CFM (0.030m³/min)Tubeaxial2 Wire LeadsSleeve0.216 in H2O (53.8 Pa)Acrylic Butadiene Styrene(ABS), Polybutylene Terephthalate (PBT)ZincSquare - 45mm L x 45mm H x 5mm W14 ~ 140°F (-10 ~ 60°C)--
F310R-05LLC
F310R-05LLC

FAN 5VDC 30X10MM .25W 2.12CFM

Copal Electronics Inc

4981: ¥51.40810013 dB(A)0.25W4.5 ~ 5.7VDC5VDC0.050A5500 RPM0.018 lb (8.16g)2.1 CFM (0.059m³/min)Tubeaxial2 Wire LeadsSleeve0.056 in H2O (13.9 Pa)Acrylic Butadiene Styrene(ABS), Polybutylene Terephthalate (PBT)Acrylic Butadiene Styrene(ABS), Polybutylene Terephthalate (PBT)Square - 30mm L x 30mm H x 10mm W14 ~ 140°F (-10 ~ 60°C)--
F251R-12LLC
2
F251R-12LLC

FAN 12VDC 25X10MM .36W 1.41CFM

Copal Electronics Inc

13311: ¥51.4084011 dB(A)0.36W10.2 ~ 13.8VDC12VDC0.030A6500 RPM0.015 lb (6.8g)1.4 CFM (0.040m³/min)Tubeaxial2 Wire LeadsSleeve0.080 in H2O (19.9 Pa)Acrylic Butadiene Styrene(ABS), Polybutylene Terephthalate (PBT)Acrylic Butadiene Styrene(ABS), Polybutylene Terephthalate (PBT)Square - 25mm L x 25mm H x 10mm W14 ~ 140°F (-10 ~ 60°C)--

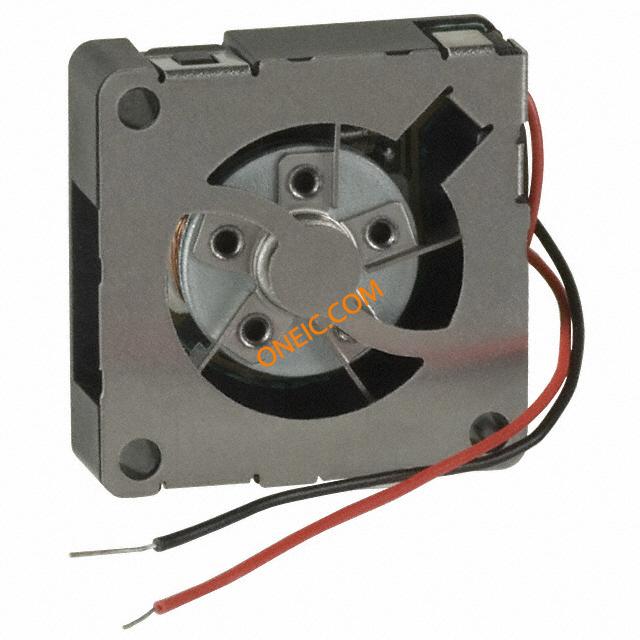

F16FB-05LLC /E
F16FB-05LLC /E

BLOWER 5VDC 16X4.5MM .2W

Copal Electronics Inc

4601: ¥53.72503 dB(A)0.20W4.5 ~ 5.5VDC5VDC0.040A6000 RPM0.003 lb (1.36g)0.424 CFM (0.012m³/min)Blower2 Wire LeadsSleeve0.022 in H2O (5.5 Pa)Acrylic Butadiene Styrene(ABS), Polybutylene Terephthalate (PBT)Acrylic Butadiene Styrene(ABS), Polybutylene Terephthalate (PBT)Square - 16mm L x 16mm H x 4.5mm W14 ~ 140°F (-10 ~ 60°C)Lead free / RoHS Compliant-

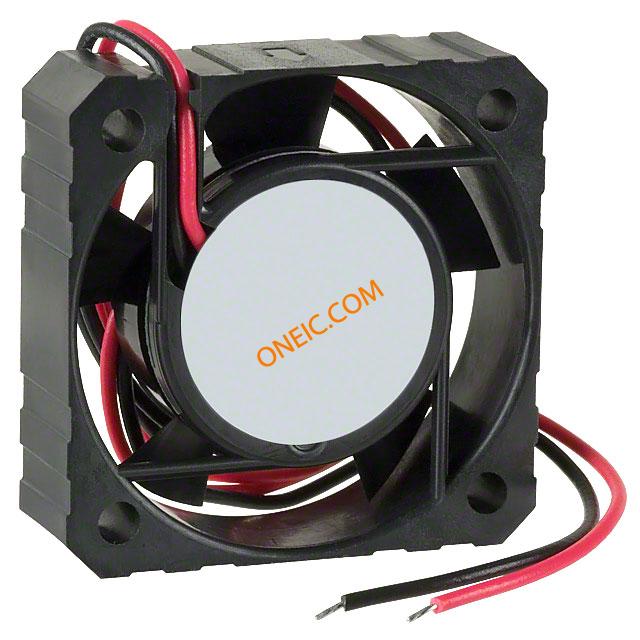

F412R-24MB
F412R-24MB

FAN 24VDC 41X12.2MM .96W 5.30CFM

Copal Electronics Inc

2531: ¥57.5965023 dB(A)0.96W20.4 ~ 26.4VDC24VDC0.040A5400 RPM0.044 lb (19.96g)5.3 CFM (0.150m³/min)Tubeaxial2 Wire Leads1 Ball/1 Sleeve0.102 in H2O (25.5 Pa)Acrylic Butadiene Styrene(ABS), Polybutylene Terephthalate (PBT)Acrylic Butadiene Styrene(ABS), Polybutylene Terephthalate (PBT)Square - 41mm L x 41mm H x 12.2mm W14 ~ 140°F (-10 ~ 60°C)--
Page 1 / 3
