craig-derricott- Disconnect Switch Components

Craig & Derricott Limited is a British manufacturer founded in 1949 and headquartered in the West Midlands, UK. The company specializes in the design, manufacture, and supply of high-quality electrical switchgear and control components. Its core business areas include industrial switchgear, control panels, isolators, and equipment for hazardous environments. The product portfolio features a comprehensive range of rotary switches, pushbuttons, selector switches, and emergency stop devices. Notable product lines include the 'Crusader' series of rotary switches and the 'Guardian' range of enclosed isolators. Craig & Derricott also offers custom control stations, panel boards, and LED lighting solutions tailored for industrial applications. The company's products are widely used across sectors such as manufacturing, infrastructure, transportation, and utilities. It holds ISO 9001 certification and adheres to international standards including IEC and ATEX for hazardous areas. With over 70 years of experience, Craig & Derricott is recognized as a trusted UK brand synonymous with electrical safety and reliability. The company continues to innovate by expanding into energy-efficient lighti

Disconnect Switch Components - 型号列表

80 parts in total

Mfr Part #	Quantity Available	Price	Number of Poles	Current Rating (Max)	Phase Difference	Power - Rated	Voltage Rating	Color	Depth	Width	Length	Terminal Type	Fits Terminal Size	Seal Rating	Other Specifications	Normal State Configuration	Number of Positions/Contacts	Mounting Type	Switch Function/Rating	Phase Noise Typ (dBc/Hz)	Connector Type	Auxiliary Outputs and Type	Ingress Protection	Operating Temperature
2 SDS633N Craig & Derricott	10	1: $1,506.17	3P + N	63 A	3	30 kW	690 V	Red	100mm	130mm	175mm	Screw	Yes	IP65	Single Throw	3NO	Yes	Base	6 kV	3	螺钉	是	IP65	-

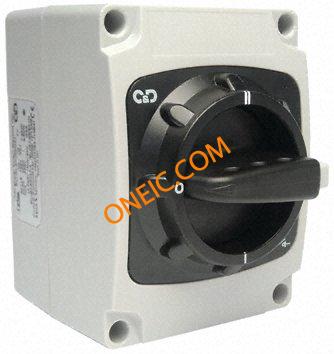

2 SCODP404 Craig & Derricott	10	1: $1,154.10	4P	40 A	3	18.5 kW	690 V	Red	115mm	130mm	175mm	Screw	Yes	IP65	Double Throw	4NO/4NC	Yes	-	6 kV	3	螺钉	是	IP65	-
SDF00633N Craig & Derricott	105	1: $556.3012	3P + N	63 A	3	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

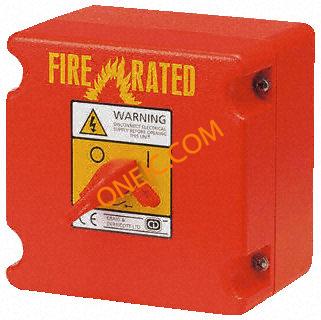

RT3031/2EB/HPHT Craig & Derricott	30	1: $1,909.6848	3P	32 A	3	15 kW	415 V ac	Red	110mm	130mm	160mm	Solder Tag	Yes	IP65	-	-	Yes	Top	-	-	-	-	-	+400°C
SDF41G01253N Craig & Derricott	16	1: $3,667.4236	3P + N	125 A	3	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
SDS00633N Craig & Derricott	27	1: $2,172.158	3P	63 A	3	30 kW	690 V	Red	100mm	250mm	250mm	Screw	Yes	IP41, IP65	Single Throw	3NO	Yes	-	-	-	-	-	-	-

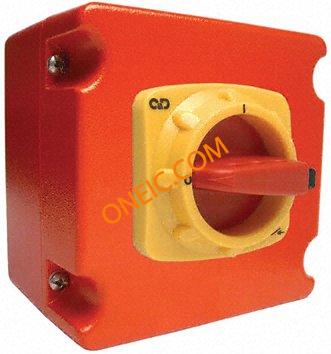

2 SDR403 Craig & Derricott	74	1: $790.772	3P	40 A	3	15 kW	690 V	Red	150mm	160mm	160mm	Screw	Yes	IP65	Single Throw	3NO	Yes	Screw	6 kV	3	螺钉	是	IP65	-

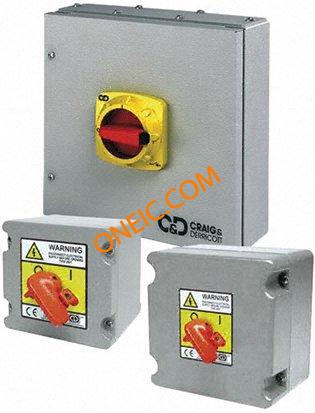

DGM636EBZ22 Craig & Derricott	17	1: $3,326.0704	6P + 2EB Aux	63 A	-	18.5 kW	690 V	Red	240mm	240mm	480mm	Screw	Yes	IP65	Single Throw	6NO	Yes	Base	-	-	-	-	-	-

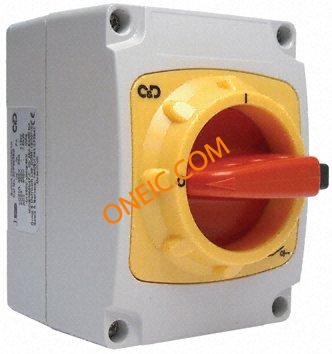

SDP256EB Craig & Derricott	119	1: $490.926	6P + 2EB Aux	20 A	3	7.5 kW	690 V	Red	95mm	100mm	135mm	Screw	Yes	IP65	Single Throw	6NO	Yes	Base	-	-	-	-	-	-
2 SDP253 Craig & Derricott	81	1: $260.90	3P	25 A	3	15 kW	690 V	Red	95mm	100mm	135mm	Screw	Yes	IP65	Single Throw	3NO	Yes	Base	6 kV	3	螺钉	是	IP65	-
SDF01003N Craig & Derricott	55	1: $1,066.75	3P + N	100 A	3	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

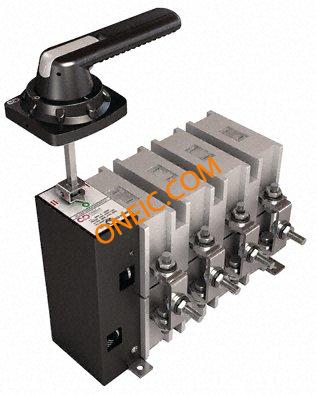

SCOD01004 Craig & Derricott	40	1: $1,437.7852	4P	100 A	3	37 kW	750 V	Black	362mm	255.5mm	142mm	Lug	Yes	IP65	Double Throw	4NO/4NC	Yes	-	-	-	-	-	-	-
SDF41G00633N Craig & Derricott	25	1: $2,325.2872	3P + N	63 A	3	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
SCODG01004 Craig & Derricott	15	1: $3,826.3736	4P	100 A	3	50 kW	1000 V	Red	250mm	450mm	550mm	Screw	Yes	IP41, IP65	Double Throw	4NO/4NC	Yes	-	-	-	-	-	-	-

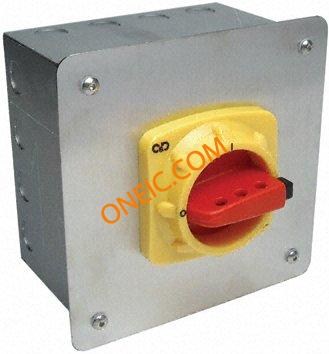

SDFL404 Craig & Derricott	58	1: $1,000.892	4P	40 A	3	18.5 kW	690 V	Red	115mm	175mm	175mm	Screw	Yes	IP65	Single Throw	3NO	Yes	Flush	-	-	-	-	-	-
SDF01253N Craig & Derricott	49	1: $1,191.8768	3P + N	125 A	3	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

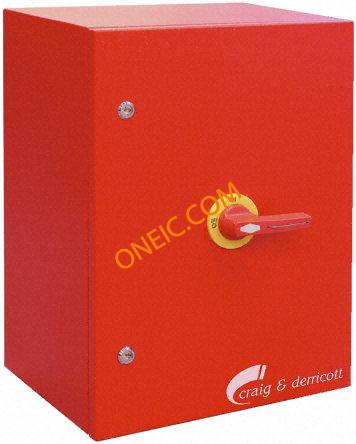

DR1256EB/RS Craig & Derricott	-		6P	125 A	-	37 kW	400 V ac	Red	190mm	290mm	410mm	Screw	Yes	IP65	Single Throw	NO	Yes	-	-	-	-	-	-	-

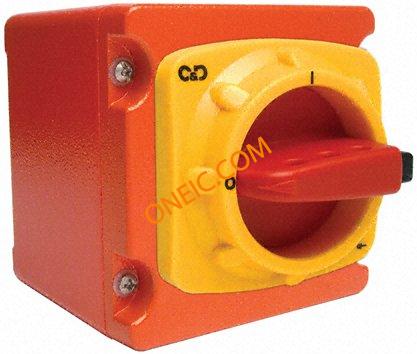

SDR254 Craig & Derricott	97	1: $599.1956	4P	20 A	3	7.5 kW	690 V	Red	130mm	110mm	110mm	Screw	Yes	IP65	Single Throw	3NO	Yes	Screw	-	-	-	-	-	-
DR2503 Craig & Derricott	16	1: $3,602.0552	3P + N	250 A	3	132 kW	690 V ac	Red	190mm	300mm	550mm	Solder Tag	Yes	IP65	Single Throw	NO	-	-	-	-	-	-	-	-
DGM403EBZ22 Craig & Derricott	27	1: $2,169.3972	3P + 2EB Aux	32 A	3	15 kW	690 V	Red	110mm	160mm	160mm	Screw	Yes	IP65	Single Throw	3NO	Yes	Base	-	-	-	-	-	-
