Critical Link, LLC- Embedded Core Modules

Critical Link, LLC is a privately held embedded solutions company founded in 1997, headquartered in Syracuse, New York. The company specializes in the design and development of embedded systems, including System on Modules (SoMs) and scientific cameras, catering to a wide range of electronic applications. Their core product lines feature highly integrated SoMs based on processors from Texas Instruments and Altera, as well as high-performance scientific cameras for demanding imaging tasks. Critical Link enables customers to bring products to market more rapidly and cost-effectively by providing off-the-shelf platforms that reduce design complexity and time-to-market. The company prides itself on building strong partnerships with clients, being involved from prototype to production, ensuring mutual success. With an engineering team larger than many OEM departments, Critical Link offers direct access to diverse engineering skills without competing for resources. The company holds prestigious design network certifications, including TI Platinum Partner, Altera Design Services Network member, and Arrow ACES certified member. Its compact organizational size allows for rapid response to new projects and changing customer needs. Critical Link serves industrial, scientific, and commercial markets, delivering reliable and high-performance embedded solutions tailored to specific requirements. Through over two decades of experience, Critical Link has established itself as a trusted and agile partner in the embedded electronics industry.

Embedded Core Modules - 型号列表

23 parts in total

Mfr Part #	Quantity Available	Price	Interface	Voltage - Supply	Operating Temperature	Size / Dimension	Mechanical Life	RoHS	Standard Package	Speed	RAM Size	Connector Type	Flash Size	Core Processor	Module/Board Type	Function	Frequency	Memory Size	Memory Type	Type	Form Factor	Other Names	Packaging	Battery Series	Co-Processor	Series
2 6711-AA-1X1-RC MITYDSP SOM, TMS320C6711 DSP, XC3S400 FPGA,2MB FLASH, 8MB,CT System-On-Modules - SOM MityDSP-XMF C6711 REV-E XILINX XC3S40 MITYDSP SOM TMS320C6711 200MHZ critical link	10	1: ¥2,456.50	JTAG, McBSP	1.23 V, 2.5 V, 3.3 V	+ 70 C	2.7 in x 1.5 in	New Technology: Cutting edge technology for the newest designs.	RoHS Compliant	1	200MHz	64KB (Internal), 8MB (External)	SO-DIMM-144	2 MB	TMS320C6711	DSP, FPGA Core	SO-DIMM - TI TMS320C6711 Digital Signal Processor: 200 MHz; Hardware Floating Point Unit; 64 KB L2 cache; 2 Integrated McBSPs; JTAG Emulation/Debug. Xilinx FPGA XC3S400: 300 MHz Clock Logic; 288 KBits Block RAM; 3,584 Slices; JTAG Interface/Debug.	200 MHz	8 MB	L2 Cache, NOR Flash, SDRAM	TMS320C6711	MityDSP	6711AA1X1RC	Bulk	No	Spartan-3, XC3S400	-
2 1808-FG-225-RC MITYARM-1808F,AM1808 456MHZ,XC6SLX16,258MB NAND,128MB RAM,CT System-On-Modules - SOM MityARM-1808F AM1808 XILINX XC6SLX16 MITYARM-1808F SOM AM1808 critical link	10	1: ¥2,015.792	EMAC, I2C, MMC/SD, SATA, UART, USB	3.3 V	+ 70 C	67.6 mm x 38.1 mm	New Technology: Cutting edge technology for the newest designs.	RoHS Compliant	1	456MHz	8KB (Internal), 128MB (External)	SO-DIMM-200	8 MB, 256 MB	ARM926EJ-S, AM1808	MPU, FPGA Core	MityARM-1808 is a highly configurable, very small form-factor processor card that features a Texas Instruments AM1808 456 MHz ARM application processor	456 MHz	128 MB	DDR2, L1 Cache, NAND Flash, NOR Flash	ARM926EJ-S	MityARM	1808FG225RC	Bulk	No	Spartan-6, XC6SLX16	-
2 1808-FX-225-RC MITYDSP-1808,AM1808 456MHZ,256MB NAND,128MB,CT System-On-Modules - SOM MityARM-1808 AM1808 456MHZ 256MB NAND MITYARM-1808 SOM AM1808 critical link	12	1: ¥1,293.224	EMAC, I2C, MMC/SD, SATA, UART, USB	3.3 V	+ 70 C	67.6 mm x 38.1 mm	New Technology: Cutting edge technology for the newest designs.	RoHS Compliant	1	456MHz	8KB (Internal), 128MB (External)	SO-DIMM-200	8 MB, 256 MB	ARM926EJ-S, AM1808	MPU Core	MityARM-1808 is a highly configurable, very small form-factor processor card that features a Texas Instruments AM1808 456 MHz ARM application processor	456 MHz	128 MB	DDR2, L1 Cache, NAND Flash, NOR Flash	ARM926EJ-S	MityARM	1808FX225RC	Bulk	No	-	-
2 L138-FG-225-RC MITYDSP-L138F,OMAPL138 456MHZ,XC6SLX16,256MB NAND,128MB,CT System-On-Modules - SOM MityDSP-L138F OMAP XILINX XC6SLX16 MITYDSP-L138F SOM OMAP-L138 critical link	10	1: ¥2,160.224	EMAC, FPGA I/O, I2C, LCD, MMC/SD, McBSP, SATA, SPI, UART, UHPI, USB, Video In/Out, eCAP, eHRPWM, uPP	3.3 V	+ 70 C	2.7 in x 2 in	New At Mouser	RoHS Compliant	1	456MHz	8KB (Internal MPU), 256KB (Internal DSP), 128MB (External)	SO-DIMM-200	8 MB, 256 MB	ARM926EJ-S, OMAP-L138	MPU, DSP, FPGA Core	MityDSP-L138F is a highly configurable, very small form-factor processor card that features a Texas Instruments OMAP-L138 456 MHz (max) applications processor	456 MHz	128 MB	DDR2, L1/L2 Cache, NAND Flash, NOR Flash	ARM926EJ-S, C674x	MityDSP	L138FG225RC	-	No	TMS320C674x (DSP), Spartan-6, XC6SLX16 (FPGA)	-
2 L138-FI-225-RC MITYDSP-L138F,OMAPL138 456MHZ,XC6SLX45,256MB NAND,128MB,CT System-On-Modules - SOM MityDSP-L138F OMAP XILINX XC6SLX45 MITYDSP-L138F SOM OMAP-L138 critical link	21	1: ¥2,521.508	EMAC, FPGA I/O, I2C, LCD, MMC/SD, McBSP, SATA, SPI, UART, UHPI, USB, Video In/Out, eCAP, eHRPWM, uPP	3.3 V	+ 70 C	2.7 in x 2 in	-	RoHS Compliant	1	456MHz	8KB (Internal MPU), 256KB (Internal DSP), 128MB (External)	SO-DIMM-200	256MB (NAND), 8MB (NOR)	ARM926EJ-S, OMAP-L138	MPU, DSP, FPGA Core	-	-	-	-	-	-	L138FI225RC	-	-	TMS320C674x (DSP), Spartan-6, XC6SLX45 (FPGA)	-
3 L138-FX-225-RC MITYDSP-L138,OMAPL138 456MHZ,256MB NAND,128MB,CT System-On-Modules - SOM MityDSP-L138 OMAP 456MHZ 256MB NAND MITYDSP-L138 SOM OMAP-L138 critical link	48	1: ¥1,437.792	EMAC, I2C, LCD, MMC/SD, McBSP, SATA, SPI, UART, UHPI, USB, Video In/Out, eCAP, eHRPWM, uPP	3.3 V	+ 70 C	2.7 in x 1.5 in	New Technology: Cutting edge technology for the newest designs.	RoHS Compliant	1	456MHz	8KB (Internal MPU), 256KB (Internal DSP), 128MB (External)	SO-DIMM-200	8 MB, 256 MB	ARM926EJ-S, OMAP-L138	MPU, DSP Core	SO-DIMM - TI OMAP-L138 Dual Core App Processor: 456 MHz (Max) C674x VLIW Floating Point DSP; 32 KB L1 Program Cache; 32 KB L1 Data Cache; 256 KB L2 cache; 1024 KB boot ROM. 456 MHz ARM926EJ-S MPU.	456 MHz	128 MB	DDR2, L1/L2 Cache, NAND Flash, NOR Flash	ARM926EJ-S, C674x	MityDSP	L138FX225RC	Bulk	No	TMS320C674x	-
3 L138-FI-236-RL MITYDSP-L138F,PROCESSOR CARD 6SLXX45 456MHZ -40/+70 ROHS System-On-Modules - SOM MityDSP-L138F OMAP XILINX XC6SLX45 MITYDSP-L138F SOM OMAP-L138 critical link	13	1: ¥2,810.508	EMAC, FPGA I/O, I2C, LCD, MMC/SD, McBSP, SATA, SPI, UART, UHPI, USB, Video In/Out, eCAP, eHRPWM, uPP	3.3 V	+ 70 C	2.7 in x 2 in	New At Mouser	RoHS Compliant	1	456MHz	8KB (Internal MPU), 256KB (Internal DSP), 256MB (External)	SO-DIMM-200	8 MB, 512 MB	ARM926EJ-S, OMAP-L138	MPU, DSP, FPGA Core	MityDSP-L138F is a highly configurable, very small form-factor processor card that features a Texas Instruments OMAP-L138 456 MHz (max) applications processor	456 MHz	256 MB	DDR2, L1/L2 Cache, NAND Flash, NOR Flash	ARM926EJ-S, C674x	MityDSP	L138FI236RL	-	No	TMS320C674x (DSP), Spartan-6, XC6SLX45 (FPGA)	-
6455-IE-3X5-RI System-On-Modules - SOM MITYDSP-PRO SOM 1GHZ 3S4000 FPGA Critical Link	-		Ethernet, I2C, McBSP	3.3 V	+ 55 C	-	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
6455-HD-3X5-RC System-On-Modules - SOM MITYDSP-PRO SOM 850MHZ 3S1500 FPGA Critical Link	-		Ethernet, I2C, McBSP	3.3 V	+ 55 C	-	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
6711-KB-3X3-RI System-On-Modules - SOM MITYDSP-XM SOM 167MHZ 3S1000 FPGA Critical Link	-		JTAG, McBSP	1.23 V, 2.5 V, 3.3 V	+ 55 C	2.66 in x 1.5 in	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
6455-HE-3X5-RC System-On-Modules - SOM MITYDSP-PRO SOM 850MHZ 3S4000 FPGA Critical Link	-		Ethernet, I2C, McBSP	3.3 V	+ 55 C	-	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
6455-ID-3X5-RI System-On-Modules - SOM MITYDSP-PRO SOM 1GHZ 3S1500 FPGA Critical Link	-		Ethernet, I2C, McBSP	3.3 V	+ 55 C	-	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 1810-DX-225-RC System-On-Modules - SOM MityARM-1810 AM1810 375MHZ MITYDSP-1810 SOM AM1810 MITYDSP-1810 SOM OMAP-L138 Critical Link	10	1: ¥1,365.508	EMAC, SATA, SPI, UART, USB	3.3 V	+ 70 C	67.6 mm x 38.1 mm	New Technology: Cutting edge technology for the newest designs.	RoHS Compliant	1	375MHz	8KB (Internal), 128MB (External)	SO-DIMM-200	8 MB, 256 MB	ARM926EJ-S, AM1810	MPU Core	MityARM-1808 is a highly configurable, very small form-factor processor card that features a Texas Instruments AM1810 375 MHz ARM application processor	375 MHz	128 MB	DDR2, L1 Cache, NAND Flash, NOR Flash	ARM926EJ-S	MityARM	1810DX225RC	Bulk	No	-	-
2 1810-DG-225-RC System-On-Modules - SOM MityARM-1810F AM1810 XILINX XC6SLX16 MITYDSP-1810F SOM OMAP-L138 Critical Link	10	1: ¥2,088.008	EMAC, SATA, SPI, UART, USB	3.3 V	+ 70 C	67.6 mm x 38.1 mm	New Technology: Cutting edge technology for the newest designs.	RoHS Compliant	1	375MHz	8KB (Internal), 128MB (External)	SO-DIMM-200	8 MB, 256 MB	ARM926EJ-S, AM1810	MPU, FPGA Core	MityARM-1808 is a highly configurable, very small form-factor processor card that features a Texas Instruments AM1810 375 MHz ARM application processor	375 MHz	128 MB	DDR2, L1 Cache, NAND Flash, NOR Flash	ARM926EJ-S	MityARM	1810DG225RC	Bulk	No	Spartan-6, XC6SLX16	-
1808-EG-225-RC System-On-Modules - SOM MityARM-1808F AM1808 XILINX XC6SLX16 Critical Link	-		JTAG, UART	3.3 V	-	67.6 mm x 50.8 mm	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
L138-DI-225-RC System-On-Modules - SOM MityDSP-L138F OMAP XILINX XC6SLX16 Critical Link	-		Ethernet, MMC/SD, McBSP, SATA, UART, USB	3.3 V	+ 70 C	67.6 mm x 38.1 mm	Obsolete	RoHS Compliant	-	-	-	-	-	-	-	SO-DIMM - TI OMAP-L138 Dual Core App Processor: 456 MHz C674x VLIW Floating Point DSP; 32 KB L1 Program Cache; 32 KB L1 Data Cache; 256 KB L2 cache; 1024 KB boot ROM. 456 MHz ARM926EJ-S MPU. Xilinx Spartan-6 XC6SLX16: 1050 Mbps data rates; 576 KBits Block RAM; 2,278 Slices. JTAG Interface/Debug.	-	-	-	-	-	-	Bulk	-	-	-

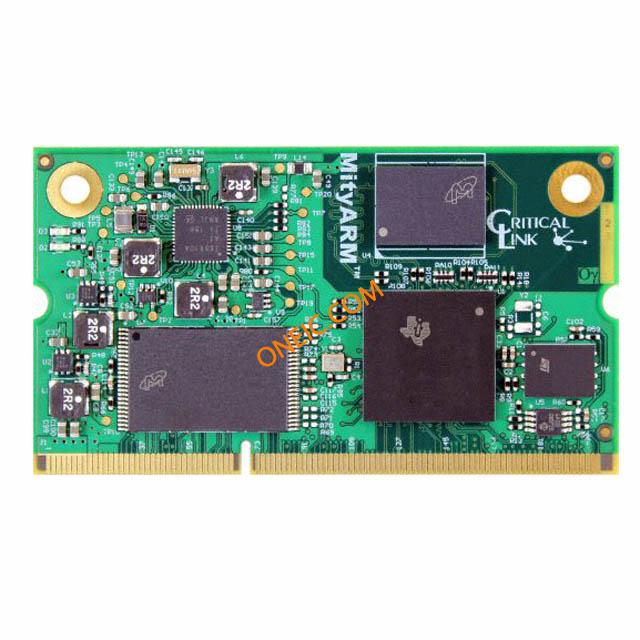

3359-EX-227-RC-X System-On-Modules - SOM MityARM-3359 OMAP 3 CORTEX-A8 AM3359 MITYARM-3359 Critical Link	10	1: ¥1,285.20	EMAC, I2C, SD/MMC, SPI, UART, USB	3.3 V to 5 V	0°C ~ 70°C	2.66" x 1.5" (67.6mm x 38.1mm)	-	RoHS Compliant	1	720MHz	64KB (Internal), 256MB (External)	SO-DIMM-204	256MB (NAND), 8MB (NOR)	ARM® Cortex-A8, AM3359	MPU Core	MityARM-3359 is a highly configurable, small form-factor processor card that features a Texas Instruments Sitara AM3359 processor	720 MHz	256 MB	32 kB/32 kB, 256 kB	ARM Cortex A8	Small Form Factor	-	Bulk	No	-	-

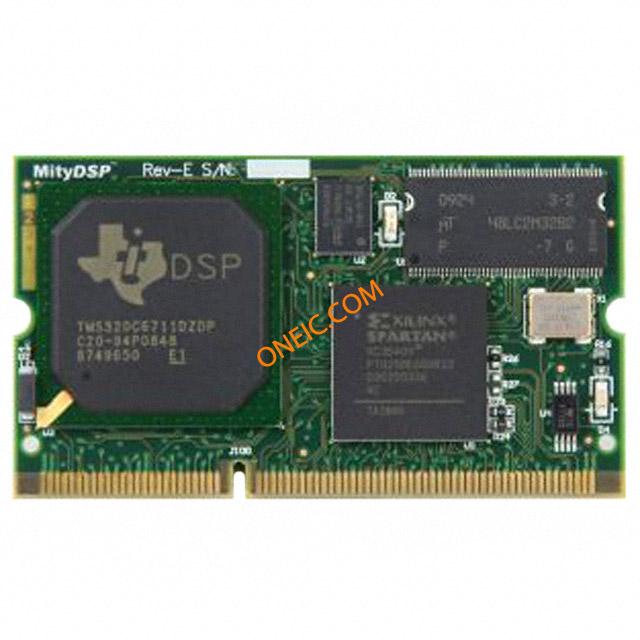

6711-KA-1X1-RI システム・オン・モジュール - SOM MITYDSP SOM 167MHZ 3S400 FPGA MITYDSP SOM TMS320C6711 167MHZ System-On-Modules - SOM MITYDSP SOM 167MHZ 3S400 FPGA Critical Link	10	1: ¥2,305.20	100 FPGA User I/O Pins, JTAG, McBSP	1.23 V, 2.5 V, 3.3 V	-40°C ~ 85°C	2.66" x 1.5" (67.6mm x 38.1mm)	-	RoHS Compliant	1	167MHz	64KB (Internal), 8MB (External)	SO-DIMM-144	2MB	TMS320C6711	DSP, FPGA Core	-	-	-	-	-	-	-	Bulk	-	Spartan-3, XC3S400	-
3352-GX-X27-RC MITYARM-335X SOM System-On-Modules - SOM SOM MityARM-3352 CTX-A8 AM3352 256MB MITYSOM-335X SOM Critical Link	10	1: ¥1,040.40	CAN, EMAC, GPIO, I2C, MMC, SD, SPI, UARTS, USB	3.3 V	0°C ~ 70°C	2.66" x 1.5" (67.6mm x 38.1mm)	-	RoHS Compliant	1	720MHz	256MB	SO-DIMM-204	256MB	ARM® Cortex-A8, AM3352	MPU Core	MityARM 3352 processor card	720 MHz	256 MB	DDR3, NAND Flash	ARM Cortex A8	SO-DIMM	-	Bulk	-	-	-
3359-GX-226-RC MITYARM-3359 PROCESSOR CARD System-On-Modules - SOM MityARM-3359 OMAP 3 CORTEX-A8 AM3359 Critical Link	10	1: ¥1,365.508	CAN, EMAC, SPI, UART, USB	3.3 V	0°C ~ 70°C	2.66" x 1.5" (67.6mm x 38.1mm)	-	RoHS Compliant	1	720MHz	64KB (Internal), 256MB (External)	SO-DIMM-204	256MB (NAND), 8MB (NOR)	ARM® Cortex-A8, AM3359	MPU Core	Application Processor	720 MHz	256 MB	32 kB/32 kB, 256 kB	ARM	Small Form Factor	3359GX226RC	-	No	-	MityARM
