Crouzet Automatismes- Pneumatic Timers

Crouzet, a brand of Custom Sensors & Technologies within the Sensata Technologies group, is a globally recognized French manufacturer of automation control components, founded in 1921 and headquartered in Valence, France. The company specializes in electronic, electromechanical, and magnetic technologies, offering a comprehensive portfolio for sensing, monitoring, actuating, processing, and communicating functions. Key product lines include the Millenium 3 logic controllers (micro PLCs), DC micro-motors, gearmotors, position sensors, pressure sensors, solid state relays, pneumatic logic components, and limit switches. Crouzet serves diverse industries such as aerospace, transportation, healthcare, food processing, and industrial automation, with a strong focus on customization for OEM and equipment manufacturers. The company operates subsidiaries across the United States, Germany, the United Kingdom, the Netherlands, and other countries, ensuring global support. With over 100 years of innovation, Crouzet invests approximately 7% of its annual revenue in R&D to stay at the cutting edge of technology. It maintains rigorous quality, safety, and environmental management systems, holding ISO 14001 and OHSAS 18001 certifications, and ensures compliance with RoHS and REACH regulations. Its commitment to excellence was recognized by the French Prize for Quality and Performance in 2008.

Pneumatic Timers - 型号列表

12 parts in total

Mfr Part #	Quantity Available	Price	Standard Package	Series	RoHS	Operating Temperature	Type	Weight	Number of Units	Mounting Type	Timing Adjustment Method	Other Specifications	Maximum Pressure (PSI)	Adapter Series	Operating Pressure	Manufacturer	Maximum Payload	Minimum Bend Radius	Circuit	Accuracy	Delay Time	Output Type	Range deg/s	Display Type	Voltage - Supply	Timing Initiate Method	Contact Rating @ Voltage	Termination Style	Function	Relay Type	Tariff No	Sensing Range	Flow Rate	Number of Ports	Mechanical Life	Other Names	Delay Time - ON	Module/Board Type	Length	Size - Body	Design	Connection Method	Output Configuration	Number of Positions Loaded	Voltage - Input (Min)	Delay to 1st Tap	Contact Layout, Typical	Leaded Process Compatible	Output	Product	Reset Time	Timer Type	Voltage Rating	Power - Peak Pulse	Current Rating (Max)	Power - Average Forward	Voltage - Supply (Vcc/Vdd)	Width	Termination	Contact Form	Number of Pins	Number of Positions	Panel Cutout Dimensions	Operating Range	Operating Temperature - Junction	Configuration	Temperature - Test	Safety Category
2 81550001 Controllers PAC SEQ MOD MAINT PNEUM SEQUENCER MOD MAINTAINED Sequencer Modules PAC Pneumatic Logic Sequencer Module Crouzet	10	1: ¥1,575.1792	1	*	RoHS Compliant	-	Pneumatic Logic Components	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PWRS440A Controllers PHASE CNTRL RELAY CONTROL RELAY PHASE 3X440VAC Electromechanical Relay SPDT 10A 415/440VAC Socket Relay, Phase Control Crouzet	10	1: ¥386.308	1	*	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
4 88865265 Timers TK2R1 FUNC-K 2 SPDT RELAY TIME ANALOG 8A 24-240V DIN Din Rail Mounting TK2R1 With LED Status Indicator Relay; E-Mech; Timing; Off Delay; DPDT; Cur-Rtg 10A; Ctrl-V 24-240/24AC/DC; Screw Chronos2 Timer Crouzet	10	1: ¥983.076	1	Chronos 2	RoHS Compliant	- 20 C to + 60 C	Multifunction Timer	-	-	DIN Rail	Hand Dial	-	-	-	-	-	-	-	DPDT (2 Form C)	+/- 0.5 %	0.1 Sec ~ 100 Hrs	Mechanical Relay	0.6 s to 160 s	LED Indicator	24 VDC, 24 VAC to 240 VAC	Input Voltage	8A @ 250VAC	Screw	Off-Delay	Integrated	-	-	-	-	-	646-1183	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
6 88865155 Timers TLR1 FUNC-LI 24-240V DIN RL22.5MM RELAY TIME ANALG 10A 24-240V DIN Din Rail Mounting TLR1 With LED Status Indicator ELECTROMECHANICAL MULTIFUNCTION TIMER Relay; E-Mech; Timing; Repeat Cycle; SPDT; Cur-Rtg 10A; Ctrl-V 24-240/24AC/DC; Screw Timer; 250VAC/8A; 24÷230VAC; 24VDC; DIN Chronos2 Timer Crouzet	47	1: ¥442.00	1	Chronos 2	RoHS Compliant	- 20 C to + 60 C	Multifunction Timer	0.1	1	DIN Rail	Hand Dial	:100h	-	-	-	-	-	-	SPDT (1 Form C)	+/- 0.5 %	0.1 Sec ~ 100 Hrs	Mechanical Relay	0.1 s to 100 h	LED Indicator	24 VDC, 24 VAC to 240 VAC	Input Voltage	10A @ 250VAC	Screw	Repeat Cycle, Twin Timer	Integrated	84229010	-	-	-	-	646-1181	:0.1s	timer	-	-	-	-	-	-	250VAC/8A	-	-	-	:1 Changeover Relay	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
8 88886016 Timers TMR48U 2 RELAY 11 PIN RELAY TIME ANALOG 5A 250V 11PIN TMR 48 Analog Timers With Multi-Range From 0.02 S To 300 H ELECTROMECHANICAL GENERAL PURPOSE TIMER Timer; Multi-Function; 0.02s-300h; E-Mech; DPDT; 5A; Ctrl-V240AC/DC; Pnl-Mnt; 11PinOctal Timer; 0,02s÷300h; DPDT; 250VAC/5A; 24÷240VAC; 12÷240VDC; PIN:11 Crouzet	10	1: ¥1,417.5688	1	TMR48	RoHS Compliant	- 20 C to + 55 C	Multifunction Timer	0.122	1	Socket	Hand Dial	-	-	-	-	TMR48 Series	-	-	DPDT (2 Form C)	+/- 0.5 %	0.02 Sec ~ 300 Hrs	Mechanical Relay	0.02 s to 300 h	Dial	12 VDC to 240 VDC, 24 VAC to 240 VAC	Input Voltage, Trigger Signal	5A @ 250VAC	Plug in	Programmable (Multi-Function)	Integrated	84229010	0,02s...300h	-	-	-	646-1170	-	timer	-	-	-	-	-	-	250VAC/5A	-	-	-	-	Analog Timer	:60ms	Multi-Function	250 VAC	2000 VA	5 A	:4.8VA	240 VAC/VDC	:45mm	Plug-In	SPDT	11	11	:45mm	:0.005sec to 300hr	55 °C	-	-	-
5 88826115 Timers MAR1 TIMER FUNC A 24-240V DIN RL17.5MM Electromechanical Relay SPDT 10A 24VDC 24V to 240VAC DIN Rail RELAY TIME ANALG 8A 24-240V DIN Relay; E-Mech; Timing; On Delay; SPDT; Cur-Rtg 10A; Ctrl-V 24-240/24AC/DC; Vol-Rtg 250V Timer; DIN RELAY TIME ANALG 10A 24-240V DIN Crouzet	-		1	Chronos 2	RoHS Compliant	- 20 C to + 60 C	Solid State Timer	0.07 kg	1	DIN Rail	Screwdriver Slot	-	-	-	-	-	-	-	SPDT (1 Form C)	+/- 0.5 %	0.1 Sec ~ 100 Hrs	Mechanical Relay	0.1 s to 100 h	LED Indicator	24 VDC, 24 VAC to 240 VAC	Input Voltage, Trigger Signal	8A @ 250VAC	Screw	On-Delay	Integrated	-	-	-	-	-	-	-	timer	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

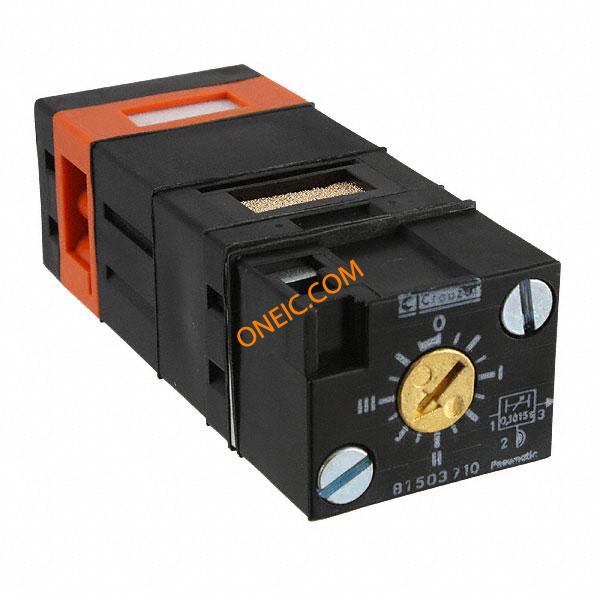

5 81503710 PNEUM TIMER DELAY .1-10S N.C. Crouzet 2 to 8bar 0.1 to 15s Pneumatic Timer, -5 to +50°C Timers With Adjustable Timing Position, Detector, Pneumatic, Timer with Adjustable Timing, Positive Output Time relay; 2÷8bar; Output conf: NC; 90g; 10000000cycles Crouzet 81 系列 2 → 8bar 气动计时器 , 0.1 → 15s 定时范围, -5 → +50°C Crouzet USA	10	1: ¥1,573.86	1	*	Not Applicable	+50°C	Timer	90g	1	-	-	time relay	8 bar	81	2bar	81 503 Series	15s	0.1s	-	-	-	-	-	-	-	-	-	-	-	-	-	0,1...15s	170 @ 6 bar Nl/min	3	107 Operations	-	-	-	15s	32 x 25 x 78mm	see	M4	NC	1	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Positive	-	-

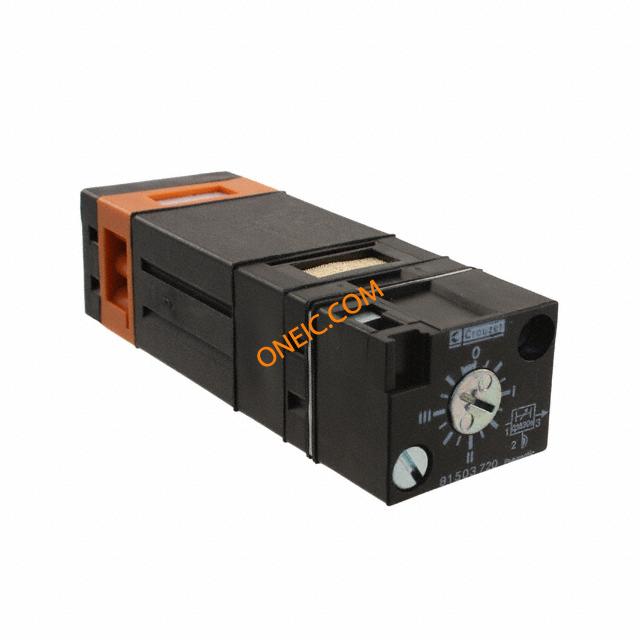

5 81503720 PNEUM TIMER DELAY .1-30S N.C. Crouzet 2 to 8bar 2 to 8s Pneumatic Timer, -5 to +50°C Timers With Adjustable Timing TIMER, 30SEC Position, Detector, Pneumatic, Timer with Adjustable Timing Time relay; 2÷8bar; Output conf: NC; 100g; 10000000cycles Crouzet 81 系列 2 → 8bar 气动计时器 , 2 → 8s 定时范围, -5 → +50°C Crouzet USA	13	1: ¥1,680.756	1	*	Not Applicable	+50°C	Timer	0	1	:Panel	:Knob	:30s	8 bar	81	2bar	81 503 Series	8s	2s	-	-	-	-	-	-	-	-	-	-	-	-	85364900	0,1...30s	170 @ 6 bar Nl/min	3	10000000cycles	-	:0.1s	-	-	32 x 25 x 92mm	see	M4	NC	1	-	:0.1s to 30s	:-	:No	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	:No	-

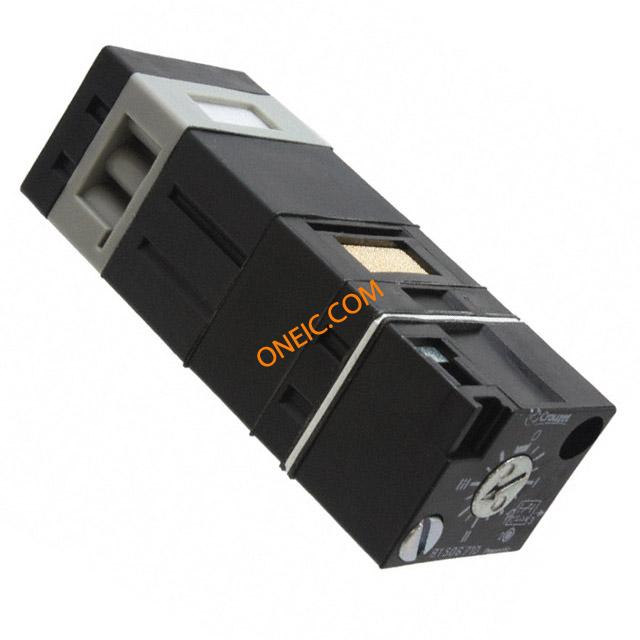

3 81506710 PNEUM TIMER DELAY .1-10S N.O. Crouzet 2 to 8bar 0.1 to 15s Pneumatic Timer, -5 to +50°C Timers With Adjustable Timing TIME DELAY RELAY, 15SEC Timer, Neg. Output, 0.1-10 SEC Adj No Time Delay Time relay; 2÷8bar; Output conf: NO; 90g; 10000000cycles Crouzet 81 系列 2 → 8bar 气动计时器 , 0.1 → 15s 定时范围, -5 → +50°C Crouzet USA	10	1: ¥2,081.616	1	*	Not Applicable	+50°C	Timer	0	1	:Panel	:Knob	:15s	8 bar	81	2bar	81 506 Series	15s	0.1s	-	-	-	-	-	-	-	-	-	-	-	-	00000000	0,1...15s	170 @ 6 bar Nl/min	3	10000000cycles	-	:0.15s	-	-	32 x 25 x 78mm	see	M4	NO	1	-	:0.15s to 15s	:(Not Applicable)	:No	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3 81503725 PNEUM TIMER DELAY .1-180S NC Crouzet 2 to 8bar 0.1 to 60s Pneumatic Timer, -5 to +50°C Crouzet 81 系列 2 → 8bar 气动计时器 , 0.1 → 60s 定时范围, -5 → +50°C Crouzet USA	10	1: ¥3,033.548	1	*	Not Applicable	+50°C	-	-	-	-	-	0.1s	8 bar	81	2bar	-	60s	0.1s	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	60s	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3 81506945 PNEUM FREQ GENERATOR .02-8HZ Crouzet 2 to 8bar Pneumatic Timer, -5 to +50°C Crouzet 81 系列 2 → 8bar 气动计时器 , -5 → +50°C Crouzet USA	10	1: ¥447.032	1	*	Compliant	+50°C	-	-	-	-	-	-	8bar	81	2bar	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	ATEX

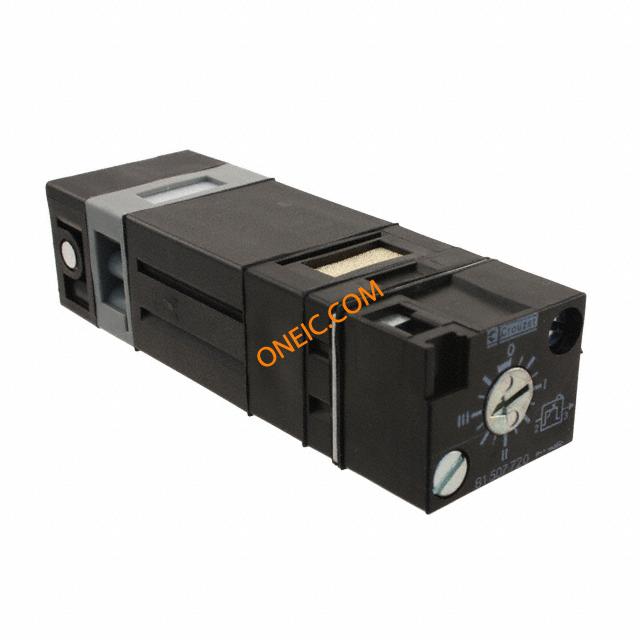

5 81507720 PNEUM GENRTR SNGL IMPULSE .1-30S Crouzet 2 to 8bar 0.1 to 30s Pneumatic Timer, -5 to +50°C Timers Single Impulse Generator Generator, Pneumatic, Single Impulse, Adjustable Timer .1-30 Time relay; 2÷8bar; 100000000cycles Crouzet 81 系列 2 → 8bar 气动计时器 , 0.1 → 30s 定时范围, -5 → +50°C Crouzet USA	10	1: ¥2,215.032	1	*	Not Applicable	+50°C	Timer	0.11 kg	1	-	-	time relay	8 bar	81	2bar	81 507 Series	30s	0.1s	-	-	-	-	-	-	-	-	-	-	-	-	-	-	170 @ 6 bar Nl/min	2	100000000cycles	-	-	-	30s	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
