Crystek Corporation, founded in 1958, is a world-leading manufacturer of high-performance frequency control and RF/microwave components. Headquartered in Fort Myers, Florida, USA, the company has over six decades of experience in the electronics industry. Crystek's core business focuses on precision quartz crystals, oscillators, voltage-controlled oscillators (VCOs), phase-locked loops (PLLs), and RF amplifiers. Among its key product series are the CVCO55 and CVCO25 VCO families, known for low phase noise and wide frequency ranges. The company also offers temperature-compensated crystal oscillators (TCXOs), oven-controlled crystal oscillators (OCXOs), and SAW filters for diverse applications. Crystek serves end markets such as wireless infrastructure, microwave radio, telecommunications, industrial, enterprise, medical, aerospace, and defense. Its products are critical in applications requiring stable frequency references, including 5G base stations, satellite communications, and test equipment. Crystek maintains a strong industry position through proprietary in-house manufacturing and advanced engineering, ensuring high reliability and technical support. The company is recognized for its innovation in surface-mount VCOs and its ability to deliver custom frequency solutions. With a global distribution network, Crystek continues to be a trusted partner for engineers worldwide.

Resonators - 型号列表

133 parts in total

Mfr Part #	Quantity Available	Price	Standard Package	RoHS	Icc Max	Frequency	Power (dBm)	Pushing (MHz/V)	Load Capacitance	Voltage - Supply	Frequency - Center	Tuning Voltage (VDC)	2nd Harmonic, Typ (dBc)	Phase Noise Typ (dBc/Hz)	Height	Packaging	Package / Case	Size / Dimension	Termination Style	Series	Operating Temperature	Frequency Range

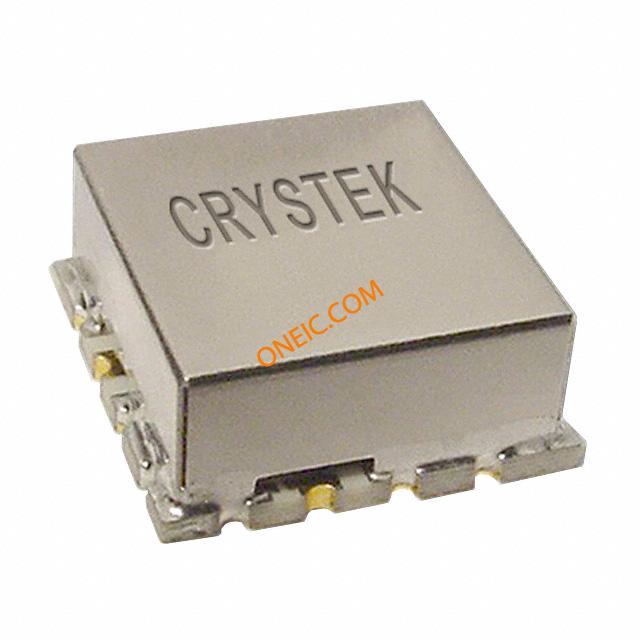

CVCO55CC-0380-0440 OSC SMD 12.7MM 2485MHZ OSC CRO 0380-0440 MHZ SMD .5X.5" Resonators 380-440MHz -30C to 70C Crystek Corporation	10	3: ¥180.88	1	RoHS Compliant	30mA	380 MHz to 440 MHz	5 ±2	0.2	47 pF	5V	410MHz	0.3 ~ 4.7 V	-10	-117	0.220" (5.59mm)	Cut Strip	16-QFN, Variant	0.500" L x 0.500" W (12.70mm x 12.70mm)	SMD/SMT	CVCO55CC	-30°C ~ 70°C	380 ~ 440MHz
CVCO55CC-0827-0840 OSC CRO 0827-0840 MHZ SMD .5X.5" Resonators 827-840MHz -30C to 70C Crystek Corporation	10	1: ¥238.612	1	RoHS Compliant	35mA	827 MHz to 840 MHz	-6.5 ±1.5	0.1	47 pF	5V	833.5MHz	0.2 ~ 4.7 V	-18	-124	0.220" (5.59mm)	Cut Strip	16-QFN, Variant	0.500" L x 0.500" W (12.70mm x 12.70mm)	SMD/SMT	CVCO55CC	-30°C ~ 70°C	827 ~ 840MHz
CVCO55CC-0860-0960 OSC CRO 0860-0960 MHZ SMD .5X.5" Resonators 860-960MHz -40C to 85C Crystek Corporation	80	1: ¥222.02	1	RoHS Compliant	30mA	860 MHz to 960 MHz	3 ±3	0.6	47 pF	5V	910MHz	0.5 ~ 4.5 V	-12	-113	0.220" (5.59mm)	Cut Strip	16-QFN, Variant	0.500" L x 0.500" W (12.70mm x 12.70mm)	SMD/SMT	CVCO55CC	-40°C ~ 85°C	860 ~ 960MHz
CVCO55CC-0971-0975 OSC CRO 0971-0975 MHZ SMD .5X.5" Resonators 971-975MHz -40C to 85C Crystek Corporation	10	1: ¥222.02	1	RoHS Compliant	35mA	971 MHz to 975 MHz	3 ±3	1	47 pF	5V	973MHz	0.3 ~ 4.7 V	-15	-117	0.220" (5.59mm)	Cut Strip	16-QFN, Variant	0.500" L x 0.500" W (12.70mm x 12.70mm)	SMD/SMT	CVCO55CC	-40°C ~ 85°C	971 ~ 975MHz
CVCO55CC-1370-1400 OSC CRO 1370-1400 MHZ SMD .5X.5" Resonators 1370-1400MHz -40C to 85C Crystek Corporation	10	1: ¥222.02	1	RoHS Compliant	30mA	1370 MHz to 1400 MHz	2 ±2	1	47 pF	5V	1385MHz	0.5 ~ 4.5 V	-25	-114	0.220" (5.59mm)	Cut Strip	16-QFN, Variant	0.500" L x 0.500" W (12.70mm x 12.70mm)	SMD/SMT	CVCO55CC	-40°C ~ 85°C	1370 ~ 1400MHz
CVCO55CC-1372-1427 OSC CRO 1372-1427 MHZ SMD .5X.5" Resonators 1372-1427MHz -40C to 85C Crystek Corporation	10	1: ¥222.02	1	RoHS Compliant	25mA (Typ)	1372 MHz to 1427 MHz	3 ±3	1	22 pF	5V	1399.5MHz	0.3 ~ 4.7 V	-15	-112 (Max)	0.220" (5.59mm)	Cut Strip	16-QFN, Variant	0.500" L x 0.500" W (12.70mm x 12.70mm)	SMD/SMT	CVCO55CC	-40°C ~ 85°C	1372 ~ 1427MHz
CVCO55CC-1435-1491 OSC CRO 1435-1491 MHZ SMD .5X.5" Resonators 1435-1491MHz -40C to 85C Crystek Corporation	10	1: ¥222.02	1	RoHS Compliant	25mA (Typ)	1435 MHz to 1491 MHz	3 ±3	1	47 pF	5V	1463MHz	0.3 ~ 4.7 V	-15	-112 (Max)	0.220" (5.59mm)	Cut Strip	16-QFN, Variant	0.500" L x 0.500" W (12.70mm x 12.70mm)	SMD/SMT	CVCO55CC	-40°C ~ 85°C	1435 ~ 1491MHz
CVCO55CC-1490-1550 OSC CRO 1490-1550 MHZ SMD .5X.5" Resonators 1490-1550MHz -40C to 85C Crystek Corporation	34	1: ¥222.02	1	RoHS Compliant	35mA	1490 MHz to 1550 MHz	5 ±3	1.5 (Typ)	47 pF	8V	1520MHz	1 ~ 10 V	-15	-115	0.220" (5.59mm)	Cut Strip	16-QFN, Variant	0.500" L x 0.500" W (12.70mm x 12.70mm)	SMD/SMT	CVCO55CC	-40°C ~ 85°C	1490 ~ 1550MHz
CVCO55CC-1515-1600 OSC CRO 1515-1600 MHZ SMD .5X.5" Resonators 1515-1600MHz -30C to 70C Crystek Corporation	10	1: ¥222.02	1	RoHS Compliant	25mA	1515 MHz to 1600 MHz	0 ±3	0.5	22 pF	5V	1557.5MHz	0.5 ~ 10 V	-15	-116	0.220" (5.59mm)	Cut Strip	16-QFN, Variant	0.500" L x 0.500" W (12.70mm x 12.70mm)	SMD/SMT	CVCO55CC	-30°C ~ 70°C	1515 ~ 1600MHz
CVCO55CC-1560-1615 OSC CRO 1560-1615 MHZ SMD .5X.5" Resonators 1560-1615MHz -40C to 85C Crystek Corporation	21	1: ¥222.02	1	RoHS Compliant	25mA (Typ)	1560 MHz to 1615 MHz	3 ±3	1	22 pF	5V	1587.5MHz	0.3 ~ 4.7 V	-15	-112 (Max)	0.220" (5.59mm)	Cut Strip	16-QFN, Variant	0.500" L x 0.500" W (12.70mm x 12.70mm)	SMD/SMT	CVCO55CC	-40°C ~ 85°C	1560 ~ 1615MHz
CVCO55CC-1581-1581 OSC CRO 1581-1581 MHZ SMD .5X.5" Resonators 1581-1581MHz -40C to 85C Crystek Corporation	10	1: ¥222.02	1	RoHS Compliant	40mA (Typ)	1581 MHz	2.5 ±2.5	1	27 pF	5V	1581MHz	0.5 ~ 4.5 V	-15	-120	0.220" (5.59mm)	Cut Strip	16-QFN, Variant	0.500" L x 0.500" W (12.70mm x 12.70mm)	SMD/SMT	CVCO55CC	-40°C ~ 85°C	-
CVCO55CC-1620-1620 OSC CRO 1620-1620 MHZ SMD .5X.5" Resonators 1620-1620MHz -40C to 85C Crystek Corporation	10	1: ¥252.28	1	RoHS Compliant	25mA	1620 MHz	2.5 ±2.5	1	22 pF	5V	1620MHz	0.3 ~ 4.7 V	-15	-120	0.220" (5.59mm)	Cut Strip	16-QFN, Variant	0.500" L x 0.500" W (12.70mm x 12.70mm)	SMD/SMT	CVCO55CC	-40°C ~ 85°C	-
CVCO55CC-1623-1678 OSC CRO 1623-1678 MHZ SMD .5X.5" Resonators 1623-1678MHz -40C to 85C Crystek Corporation	20	1: ¥222.02	1	RoHS Compliant	25mA (Typ)	1623 MHz to 1678 MHz	3 ±3	1	22 pF	5V	1650.5MHz	0.3 ~ 4.7 V	-15	-112 (Max)	0.220" (5.59mm)	Cut Strip	16-QFN, Variant	0.500" L x 0.500" W (12.70mm x 12.70mm)	SMD/SMT	CVCO55CC	-40°C ~ 85°C	1623 ~ 1678MHz
CVCO55CC-1630-1630 OSC CRO 1630-1630 MHZ SMD .5X.5" Resonators 1630-1630MHz -40C to 85C Crystek Corporation	10	5: ¥205.6728	1	RoHS Compliant	25mA	1630 MHz	2.5 ±2.5	1	22 pF	5V	1630MHz	0.3 ~ 4.7 V	-15	-120	0.220" (5.59mm)	Cut Strip	16-QFN, Variant	0.500" L x 0.500" W (12.70mm x 12.70mm)	SMD/SMT	CVCO55CC	-40°C ~ 85°C	-
CVCO55CC-1640-1700 OSC CRO 1640-1700 MHZ SMD .5X.5" Resonators 1640-1700MHz -40C to 85C Crystek Corporation	10	1: ¥252.28	1	RoHS Compliant	35mA	1640 MHz to 1700 MHz	5 ±3	1.5 (Typ)	47 pF	8V	1670MHz	1 ~ 10 V	-15	-115	0.220" (5.59mm)	Cut Strip	16-QFN, Variant	0.500" L x 0.500" W (12.70mm x 12.70mm)	SMD/SMT	CVCO55CC	-40°C ~ 85°C	1640 ~ 1700MHz
CVCO55CC-1690-1690 OSC CRO 1690-1690 MHZ SMD .5X.5" Resonators 1690-1690MHz -40C to 85C Crystek Corporation	10	1: ¥260.02	1	RoHS Compliant	25mA	1690 MHz	2.5 ±2.5	1	22 pF	5V	1690MHz	0.3 ~ 4.7 V	-15	-138	0.220" (5.59mm)	Cut Strip	16-QFN, Variant	0.500" L x 0.500" W (12.70mm x 12.70mm)	SMD/SMT	CVCO55CC	-40°C ~ 85°C	-
CVCO55CC-1800-1800 OSC CRO 1800-1800 MHZ SMD .5X.5" Resonators 1800-1800MHz -40C to 85C Crystek Corporation	13	1: ¥222.02	1	RoHS Compliant	35mA	1800 MHz	2.5 ±2.5	1	22 pF	5V	1800MHz	0.3 ~ 4.7 V	-15	-118	0.220" (5.59mm)	Cut Strip	16-QFN, Variant	0.500" L x 0.500" W (12.70mm x 12.70mm)	SMD/SMT	CVCO55CC	-40°C ~ 85°C	-
CVCO55CC-1845-1855 OSC CRO 1845-1855 MHZ SMD .5X.5" Resonators 1845-1855MHz -30C to 70C Crystek Corporation	10	1: ¥252.28	1	RoHS Compliant	20mA (Typ)	1845 MHz to 1855 MHz	2.5 ±2.5	0.5 (Typ)	50 pF	5V	1850MHz	0.3 ~ 4.7 V	-13	-117	0.220" (5.59mm)	Cut Strip	16-QFN, Variant	0.500" L x 0.500" W (12.70mm x 12.70mm)	SMD/SMT	CVCO55CC	-30°C ~ 70°C	1845 ~ 1855MHz
CVCO55CC-1850-1850 OSC CRO 1850-1850 MHZ SMD .5X.5" Resonators 1850-1850MHz -40C to 85C Crystek Corporation	10	5: ¥211.7384	1	RoHS Compliant	20mA (Typ)	1850 MHz	2.5 ±2.5	1	50 pF	5V	1850MHz	0.5 ~ 4.5 V	-15	-117	0.220" (5.59mm)	Cut Strip	16-QFN, Variant	0.500" L x 0.500" W (12.70mm x 12.70mm)	SMD/SMT	CVCO55CC	-40°C ~ 85°C	-
CVCO55CC-1930-2110 OSC CRO 1930-2110 MHZ SMD .5X.5" Resonators 1930-2110MHz -30C to 70C Crystek Corporation	10	1: ¥222.02	1	RoHS Compliant	35mA	1930 MHz to 2110 MHz	0 ±3	2	56 pF	8V	2020MHz	0.5 ~ 18 V	-12	-105	0.220" (5.59mm)	Cut Strip	16-QFN, Variant	0.500" L x 0.500" W (12.70mm x 12.70mm)	SMD/SMT	CVCO55CC	-30°C ~ 70°C	1930 ~ 2110MHz
