Druck Limited- Industrial Pressure Transducers

Druck Limited, founded in 1972 in Leicester, UK, is a globally recognized leader in high-precision pressure measurement technology, currently operating as part of Baker Hughes. The company specializes in the design and manufacture of advanced pressure sensors, transmitters, calibrators, and pressure controllers for critical applications in aerospace, oil and gas, industrial automation, and metrology. Its core product lines include the UNIK 5000 pressure sensing platform, PACE series pressure controllers, DPI 620 Genii and DPI 800 series handheld calibrators, and the high-accuracy resonant pressure sensors. Druck’s sensors leverage silicon piezoresistive and resonant MEMS technologies to deliver exceptional stability, accuracy, and long-term reliability under harsh conditions. The company is a primary supplier to major aerospace programs, including Airbus and Boeing, providing cabin pressure and flight test sensors. In the industrial sector, Druck’s pressure calibrators and controllers are widely used as reference standards in calibration laboratories worldwide. Druck is renowned for owning one of the world's most accurate pressure measurement facilities, holding UKAS accreditation and serving as a national pressure standard for multiple countries. Its technology leadership is further demonstrated by the development of the TERPS (Trench Etched Resonant Pressure Sensor) technology, which sets new benchmarks for precision. With a strong focus on innovation, Druck continuously invests in R&D to expand its portfolio of digital and smart pressure instruments. As a key business within Baker Hughes, Druck benefits from a global service network, reinforcing its position as a premier provider of pressure measurement solutions across demanding industries.

Industrial Pressure Transducers - 型号列表

20 parts in total

Mfr Part #	Quantity Available	Price	Maximum Pressure	Minimum Liquid Specific Gravity	RoHS	Accuracy	Connector Impedance	Wire Gauge	Material - Housing & Prism	Type	Interface	Model Number	Operating Temperature	Material	Pressure Range	Diameter - Outside	Fits Terminal Size	Maximum Pressure (PSI)	Part Number	Calibration	Weight	Pump Type	Termination Style	Process Side Connection	Sensitivity
2 DPI104S-07G RSCAL(7874653) DPI104 I/S,2bar Digital pressure indicator 104I/S,2bar,G Druck 液压，气动数字压力指示器, 2bar, 1/4 NPT, BSP 1/4连接, RS232接口 Druck	10	1: ¥8,603.00	2bar	0bar	Compliant	0.05 %	1/4 NPT, BSP 1/4	95mm	ABS, PC	Hydraulic, Pneumatic	RS232	DPI104S	+50°C	ABS、PC	0bar	95mm	BSP 1/4, 1/4 NPT	2bar	DPI104S	-	-	-	-	-	-
2 DPI104S-10G RSCAL(7874662) DPI104 I/S,7bar Digital pressure indicator 104I/S,7bar,G Druck 液压，气动数字压力指示器, 7bar, 1/4 NPT, BSP 1/4连接, RS232接口 Druck	10	1: ¥8,603.00	7bar	0bar	Compliant	0.05 %	1/4 NPT, BSP 1/4	95mm	ABS, PC	Hydraulic, Pneumatic	RS232	DPI104S	+50°C	ABS、PC	0bar	95mm	BSP 1/4, 1/4 NPT	7bar	DPI104S	-	-	-	-	-	-
2 DPI104S-13G Digital pressure indicator 104I/S,20barG RSCAL(7874665) DPI104I /S,20bar Druck 液压，气动数字压力指示器, 20bar, 1/4 NPT, BSP 1/4连接, RS232接口 Druck	10	1: ¥9,180.00	20bar	0bar	Compliant	0.05 %	1/4 NPT, BSP 1/4	95mm	ABS, PC	Hydraulic, Pneumatic	RS232	DPI104S	+50°C	ABS、PC	0bar	95mm	BSP 1/4, 1/4 NPT	20bar	DPI104S	-	-	-	-	-	-

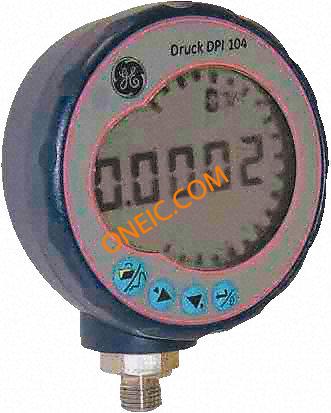

2 DPI104-10G Digital pressure indicator 104,7bar,G RSCAL(7874615) DPI104,7bar Druck 液压，气动数字正压压力表, 7bar, 1/4 NPT, BSP 1/4连接, RS232接口 Druck	22	1: ¥5,580.00	7bar	0bar	Compliant	0.05 %	1/4 NPT, BSP 1/4	95mm	ABS, PC	Hydraulic, Pneumatic	RS232	DPI104	+50°C	ABS、PC	0bar	95mm	BSP 1/4, 1/4 NPT	7bar	DPI104	-	-	-	-	-	-
HTPG-3 Pneumatic pressure gauge set,100mm dia RSCAL(5293572),Press gauge set 100mm dia Druck	21	1: ¥2,681.92	700bar	0bar	Not Applicable	±0.5 %	BSP 3/8 in	100mm	Steel	Pneumatic	-	-	-	-	-	-	-	-	-	RSCAL	-	-	-	-	-
2 DPI104-10A Digital pressure indicator 104,7bar,A RSCAL(7874625) DPI104,7bar Druck 液压，气动数字正压压力表, 7bar, 1/4 NPT, BSP 1/4连接, RS232接口 Druck	10	1: ¥5,580.00	7bar	0bar	Compliant	0.05 %	1/4 NPT, BSP 1/4	95mm	ABS, PC	Hydraulic, Pneumatic	RS232	DPI104	+50°C	ABS、PC	0bar	95mm	BSP 1/4, 1/4 NPT	7bar	DPI104	-	-	-	-	-	-
DPI104-13G RSCAL(5326284),DPI104 press indic 20bar DPI104 digital pressure indicator,20 bar Druck	17	1: ¥3,352.40	20bar	-1bar	Not Applicable	±0.05 %	1/4 in	95mm	ABS, PC	Hydraulic, Pneumatic	RS232	DPI104	+70°C	-	-	-	-	-	-	RSCAL	-	-	-	-	-
2 DPI104-07A RSCAL(7874643) DPI104,2bar Digital pressure indicator 104,2bar,A Druck 液压，气动数字压力指示器, 2bar, BSP 1/4连接, RS232接口 Druck	10	1: ¥5,580.00	2bar	0bar	Compliant	0.05 %	1/4 NPT, BSP 1/4	95mm	ABS, PC	Hydraulic, Pneumatic	RS232	DPI104	+50°C	ABS、PC	0bar	95mm	BSP 1/4	2bar	DPI104	-	-	-	-	-	-
2 DPI104-04G Digital pressure indicator 104,0.7bar,G RSCAL(7874640) DPI104,0.7bar Druck 液压，气动数字压力指示器, 0.7bar, 1/4 NPT, BSP 1/4连接, RS232接口 Druck	10	1: ¥5,580.00	0.7bar	0bar	Compliant	0.05 %	1/4 NPT, BSP 1/4	95mm	ABS, PC	Hydraulic, Pneumatic	RS232	DPI104	+50°C	ABS、PC	0bar	95mm	BSP 1/4, 1/4 NPT	0.7bar	DPI104	-	-	-	-	-	-
2 DPI104S-18G Digital pressure indicator 104I/S200barG RSCAL(7874678) DPI104 I/S200bar Druck 液压，气动数字压力指示器, 200bar, 1/4 NPT, BSP 1/4连接, RS232接口 Druck	10	1: ¥8,603.00	200bar	0bar	Compliant	0.05 %	1/4 NPT, BSP 1/4	95mm	ABS, PC	Hydraulic, Pneumatic	RS232	DPI104S	+50°C	ABS、PC	0bar	95mm	BSP 1/4, 1/4 NPT	200bar	DPI104S	-	-	-	-	-	-
2 DPI104S-16G Digital pressure indicator 104I/S,70barG RSCAL(7874669) DPI104 I/S,70bar Druck 液压，气动数字压力指示器, 70bar, 1/4 NPT, BSP 1/4连接, RS232接口 Druck	10	1: ¥9,180.00	70bar	0bar	Compliant	0.05 %	1/4 NPT, BSP 1/4	95mm	ABS, PC	Hydraulic, Pneumatic	RS232	DPI104S	+50°C	ABS、PC	0bar	95mm	BSP 1/4, 1/4 NPT	70bar	DPI104S	-	-	-	-	-	-

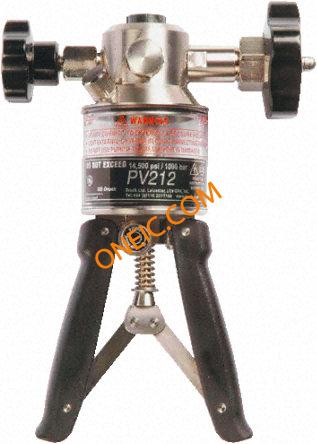

2 PV212-HP-700 PV212 hydraulic pressure hand pump Druck 人手，液压压力泵, 1/4 BSP， 3/8 BSP压力连接, 700bar Druck	14	1: ¥12,921.00	1000bar	0bar	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	1.6kg	Hand, Hydraulic	1/4 BSP， 3/8 BSP	1/4 BSP, 3/8 BSP	-
2 DPI104-07G Digital pressure indicator 104,2bar,G RSCAL(7874619) DPI104,2bar Druck 液压，气动数字正压压力表, 2bar, 1/4 NPT, BSP 1/4连接, RS232接口 Druck	10	1: ¥5,580.00	2bar	0bar	Compliant	0.05 %	1/4 NPT, BSP 1/4	95mm	ABS, PC	Hydraulic, Pneumatic	RS232	DPI104	+50°C	ABS、PC	0bar	95mm	BSP 1/4, 1/4 NPT	2bar	DPI104	-	-	-	-	-	-

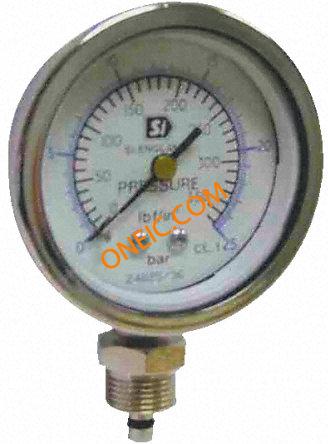

TGP4, TPG5 Pressure gauge set,-1,+25 bar,63mm dia RSCAL (444952) Pressure gauge set Druck	31	1: ¥1,861.568	25bar	-1bar	Not Applicable	±1 %	BSP 3/8	63mm	Stainless Steel	Bottom Entry	-	-	-	-	-	-	-	-	-	RSCAL	-	-	-	-	-
2 DPI104-22S RSCAL(5326290),DPI104 press indic 700bar DPI104 digital pressure indicator,700bar Druck 液压，气动数字正压压力表, 700bar, 1/4in连接, RS232接口 Druck	10	1: ¥5,225.00	700bar	0bar	Not Applicable	±0.05 %	1/4 in	95mm	ABS, PC	Hydraulic, Pneumatic	RS232	DPI104	+50°C	ABS、PC	0bar	95mm	1/4 in	700bar	DPI104	RSCAL	-	-	-	-	-
2 DPI104-16G RSCAL(7874621) DPI104,70bar Digital pressure indicator 104,70bar,G Druck 液压，气动数字压力指示器, 70bar, 1/4 NPT, BSP 1/4连接, RS232接口 Druck	32	1: ¥5,580.00	70bar	0bar	Compliant	0.05 %	1/4 NPT, BSP 1/4	95mm	ABS, PC	Hydraulic, Pneumatic	RS232	DPI104	+50°C	ABS、PC	0bar	95mm	BSP 1/4, 1/4 NPT	70bar	DPI104	-	-	-	-	-	-

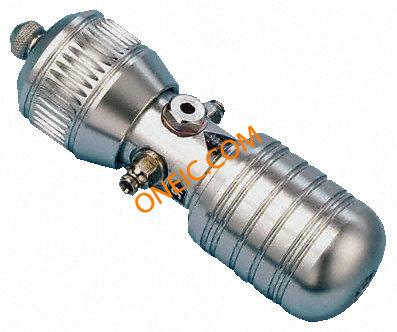

2 PV210 PV210 3 BAR PUMP Druck 人手压力泵, 1/4 BSP压力连接, 3bar Druck	13	1: ¥4,910.00	2bar	0bar	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	587g	Hand	1/4 BSP	1/4 BSP	0.1mbar

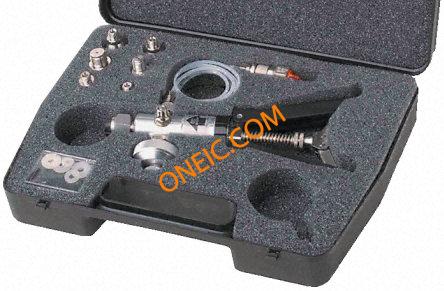

2 PV211-P PV211 pneumatic pressure hand pump Druck 人手压力泵, 1/4 NPT压力连接, 25bar Druck	43	1: ¥5,131.00	25bar	0bar	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	1lb	Hand	1/4 NPT	1/4 NPT	-
2 DPI104-20G RSCAL(7874656) DPI104,350bar Digital pressure indicator 104,350bar,G Druck 液压，气动数字压力指示器, 350bar, 1/4 NPT, BSP 1/4连接, RS232接口 Druck	16	1: ¥5,580.00	350bar	0bar	Compliant	0.05 %	1/4 NPT, BSP 1/4	95mm	ABS, PC	Hydraulic, Pneumatic	RS232	DPI104	+50°C	ABS、PC	0bar	95mm	BSP 1/4, 1/4 NPT	350bar	DPI104	-	-	-	-	-	-
2 DPI104-18G RSCAL(7874647) DPI104,200bar Digital pressure indicator 104,200bar,G Druck 液压，气动数字压力指示器, 200bar, 1/4 NPT, BSP 1/4连接, RS232接口 Druck	10	1: ¥5,580.00	200bar	0bar	Compliant	0.05 %	1/4 NPT, BSP 1/4	95mm	ABS, PC	Hydraulic, Pneumatic	RS232	DPI104	+50°C	ABS、PC	0bar	95mm	BSP 1/4, 1/4 NPT	200bar	DPI104	-	-	-	-	-	-
