flexlink - Pneumatic Fittings Parts

Mfr Part #	Quantity Available	Price	Material	Fits Fan Size	Connector Type	Compatible Shell Size	Type	Fuse Type	RF Family/Standard	Mounting Style	Size / Dimension	Series	Thread Size

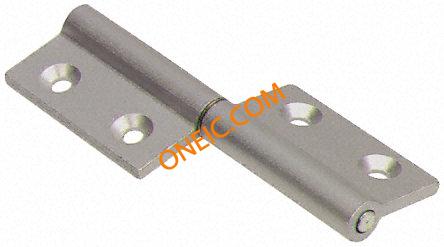

2 XDAH 110 B Aluminium hinge kit for XD Al beam FlexLink 梁铰链套件 5.5mm FlexLink	10	1: ¥366.95	Aluminium	5.5mm	Hinge Kit	22 mm, 44 mm	XD	Beam	FlexLink	22 mm， 44 mm	5.5mm	FlexLink	M6

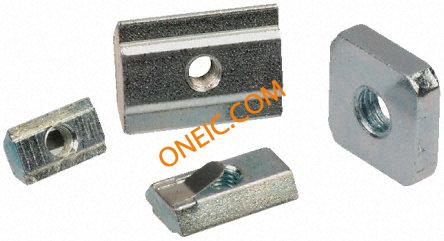

2 XDAN 5 A T-slot nut for XD Al beam,M5 thread FlexLink 梁 T 型槽螺母 5.5mm FlexLink	130	1: ¥110.63	Steel	5.5mm	T-Slot Nut	22 mm, 44 mm	XD	Beam	FlexLink	22 mm， 44 mm	5.5mm	FlexLink	M5

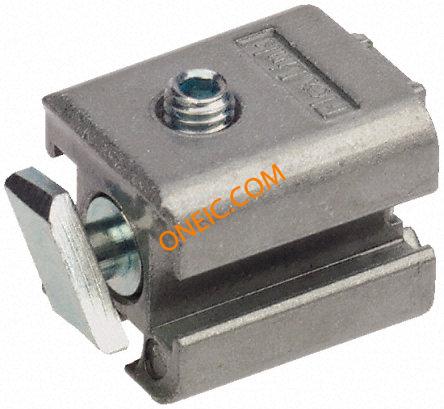

2 XFEF 30 Enclosure connector kit for XF Al beam FlexLink 梁接头套件 7.2mm FlexLink	10	1: ¥77.00	Die Cast Zinc	7.2mm	Connector Kit	30 mm, 60 mm	XF	Beam	FlexLink	30 mm， 60 mm	7.2mm	FlexLink	M6

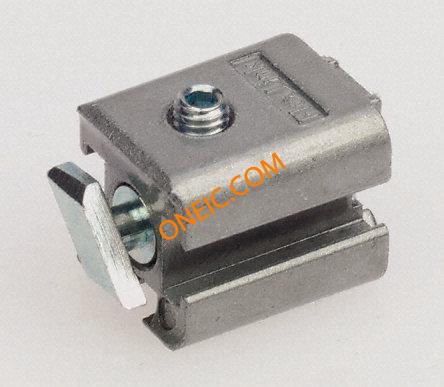

2 XDEF 22 Enclosure connector kit for XD Al beam FlexLink 梁接头套件 5.5mm FlexLink	48	1: ¥66.93	Die Cast Aluminium	5.5mm	Connector Kit	22 mm, 44 mm	XD	Beam	FlexLink	22 mm， 44 mm	5.5mm	FlexLink	M6

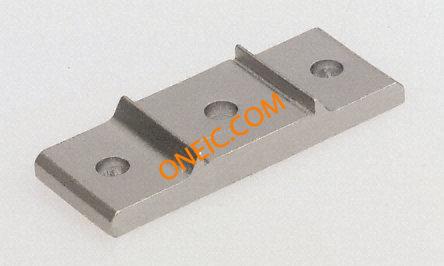

2 XDFB 22 A Aluminium mount plate for XD 22x22 beam FlexLink 梁安装板 5.5mm FlexLink	10	1: ¥102.64	Aluminium	5.5mm	Mounting Plate	22 mm, 44 mm	XD	Beam	FlexLink	22 mm， 44 mm	5.5mm	FlexLink	M6

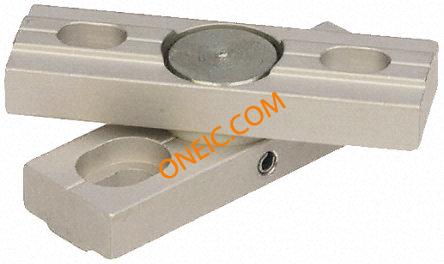

2 XCFJ 75 E Rotary joint for XC aluminium beam FlexLink 梁接头 11mm FlexLink	10	1: ¥379.31	Aluminium	11mm	Joint	44 mm, 88 mm	XC	Beam	FlexLink	44 mm， 88 mm	11mm	FlexLink	M6
XDEF 22 A Enclosure connector kit forXD/XC Al beam FlexLink	319	1: ¥183.4912	Aluminium	11 mm, 5.5 mm	Connector Kit	22 mm, 44 mm	XD	Beam	FlexLink	-	-	-	-

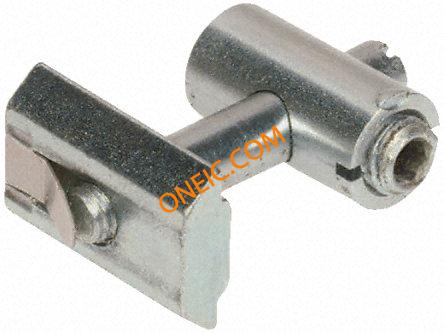

2 XCEC 12 T-slot connector for XC 44x44mm Al beam FlexLink 梁 T 型接头 11mm FlexLink	71	1: ¥30.23	Steel	11mm	T-Connector	44 mm, 88 mm	XC	Beam	FlexLink	44 mm， 88 mm	11mm	FlexLink	M6

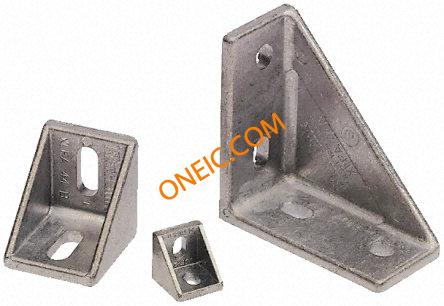

2 XMFA 84 A Al angle bracket for XC beam,80x80x82mm FlexLink 梁角铁托架 11mm FlexLink	73	1: ¥90.36	Die Cast Aluminium	11mm	Angle Bracket	88 mm	XM	Beam	FlexLink	88 mm	11mm	FlexLink	M6

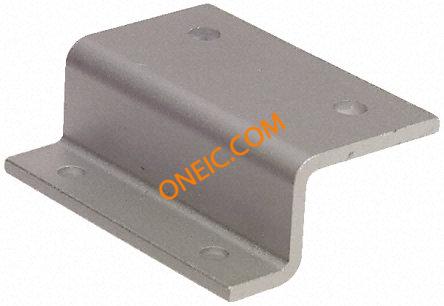

XDEF 70 Frame connector for 44-22mm Al beam FlexLink 梁接头套件 5.5mm FlexLink	352	1: ¥166.4368	Aluminium	5.5mm	Connector Kit	22 mm, 44 mm	XD	Beam	FlexLink	22 mm， 44 mm	5.5mm	FlexLink	-
2 XMFA 84 B Al angle bracket for XC beam,42x42x82mm FlexLink 梁角铁托架 11mm FlexLink	18	1: ¥73.50	Die Cast Aluminium	11mm	Angle Bracket	88 mm	XM	Beam	FlexLink	88 mm	11mm	FlexLink	M6
2 XDFW 9 Steel 90deg corner fitting for XD beam FlexLink 梁 90°接头 5.5mm FlexLink	26	1: ¥28.30	Steel	5.5mm	90° Connector	22 mm, 44 mm	XD	Beam	FlexLink	22 mm， 44 mm	5.5mm	FlexLink	M6

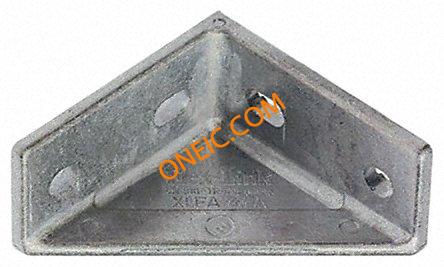

XLFA 44 A Al angle bracket for XC beam,80x80x38mm FlexLink	77	1: ¥91.04	Die Cast Aluminium	11mm	Angle Bracket	44 mm	XL	Beam	FlexLink	-	-	-	-
2 XFAH 110 A Aluminium hinge kit for XC-XF Al beam FlexLink 梁铰链套件 7.2 mm, 11 mm FlexLink	10	1: ¥290.96	Aluminium	11 mm, 7.2 mm	Hinge Kit	30 mm, 60 mm	XF	Beam	FlexLink	30 mm， 60 mm	7.2 mm, 11 mm	FlexLink	M6
2 XCAH 110 A Aluminium hinge kit for XC Al beam FlexLink 梁铰链套件 11mm FlexLink	10	1: ¥362.93	Aluminium	11mm	Hinge Kit	44 mm, 88 mm	XC	Beam	FlexLink	44 mm， 88 mm	11mm	FlexLink	M6

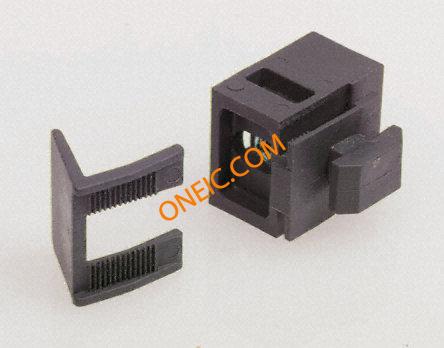

2 XCAM 14 Multi-block for XC aluminium beam FlexLink 梁多块式接头 11mm FlexLink	10	1: ¥30.17	PA	11mm	Multi-Block	44 mm, 88 mm	XC	Beam	FlexLink	44 mm， 88 mm	11mm	FlexLink	M6

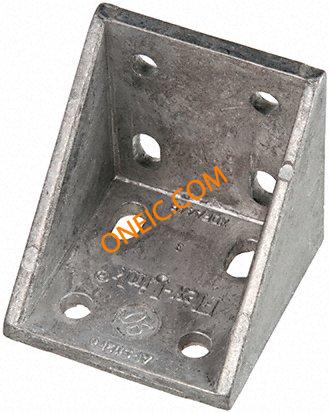

2 XDFA 44 B Al angle bracket for XD beam,42x42x42mm FlexLink 梁角铁托架 5.5mm FlexLink	56	1: ¥77.36	Die Cast Aluminium	5.5mm	Angle Bracket	22 mm, 44 mm	XD	Beam	FlexLink	22 mm， 44 mm	5.5mm	FlexLink	M6
2 XCAN 8 T-slot nut for XC Al beam,M8 thread FlexLink 梁 T 型槽螺母 11mm FlexLink	121	1: ¥139.23	Steel	11mm	T-Slot Nut	44 mm, 88 mm	XC	Beam	FlexLink	44 mm， 88 mm	11mm	FlexLink	M8

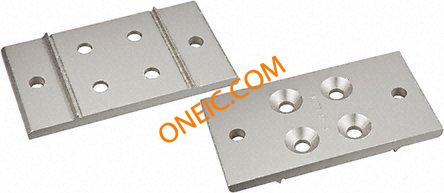

XCFB 64 A Aluminium mount plate for XC 64x64 beam FlexLink	423	1: ¥138.4344	Aluminium	11mm	Mounting Plate	44 mm, 88 mm	XC	Beam	FlexLink	-	-	-	-

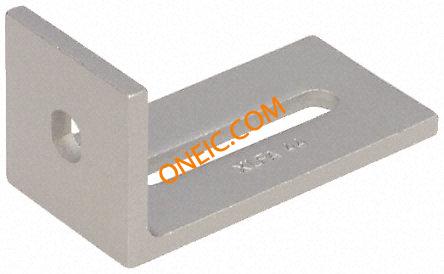

2 XMFA 84 Universal Bracket for XC beam,90x40x80 FlexLink 梁挤制角铁托架 11mm FlexLink	34	1: ¥159.24	Aluminium	11mm	Extruded Angle Bracket	40 mm, 80 mm	XM	Beam	FlexLink	40 mm， 80 mm	11mm	FlexLink	M6

Page 1 / 3
