Mfr Part #	Quantity Available	Price	Material	Type	RF Family/Standard	Length	Profile (W x H)	Fuse Type	Other Specifications	Number of Flutes	Fits Fan Size	Mounting Style	Size / Dimension	Compatible Shell Size	Series	Length - Overall	RoHS

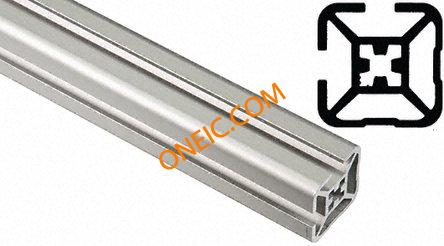

XFEB 1X30 T2 XFEB aluminium beam,2 T-slot 30x30 1m L FlexLink	518	1: ¥113.288	Aluminium	XF	FlexLink	1000mm	30 x 30 mm	Beam	7.2mm	2	-	-	-	-	-	-	-
XFEB 2X30 T2 XFEB aluminium beam,2 T-slot 30x30 2m L FlexLink	269	1: ¥218.1032	Aluminium	XF	FlexLink	2000mm	30 x 30 mm	Beam	7.2mm	2	-	-	-	-	-	-	-
XDEB 2X22 T3 XDEB Al beam,3 T-slot 22x22mm 2m L FlexLink	298	1: ¥196.4112	Aluminium	XD	FlexLink	2000mm	22 x 22 mm	Beam	5.6mm	3	-	-	-	-	-	-	-
XFEB 3X30 T2 XFEB aluminium beam,2 T-slot 30x30 3m L FlexLink	179	1: ¥326.8556	Aluminium	XF	FlexLink	3000mm	30 x 30 mm	Beam	7.2mm	2	-	-	-	-	-	-	-
XDEB 1X22 T3 XDEB Al beam,3 T-slot 22x22mm 1m L FlexLink	566	1: ¥103.53	Aluminium	XD	FlexLink	1m	22 x 22 mm	Beam	5.6mm	3	-	-	-	-	-	-	-

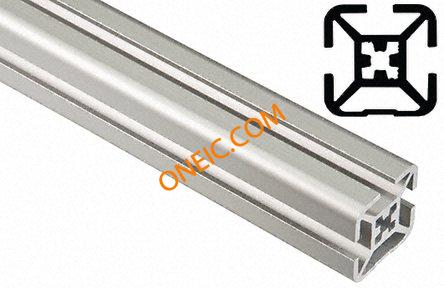

XFEB 1X30 T3 XFEB aluminium beam,3 T-slot 30x30 1m L FlexLink	528	1: ¥111.0236	Aluminium	XF	FlexLink	1000mm	30 x 30 mm	Beam	7.2mm	3	-	-	-	-	-	-	-

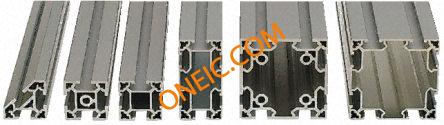

XCBA 1X44 XCBA triangular Al beam,44x44mm 1m L FlexLink	157	1: ¥257.72	Aluminium	XC	FlexLink	1m	44 x 44 mm	Beam	1 mm, 16.8 mm	-	-	-	-	-	-	-	-
2 XCAY 44 FlexLink XC Die Cast Zinc Wheel Yoke FlexLink XC 压铸锌轮轭 FlexLink	11	1: ¥230.26	Die Cast Zinc	Wheel Yoke	FlexLink	-	-	-	-	-	11mm	44 mm， 88 mm	11mm	44 mm, 88 mm	FlexLink	-	-
XFEB 2X30 T3 XFEB aluminium beam,3 T-slot 30x30 2m L FlexLink	275	1: ¥212.976	Aluminium	XF	FlexLink	2000mm	30 x 30 mm	Beam	7.2mm	3	-	-	-	-	-	-	-

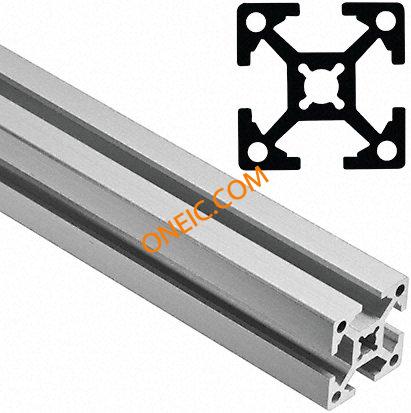

XDBM 3X22 XDBM Al beam,4 T-slot 22x22mm 3m L FlexLink	109	1: ¥1,496.00	Aluminium	XD	FlexLink	3000mm	22 x 22 mm	Beam	5.6mm	4	-	-	-	-	-	-	-

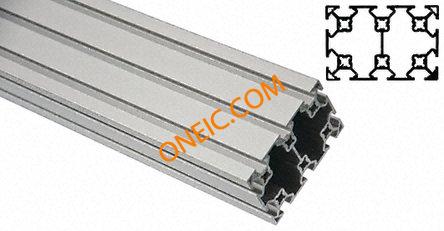

XDBM 2X44X66 XDBM Al beam,2&3 T-slot 44x66mm 2m L FlexLink	103	1: ¥566.5556	Aluminium	XD	FlexLink	2000mm	44 x 66 mm	Beam	5.6mm	2, 3	-	-	-	-	-	-	-

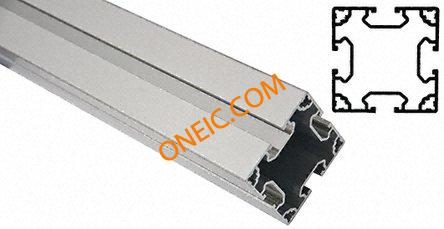

XCBL 3X64 XCBL flexlink beam,4 T-slot 64x64mm 3m L FlexLink	41	1: ¥1,399.6236	Aluminium	XC	FlexLink	3m	64 x 64 mm	Beam	17.6mm	4	-	-	-	-	-	-	-

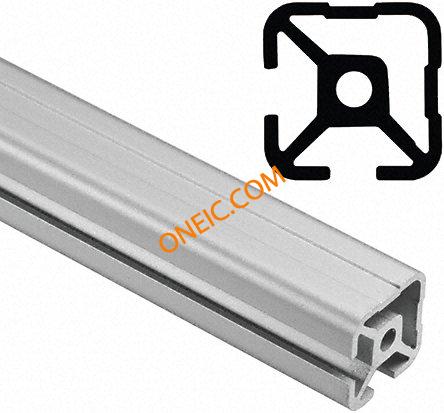

XDEB 3X22 T2 XDEB Al beam,2 T-slot 22x22mm 3m L FlexLink	198	1: ¥296.0992	Aluminium	XD	FlexLink	3m	22 x 22 mm	Beam	5.5mm	2	-	-	-	-	-	-	-

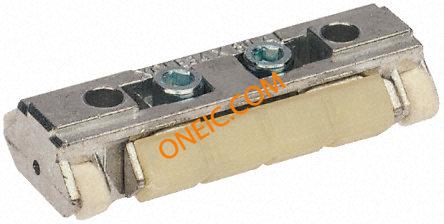

2 XCLE 34X80 A FlexLink XC Die Cast Aluminium, PE Sliding Element, 80mm L FlexLink XC 压铸铝，聚乙烯 (PE) 滑动元件, 80mm长 FlexLink	35	1: ¥460.53	Die Cast Aluminium, PE	Sliding Element	FlexLink	-	-	-	-	-	11mm	44 mm， 88 mm	11mm	44 mm, 88 mm	FlexLink	80mm	-

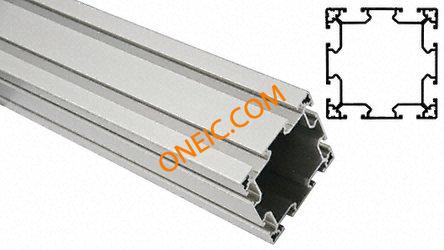

XCBL 2X88 XCBL Al beam,8 T-slot 88x88mm 2m L FlexLink	65	1: ¥889.5692	Aluminium	XC	FlexLink	2m	88 x 88 mm	Beam	17.6mm	8	-	-	-	-	-	-	-
XFEB 3X30 T3 XFEB aluminium beam,3 T-slot 30x30 3m L FlexLink	183	1: ¥319.1648	Aluminium	XF	FlexLink	3000mm	30 x 30 mm	Beam	7.2mm	3	-	-	-	-	-	-	-
XDBM 2X22 XDBM Al beam,4 T-slot 22x22mm 2m L FlexLink	480	1: ¥122.0668	Aluminium	XD	FlexLink	2000mm	22 x 22 mm	Beam	5.6mm	4	-	-	-	-	-	-	-
2 XDBM 1X44X66 XDBM Al beam,2&3 T-slot 44x66mm 1m L XDBM Al beam,2&3 T-slot 44x44mm 1m L FlexLink	292	1: ¥200.4504	Aluminium	XD	FlexLink	1000mm	44 x 66 mm	Beam	5.6mm	2, 3	-	-	-	-	-	-	Not Applicable
XCBL 2X64 XCBL flexlink beam,4 T-slot 64x64mm 2m L FlexLink	63	1: ¥931.1784	Aluminium	XC	FlexLink	2m	64 x 64 mm	Beam	17.6mm	4	-	-	-	-	-	-	-
XDEB 2X22 T2 XDEB Al beam,2 T-slot 22x22mm 2m L FlexLink	289	1: ¥202.6196	Aluminium	XD	FlexLink	2000mm	22 x 22 mm	Beam	5.6mm	2	-	-	-	-	-	-	-
