Hamlin Electronics- General Purpose Signal Relays
General Purpose Signal Relays - 型号列表
96 parts in total| Mfr Part # | Quantity Available | Price | RoHS | Coil Current | Coil Resistance | Voltage - Supply | Switching Voltage | Diode Configuration | Current Rating (Max) | Packaging | Contact Form | Mounting Type | Termination Style | Contact Layout, Typical | Type | Relay Type | Operating Temperature | Power - Output | Insulation Resistance | Height | Length - Overall | Number of Contacts | Lead Time | Subcategory | Release Time | Current - Switching | Operate Time | Standard Package | Coil Type | Vce(on) (Max) @ Vge, Ic | Contact Rating (Current) | EU RoHS | Isolation | Visible Output | Current - Carry | Pushing (MHz/V) | Contact Resistance | Power - Peak Pulse | Voltage - Clamping | Voltage - Input (Min) | Voltage - Switching DC | Seal | Depth | Terminal Type | Package Cooled | Approval Agency Marking | Vgs(th) (Max) @ Id | Other Names | Form | Weight | Width | Package / Case | Tariff No | Height (Max) | Coil Voltage | High Side Voltage - Max (Bootstrap) | Mounting Style | Number of Positions | Push-to-Test | Length | Series | Rad Hardened | Power - Rated | Voltage - DC Reverse (Vr) (Max) | Number of Poles | Current - Max/Contact | Voltage - Supply (Vcc/Vdd) | Card Standard | Features | Voltage | Power - Max | Must Operate Voltage | Must Release Voltage | Supplier Device Package | Voltage - Breakover | Voltage - Isolation | Battery Pack Voltage | Model | Application Specifics | Mechanical Life | Shock Resistance | Lead Spacing | Pitch - Post | Number of Pins | DELETED | Product Category | Factory Pack Quantity | Leadfree Defin | Approved Countries | RoHS/ELV Compliance | FCC Part 68 Isolation | Current | Core Type | Coil Power | Power - Input | Voltage Rating | Current - Surge | Number of Elements | Connector Impedance | Current - Trip (It) | Voltage - Breakdown | Frequency - Output 1 | Power - Average Forward | Resistance - Initial (Ri) (Min) | Current - Discharge (Max) (8/20uS) | Voltage - Anode - Cathode (Vak)(Max) | Termination | Contact Type | Actuator Type | Depth - Overall | Width - Overall | Contact Material | Outline L x W x H | Pin Hole Diameter | Note | Option | Function | Polarity | Performance | Product Type | Ingress Protection | Initial Dielectric Strength | Material - Housing & Prism | Standard Pack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 3-1393817-4 Electromechanical Relay 4PDT 2A 6VDC 24.5Ohm Socket Low Signal Relays - PCB V23003B 26B110 Communications/Signal PC Board Relays RELAY GENERAL PURPOSE 4PDT 2A 6V Signal Relay Coil Voltage: 6 VDC Contact Configuration: 4C 4PDT Current: 2 Amps Mounting: Plug-in Operating Function: 2 Coil Latching V23003B 26B110 te connectivity / p&b | - | Lead free / RoHS Compliant | 244.89 mA | 24.5 Ohm | 6 V | 125VAC, 150VDC - Max | Without | 2 A | Bulk | 4 Form C (4PDT-BM) | Socket | Solder Terminal | 4PDT | Signal Relay | General Purpose | -40°C ~ 70°C | 1 – 1.5 W | 500 | 30 mm [ 1.181 in ] | 25 – 30 mm | 4 | - | - | - | - | - | Bulk | Latching, Dual Coil | 4 VDC | 2 A | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | V23003B26B110 | - | 30 g [ 1.058 oz ] | 19 mm [ .748 in ] | n/a | - | - | - | - | - | - | - | 30 mm [ 1.181 in ] | V23003/Cradle Relay P | - | - | - | - | - | - | Signal Relay | - | - | - | - | - | With | - | - | - | - | - | - | - | - | - | - | - | Low Signal Relays - PCB | 5 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder capable to 265°C | None | Converted to comply with RoHS directive | No | 2 Amps | Polarized, Bistable | 1.47 W | 1500 | 125 | 2 | Double | 2 Form C (CO) | 2 | 500 | 双稳态，2 个线圈，极化 | 1450 mW | 1000 | 2 | 125 | Solder/Plug-In Terminals | Single | DC | 25 – 30 mm | 16 – 20 mm | Silver/Gold | 30.00 x 19.00 x 30.00 [1.181 x .748 x 1.181] | Industry Standard | n/a | n/a | 2 Coil Latching | Yes | 标准 | 继电器 | RTI | 500 | - | - | |
 HE721A2400 Reed Relays SPST-NO 0.5A 24VDC 2.15KOhm Thru-Hole RELAY REED SPST 500MA 24V Reed Relays Relays REED RELAY, SPST-NO, 24VDC, 0.5A, THD Reed Relay Coil Voltage: 24 VDC Contact Configuration: 1A SPST-NO Mounting: PC Board Switching Current: 0.5 Amps Switching Voltage: 200 VDC Hamlin | 963 | 1: ¥7.82 | Lead free / RoHS Compliant | 11.1mA | 2.15 kOhms | 24VDC | 200VDC - Max | No | 0.5 A | Tube | 1 Form A | Through Hole | PC Pin | SPST-NO | Dry | Non-Latching | -40°C ~ 85°C | 10 W | 10G(Min) | 7.5 mm | 19.05 mm | 8 | 84 Days | Reed Relays | 1ms | :500mA | 1ms | 25 | Non Latching | 16 VDC | 500mA | Compliant | 250VDC(Min) | No | 1.2 | No | 150 | 10W | 16VDC | 2VDC | 200 | Hermetic Seal | 9.52 mm | PC Pin | DIP | cULus | 2 VDC | HE104 | DIP | 0.005 | - | DIP | 85364110 | :7.5mm | 24V | 16VDC | Through Hole | 8 | No | - | - | No | 10W | 200V | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
HE721C1210 Reed Relays SPDT 0.25A 12VDC 500Ohm Thru-Hole RELAY REED SPDT 250MA 12V Reed Relays Relays RELAY, REED, DIL, SPCO, 12VDC REED RELAY, SPDT, 12VDC, 0.25A, THD Reed Relay Coil Voltage: 12 VDC Contact Configuration: 1C SPDT Mounting: PC Board Switching Current: 0.25 Amps Switching Voltage: 175 VDC Hamlin | 10 | 2: ¥43.86 | Lead free / RoHS Compliant | 24mA | 500 Ohms | 12VDC | 175VDC - Max | Yes | 0.25 A | Tube | 1 Form C | Through Hole | PC Pin | SPDT | Dry | Non-Latching | -40°C ~ 85°C | 5 W | :10000Mohm | 7.5 mm | 19.05 mm | 8 | 84 Days | Reed Relays | 3ms | :250mA | 3ms | 25 | Non Latching | 8 VDC | 250mA | Compliant | 200VDC(Min) | No | 1.5 | No | :0.2ohm | 5W | 8VDC | 1VDC | 175 | Hermetic Seal | 9.52 mm | PC Pin | DIP | cULus | 1 VDC | HE115 | DIP | 0.002 | :7mm | DIP | 85364900 | :19.5mm | 12V | 8VDC | Through Hole | 8 | No | :19.5mm | :HE700 | No | 5W | 175V | :1 | :250mA | :200V | - | Diode | :8 V | :3W | :8V | :1V | - | - | - | - | - | - | - | - | :7.62mm | :2.54mm | :8 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 HE722A2410 Reed Relays DPST-NO 0.5A 24VDC 2.15KOhm Thru-Hole RELAY REED DPST 500MA 24V Reed Relays Relays RELAY, REED, DIL, DPNO, 24VDC Reed Relay Coil Voltage: 24 VDC Contact Configuration: 2A DPST-NO Mounting: PC Board Switching Current: 0.5 Amps Switching Voltage: 200 VDC Hamlin | 802 | 1: ¥18.632 | Lead free / RoHS Compliant | 11.1mA | 2.15 kOhms | 24VDC | 200VDC - Max | Yes | 0.5 A | Tube | 2 Form A | Through Hole | PC Pin | DPST-NO | Dry | Non-Latching | -40°C ~ 85°C | 10 W | :10000Mohm | 7.5 mm | 19.05 mm | 8 | 84 Days | Reed Relays | 1ms | :500mA | 1ms | 25 | Non Latching | 16 VDC | 500mA | Compliant | 250VDC(Min) | No | 1.2 | No | :0.2ohm | 10W | 16VDC | 2VDC | 200 | Hermetic Seal | 9.52 mm | PC Pin | DIP | cULus | 2 VDC | HE111 | DIP | 0.002 | :7mm | DIP | 85364900 | :19.5mm | 24V | 16VDC | Through Hole | 8 | No | :19.5mm | :HE700 | No | 10W | 200V | :2 | :500mA | :200V | - | Diode | :16 V | :10W | :16V | :2V | - | - | - | - | - | - | - | - | :7.62mm | :2.54mm | :8 | Compliant | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 HE3621A0500 Reed Relays SPST-NO 0.5A 5VDC 500Ohm Thru-Hole RELAY REED SPST 500MA 5V Reed Relays Relays RELAY, REED, 5VDC, SPST-NO Reed Relay Coil Voltage: 5 VDC Contact Configuration: 1A SPST-NO Mounting: PC Board Switching Current: 0.5 Amps Switching Voltage: 200 VDC Reed relay Miniature 5V SIL PCB Hamlin | 69 | 1: ¥6.664 | Lead free / RoHS Compliant | 10mA | 500 Ohms | 5VDC | 200VDC - Max | No | 0.5 A | Bulk | 1 Form A | Through Hole | PC Pin | SPST-NO | Dry | Non-Latching | -40°C ~ 85°C | 10 W | 10G(Min) | 7.62 mm | 19.05 mm | 4 | 70 Days | Reed Relays | 1ms | :500mA | 1ms | 25 | Non Latching | 3.75 VDC | 500mA | Compliant | 1.5KVAC(Min) | No | 1.2 | No | 150 | 10W | 3.75VDC | 0.5VDC | 200 | Hermetic Seal | 5.08 mm | PC Pin | SIP | cULus | 0.5 VDC | HE206 | SIP | 0.01 | :19.05mm | SIP | 85364110 | :7.62mm | 5V | 3.75VDC | Through Hole | 4 | No | :7.62mm | :HE3600 | No | 10W | 200V | :1 | :1.2A | :200V | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
HE721C0500 Reed Relays SPDT 0.25A 5VDC 200Ohm Thru-Hole RELAY REED SPDT 250MA 5V Reed Relays Relays REED RELAY, SPDT, 5VDC, 0.25A, THT Reed Relay Coil Voltage: 5 VDC Contact Configuration: 1C SPDT Mounting: PC Board Switching Current: 0.25 Amps Switching Voltage: 175 VDC Reed relay SPDT-CO 5V Hamlin | 448 | 1: ¥18.12 | Lead free / RoHS Compliant | 25mA | 200 Ohms | 5VDC | 175VDC - Max | No | 0.25 A | Tube | 1 Form C | Through Hole | PC Pin | SPDT | Dry | Non-Latching | -40°C ~ 85°C | 5 W | 10G(Min) | 7.5 mm | 19.05 mm | 8 | 97 Days | Reed Relays | 3ms | :250mA | 3ms | 25 | Non Latching | 3.75 VDC | 250mA | Compliant | 200VDC(Min) | No | 1.5 | No | 200 | 5W | 3.75VDC | 0.5VDC | 175 | Hermetic Seal | 9.52 mm | PC Pin | DIP | cULus | 0.5 VDC | HE112 | DIP | 0.002 | :7.22mm | DIP | 85364110 | :5.5mm | 5V | 3.75VDC | Through Hole | 8 | No | - | - | No | 5W | 175V | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
HE721R0510 Reed Relays SPDT 0.25A 5VDC 200Ohm Thru-Hole Reed Relays Relays RELAY, REED, DIL, SPCO, 5VDC Reed Relay Coil Voltage: 5 VDC Contact Configuration: 1C SPDT Mounting: PC Board Switching Current: 0.25 Amps Switching Voltage: 175 VDC Hamlin | 10 | 1: ¥109.395 | RoHS Compliant | 25 | 200 Ohms | 5 V | 175 V | Yes | 0.25 A | Tube | 1 Form C | Through Hole | Through Hole | SPDT | Dry | Non-Latching | :85°C | 5 W | :10000Mohm | 5.5 | 19.5 | 8 | 84 Days | Reed Relays | :1.0ms | :250mA | :1.0ms | - | - | - | - | Compliant | 200VDC(Min) | No | 1.5 | No | :200mohm | 5W | 3.75VDC | 0.5VDC | 175 | Hermetic Seal | :7.24mm | PC Pin | DIP | cULus | - | - | DIP | 0.002 | :19.5mm | - | 85364900 | :7.5mm | - | - | - | - | - | :7.5mm | :HE700 | - | - | - | :1 | :250mA | :175V | - | - | :3.75 V | :5W | :3.75V | :0.5V | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
HE721R0500 Reed Relays SPDT 0.25A 5VDC 200Ohm Thru-Hole Reed Relays Relays Reed Relay Coil Voltage: 5 VDC Contact Configuration: 1C SPDT Mounting: PC Board Switching Current: 0.25 Amps Switching Voltage: 175 VDC Hamlin | 10 | 250: ¥33.8327 | RoHS Compliant | 25 | 200 Ohms | 5 V | 175 V | No | 500 mA | Tube | 1 Form C | Through Hole | Through Hole | SPDT | Dry | Non-Latching | -40 to +85 C | 5 W | 10^9 ohm | 5.5 | 19.5 | 8 | 84 Days | Reed Relays | 3.0 ms | 0.25 Amps | 3.0 ms | - | - | - | - | Compliant | 200VDC(Min) | No | 1.5 AMP | No | 0.200 ohm | 5W | 3.75VDC | 0.5VDC | 175 | Hermetic Seal | 9.52 | PC Pin | DIP | cULus | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Reed Relay | - | - | - | - | - | D.I.L. Relay | 200 VDC | n/a | 500 VAC | Standard | No Options | 20 G @ 10-2000 Hz. | 50 @ 11 ms, 1/2 sine | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 HE3321C1200 Reed Relays SPDT 0.25A 12VDC 500Ohm Thru-Hole RELAY REED SPDT 250MA 12V Reed Relays Relays Reed Relay Coil Voltage: 12 VDC Contact Configuration: 1C SPDT Mounting: PC Board Switching Current: 0.25 Amps Switching Voltage: 175 VDC Hamlin | 960 | 1: ¥23.664 | Lead free / RoHS Compliant | 24mA | 500 Ohms | 12VDC | 175VDC - Max | No | 0.25 A | Bulk | 1 Form C | Through Hole | PC Pin | SPDT | Dry | Non-Latching | -40°C ~ 85°C | 5 W | 10G(Min) | 8.51 mm | 24.13 mm | 5 | 70 Days | Reed Relays | 3ms | 0.25 Amps | 3ms | 20 | Non Latching | 9 VDC | 250mA | Compliant | 200VDC(Min) | No | 1.5 | No | 200 | 5W | 9VDC | 1VDC | 175 | Hermetic Seal | 7.62 mm | PC Pin | SIP | cULus | 1 VDC | HE204 | SIP | - | - | SIP | - | - | 12V | 9VDC | Through Hole | 5 | No | - | - | No | 5W | 175V | - | - | - | Reed Relay | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
HE722A1200 Reed Relays DPST-NO 0.5A 12VDC 500Ohm Thru-Hole RELAY REED DPST 500MA 12V Reed Relays Relays RELAY, REED, 12VDC, DPST-NO Reed Relay Coil Voltage: 12 VDC Contact Configuration: 2A DPST-NO Mounting: PC Board Switching Current: 0.5 Amps Switching Voltage: 200 VDC Hamlin | 578 | 1: ¥15.028 | Lead free / RoHS Compliant | 24mA | 500 Ohms | 12VDC | 200VDC - Max | No | 0.5 A | Tube | 2 Form A | Through Hole | PC Pin | DPST-NO | Dry | Non-Latching | -40°C ~ 85°C | 10 W | 10G(Min) | 7.5 mm | 19.05 mm | 8 | 84 Days | Reed Relays | 1ms | :500mA | 1ms | 25 | Non Latching | 8 VDC | 500mA | Compliant | 250VDC(Min) | No | 1.2 | No | 150 | 10W | 8VDC | 1VDC | 200 | Hermetic Seal | 9.52 mm | PC Pin | DIP | cULus | 1 VDC | HE108 | DIP | 0.01 | :19.05mm | DIP | 85365005 | :7.5mm | 12V | 8VDC | Through Hole | 8 | No | :7.5mm | :HE700 | No | 10W | 200V | :2 | :1.2A | :200V | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
HE3621A0510 Reed Relays SPST-NO 0.5A 5VDC 500Ohm Thru-Hole RELAY REED SPST 500MA 5V Reed Relays Relays RELAY, REED, SPNO, 5VDC, 0.5A, THT REED RELAY, SPST-NO, 5VDC, 0.5A, THD Reed Relay Coil Voltage: 5 VDC Contact Configuration: 1A SPST-NO Mounting: PC Board Switching Current: 0.5 Amps Switching Voltage: 200 VDC Reed relay Miniature 5V SIL PCB Diode Hamlin | 27 | 9: ¥12.1312 | Lead free / RoHS Compliant | 10mA | 500 Ohms | 5VDC | 200VDC - Max | Yes | 0.5 A | Bulk | 1 Form A | Through Hole | PC Pin | SPST-NO | Dry | Non-Latching | -40°C ~ 85°C | 10 W | 10G(Min) | 7.62 mm | 19.05 mm | 4 | 138 Days | Reed Relays | 1ms | :500mA | 1ms | 25 | Non Latching | 3.75 VDC | 500mA | Compliant | 1.5KVAC(Min) | No | 1.2 | No | 150 | 10W | 3.75VDC | 0.5VDC | 200 | Hermetic Seal | 5.08 mm | PC Pin | SIP | cULus | 0.5 VDC | HE207 | SIP | 0.05 | :19.05mm | SIP | 85364900 | :7.45mm | 5V | 3.75VDC | Through Hole | 4 | No | - | - | No | 10W | 200V | - | - | - | - | Diode | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
HE3321C0500 Reed Relays SPDT 0.25A 5VDC 125Ohm Thru-Hole RELAY REED SPDT 250MA 5V Reed Relays Relays RELAY, REED, 5VDC, SPDT Reed Relay Coil Voltage: 5 VDC Contact Configuration: 1C SPDT Mounting: PC Board Switching Current: 0.25 Amps Switching Voltage: 175 VDC Hamlin | 503 | 1: ¥17.476 | Lead free / RoHS Compliant | 40mA | 125 Ohms | 5VDC | 175VDC - Max | No | 0.25 A | Bulk | 1 Form C | Through Hole | PC Pin | SPDT | Dry | Non-Latching | -40°C ~ 85°C | 5 W | 10G(Min) | 7.4 | 24.13 | 5 | 70 Days | Reed Relays | 3ms | :250mA | 3ms | 20 | Non Latching | 3.75 VDC | 250mA | Compliant | 200VDC(Min) | No | 1.5 | No | 200 | 5W | 3.75VDC | 0.5VDC | 175 | Hermetic Seal | :7.62mm | PC Pin | SIP | cULus | 0.5 VDC | HE203 | SIP | 0.01 | :24.13mm | - | 85364110 | :8.51mm | - | - | - | - | - | :8.51mm | :HE3300 | - | - | - | :1 | :1.5A | :175V | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
HE721A2410 Reed Relays SPST-NO 0.5A 24VDC 2.15KOhm Thru-Hole RELAY REED SPST 500MA 24V Reed Relays Relays RELAY, REED, DIL, SPNO, 24VDC Reed Relay Coil Voltage: 24 VDC Contact Configuration: 1A SPST-NO Mounting: PC Board Switching Current: 0.5 Amps Switching Voltage: 200 VDC Hamlin | 18 | 1: ¥10.608 | Lead free / RoHS Compliant | 11.1mA | 2.15 kOhms | 24VDC | 200VDC - Max | Yes | 0.5 A | Tube | 1 Form A | Through Hole | PC Pin | SPST-NO | Dry | Non-Latching | -40°C ~ 85°C | 10 W | :10000Mohm | 7.5 mm | 19.05 mm | 8 | 70 Days | Reed Relays | 1ms | :500mA | 1ms | 25 | Non Latching | 16 VDC | 500mA | Compliant | 250VDC(Min) | No | 1.2 | No | :150mohm | 10W | 16VDC | 2VDC | 200 | Hermetic Seal | 9.52 mm | PC Pin | DIP | cULus | 2 VDC | HE105 | DIP | 0.002 | :19.5mm | DIP | 85364900 | :7.5mm | 24V | 16VDC | Through Hole | 8 | No | :7.5mm | :HE700 | No | 10W | 200V | :1 | :500mA | :200V | - | Diode | :16 V | :10W | :16V | :2V | - | - | - | - | - | - | - | - | - | - | - | Compliant | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 HE3351A2400 Reed Relays SPST-NO 1A 24VDC 2KOhm Thru-Hole RELAY REED SPST 1A 24V Reed Relays Relays Reed Relay Coil Voltage: 24 VDC Contact Configuration: 1A SPST-NO Mounting: PC Board Switching Current: 1.0 Amps Switching Voltage: 300 VDC Hamlin | 10 | 250: ¥11.3138 | Lead free / RoHS Compliant | 12mA | 2 kOhms | 24VDC | 300VDC - Max | No | 0.5 A | Bulk | 1 Form A | Through Hole | PC Pin | SPST-NO | Dry | Non-Latching | -20°C ~ 85°C | 10 W | 10G(Min) | 7.4 | 24.13 | 4 | 70 Days | Reed Relays | 1ms | 1.0 Amps | 1ms | 20 | Non Latching | 18 VDC | 1A | Compliant | 450VDC(Min) | No | 1.5 | No | 150 | 10W | 18VDC | 2VDC | 300 | Hermetic Seal | 7 | PC Pin | SIP | cULus | 2 VDC | HE129 | SIP | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Reed Relay | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 HE3621A2410 Reed Relays SPST-NO 0.5A 24VDC 2.15KOhm Thru-Hole RELAY REED SPST 500MA 24V Reed Relays Relays Electromechanical Relay SPST-NO 0.5A 24VDC 2KOhm T RELAY, REED, SIL, SPNO, 24VDC Reed Relay Coil Voltage: 24 VDC Contact Configuration: 1A SPST-NO Mounting: PC Board Switching Current: 0.5 Amps Switching Voltage: 200 VDC Reed relay Miniature 24V SIL PCB Diode Hamlin | 1419 | 1: ¥11.56 | Lead free / RoHS Compliant | 11.1mA | 2.15 kOhms | 24VDC | 200VDC - Max | Yes | 0.5 A | Bulk | 1 Form A | Through Hole | PC Pin | SPST-NO | Dry | Non-Latching | -40°C ~ 85°C | 10 W | :10Gohm | 7.62 | 19.05 | 4 | 56 Days | Reed Relays | 1ms | :500mA | 1ms | 25 | Non Latching | 16 VDC | 500mA | Compliant | 1.5KVAC(Min) | No | 1.2 | No | :0.2ohm | 10W | 16VDC | 2VDC | 200 | Hermetic Seal | :7.6mm | PC Pin | SIP | cULus | 2 VDC | HE211 | SIP | 0.002 | :5.1mm | - | 85364900 | :19.5mm | - | - | - | - | - | :19.5mm | :HE3600 | - | - | - | :1 | :500mA | :200V | - | Diode | :16 V | :10W | :16V | :2V | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | :Epoxy | - |
HE721A0500 Reed Relays SPST-NO 0.5A 5VDC 500Ohm Thru-Hole RELAY REED SPST 500MA 5V Reed Relays Relays RELAY, REED, 5VDC, SPST-NO Reed Relay Coil Voltage: 5 VDC Contact Configuration: 1A SPST-NO Mounting: PC Board Switching Current: 0.5 Amps Switching Voltage: 200 VDC Hamlin | 4562 | 1: ¥6.664 | Lead free / RoHS Compliant | 10mA | 500 Ohms | 5VDC | 200VDC - Max | No | 0.5 A | Tube | 1 Form A | Through Hole | PC Pin | SPST-NO | Dry | Non-Latching | -40°C ~ 85°C | 10 W | 10G(Min) | 7.5 mm | 19.05 mm | 8 | 105 Days | Reed Relays | 1ms | :500mA | 1ms | 25 | Non Latching | 3.75 VDC | 500mA | Compliant | 250VDC(Min) | No | 1.2 | No | 150 | 10W | 3.75VDC | 0.5VDC | 200 | Hermetic Seal | 9.52 mm | PC Pin | DIP | cULus | 0.5 VDC | HE100 | DIP | 0.01 | :19.5mm | DIP | 85365005 | :7.5mm | 5V | 3.75VDC | Through Hole | 8 | No | :7.5mm | :HE700 | No | 10W | 200V | :1 | :1.2A | :200V | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
HE722A0520 Reed Relays DPST-NO 0.5A 5VDC 200Ohm Thru-Hole RELAY REED DPST 500MA 5V Reed Relays Relays Reed Relay • Coil Voltage: 5 VDC • Contact Configuration: 2A DPST-NO • Mounting: PC Board • Switching Current: 0.5 Amps • Switching Voltage: 200 VDC Hamlin | 10 | 250: ¥20.3218 | Lead free / RoHS Compliant | 25mA | 200 Ohms | 5VDC | 200VDC - Max | No | 500 mA | Tube | 2 Form A | Through Hole | PC Pin | DPST-NO | Dry | Non-Latching | -40°C ~ 85°C | 10 W | 10^10 ohm | 5.82 | 20.14 | 8 | 84 Days | Reed Relays | 1ms | 0.5 Amps | 1ms | 25 | Non Latching | 3.75 VDC | 500mA | Compliant | 250VDC(Min) | No | 1.2 AMP | No | 0.150 ohm | 10W | 3.75VDC | 0.5VDC | 200 | Hermetic Seal | 9.52 | PC Pin | DIP | cULus | 0.5 VDC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Reed Relay | Electrostatic Shield | - | - | - | - | D.I.L. Relay | 250 VDC | 500 VAC | 500 VAC | Standard | Electrostatic Shield | 20 G @ 10-2000 Hz. | 50 @ 11 ms, 1/2 sine | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
HE721C2440 Reed Relays SPDT 0.25A 24VDC 2KOhm Thru-Hole RELAY REED SPDT 250MA 24V Reed Relays Relays Reed Relay • Coil Voltage: 24 VDC • Contact Configuration: 1C SPDT • Mounting: PC Board • Switching Current: 0.25 Amps • Switching Voltage: 175 VDC Hamlin | 195 | 1: ¥26.928 | Lead free / RoHS Compliant | 12mA | 2 kOhms | 24VDC | 175VDC - Max | No | 250 mA | Tube | 1 Form C | Through Hole | PC Pin | SPDT | Dry | Non-Latching | -40°C ~ 85°C | 5 W | 10^9 ohm | 5.82 | 20.14 | 8 | 56 Days | Reed Relays | 3ms | 0.25 Amps | 3ms | 25 | Non Latching | 16 VDC | 250mA | Compliant | 200VDC(Min) | No | 1.5 AMP | No | 0.200 ohm | 5W | 16VDC | 2VDC | 175 | Hermetic Seal | 9.52 | PC Pin | DIP | cULus | 2 VDC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Reed Relay | External Magnetic Shield | - | - | - | - | D.I.L. Relay | 200 VDC | n/a | 500 VAC | Standard | External Magnetic Shield | 20 G @ 10-2000 Hz. | 50 @ 11 ms, 1/2 sine | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

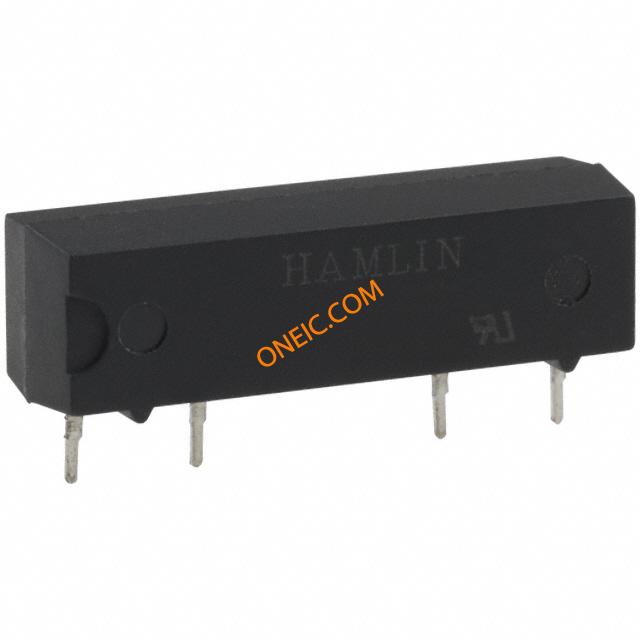

 HE3321A0400 Reed Relays SPST-NO 0.5A 5VDC 500Ohm Thru-Hole RELAY REED SPST 500MA 5V Reed Relays Relays Reed Relay Coil Voltage: 5VDC Contact Configuration: 1A SPST-NO Mounting: PC Board Switching Current: 0.5 Amps Switching Voltage: 200 VDC Hamlin | 2244 | 1: ¥7.752 | Lead free / RoHS Compliant | 10mA | 500 Ohms | 5VDC | 200VDC - Max | No | 0.5 A | Bulk | 1 Form A | Through Hole | PC Pin | SPST-NO | Dry | Non-Latching | -40°C ~ 85°C | 10 W | 10G(Min) | 7.4 mm | 24.13 mm | 4 | 70 Days | Not Specified | 1ms | 0.5 Amps | 1ms | 20 | Non Latching | 3.75 VDC | 500mA | Compliant | 250VDC(Min) | No | 1.2 | No | 150 | 10W | 3.75VDC | 0.5VDC | 200 | Hermetic Seal | 7 mm | PC Pin | SIP | - | 0.5 VDC | HE200 | SIP | - | - | SIP | - | - | 5V | 3.75VDC | Through Hole | 4 | No | - | - | - | - | - | - | - | - | Reed Relay | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 20 |
 HE722A0600 Dip Reed Relay RELAY REED DPST 500MA 5V Reed Relays Relays Reed Relay Coil Voltage: 5VDC Contact Configuration: 2A DPST-NO Mounting: PC Board Switching Current: 0.5 Amps Switching Voltage: 200 VDC Hamlin | 327 | 1: ¥24.14 | Lead free / RoHS Compliant | 33.3mA | 150 Ohms | 5VDC | 200VDC - Max | No | 33.3 mA | Tube | DPST (2 Form A) | Through Hole | PC Pin | 2A DPST-NO | Reed Relays | Reed | -40°C ~ 85°C | - | - | - | - | - | 84 Days | Not Specified | 1ms | 0.5 Amps | 1ms | 25 | Non Latching | 3.75 VDC | 500mA | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 0.5 VDC | HE106 | DIP | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Reed Relay | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
