Hartmann Codier GmbH- DIP Switches

Hartmann Codier GmbH is a German manufacturer specializing in high-quality electromechanical switches and encoders. Founded in 1946 and headquartered in Pforzheim, Germany, the company has a long history of precision engineering. Its core product portfolio includes DIP switches, rotary coding switches, slide switches, and custom switching solutions. The Hartmann Codier brand is widely recognized in the industrial automation, medical equipment, and telecommunications sectors. The company's products are known for their reliability, durability, and compact design, meeting stringent industrial standards. Hartmann Codier also offers a range of human-machine interface (HMI) components, such as keypads and membrane switches. With a strong focus on innovation, the company provides tailored solutions for complex switching requirements. It maintains a global distribution network, ensuring its components are available to customers worldwide. The company is part of the ELOBAU Group, which further strengthens its market position in sensor and switch technology. Hartmann Codier continues to invest in research and development to stay at the forefront of switch technology.

DIP Switches - 型号列表

40 parts in total

Mfr Part #	Quantity Available	Price	Mounting Type	Operating Temperature	Contact Material	Mechanical Life	Actuator Type	Number of Positions	Contact Rating (Current)	Package / Case	RoHS	Output	Contact Resistance	Terminal Type	Read Out	Output Type	Current Rating (Max)	Connector Type	Switch Type	Contact Layout, Typical	Seal Rating
P36S106 DIP Switch PCB Rotary Flush, 100 (Dynamic), 400 (Static) mA, 16-Way, -30 to +90°C Hartmann	24	1: $40.74	PCB	+90°C	Gold Over Nickel Plated Stainless Steel	10000Operations	Rotary Flush	16	100 (Dynamic), 400 (Static) mA	DIP	-	-	-	-	-	-	-	-	-	-	-
PT65106 DIP Switch PCB Rotary Flush, 150 (Dynamic), 400 (Static) mA, 16-Way, -20 to +70°C HEXADECIMALCOMPLEMENT Hartmann	1590	5: $36.4915	PCB	+70°C	Gold Over Nickel Plated Bronze	10000Operations	Rotary Flush	16	150 (Dynamic), 400 (Static) mA	DIP	RoHS Compliant Part	-	-	-	-	-	-	-	-	-	-

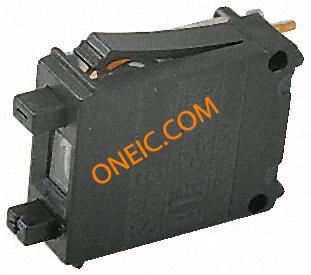

SH6-131-AKK THUMBWHEEL Hartmann	1274	1: $46.0428	Panel Mount	+80°C	-	100000Operations	Pushwheel	-	-	-	-	BCD	100mΩ	Through Hole	-	-	-	-	-	-	-
PT65701L508 DIP Switch PCB Rotary Flush, 150 (Dynamic), 400 (Static) mA, 10-Way, -20 to +70°C BCD Hartmann	86	1: $37.90	PCB	+70°C	Gold Over Nickel Plated Bronze	10000Operations	Rotary Flush	10	150 (Dynamic), 400 (Static) mA	DIP	RoHS Compliant Part	-	-	-	-	-	-	-	-	-	-
PT65101L254 DIP Switch PCB Rotary Flush, 150 (Dynamic), 400 (Static) mA, 10-Way, -20 to +70°C BCDTHUMBWHEEL Hartmann	6032	10: $19.3882	PCB	+70°C	Gold over Nickel-plated Bronze	10000Operations	Rotary Flush	10	150 (Dynamic), 400 (Static) mA	DIP	RoHS Compliant Part	-	-	-	-	-	-	-	-	-	-
PT65501 DIP Switch PCB Wheel, 0.4 A, 10-Way, -20 to +70°C Hartmann	60	1: $28.50	PCB	+70°C	Gold Over Nickel Plated Phosphor Bronze	10000Operations	Wheel	10	0.4 A	DIP	-	-	-	-	-	-	-	-	-	-	-
PT65703 DIP Switch PCB Rotary Flush, 150 (Dynamic), 400 (Static) mA, 16-Way, -20 to +70°C HEXADECIMAL Hartmann	104	1: $47.05	PCB	+70°C	Gold Over Nickel Plated Bronze	10000Operations	Rotary Flush	16	150 (Dynamic), 400 (Static) mA	DIP	RoHS Compliant Part	-	-	-	-	-	-	-	-	-	-
PT65703L508 DIP Switch PCB Rotary Flush, 150 (Dynamic), 400 (Static) mA, 16-Way, -20 to +70°C Hartmann	3520	10: $26.4384	PCB	+70°C	Gold Over Nickel Plated Bronze	10000Operations	Rotary Flush	16	150 (Dynamic), 400 (Static) mA	DIP	-	-	-	-	-	-	-	-	-	-	-

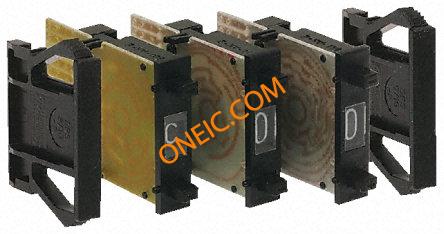

2 DPS9-301-AK2 Hexadecimal pushbutton edge switch Hartmann 十六进制推轮开关, 通孔接端, 面板安装安装, 100 mA@ 40 V dc Hartmann	119	1: $83.72	Panel Mount	+80°C	Gold Over Nickel Plated Copper Alloy	10⁶Operations	Pushwheel	-	-	-	-	Hexadecimal	100mΩ	Through Hole	0 至 9； A 至 F（0 至 15）	十六进制	100 mA@ 40 V dc	通孔	0 to 9;A to F (0 to 15)	-	-

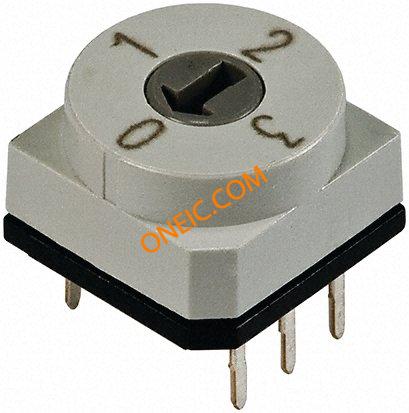

PT65121 DIP Switch PCB Rotary Flush, 150 (Dynamic), 400 (Static) mA, 4-Way, -20 to +70°C Hartmann	228	1: $30.36	PCB	+70°C	Gold Over Nickel Plated Phosphor Bronze	10000Operations	Rotary Flush	4	150 (Dynamic), 400 (Static) mA	DIP	-	-	-	-	-	-	-	-	-	-	-

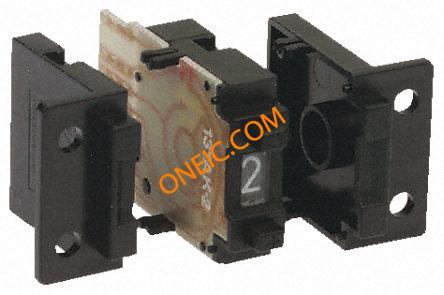

2 DPS8-141-AK2 Rear mount BCD+complement switch Hartmann BCD 码推轮开关, 通孔接端, 面板安装安装, 100 mA @ 40 V dc Hartmann	19	1: $71.99	Panel Mount	+80°C	Gold Over Nickel Plated Copper Alloy	-	Pushwheel	-	-	-	-	BCD	100mΩ	Through Hole	0 至 9	BCD 码	100 mA @ 40 V dc	通孔	0 to 9	-	-
PT65102 DIP Switch PCB Rotary Flush, 150 (Dynamic), 400 (Static) mA, 10-Way, -20 to +70°C Hartmann	2890	10: $19.4534	PCB	+70°C	Gold Over Nickel Plated Bronze	10000Operations	Rotary Flush	10	150 (Dynamic), 400 (Static) mA	DIP	-	-	-	-	-	-	-	-	-	-	-

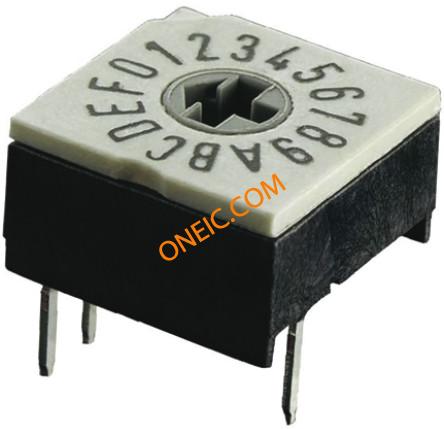

P60A701 DIP Switch PCB, 150 (Dynamic), 400 (Static) mA, 10-Way, -20 to +85°C 4+1 footprint-horizontal BCD switch Hartmann	293	1: $24.98	PCB	+85°C	Gold Over Nickel Plated Stainless Steel	10000Operations	-	10	150 (Dynamic), 400 (Static) mA	-	Compliant	-	-	-	-	-	-	-	-	-	-
2 DPS9-141-AK2 BCD+complement pushbutton edge switch Hartmann BCD 码推轮开关, 通孔接端, 面板安装安装, 100 mA@ 40 V dc Hartmann	219	1: $91.82	Panel Mount	+80°C	Gold Over Nickel Plated Copper Alloy	10⁶Operations	Pushwheel	-	-	-	-	BCD	100mΩ	Through Hole	0 至 9	BCD 码	100 mA@ 40 V dc	通孔	0 to 9	-	-
PT65503 DIP Switch PCB Wheel, 0.4 A, 16-Way, -20 to +70°C Hartmann	116	1: $48.84	PCB	+70°C	Gold Over Nickel Plated Phosphor Bronze	10000Operations	Wheel	16	0.4 A	DIP	-	-	-	-	-	-	-	-	-	-	-
P60A703L508 DIP Switch PCB, 150 (Dynamic), 400 (Static) mA, 16-Way, -20 to +85°C 4+1 footprint-r/a HEX rotary switch Hartmann	287	1: $39.35	PCB	+85°C	Gold Over Nickel Plated Stainless Steel	10000Operations	-	16	150 (Dynamic), 400 (Static) mA	-	Compliant	-	-	-	-	-	-	-	-	-	-
P36101 DIP Switch 10P PCB Rotary Flush, 100 (Dynamic), 400 (Static) mA, 10-Way, -30 to +90°C Hartmann	117	1: $40.54	PCB	+90°C	Gold Over Nickel Plated Stainless Steel	10000Operations	Rotary Flush	10	100 (Dynamic), 400 (Static) mA	DIP	-	-	-	-	-	-	-	-	-	10P	-
PT65103 DIP Switch PCB Rotary Flush, 150 (Dynamic), 400 (Static) mA, 16-Way, -20 to +70°C Hartmann	14580	10: $19.4534	PCB	+70°C	Gold Over Nickel Plated Bronze	10000Operations	Rotary Flush	16	150 (Dynamic), 400 (Static) mA	DIP	-	-	-	-	-	-	-	-	-	-	-
PT65106L254 IP67 DIP Switch PCB Wheel, 16-Way, -20 to +70°C HEXADECIMALTHUMBWHEEL Hartmann	10	1: $31.416	PCB	+70°C	Gold	30000Operations	Wheel	16	-	DIP	RoHS Compliant Part	-	-	-	-	-	-	-	-	-	IP67
PT65303 DIP Switch PCB Rotary Flush, 150 (Dynamic), 400 (Static) mA, 16-Way, -20 to +70°C Hartmann	11606	7: $11.4376	PCB	+70°C	Gold Over Nickel Plated Phosphor Bronze	10000Operations	Rotary Flush	16	150 (Dynamic), 400 (Static) mA	DIP	-	-	-	-	-	-	-	-	-	-	-
